Technical Parameters
Technical Specifications
Model Number: AL-01
Weight Capacity: 90kg (200 lbs)
Frame Material: Upgraded heavy-duty aluminum alloy tubing (2.0mm thickness)
Height Adjustment: 6-step adjustable (150-185cm range)
Handle Design: Ergonomic double-bend design for comfortable grip and standing assistance
Foot Pads: Anti-slip rubber with embedded metal plates

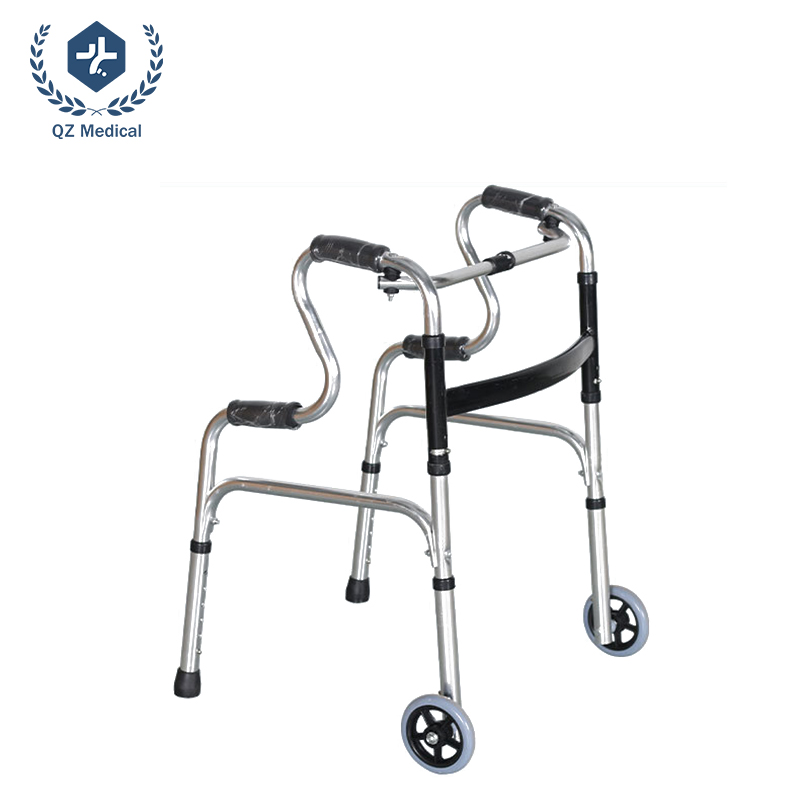

Wheels: Smooth-rolling casters with precision ball bearings
Foldable Mechanism: One-touch button for quick folding
Weight: 2.5kg (5.5 lbs)
Dimensions (Folded): 60×25×20cm
Dimensions (Extended): 185×50×50cm
Material Specifications
Frame: 6063-T5 aluminum alloy, anodized finish
Foot Pads: High-density rubber with embedded metal plates
Wheels: Polyurethane with precision ball bearings
Hardware: Stainless steel fasteners, zinc-plated components
Performance Standards
Durability Testing: 50,000-cycle fatigue testing on all moving components
Load Testing: 120% load capacity verification (108kg)
Safety Compliance: CE marking, ISO 13485:2016 certified
Environmental Rating: IPX4 water resistance, operating temperature -10°C to +50°C
Assembly Time: 2 minutes with one person, tool-free design
Included Accessories
Aluminum alloy walker frame
Anti-slip foot pads with metal plates
Smooth-rolling wheels
One-touch foldable mechanism
User manual (multilingual)
Product Advantage
Dual-Mode Support System

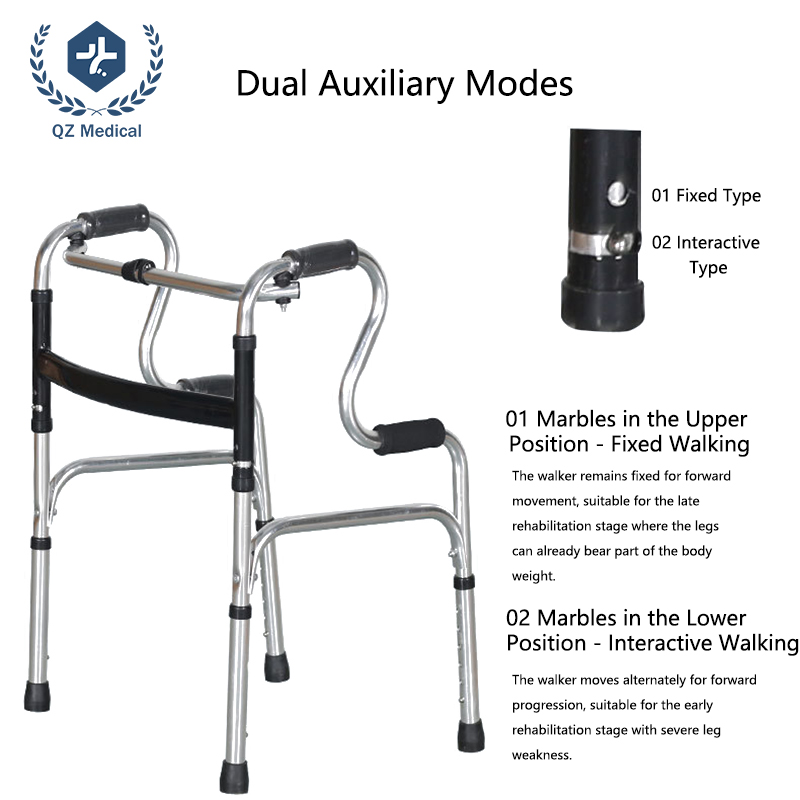

Our innovative dual-mode technology offers both fixed and interactive walking modes, enabling progressive rehabilitation tailored to individual needs. Fixed mode (ball bearing on top) is ideal for advanced rehabilitation stages where users can bear partial weight, while interactive mode (ball bearing on bottom) provides alternating movement assistance for early rehabilitation stages with limited leg strength. This system allows healthcare providers to create customized rehabilitation plans that match each patient's recovery progress.
6-Step Height Adjustment
The ergonomic height adjustment system features a simple button-activated mechanism that allows users to quickly adapt the walker to their height (150-185cm range) by rotating the foot tube to the desired hole. This ensures optimal posture, reduces strain on the user's back and shoulders, and accommodates users of all heights without requiring tools or complex adjustments. The precise adjustment mechanism maintains stability at every height setting.
Upgraded Heavy-Duty Construction
Crafted from reinforced 2.0mm thickness aluminum alloy tubing with H-shaped crossbar design, this walker offers superior strength and durability compared to standard models. The upgraded material prevents bending or warping under load, while the reinforced structure distributes weight evenly across the frame, enhancing stability during use. The lightweight design (2.5kg) makes it easy to handle while maintaining the strength to support up to 90kg (200 lbs) of user weight.
Enhanced Safety Features
The walker includes anti-slip foot pads with embedded metal plates that provide exceptional traction on various surfaces, including wet conditions. The smooth-rolling wheels feature precision ball bearings for effortless movement, and the double-bend handle design provides comfortable grip and assists with standing up from seated positions. These features significantly reduce fall risks and increase user confidence during mobility.
Product Uses
Home Care Settings
For elderly individuals or those with limited mobility living at home, this walker provides safe, independent movement throughout the house. The adjustable height accommodates different household environments, while the anti-slip foot pads and smooth wheels ensure safety on various floor types. The one-touch foldable design makes storage in small spaces easy, and the dual-mode support system aids in progressive rehabilitation at home without requiring professional supervision.
Rehabilitation Centers
Physical therapists and rehabilitation specialists can utilize the dual-mode support system to create customized rehabilitation programs. The fixed mode is ideal for later stages of rehabilitation when patients can bear more weight, while the interactive mode assists in early stages with limited leg strength. The adjustable height and sturdy construction make it suitable for a wide range of patients with varying needs, from post-surgical recovery to chronic mobility issues.
Hospitals and Clinics
This walker is an ideal mobility aid for hospitals and clinics where patients need temporary assistance during their recovery. The lightweight design makes it easy for healthcare staff to handle, while the anti-slip features ensure patient safety. The dual-mode support system allows for a smooth transition from hospital to home care as patients progress in their rehabilitation, reducing the need for multiple types of mobility aids.
Assisted Living Facilities
For senior living communities, this walker provides a reliable mobility solution that enhances residents' independence and safety. The adjustable height accommodates various residents' needs, and the dual-mode support system allows for personalized rehabilitation programs. The foldable design saves storage space in common areas and resident rooms, making it an ideal solution for facilities seeking to provide quality mobility assistance without compromising space or aesthetics.
Community and Outdoor Use
The smooth-rolling wheels and anti-slip foot pads make this walker suitable for outdoor use, including walking in parks or on sidewalks. The lightweight design makes it easy to transport, while the dual-mode support system ensures safety during community activities for individuals with mobility challenges. The compact folded size allows for convenient storage in vehicles or public transportation, extending the walker's usability beyond the home environment.
FAQ
Q1: What safety certifications does this aluminum alloy walker comply with?
A: The Aluminum Alloy Walker complies with international safety standards including CE marking, ISO 13485:2016 for medical devices, and ASTM F2712-15 for mobility aids. It has undergone rigorous testing for stability, load capacity, and durability to ensure it meets the highest safety standards. We provide complete certification documentation for customs clearance in major markets including EU, USA, Canada, Australia, and the Middle East.
Q2: What is the warranty period and what after-sales support services are provided?
A: We offer a comprehensive 2-year warranty on the structural components and 1-year warranty on moving parts and accessories. Our global after-sales network includes authorized service centers in 30+ countries with 72-hour response time for technical support. We provide 24/7 multilingual customer support via email, phone, and WhatsApp, plus regular online training sessions for healthcare facility staff. For bulk orders above 50 units, we offer on-site installation training and preventive maintenance programs.
Q3: How is the product packaged for international shipping and what are the container loading specifications?
A: Each walker is professionally packaged in a reinforced export carton with multi-layer protection: the main frame in a 60×40×30cm carton with internal foam corner protection, and the accessories in a smaller 30×25×20cm carton. Total gross weight per unit: 2.8kg. We optimize packaging for container efficiency - a 40HQ container holds 1,200 units with 95% space utilization. All packaging meets ISTA 3A international shipping standards with moisture-proof treatment and clear handling instructions.
Q4: Can the walker be customized for specific market requirements or institutional specifications?
A: Yes, we offer extensive customization options to meet diverse market needs. Technical customizations include color options (standard silver, black, or custom RAL colors), logo branding on the handles and frame, and additional safety features. For institutional customers, we can integrate facility-specific safety protocols or add custom features. Minimum order for customization is 50 units, with engineering consultation fees waived for orders above 200 units.
Q5: What is the minimum order quantity (MOQ) and typical lead time for bulk shipments?
A: Standard MOQ is 10 units for mixed configurations. For exclusive distributor agreements in new markets, we offer flexible MOQ starting from 5 units with progressive pricing tiers. Standard production lead time is 20-25 working days after order confirmation and deposit payment. For urgent orders, we maintain ready stock of 200 units with 5-7 day dispatch capability. Large volume orders (100+ units) receive priority production scheduling with guaranteed delivery timelines.
Q6: How does the walker perform in wet or slippery conditions and what maintenance is required?
A: The walker features anti-slip foot pads with embedded metal plates that provide excellent traction on various surfaces, including wet conditions. The foot pads are designed to maintain grip even in rainy weather or on slippery floors. The aluminum alloy frame is resistant to corrosion, ensuring long-term durability. Recommended maintenance includes regular cleaning of the foot pads to remove debris, checking the stability of the joints, and ensuring the wheels are free from obstructions.
Q7: What training and technical documentation is provided for healthcare facility staff?
A: We provide comprehensive training and documentation packages tailored for institutional use. Standard documentation includes multilingual user manuals (English, Spanish, French, German, Arabic), detailed assembly guides, and maintenance schedules. Training resources include step-by-step video tutorials covering all functions and safety procedures, interactive 3D assembly simulations accessible via QR codes, and downloadable PowerPoint presentations for staff training sessions. For orders above 20 units, we offer live virtual training sessions via Zoom/Teams with certified product specialists.
Q8: What payment terms, shipping options, and customs clearance assistance are available for international orders?
A: We offer flexible payment terms: 30% deposit with 70% balance before shipment (T/T), irrevocable letter of credit at sight (L/C), and for established partners with 2+ years cooperation, 60-day credit terms. Shipping options include FOB Shanghai ports, CIF to destination ports worldwide, and DDP door-to-door delivery with full customs clearance assistance. We partner with premium freight forwarders offering real-time shipment tracking, cargo insurance up to 110% of goods value, and dedicated customs brokers in major destination countries.
