Technical Parameters
Product Type: Five Function Electric Nursing Bed

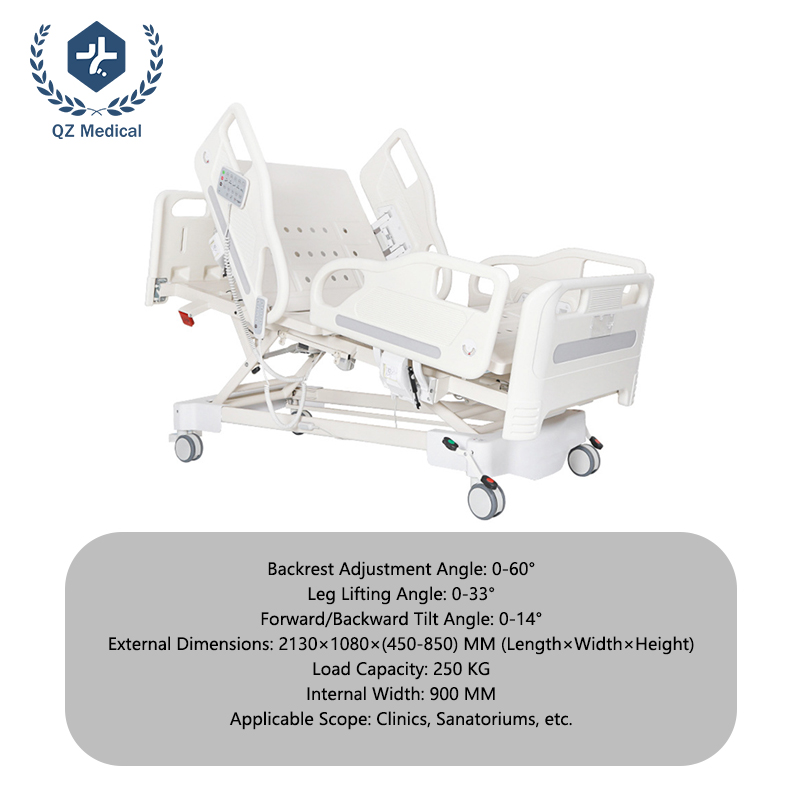

Backrest Adjustment: 0–60°
Leg Elevation: 0–33°
Trendelenburg / Reverse Trendelenburg: 0–14°
Height Adjustment Range: 450–850 mm

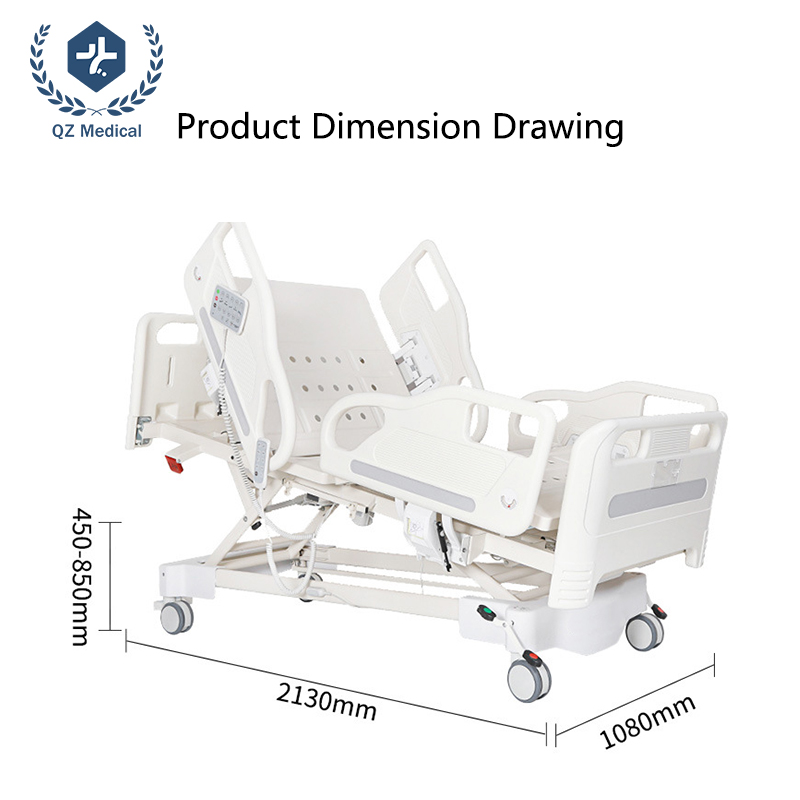

Overall Dimensions: 2130 × 1080 × 450–850 mm
Inner Bed Width: 900 mm
Frame Material: Powder-coated steel structure
Bed Platform: Integrated stamped steel surface
Headboard / Footboard: ABS material, detachable hanging design
Side Rails: Four-piece adjustable ABS side rails
Castors: Silent medical castors with independent brakes
Maximum Load Capacity: 250 kg
Application Areas: Clinics, nursing homes, rehabilitation centers
Technical Specifications
Weight Capacity: 250kg (551lbs)
Frame Material: Steel (40×80×2.0mm tubing)
Bed Dimensions (Expanded): 2130×1080×(450-850)mm (outer) / 1950×900×(450-850)mm (inner)
Backrest Angle: 0°-60°
Leg Elevation Angle: 0°-33°
Tilt Function: 0°-14° forward/backward
Wheel Type: Silent braking wheels (150mm diameter)
Weight: 98kg
Material & Safety Features
Guardrails: Four-piece ABS (adjustable height: 0-33°, 1.5mm thickness)
Bed Surface: Cold-rolled steel (1.5mm, anti-slip texture)
Frame Coating: Anti-corrosion powder coat (acid/alkali resistant)
Safety: Anti-pinch guardrails, 250kg load test, rounded edges
Compliance: ISO 10022:2020, CE, EN 12531:2016, FDA 21 CFR 880.6000
Product Advantage

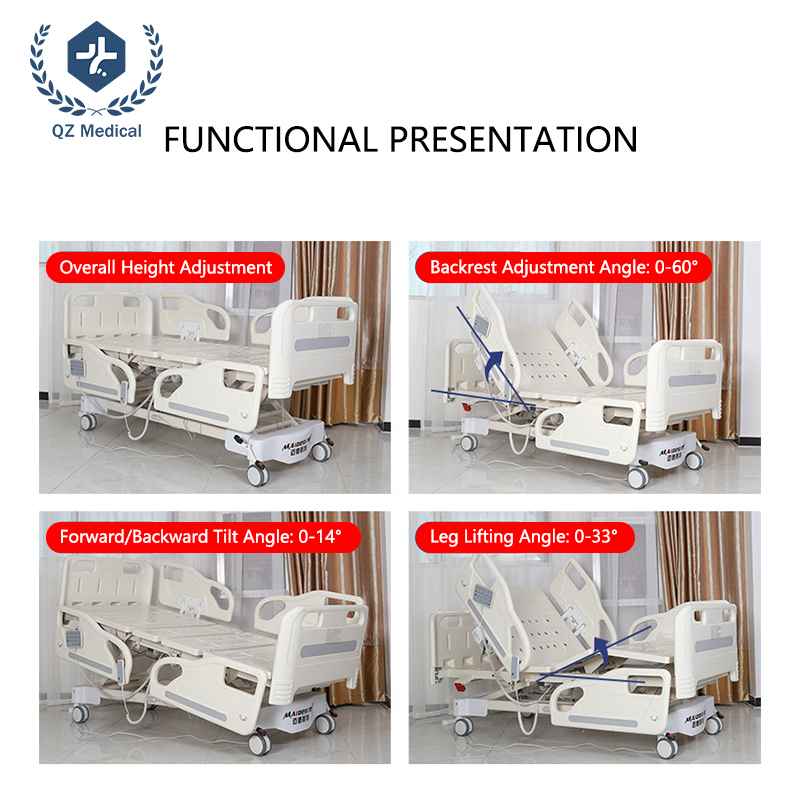

Five Function Electric Adjustment System
This nursing bed integrates five essential electric functions, including overall height adjustment, backrest adjustment, leg elevation, Trendelenburg, and reverse Trendelenburg positioning. These functions support patient care, rehabilitation positioning, and emergency medical needs.
Reinforced Powder-Coated Steel Structure
The bed frame is constructed from thickened steel tubing with powder-coated surface treatment, offering excellent load-bearing capacity and corrosion resistance. The reinforced structure supports a maximum load of up to 250 kg and ensures long-term stability in institutional environments.
ABS Headboard and Footboard Design
The bed features detachable ABS headboard and footboard with a hanging installation design, allowing easy assembly, maintenance, and cleaning. Rounded edges improve safety during daily use.
Four-Piece ABS Side Rails for Full Protection
Equipped with four height-adjustable ABS side rails, the bed provides full perimeter protection to reduce the risk of patient falls. Anti-pinch folding mechanisms ensure safe operation for caregivers and patients.
Silent Medical Castors with Braking
High-quality silent castors made from durable ABS material allow smooth movement with low noise. Each castor includes an independent brake to ensure secure positioning during nursing care.
Stable Lifting Mechanism
The lifting system adopts an arch-shaped support structure, providing smooth and stable vertical movement without shaking, even during frequent adjustments.
Medical-Grade Bed Platform
The integrated stamped steel bed platform features reinforced steel plates with ventilation holes, enhancing durability and air circulation for patient comfort.
Product Uses
Clinics and Medical Centers
Suitable for daily patient care, examinations, and recovery support in outpatient and inpatient environments.
Nursing Homes and Rehabilitation Facilities
Provides safe and adjustable positioning for elderly residents and rehabilitation patients.
Long-Term Care Institutions
Supports long-term nursing operations with stable structure and essential electric functions.
Healthcare Project Procurement
Ideal for bulk purchasing, tenders, and distributor supply for institutional healthcare projects.
FAQ
Q1：What functions does this electric nursing bed support?
A: It supports five functions: height adjustment, backrest adjustment, leg elevation, Trendelenburg, and reverse Trendelenburg.
Q2：Is this bed suitable for institutional use?
A: Yes. It is designed for clinics, rehabilitation centers, nursing homes, and other healthcare institutions.
Q3：What is the maximum load capacity of the bed?
A: The bed supports a maximum load of up to 250 kg.
Q4：Are the side rails safe for patients?
A: Yes. The four-piece ABS side rails provide full protection and include anti-pinch folding designs.
Q5：Is the bed easy to move and fix in place?
A: Yes. Silent medical castors with independent brakes allow easy movement and stable positioning.
Q6：What materials are used in the bed structure?
A: The bed frame is made of powder-coated steel, with ABS headboard, footboard, and side rails.
Q7：Does the bed support emergency positioning?
A: Yes. Trendelenburg and reverse Trendelenburg functions support emergency and clinical positioning needs.
Q8：Do you support OEM or bulk orders for distributors?
A: Yes. We provide OEM services and support bulk supply for international distributors and healthcare projects.
