| Quantity: | |
|---|---|
Technical Parameters
Technical Specifications
Model Number: HR-WK2025
Max User Weight: 200 lbs (90kg)
Structural Test Load: Higher than 200 lbs
Frame Material: High-carbon steel, reinforced tubing
Net Weight: 25.8 kg (56.9 lbs)
Gross Weight: 32 kg (70.5 lbs)

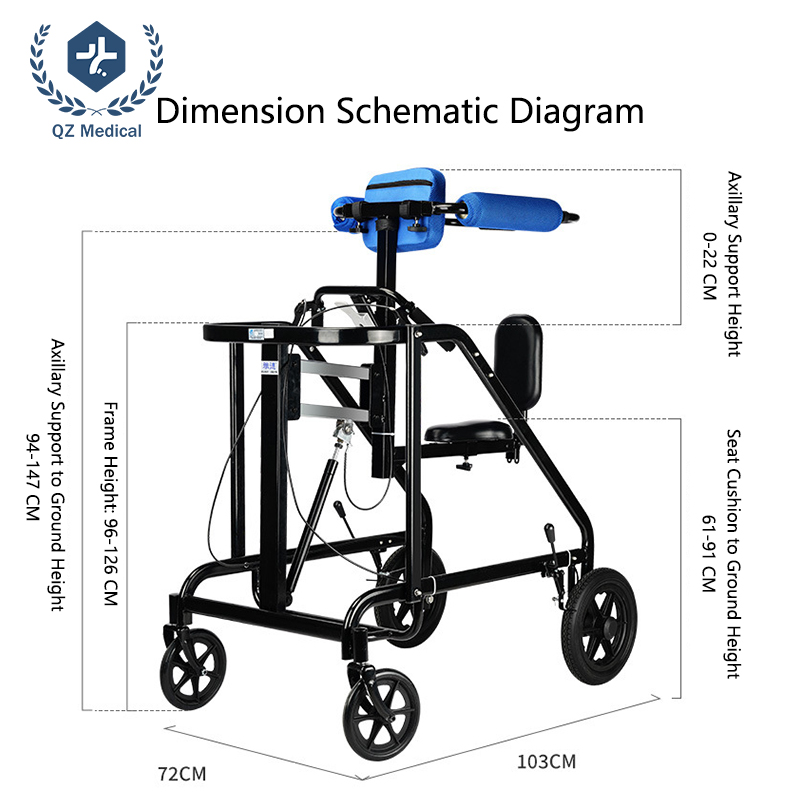

Height Range: Adjustable 96–126cm (air-pressure lift)
Width Range: Adjustable 28–44cm (side rails)
Folded Dimensions: N/A (does not fold)
Front Wheels: 8" swivel casters
Rear Wheels: 12" fixed-direction casters with brake
Seat Type: Suspension seat with PVC sponge cushion
Safety & Compliance
Standards: ISO 11199-2, CE (MDR 2017/745), ASTM F2523
Fatigue Tested: 10,000+ cycles
Operating Temp: -10°C to +50°C
Included Accessories
Main frame assembly
Integrated suspension seat
User manual with QR video guide
Air-pressure lift adjustment kit
Product Advantage
360° Surround Support for Maximum Stability & Comfort
Traditional walkers often lack adequate lateral stability, leading to falls or discomfort. This hemiplegia recovery walker offers full-body envelopment with anti-tipping handles that secure the upper body during standing exercises. The high-carbon steel frame supports up to 200 lbs, ensuring robust durability even under heavy use. Its low center of gravity (total weight 51.6 lbs) further enhances stability, preventing side flips—a common issue for users with balance impairments.

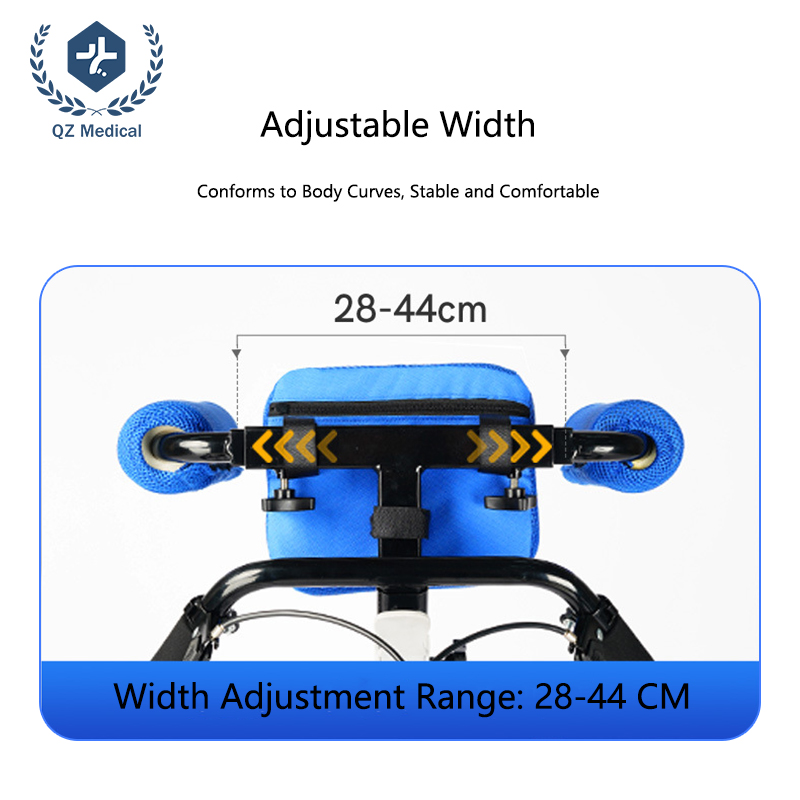

Quick-Adjust Height & Width for Personalized Fit
No more fumbling with multiple levers or tools. This walker features one-touch air-pressure height adjustment (96–126cm), allowing users to quickly find their optimal standing position without strain. The width is also adjustable from 28 to 44 cm, accommodating various body sizes comfortably. Whether you're slim or plus-size, this walker adapts to your needs, ensuring a snug yet supportive fit.
Suspension Seat for Reduced Leg Strain During Walking Exercises
The innovative floating seat design distributes weight evenly across the thighs and hips, minimizing pressure on the knees and ankles. The PVC sponge cushion provides extra comfort during short rests, while the air-pressure lift mechanism enables smooth height adjustments—even when fully loaded. Users can easily transition between standing, walking, and sitting exercises, promoting continuous muscle engagement and faster recovery.
Product Uses
Post-Stroke Rehabilitation: Standing & Walking Training
After a stroke, patients face significant challenges regaining motor function. This walker helps by providing steady support for initial standing attempts, reducing the risk of falls. The large 12-inch rear wheels ensure smooth transitions over carpets, thresholds, and outdoor terrain, making it ideal for home-based rehab programs. Use it for standing exercises, gait training, and correcting improper walking patterns—all critical steps in the recovery journey.
Elderly Mobility & Fall Prevention
For elderly users with limited mobility due to arthritis, osteoporosis, or other conditions, maintaining independence is key. The walker’s multi-functionality allows for seamless transitions between sitting, standing, and walking, encouraging regular exercise and social interaction. The easy-to-operate hand brakes provide peace of mind, enabling users to control speed and stop safely—whether navigating narrow hallways or bustling public spaces.
Injury Recovery & Muscle Strengthening
Patients recovering from leg injuries benefit from the walker’s assisted walking feature, which promotes gradual weight-bearing and muscle strengthening. The suspension seat reduces joint stress during extended sessions, while the adjustable height accommodates growing strength levels. Physical therapists recommend it as a rehabilitation aid, supporting both lower and upper body conditioning.
FAQ

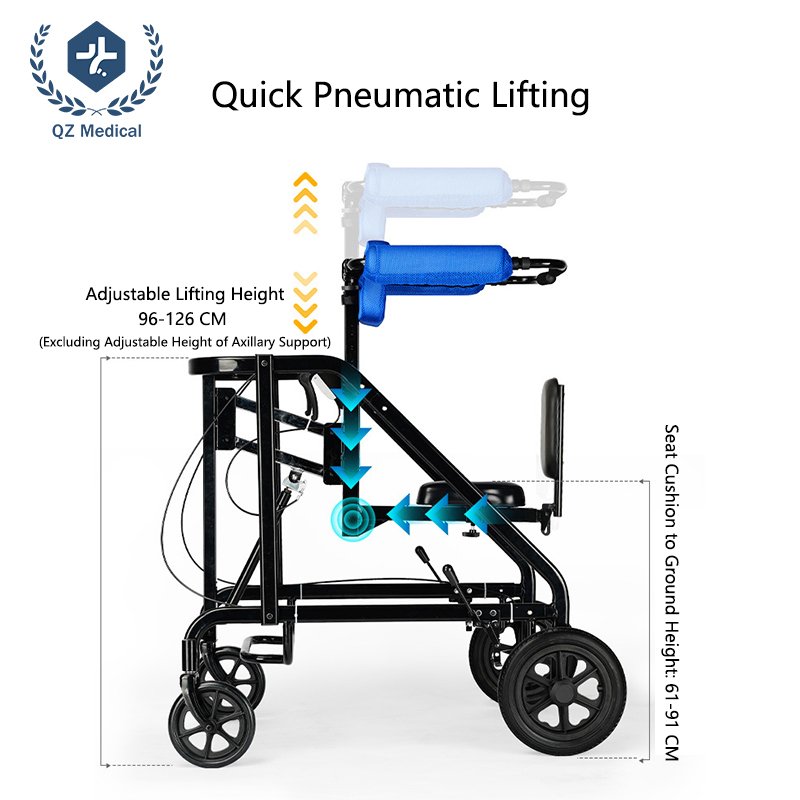

Q1: How does the air-pressure lift system work? Is it easy to operate?
A: Yes, very user-friendly. Press the button to activate the air-pressure lift mechanism, then gently press down on the seat to lower its height. The infinite adjustment range (96–126cm) allows precise customization without any physical effort—ideal for users with weak hands or limited mobility.
Q2: What certifications does this product hold for international distribution?
A: Full compliance with ISO 11199-2, CE marking, FDA Class I registration, and RoHS/REACH standards. We provide Declaration of Conformity, test reports, and bilingual labeling templates for EU, North America, Australia, and Middle East markets.
Q3: Can it be used outdoors on uneven surfaces?
A: Designed primarily for indoor use but performs well on paved outdoor paths. The 12-inch rear wheels handle rougher terrains like gravel or grass better than standard walkers. However, for deep mud or sand, we recommend using it mainly on hard surfaces.
Q4: Is the seat removable or washable?
A: The PVC sponge cushion is non-removable but wipe-clean with mild soap and water. It resists moisture and sweat, ensuring hygiene over prolonged use. Replacement cushions are available as spare part #SC-01.
Q5: What’s the container loading capacity and packaging specs?
A:
Carton size: 110×75×30 cm
Gross weight: 32 kg/unit
40HQ container: 50 units
Packaging includes internal foam, corner protectors, and desiccant—certified to ISTA 3A for global shipping resilience.
Q6: Can we private-label or customize colors for senior care chains?
A: Yes. Options include:
Frame colors: Silver (standard), black, navy, burgundy
Logo: Laser engraving on crossbar or pad base
Branding: Custom box, multilingual manuals (EN/ES/FR/DE/AR)
MOQ: 50 units. Free engineering support for orders >200 units.
Q7: How does the width adjustment work? Is it tool-free?
A: Yes—tool-free. The side rails feature push-button telescopic joints that slide smoothly between preset widths (28–44cm). Locking pins auto-engage for secure fit. Adjustment takes <5 seconds and requires minimal hand strength—ideal for arthritic users.
Q8: Is the 200 lbs user weight limit reliable? You mention a high structural rating.
A: Yes. The recommended user limit is 200 lbs (90kg) for dynamic safety during walking, sitting, or uneven terrain. The frame itself is tested to higher loads under ISO 11199-2 static load standards—ensuring long-term durability. This conservative rating aligns with EU/US medical device guidelines to prioritize end-user safety.
