Technical Parameters
Product Type:Portable Braille Notetaker
Processor :ARM
Braille Display:16-cell 8-dot Braille display
Braille Keyboard:8 Braille input keys
Function Keys:4
Navigation Keys:2
Cursor Routing Keys:16
Connectivity:USB / Bluetooth
Expansion Storage:MicroSD card
Interfaces:Mini USB / USB / MicroSD slot
Battery:750mAh lithium-ion battery
Standby Time:Up to 10 hours
Auto Sleep:1 minute inactivity
Auto Power Off:1 hour inactivity
Supported Languages:English, Italian, French, Arabic, Chinese
Dimensions:165 × 95 × 28 mm
Weight:330g
Product Type: Aluminum Underarm Crutch
Frame Material: Aluminum alloy
Surface Treatment: Anodized silver finish
Structure: Double-extruded center tube
Height Adjustment: Adjustable
Foot Tip: Anti-slip rubber bushes
Available Sizes:
Small: 90–110 cm
Middle: 110–130 cm
Large: 130–150 cm
Application Areas: Rehabilitation, hospitals, clinics, home care
Product Advantage

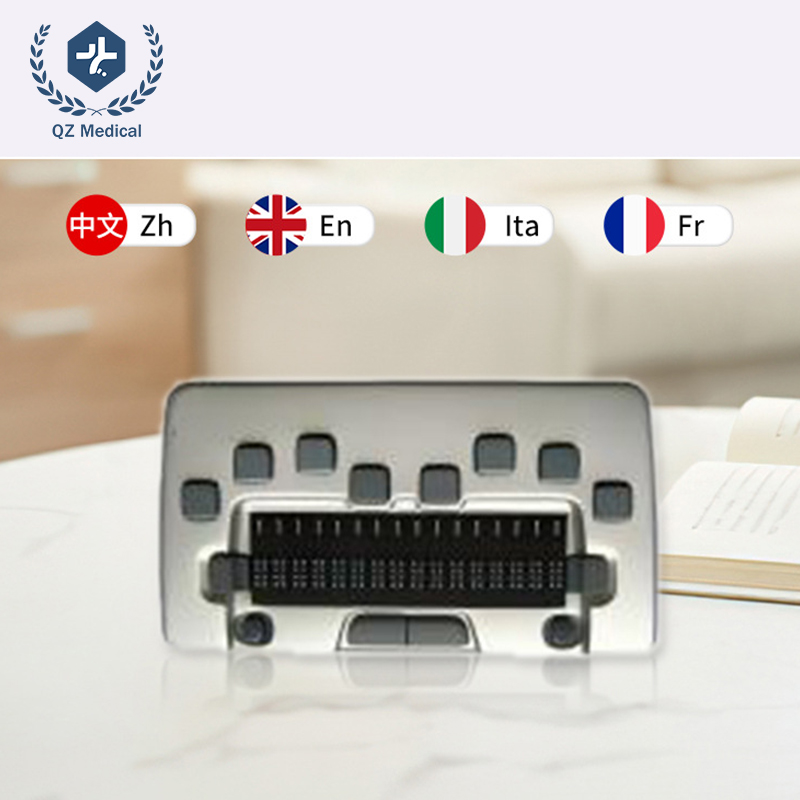

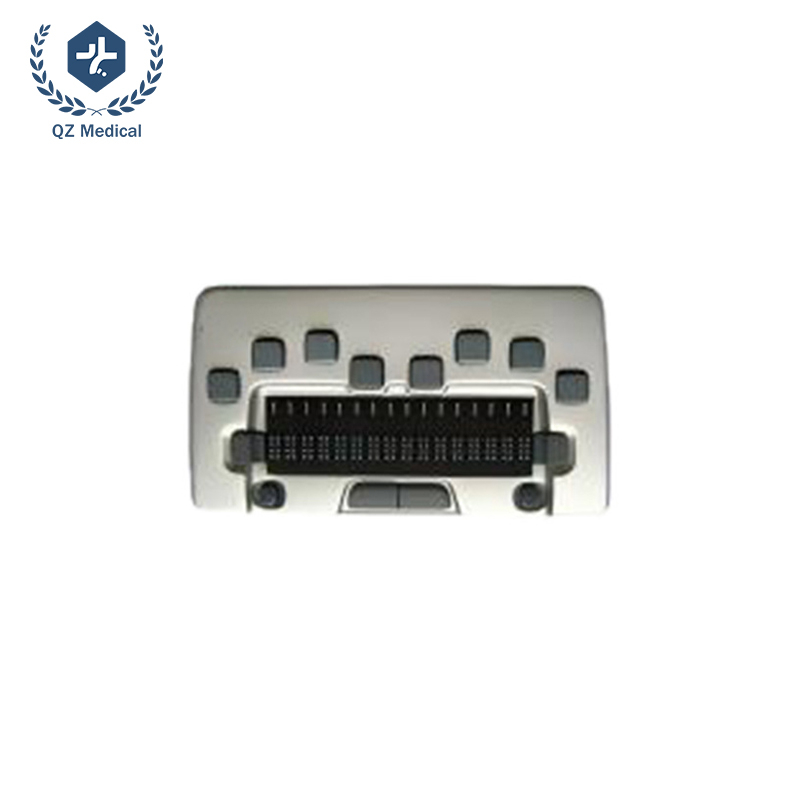

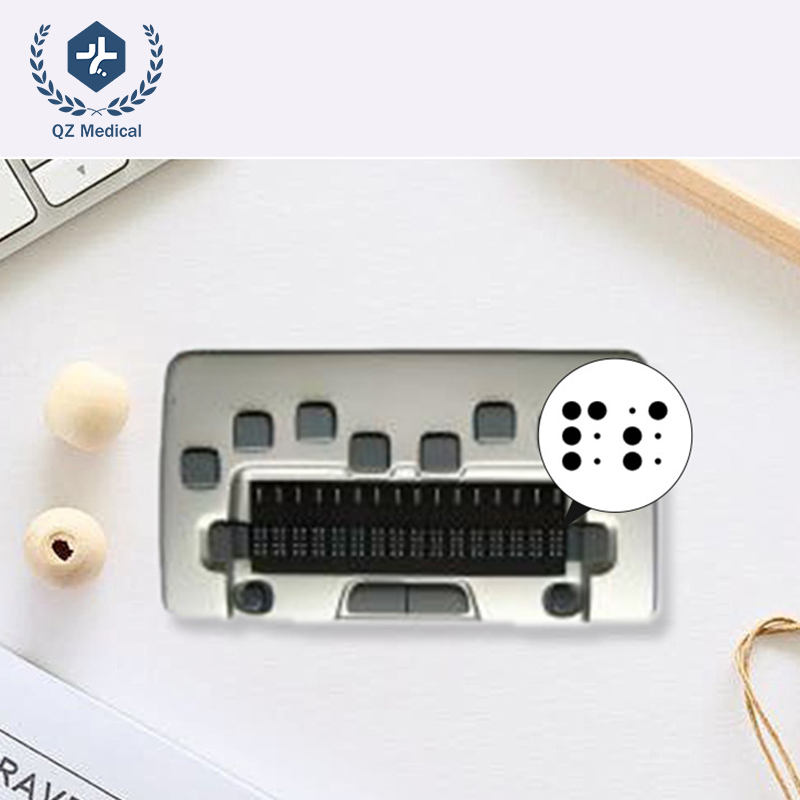

16-Cell 8-Dot Braille Display
Equipped with a 16-cell refreshable 8-dot Braille display for accurate Braille reading and information output.
Integrated Braille Keyboard
Features 8 Braille input keys for efficient Braille typing and navigation.
Multi-Function Control Keys
Includes:
4 function keys
2 navigation keys
16 cursor routing keys
Designed for convenient operation and fast access to system functions.
Portable Lightweight Design
Compact and lightweight structure suitable for mobile use, study, office work, and travel.
USB & Bluetooth Connectivity
Supports:
USB connection
Bluetooth wireless connection
Compatible with smartphones, tablets, and computers for screen reader access.
Multiple Expansion Interfaces
Supports:
Mini USB
USB
MicroSD card slot
Allows flexible file storage and data transfer.
Built-In Practical Functions
Integrated functions include:
Notepad
File management
Reading mode
USB screen reader
Bluetooth screen reader
Clock
Calculator
Automatic Sleep & Power Saving
Automatically enters sleep mode after 1 minute of inactivity
Automatically powers off after 1 hour without operation
Improves battery efficiency and extends usage time.
Multi-Language Support
Supports multiple languages including:
English
Italian
French
Arabic
Chinese
Long Battery Life
Built-in 750mAh lithium-ion battery supports up to 10 hours of standby time.
Product Uses
Educational Accessibility
Suitable for visually impaired students for Braille reading, note-taking, and digital learning.
Office & Workplace Use
Supports document reading and computer accessibility for professional working environments.
Mobile Accessibility
Portable design enables convenient use during travel and daily outdoor activities.
Rehabilitation & Assistive Technology
Suitable for rehabilitation centers, accessibility projects, and assistive technology distribution.
FAQ
Q1: How many Braille cells does the device support?
A: The device features a 16-cell 8-dot refreshable Braille display.
Q2: Does the device support Bluetooth connectivity?
A: Yes. It supports Bluetooth wireless connection for smartphones and computers.
Q3: Can it connect to screen readers?
A: Yes. The device is compatible with multiple screen reader software platforms via USB and Bluetooth.
Q4: What built-in functions are included?
A: Functions include notepad, file management, reading mode, calculator, clock, and screen reader support.
Q5: Does the device support external storage?
A: Yes. It supports MicroSD card expansion.
Q6: How long does the battery last?
A: The built-in 750mAh lithium battery supports approximately 10 hours of standby time.
Q7: Is the device suitable for portable use?
A: Yes. The compact size and lightweight 330g design make it convenient for travel and daily use.
Q8: Which languages are supported?
A: The device supports English, Italian, French, Arabic, and Chinese.
