Engineered for smart senior mobility, airline travel convenience, and rehabilitation care, this APP-Controlled Folding Electric Wheelchair combines advanced digital control with human-centered ergonomics. Manufactured in our ISO 13485, CE, and FDA certified medical device facility, it features a lightweight aviation-grade aluminum alloy frame weighing 27 kg while supporting a maximum user weight of 100 kg. Outfitted with an S-shaped anatomical backrest for spinal relief, triple control modes (360° joystick, smartphone APP, and a 10-meter wireless remote control), motorized electric recline, upgraded dual 250W aluminum-casing motors, front and rear spring shock absorbers, and an EABS electromagnetic automatic braking system, this power chair represents a high-margin OEM/ODM supply solution for global medical distributors and mobility retailers.
| Quantity: | |
|---|---|

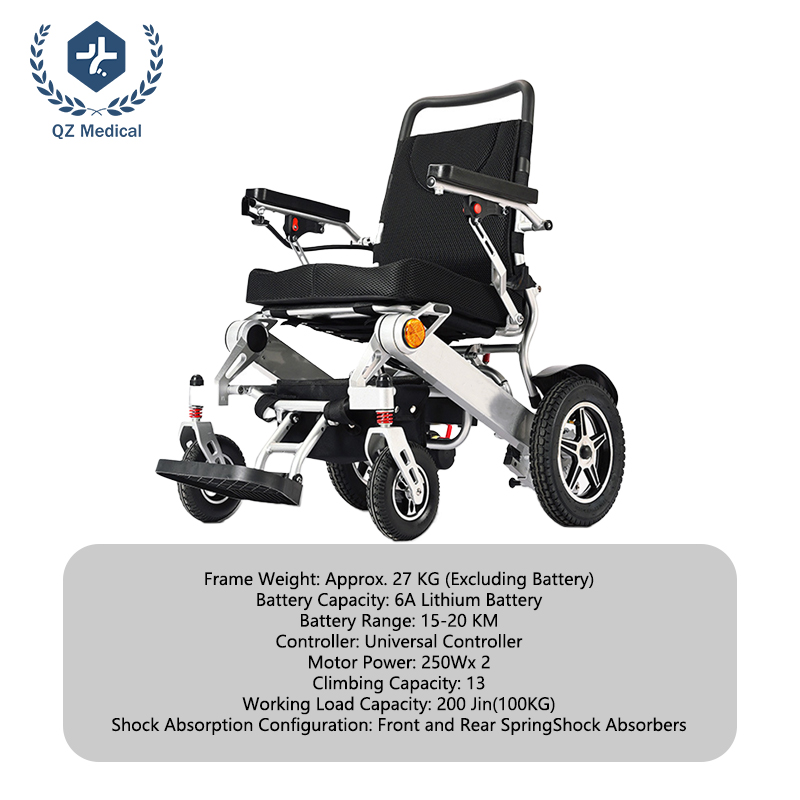

Technical Parameters
Product Type: APP Controlled Folding Electric Wheelchair with Recline
Primary Target Market: Senior Mobility, DME Stores, Rehabilitation Clinics, E-Commerce Retailers
Main Frame Material: High-Strength Aviation-Grade Aluminum Alloy Frame
Motor Drive System: Dual 250W Brushless Aluminum-Casing High-Torque Motors (160 RPM)
Battery Specification: 24V 6Ah Medical-Grade Lithium Battery (UN38.3 & MSDS Certified)
Control Systems: 360° IPX5 Waterproof Joystick (Left/Right Convertible) + Smartphone APP + 10m Wireless Remote
Braking System: EABS Electromagnetic Automatic Brake (Instant Release-to-Stop & Slope-Hold)
Suspension System: Front & Rear Heavy-Duty Spring Shock Absorbers

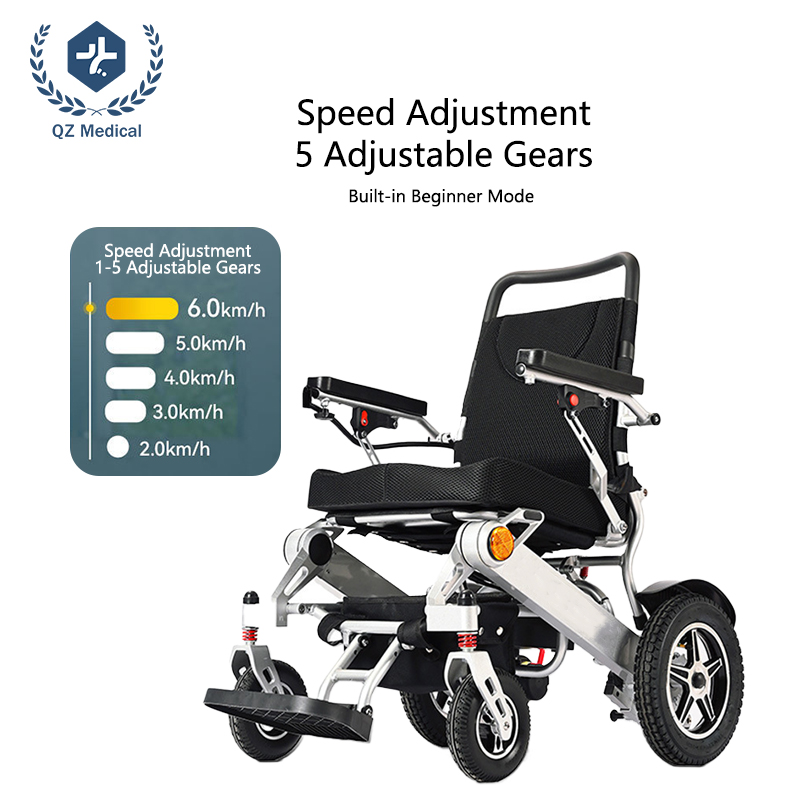

Speed Modes: 5 Adjustable Speed Levels (Up to 6.0 km/h) with Beginner Mode
Reclining Function: Motorized Backrest Angle Adjustment
Driving Range: 15 – 20 km (Depending on terrain and user weight)
Climbing Ability / Obstacle Clearance: ≤ 13° Incline / Up to 4 cm Step Clearance

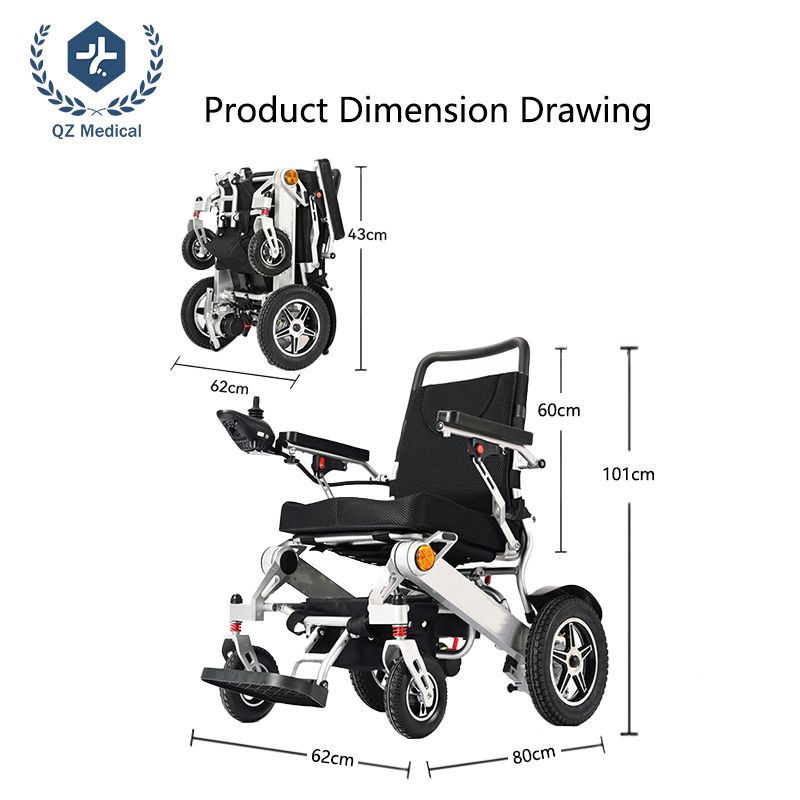

Unfolded Dimensions (L×W×H): 800 × 620 × 1010 mm
Folded Dimensions (L×W): 630 × 420 mm
Frame Net Weight: ~27 kg (Excluding Battery)
Maximum Weight Capacity: 100 kg (200 lbs)
Safety Features: Flip-Up Dual Armrests, Reversing Horn, Rear Anti-Tip Wheels, Reflective Frame Panels, Adjustable Seat Belt, Bottom Storage Basket
Manufacturing Standards: Direct Factory Supply, CE, FDA, ISO 13485 Certified
Customization (OEM/ODM): Frame color, battery capacity, logo printing, app interface branding, export carton
Export Packaging: Protective Compact Master Carton (Container Freight Loading Density Optimized)
Product Advantage
S-Shaped Ergonomic Spine-Relief Backrest & Heavy-Duty Aluminum Frame
Features an anatomical S-curved backrest profile meticulously contoured to support the thoracic spine, cradle the cervical neck, and relieve lumbar pressure during prolonged sitting. The frame is constructed from premium aviation-grade aluminum alloy with a protective powder finish that resists corrosion and bending.
Triple Smart Control: Smartphone APP, 10m Wireless Remote & Motorized Recline
Offers three versatile operating modes: a 360° universal joystick controller (convertible for left/right hand installation with IPX5 waterproof rating), a handheld smartphone APP control system, and a 10-meter wireless remote control that allows caregivers to drive or adjust the motorized backrest recline angle remotely.
EABS Electromagnetic Brake & Dual 250W High-Torque Aluminum-Casing Motors
Driven by dual upgraded 250W brushless aluminum-shell motors (upgraded to 160 RPM) that deliver high torque, low noise, and superior heat dissipation for steep 13° inclines. The EABS electromagnetic smart brake locks wheels instantly the moment hands release the controller, preventing roll-back on steep ramps and obstacles up to 4 cm high.
Airline-Approved 24V Medical-Grade Lithium Battery (UN38.3 & MSDS Certified)
Powered by a high-safety 24V 6Ah medical-grade lithium battery pack featuring comprehensive circuit protections (overcharge, short-circuit, thermal, and over-discharge). Fully certified under UN38.3 and MSDS transport standards, making it 100% compliant for commercial airline flights, subways, and high-speed rail travel.
Front & Rear Spring Suspension with Luggage-Style Compact Folding
Upgraded with dual front and rear spring shock absorbers to smooth out bumps on brick roads, speed humps, and gravel paths. The chair folds down within seconds to a compact suitcase profile (63 × 42 cm), fitting easily into standard vehicle trunks or tight home storage spaces.
Factory-Direct OEM/ODM Customization, Quality Compliance & Shipping Density
Manufactured under strict ISO 13485 medical quality protocols, every unit undergoes frame fatigue testing, battery safety cycle checks, and motor torque evaluations. As a direct manufacturer, we offer full OEM/ODM customization—including frame colors, battery capacity options, custom joystick software languages, private-label branding, and export master cartons engineered for container loading density.
Product Uses
Active Senior Travel & Airline Flight Transit
Enables elderly individuals to travel independently by air, rail, or personal vehicle, using UN38.3 airline compliance and easy trunk storage.
Assisted Living Facilities, Rehabilitation Wards & Nursing Care
Allows caregivers to maneuver patient chairs remotely via a 10-meter wireless controller or smartphone APP, reducing physical pushing strain.
Pharmacy Chains, DME Stores & E-Commerce Retailers (Amazon/Shopify)
A feature-packed, high-value consumer power wheelchair ideal for retail showrooms and online stores seeking smart mobility offerings.
Government Healthcare Procurement & Senior Welfare Tenders
A certified, highly reliable smart electric wheelchair candidate well-suited for public health procurement tenders and international disability welfare distribution.
FAQ
Q1: What are the three control modes supported by this smart electric wheelchair?
A: Users can operate the chair via the 360° IPX5 waterproof joystick controller mounted on the armrest, a smartphone APP for wireless driving, or a dedicated 10-meter wireless remote control unit.
Q2: What is the benefit of the S-shaped ergonomic backrest?
A: The anatomical S-curve mirrors the human spinal column, providing targeted support for the cervical neck, thoracic spine, and lumbar lower back to prevent fatigue and pressure sores during long sitting periods.
Q3: Is the lithium battery certified for commercial airline travel?
A: Yes. The 24V 6Ah medical-grade lithium battery carries full UN38.3 and MSDS safety certification, meeting international airline regulations for air passenger transport.
Q4: How does the EABS electromagnetic brake system ensure user safety on ramps?
A: The EABS system automatically engages magnetic brakes the moment the user or caregiver releases the joystick or remote control, locking the wheels firmly in place on slopes up to 13° without rolling backward.
Q5: What are the motor specs, climbing capacity, and suspension features?
A: The chair is powered by dual 250W aluminum-casing high-torque motors (160 RPM) that cross steps up to 4 cm high and climb angles up to 13°. Smooth driving is ensured by dual front and rear spring shock absorbers.
Q6: Can the wheelchair be operated manually by a caregiver?
A: Yes. By flipping the red manual/electric lever switch at the rear motor hub, caregivers can disengage the electric drive and push the chair manually as a standard transport chair.
Q7: What OEM/ODM customization options are supported for bulk wholesale orders?
A: As an ISO 13485 certified manufacturer, we offer full OEM/ODM services—including custom frame finishes, private label logo placement, custom battery capacity upgrades, controller language localization, and export flat-pack master cartons.
Q8: What quality certifications do your smart electric wheelchairs hold for export?
A: Our smart power wheelchairs strictly comply with global medical device standards and hold CE, FDA, and ISO 13485 certifications for seamless customs clearance worldwide.
