Five Function Electric Care Bed with Dual Decks | Factory OEM

• Product Model: QME-LTC5/002 Series

• Product Type: 5-Function Electric Long-Term Care Bed (Corded Electric with Dual Deck Options)

• Primary Target Market: Senior Nursing Homes, Assisted Living Communities, Home Healthcare, DME Wholesalers

• Mattress Platform Deck Options:

• Option 1: Heavy-Duty Welded Steel Wire Mesh Grid Deck (Enhanced Airflow & Moisture Dissipation)

• Option 2: Reinforced Flat Cold-Rolled Steel Slats Deck (Rigid Flat Support & Easy Disinfection)

• Power Source / Supply: Corded Electric (Direct AC Plug-In: 110V–240V, 50/60Hz; North American NEMA Plug Configured; Non-Battery Standard)

• Battery Backup Option: Optional Emergency Backup Battery System Available Upon Request

• Overall Outer Dimensions (L×W×H): Approx. 2080 × 980 × 380–720 mm (Vertical Height Adjustable)

• Mattress Platform Deck Dimensions (L×W): 1880 × 880 mm (±5 mm)

• Safe Working Load (SWL): 300 kg (Approx. 660 lbs / 600 lbs Certified)

• Backrest Elevation Range: 0° – 70° (±3°) (Motorized Electric Adjustment)

• Calf / Knee Elevation Range: 0° – 8° (±1°) (Motorized Electric Adjustment)

• Height Adjustment Travel: 380 mm – 720 mm (Vertical Hi-Low Electric Lift)

• Tilt Functions: Motorized Trendelenburg & Reverse Trendelenburg Tilt

• Hand Pendant / Controller: Multi-Function Wired Ergonomic Remote Pendant with Key Function Graphics

• Head & Foot Boards: Removable Composite Boards with Natural Wood-Grain Laminate & Smooth Protective Edges

• Safety Side Rails: Pair of Collapsible Steel Guardrails Topped with Warm Contoured Wooden Handrails

• Mobility & Casters: 4 × 3-Inch (75 mm) Heavy-Duty Swivel Casters with Individual Step-On Foot Brakes

• Unit Gross Weight (G.W.): 81.0 kg / Unit

• Target Project Order Scope: 400 Complete Sets Capacity

• Export Packaging: 5-Ply Reinforced Corrugated Master Carton with Custom EPS Protective Foam

• Container Loading Capacity: 88 Complete Sets / 40'HQ Container (400 sets: 4 × 40'HQ [352 sets] + 1 × 20'GP [48 sets])

• Standard Production Lead Time: 25 – 35 Business Days

• Warranty & Spare Parts Policy: 2-Year Frame Warranty, 1-Year Actuator Warranty, 1% Free Wearing Spare Parts for FCL Orders

• Regulatory Compliance: ISO 13485 Certified Medical Quality Management, CE (Class I), FDA Registered, North American Patent-Safe Design

Dual Mattress Platform Deck Options: Wire Mesh Grid vs. Flat Steel Slats

To provide flexibility across institutional tenders and domestic retail distribution, the QME-LTC5/002 is engineered with two selectable, fully certified mattress platform styles (1880 × 880 mm ±5 mm):

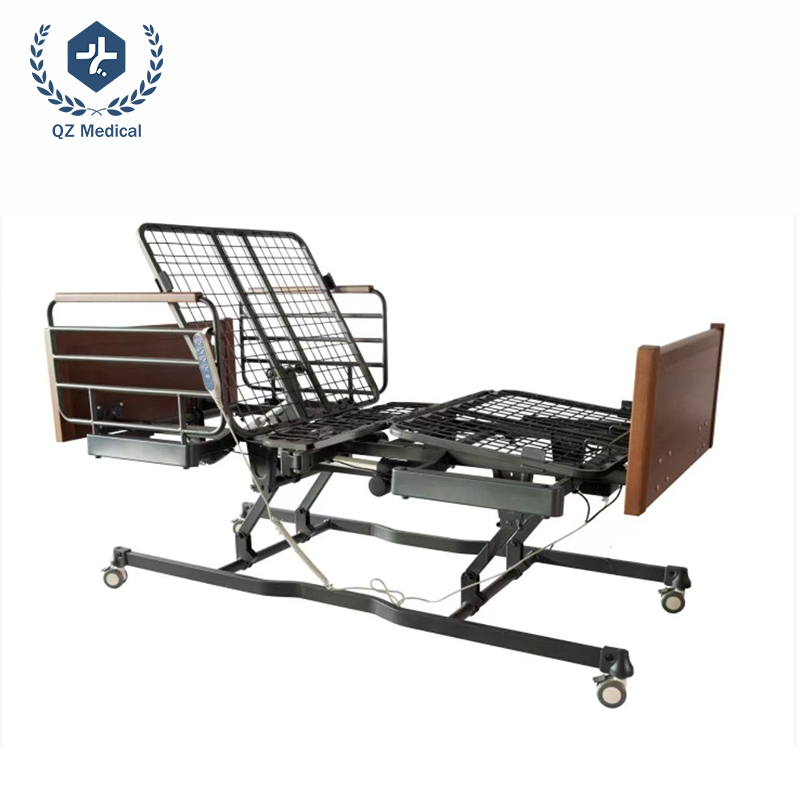

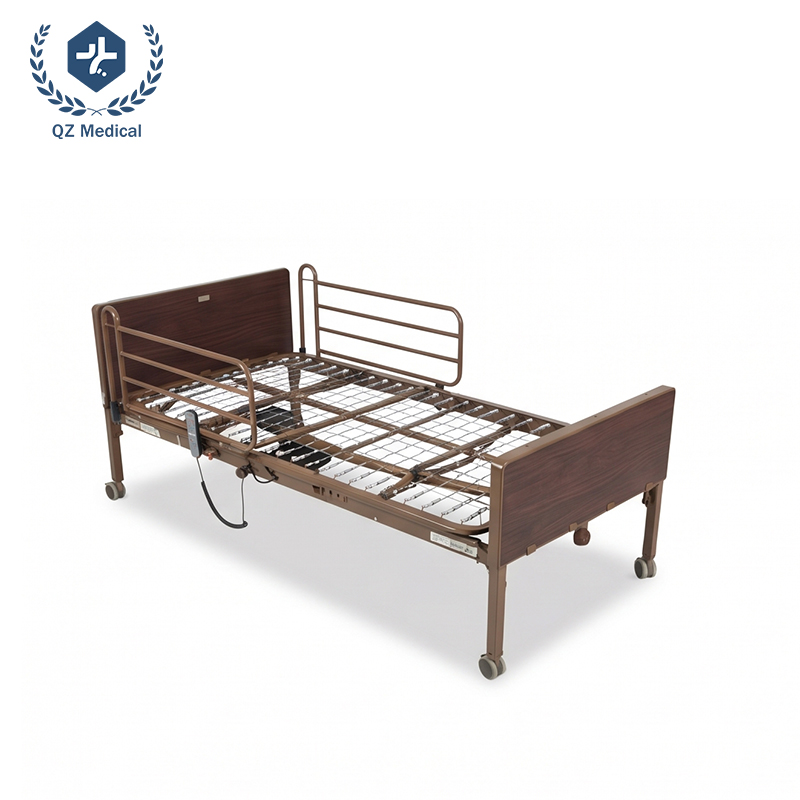

• Option A: Heavy-Duty Welded Steel Wire Mesh Grid Deck: Delivers continuous 360° air circulation, rapidly dissipating body heat and mattress moisture to safeguard fragile skin against pressure ulcers and tissue maceration.

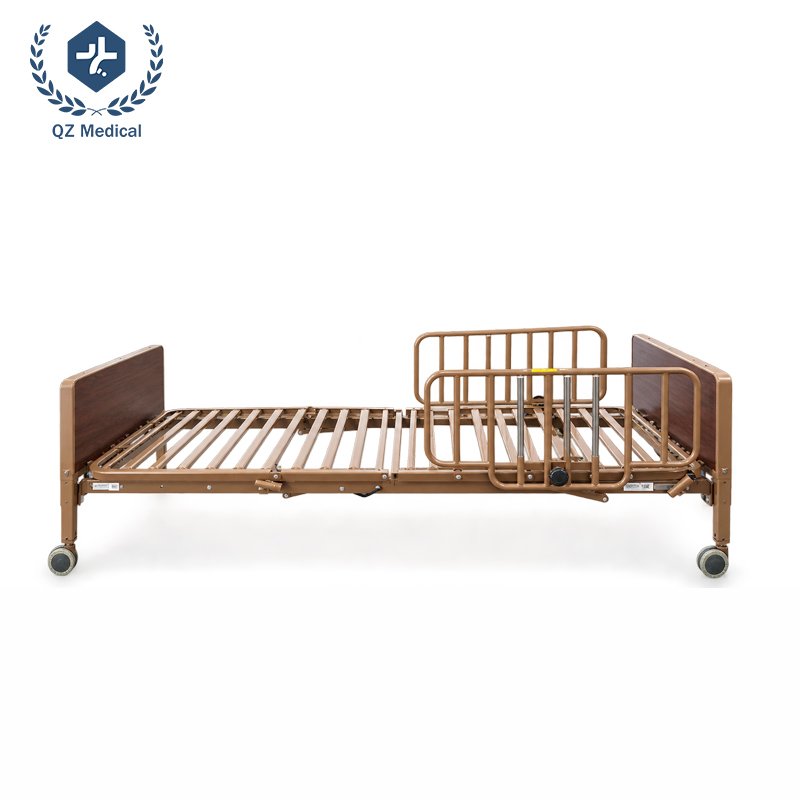

• Option B: Reinforced Flat Cold-Rolled Steel Slats Deck: Offers a rigid, flat anatomical support base that provides seamless wipe-down hygiene and compatibility with thick orthopedic foam or hybrid mattresses.

  (Both deck options share the identical 300 kg load-bearing chassis and are available for customer specification upon order).

5-Function Motorized Precision: Clinical Acuity in Residential Care

Powered by quiet, high-torque electric linear actuators operated via a multi-function wired ergonomic hand remote with intuitive key icons. Caregivers can smoothly execute five synchronized anatomical adjustments: backrest elevation (0°–70° ±3°) for dining, reading, and respiratory ease, leg/calf elevation (0°–8° ±1°) to stimulate lower-limb venous circulation and alleviate heel pressure, vertical Hi-Low height travel (380 mm to 720 mm), forward Trendelenburg, and reverse Trendelenburg tilt for postural drainage and clinical stability.

Corded Electric AC Operation: Zero Battery Degradation & Replacement Costs

Engineered specifically for direct AC mains power operation (AC 110V–240V, 50/60Hz, configured with a North American/Canadian NEMA plug). Standard institutional configurations do not contain internal chemical batteries, completely eliminating long-term battery degradation, charging management, and costly periodic battery replacement cycles across multi-bed facilities. (Emergency battery backup modules are available as an optional add-on).

De-Hospitalized Warm Homecare Aesthetic: Natural Wood-Grain Finish

Features removable head and footboards finished in warm natural wood-grain laminate with smooth protective edging. Paired with sturdy collapsible metal guardrails topped with contoured wooden handrails, this design provides elderly residents with a warm, non-slip tactile grip when sitting up or exiting the bed, softening institutional clinical impressions and supporting resident dignity.

Agile Mobility & Individual Step-On Brakes (3-Inch Swivel Casters)

Equipped with four 3-inch (75 mm) heavy-duty medical swivel casters with individual step-on foot brakes. With an overall exterior footprint of 2080 × 980 × 380–720 mm, the bed maneuvers effortlessly through tight assisted living doorways and narrow residential corridors, anchoring firmly in place with a single press of the brake pedal.

Patent-Safe Independent Design & Commercial Project Logistics (400 Units Scope)

Built with original structural engineering that completely avoids patent and copyright encumbrances in North American markets, allowing risk-free commercial distribution across the US and Canada.

• Target Project Scope: Production capacity planned for 400 complete sets;

• Packaging Standard: 5-ply reinforced export corrugated cartons lined with custom EPS protective foam, gross weight 81 kg/unit;

• Container Loading Efficiency: Packs 88 complete sets into a 40ft High Cube (40HQ) container (400 sets ship efficiently in 4 × 40'HQ [352 sets] + 1 × 20'GP [48 sets]);

• Production Lead Time: Standard fulfillment in 25 to 35 business days;

• Warranty & Spare Parts Support: Supported by a 2-year structural chassis warranty, 1-year actuator warranty, and 1% complimentary wearing spare parts (casters, hand remote, hardware) on full-container orders.

Geriatric Assisted Living Residences & Senior Memory Care Communities

Eliminates the cold hospital aesthetic with warm wood-grain finishes while providing full motorized positioning, dual deck options, and low fall-entry height (380 mm).

Skilled Nursing Facilities (SNFs) & Post-Acute Long-Term Care Centers

Offers zero-battery maintenance reliability, bariatric load safety (300 kg / 660 lbs), and smooth height elevation (up to 720 mm) to protect caregiver spines during daily hygiene routines.

Specialized Residential Home Healthcare & Private Palliative Care

Plugs directly into standard domestic wall outlets (110V–240V NEMA plug), allowing family caregivers to operate full 5-function clinical positioning at home with their preferred deck style (Slats or Wire Mesh).

North American DME Distributors, Healthcare Chains & Government Tenders

An unencumbered, patent-safe long-term care bed backed by direct factory capacity (400 units project readiness) and complete international regulatory documentation.

Q1: Why do product photographs show two different mattress deck styles for this model?

A: To accommodate varying institutional nursing preferences and regional market demands, the QME-LTC5/002 is manufactured with two optional, interchangeable mattress decks: Heavy-Duty Welded Steel Wire Mesh Grid (for maximum airflow and skin breathability) and Reinforced Flat Steel Slats (for rigid flat support and easy disinfection). Both configurations deliver the identical 300 kg (660 lbs) Safe Working Load, and buyers can specify their preferred deck option upon order placement.

Q2: What are the five motorized adjustment functions of the QME-LTC5/002 care bed?

A: The multi-function wired hand remote controls electric backrest elevation (0°–70°), knee and calf elevation (0°–8°), vertical Hi-Low height travel (380 mm to 720 mm), forward Trendelenburg tilt, and reverse Trendelenburg tilt.

Q3: Why is the bed engineered as corded electric (non-battery standard)?

A: Operating directly from AC mains power (110V–240V, 50/60Hz with North American NEMA plug) eliminates chemical battery degradation, charging maintenance, and periodic battery replacement costs across multi-bed facilities. An emergency battery backup module is available as an optional add-on.

Q4: What is the Safe Working Load (SWL) and platform dimensions?

A: The mattress platform measures 1880 × 880 mm (±5 mm), with an overall outer bed footprint of 2080 × 980 × 380–720 mm. The reinforced chassis delivers a verified Safe Working Load (SWL) of 300 kg (approx. 660 lbs / 600 lbs certified).

Q5: How does the wood-grain finish and side rail design benefit resident care?

A: The removable head and footboards feature warm natural wood-grain laminate to create a calming, de-hospitalized domestic environment. The collapsible steel side rails are topped with contoured wooden handrails, providing a warm, non-slip tactile grip when residents sit up or transfer out of bed.

Q6: What is the container loading capacity and packaging breakdown for bulk projects?

A: Each unit is packaged in a 5-ply reinforced export master carton with EPS protective foam (Gross Weight: 81 kg/unit). A single 40ft High Cube (40HQ) container loads 88 complete sets. A 400-unit project order ships efficiently in 4 × 40'HQ containers (352 sets) + 1 × 20'GP container (48 sets) with zero wasted container volume.

Q7: Is this bed design patent-safe for distribution in the United States and Canada?

A: Yes. The QME-LTC5/002 Series features an original, independent structural engineering design that completely avoids patent and copyright encumbrances in North America, allowing risk-free commercial importation and distribution.

Q8: What quality certifications and warranty terms does QZ Medical provide?

A: The bed is manufactured under audited ISO 13485 quality systems and holds CE (Class I) and FDA registrations. We provide a 2-year structural frame warranty, 1-year electric actuator warranty, and 1% complimentary wearing spare parts on full-container orders.
