For healthcare project architects, hospital procurement committees, and medical equipment distributors, specifying hospital beds is a foundational operational decision. Medical beds serve as the primary clinical workstation for nursing staff and the patient's immediate healing environment throughout their stay.
Selecting inappropriate bed models leads to expensive operational bottlenecks: beds that do not fit inside elevator cabs, dimensions that obstruct room doorways, insufficient height travel that strains caregiver backs, or side rail gaps that fail patient entrapment audits.
This comprehensive B2B sourcing manual details standard medical bed dimensions, clinical functional classifications, entrapment safety rules (IEC 60601-2-52), and load capacity standards, providing buyers with a complete roadmap for outfitting modern healthcare facilities.
A common mistake during hospital space planning is confusing the bed’s outer footprint with its usable mattress platform size.

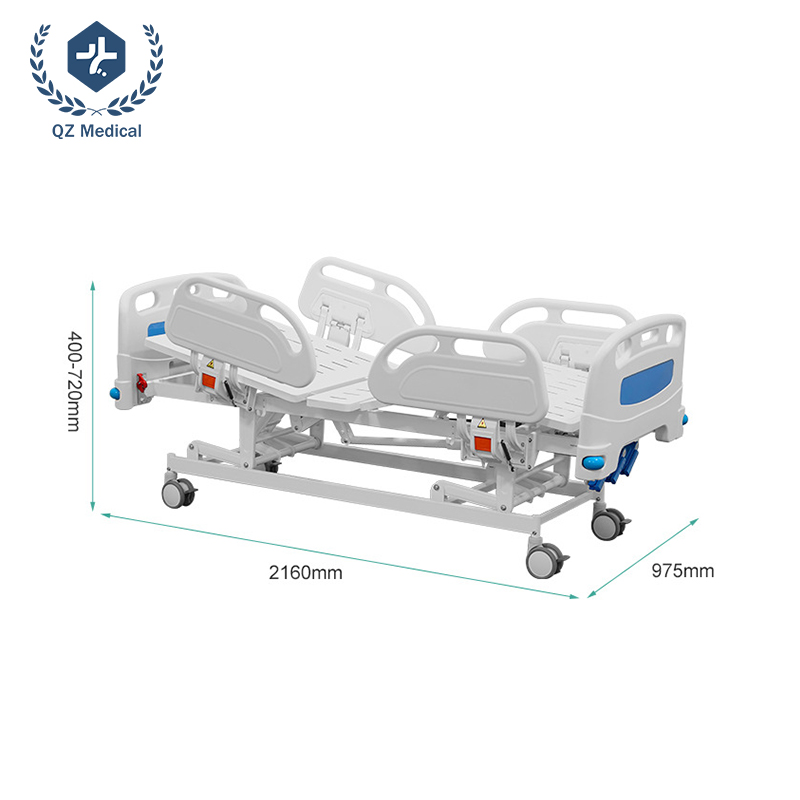

Outer Frame Footprint (Architectural Planning Dimension):
Standard adult hospital beds typically measure between 2050 mm to 2200 mm in total length and 950 mm to 1080 mm in outer width (including bumpers, side rails, and end boards). Facility planners must account for these outer dimensions when designing room clearance, door widths (requiring doors > 1000 mm for smooth bed passage), and elevator cab depths.
Inner Mattress Platform Deck (Patient Sleeping Surface):
The internal articulated sleeping surface typically measures between 1950 mm to 2050 mm in length and 880 mm to 920 mm in inner width. This standardization ensures compatibility with international medical-grade foam, alternating pressure air mattresses, and fitted waterproof covers.
Vertical Height Travel (The Ergonomic Working Range):
A bed's vertical travel range protects both patients and caregivers:
Low Entry Height (385 mm to 450 mm): Brings the mattress platform close to the floor, allowing semi-ambulatory seniors to place their feet flat on the floor, reducing fall injury severity.
High Working Height (700 mm to 850 mm): Elevates the patient to caregiver waist height, eliminating lumbar strain during daily wound dressing, catheter care, and linen changes.

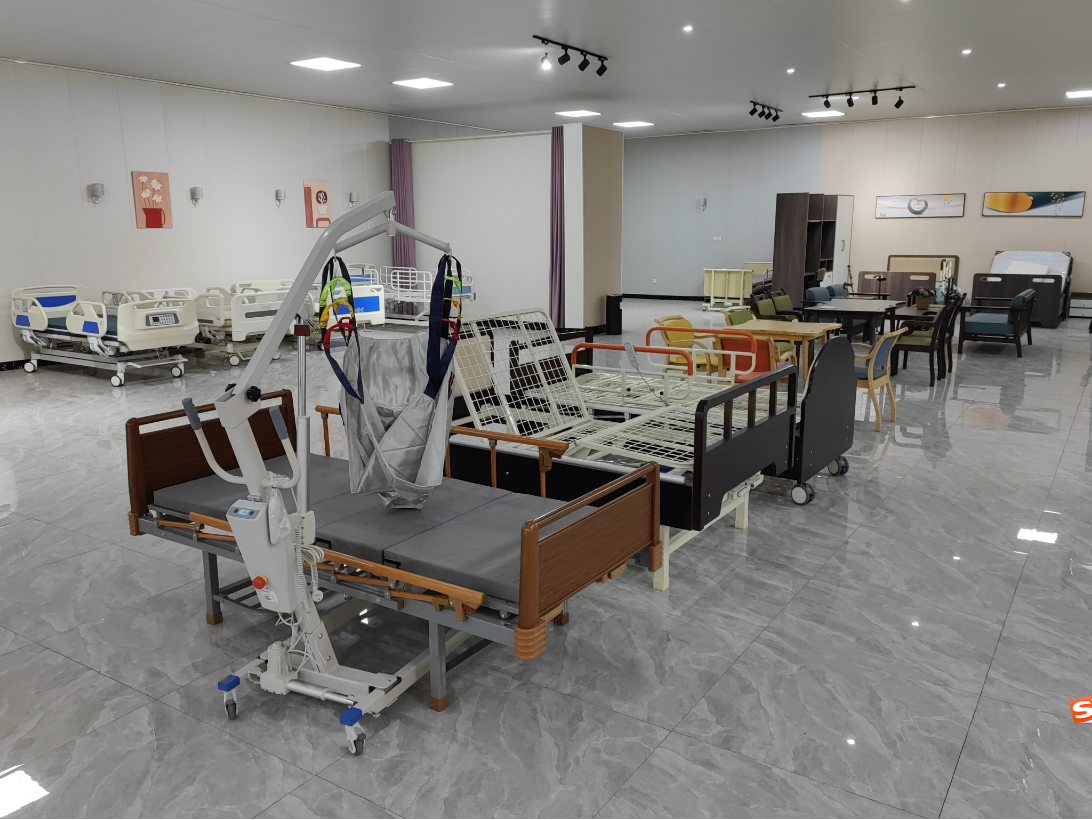

Medical beds are engineered to match specific patient acuity levels, mobility states, and clinical workflows.
Mechanism: Operated via 2-crank or 3-crank fold-away steel mechanical screw rods.
Key Features: Adjusts backrest (0–75° / 0–80°), leg flexion (0–30° / 0–45°), and vertical height lift (400–720 mm).
Best-Fit Setting: Community clinics, disaster relief wards, rural health posts, and regions with unstable electrical grids or fixed capital budgets.
Mechanism: Powered by quiet linear electric actuators (operating below 45dB) with handheld remotes or embedded rail buttons.
Key Features: Synchronized one-touch back/leg linkage, motorized height elevation, and warm wood-grain finishes for de-hospitalized residential comfort.
Best-Fit Setting: General hospital inpatient wards, senior nursing homes, and residential memory care facilities.

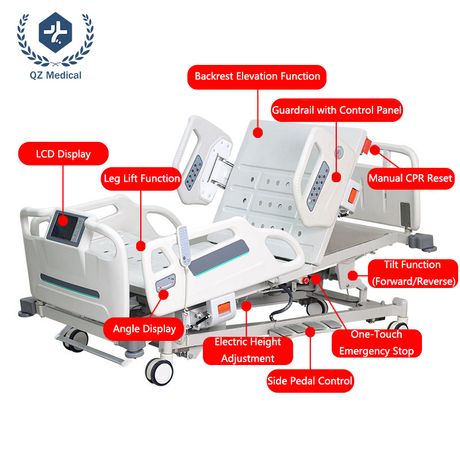

Mechanism: Advanced multi-motor platforms (5-function to 8-function systems).
Key Features: Motorized Trendelenburg and Reverse Trendelenburg tilt (0–14°), one-touch mechanical or electronic emergency CPR flattening within one second, integrated digital patient weighing scales on LCD footboards, and radio-translucent backplates for bedside X-ray imaging.
Best-Fit Setting: Intensive Care Units (ICU), Cardiac Care Units (CCU), trauma centers, and post-operative surgical suites.
Mechanism: Automated central-axis lateral rotation and pivoting mattress decks.
Key Features: Motorized 90° rotation from lying to sitting for unassisted bed exit, settling-type lateral turnover (0–20°) for 24/7 bedsore prevention, and integrated quick-opening commode apertures.
Best-Fit Setting: Paralyzed patient homecare, stroke rehabilitation units, and palliative hospice care.
Mechanism: Child-safe cribs with heightened containment.
Key Features: Full-surround anti-climbing grid guardrails (128 cm total height or soft-drop damped rails with 50–550 mm travel), narrow anti-entrapment slat spacing, and soothing pastel cartoon ABS panels.
Best-Fit Setting: Children's hospitals, pediatric observation clinics, and neonatal recovery wards.
To qualify for international hospital tenders and pass medical audits, beds must comply with stringent structural and electrical safety standards.
IEC 60601-2-52 Entrapment Zone Compliance:
International patient safety rules establish strict gap thresholds across 7 potential entrapment zones (between side rail bars, between split rails, and between headboards and mattress edges). Rail bar spacing must remain under 120 mm to completely prevent pediatric or adult head and cervical neck entrapment.
Safe Working Load (SWL) vs. Maximum Patient Weight:
Standard Medical Beds: Must provide an official Safe Working Load of 200 kg to 250 kg (440–550 lbs), accommodating the patient plus mattress and clinical accessories.

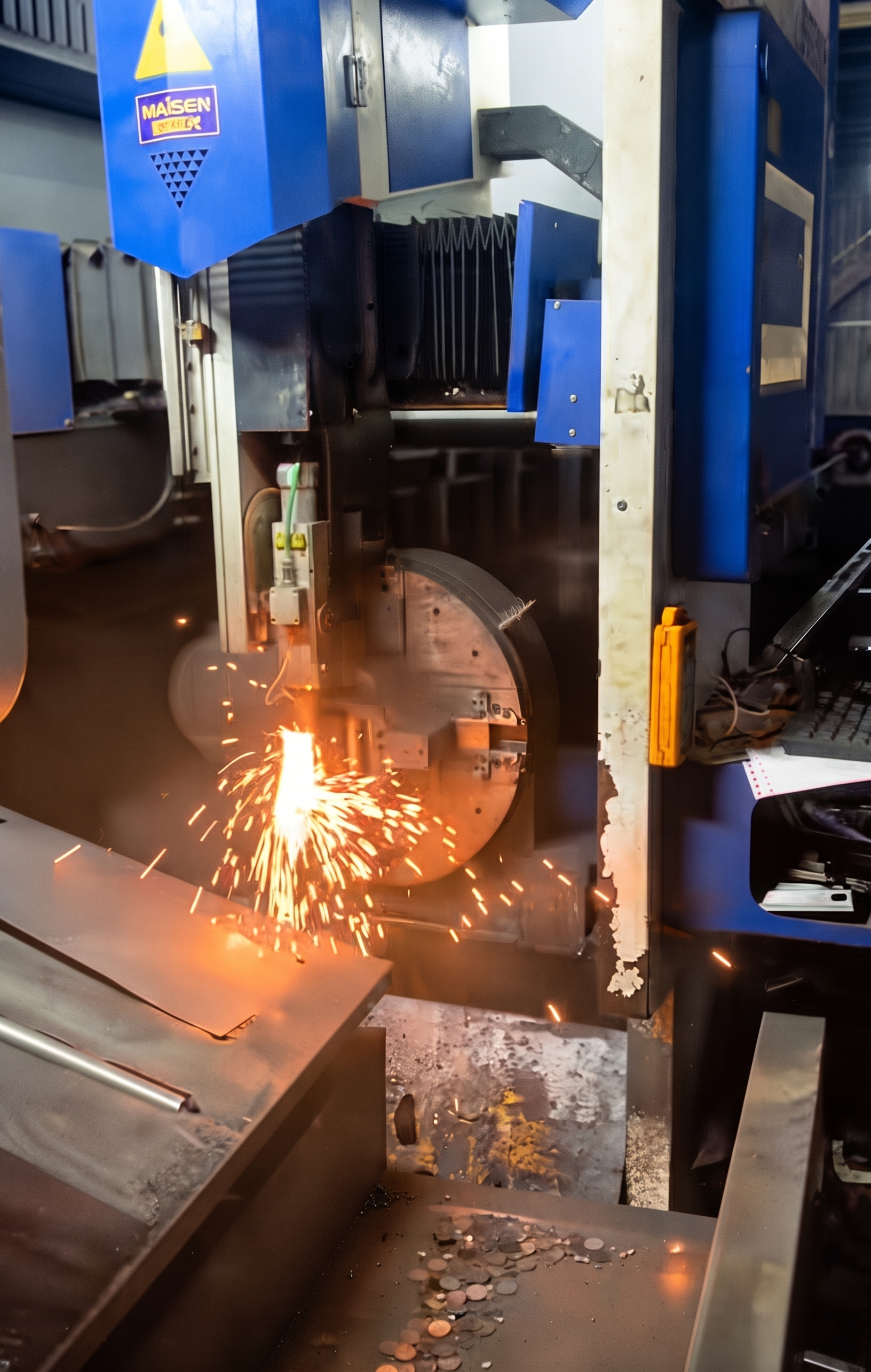

Bariatric / High-Dependency Beds: Engineered with reinforced 1.2 mm cold-rolled steel tubing and robotic welding supporting 300 kg to 340 kg (660–750 lbs).
Electrical & Environmental Safety:
Electric actuators must meet IPX4 liquid-ingress protection standards for wipe-down sanitation, while lithium battery backup packs must carry official UN38.3 and MSDS certifications.
Bed Category |
Standard Platform Deck (L×W) |
Key Posture Adjustments |
Primary Clinical Value |
Manual 2/3-Crank |
1950–2020 × 880–900 mm |
Back (0–75°), Leg (0–35°), Height (400–720 mm) |
Zero-power reliability; low capital expenditure |
Electric Care Bed |
2000–2035 × 900–1000 mm |
Back, Leg, Vertical Lift (420–700 mm), Remote |
Staff back protection; resident independence |
Electric 5-Function ICU |
2130–2200 × 900–1020 mm |
Full 5-axis tilt, Trendelenburg (0–14°), CPR, Scale |
Intensive resuscitation; bedside weight tracking |
Rotating Egress Bed |
2010–2060 × 1000 mm |
90° rotation to standing, Lateral turn (0–20°) |
Single-caregiver unassisted bed exit; bedsore care |
Pediatric Care Bed |
1815–1885 × 880–900 mm |
Back, Knee, Full-surround rails (128 cm height) |
Anti-climb safety; child-friendly anxiety relief |
Outfitting a modern healthcare facility requires matching bed categories to clinical acuity. By aligning outer architectural dimensions with ward doorways, verifying IEC 60601-2-52 entrapment compliance, and selecting certified 200 kg to 250 kg load capacities, healthcare procurement teams protect caregiver health, ensure patient safety, and maximize equipment lifecycle ROI.
