Stroke, spinal cord injuries, and severe lower-limb orthopedic trauma represent major causes of motor impairment globally. During lower-limb physical therapy, gait re-education is not a one-size-fits-all process. Patients transition through distinct neurological and muscular recovery phases, each requiring specialized physical support.
For rehabilitation hospital procurement directors, physical therapy (PT) clinic managers, and medical equipment distributors, stocking the right range of gait trainers and mobility aids is critical. The wrong equipment can lead to improper weight-bearing, postural degradation, shoulder strain, or secondary fall injuries.
This B2B sourcing guide outlines the clinical selection criteria for gait trainers across the three primary stages of stroke recovery, helping healthcare buyers choose equipment that maximizes therapy outcomes and delivers a strong return on investment (ROI).
In the immediate weeks following a stroke or lower-limb surgery, patients frequently experience severe leg weakness, postural instability, and loss of balance. Early vertical mobilization is vital to prevent muscle atrophy, deep vein thrombosis (DVT), and cardiopulmonary decline.
Clinical Goal: Safely elevate the patient into a vertical standing posture with 360-degree fall prevention.

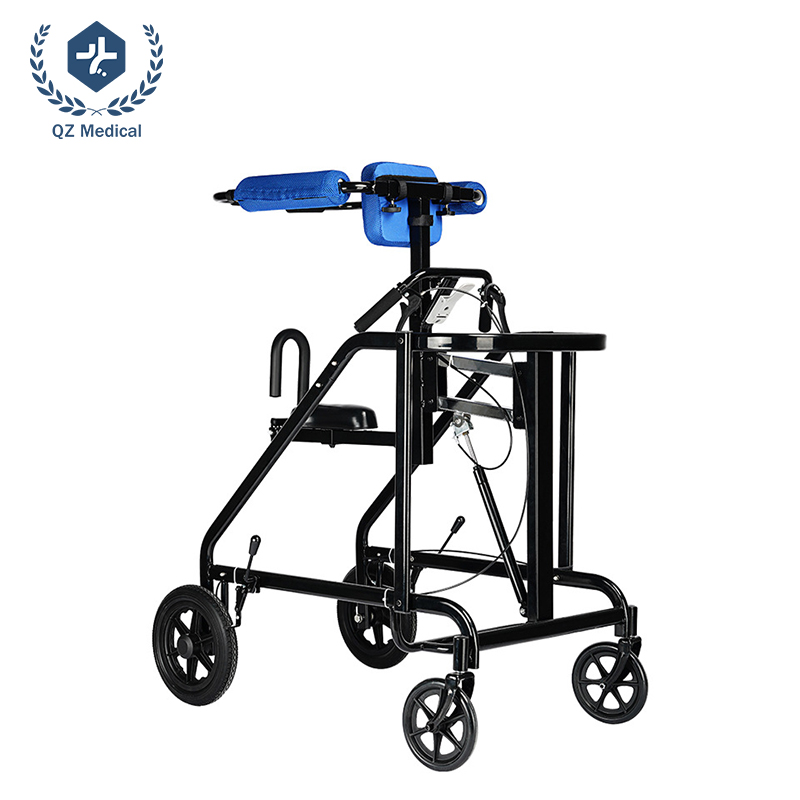

Key Equipment Specification: Look for pneumatic gas-spring lift gait trainers built on low-center-of-gravity high-carbon steel frames (net weight ~25.8 kg, load capacity 100 kg / 220 lbs).
Essential Design Features:
Pneumatic Infinite Height Adjustment: A gas-spring lift mechanism allowing caregivers to adjust overall height (96 cm to 126 cm) and seat height (61 cm to 91 cm) steplessly with a single lever, eliminating physical lifting strain.
360° Surround Body Support: A padded protective ring frame equipped with width-adjustable underarm pads (28 cm to 44 cm inner width) that cradles the upper body securely.
Floating Suspension Leather Seat: A sliding rest seat that supports partial body weight, allowing patients to practice standing without collapsing if leg strength fades.
Once partial leg strength is restored, patients move into the active walking practice phase. During this stage, common clinical challenges include improper hunching, excessive wrist loading, and fear of falling.
Clinical Goal: Encourage natural stride movement while maintaining upright spinal posture without stooping.

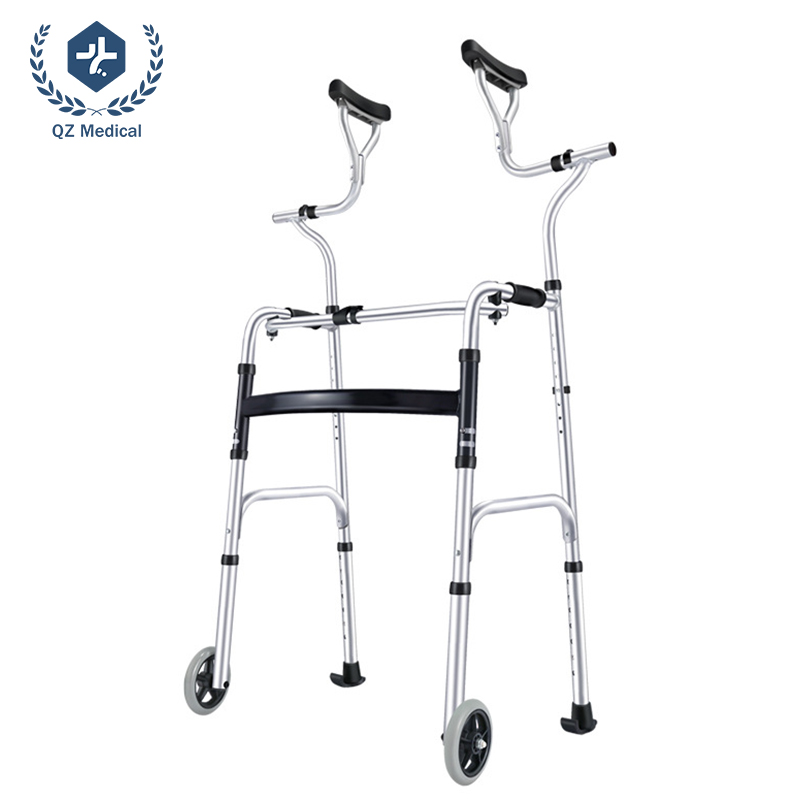

Key Equipment Specification: Select high-fulcrum underarm folding walkers made from thickened aluminum alloy tubing (1.25 mm wall thickness, 180 kg / 360 lbs capacity).
Essential Design Features:
High-Fulcrum Axillary Rest: Unlike low-handgrip walkers that force seniors to hunch over, elevated underarm pads (TPR shock-absorbing material) transfer body weight under the arms, allowing 100% upright walking without back fatigue.
Dual-Mode Functionality: Switchable between Interactive Mode (left and right sides step forward alternately with natural strides) and Fixed Mode (rigid frame for total static weight bearing).
Sled Glides & All-Terrain Wheels: 5-inch front swivel wheels paired with wear-resistant rear sled glides that slide smoothly over clinic carpets and speed humps without catching.
IDuring recovery from foot bone surgeries, ankle fractures, tendon tears, or unilateral lower-limb non-weight-bearing orders, traditional axillary crutches cause severe armpit pain, nerve compression, and balance hazards.
Clinical Goal: Provide 100% non-weight-bearing mobility for the injured lower leg while enabling smooth, comfortable indoor and outdoor rolling transport.

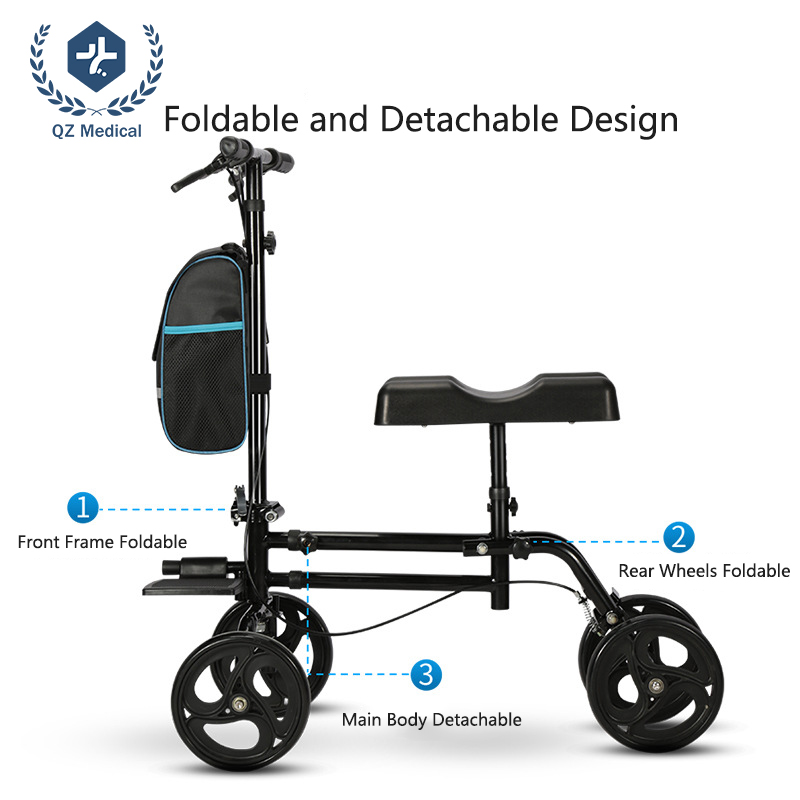

Key Equipment Specification: Source steerable 4-wheel knee walkers / knee scooters built on high-strength powder-coated steel frames.
Essential Design Features:
Contoured Ergonomic Knee Platform: A soft, contoured dual-groove knee cushion that cradles the injured leg securely, relieving pressure on knees and shin bones during rolling.
4-Wheel Stable Rolling Chassis & Dual Handbrakes: Equipped with four smooth-rolling all-terrain wheels and height-adjustable handlebars with dual handbrake levers and parking locks for complete speed control.
Detachable Front Storage Bag with Reflective Strip: Includes a removable front zippered storage bag with safety reflective trim, enabling patients to transport personal items, water bottles, and documents hands-free.
Tool-Free Quick-Fold Tiller: Features a quick-release folding column mechanism that collapses the steering tiller flat within seconds for compact car trunk loading.
When evaluating rehabilitation gait trainers for bulk procurement or government tenders, verify these key technical and regulatory standards:
Selection Criteria |
Clinical & Manufacturing Standard |
B2B Procurement Impact |
Height & Width Adjustability |
Stepless gas-spring or multi-pin locks |
Fits diverse patient heights (145 cm to 190 cm) |
Structural Frame Material |
High-carbon steel / 1.25 mm aluminum |
Ensures heavy load capacity (100 kg to 180 kg) |
Doorway Clearance |
Frame outer width ≤ 72 cm |
Passes easily through standard doors (> 720 mm) |
Safety Braking System |
Dual handbrakes + parking locks |
Prevents sliding during patient seating and transfers |
Regulatory Compliance |
ISO 13485, CE, FDA Certified |
Ensures smooth customs clearance globally |
Building a comprehensive physical therapy equipment lineup requires matching gait trainer specifications to the patient's neurological and muscular recovery stage. By combining pneumatic lift gait trainers for early standing, high-fulcrum axillary walkers for upright walking, and hands-free knee crutches for lower-leg autonomy, healthcare distributors can satisfy diverse clinical demands across hospitals, nursing homes, and homecare markets.
Are you stocking physical therapy product lines, quoting on hospital rehabilitation tenders, or searching for high-margin mobility aids for your DME distribution network?
As a direct medical equipment manufacturer, we offer complete OEM/ODM customization across our entire gait trainer and mobility aid line—including custom frame powder coatings, private-label branding, localized instruction manuals, and container-optimized flat-pack knockdown packaging to minimize ocean freight costs.
