In municipal general hospitals, orthopedic trauma centers, and specialized bariatric units, patient beds endure relentless daily stress. Unlike homecare settings where beds experience gentle, intermittent use, institutional hospital beds must support heavy dynamic loads: sudden patient repositioning, emergency CPR chest compressions, transfer board impacts, and bariatric patient weights.
Procurement committees that specify lightweight or standard-duty beds (often rated for only 150 kg to 175 kg) soon encounter costly structural breakdowns:
Chassis Sagging: Central platform beams bow downward, preventing smooth backrest articulation and causing uneven mattress support;
Weld Joint Cracking: High lateral shearing forces during patient transfers crack manual welds around caster brackets and pivot links;
Motor Burnout: Low-torque electric actuators overheat and trip internal thermal fuses when attempting to lift patients over 200 kg.
To protect hospital capital investments and ensure clinical safety, healthcare buyers must look beyond catalog weight claims and evaluate the physical engineering behind Heavy-Duty Hospital Beds (supporting 250 kg to 340 kg / 550 to 750 lbs).
This B2B technical guide examines the critical materials, actuator thrust ratings, chassis geometries, and manufacturing certifications required when sourcing heavy-duty medical beds.
The structural backbone of any high-capacity medical bed is its steel frame. If the frame gauge is compromised, no electrical motor can compensate.
1.2 mm Thickened Cold-Rolled Steel Tubing: While economy beds cut costs using 0.8 mm thin-wall tubing, heavy-duty hospital beds are engineered using 1.2 mm thick cold-rolled steel square tubing (such as 30×60 mm and 40×80 mm primary load-bearing crossbeams). Cold-rolling enhances steel tensile strength, preventing structural twisting under asymmetrical point loads.
Automated Multi-Axis Robotic Welding: Manual welding frequently leaves tiny voids, uneven bead penetration, and thermal stress points. Top-tier medical manufacturers use automated multi-axis robotic welding cells that deliver continuous, deep-penetration weld seams. This maintains a structural weld defect rate of less than 1 in 100,000, ensuring mounting brackets do not separate under sudden impact.
24-Hour Static Overload Verification: Reliable heavy-duty beds undergo factory proof-load testing under 340 kg (750 lbs) static loads for 24 continuous hours, verifying zero permanent deflection across the sleep deck.
Raising a bariatric patient from a supine to an upright sitting posture or elevating the entire bed frame requires substantial mechanical torque.

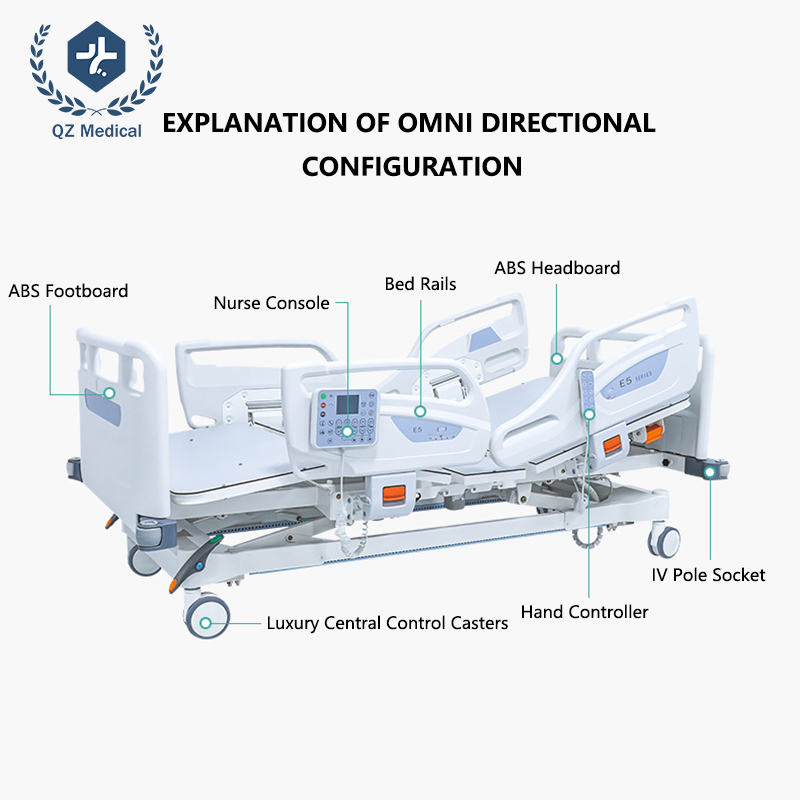

Actuator Thrust Ratings: Heavy-duty motorized beds must feature heavy-duty medical linear actuators:
6000N Push Force: Dedicated to backrest elevation (0–75°) and knee-rest flexion (0–35°), ensuring smooth, strain-free adjustment even when the patient leans heavily against the upper deck;
8000N High-Torque Thrust: Powering the vertical height lift mechanism, providing effortless elevation under full load.
Thermal Overload & Whisper-Quiet Operation (<45dB): Quality actuators incorporate internal thermal cutoffs that prevent motor burnout during continuous duty cycles. High-grade planetary gearboxes maintain quiet operation below 45dB, preventing acoustic disturbance in intensive care wards.
Emergency Mechanical CPR Quick-Release: In cardiac arrest emergencies, nursing staff must flatten the backrest instantly. Heavy-duty beds feature dual bilateral mechanical CPR release levers that drop the backrest flat in under one second without waiting for electrical motor retraction.
How a bed elevates vertically dictates its stability when nurses perform wound care or clinical procedures.
The Problem with Traditional Scissor Lifts: Conventional X-frame scissor lifts develop side-to-side wobble as bushings wear over time, creating a floating, insecure sensation for heavy patients at high elevations.

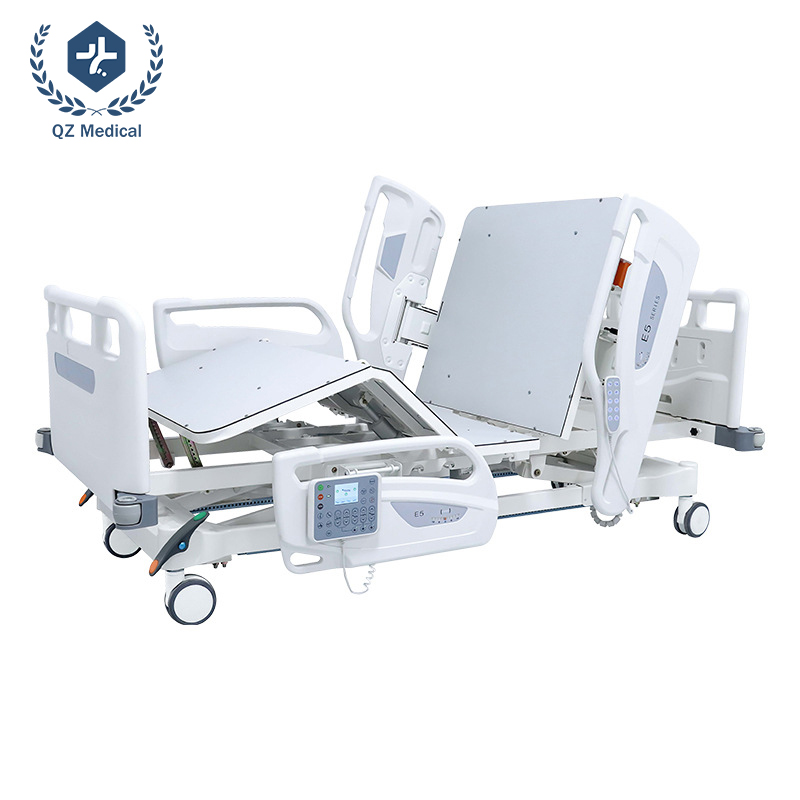

Dual Reinforced Bow-Shaped Lifting Columns: High-occupancy hospital beds utilize engineered bow-shaped steel lifting columns (providing 450 mm to 850 mm vertical travel). The wide-stance triangular geometry distributes downward force directly into the base frame, eliminating sway and frame twisting even when the bed is raised to its maximum working height of 850 mm.
125 mm Covered Dual-Wheel Casters with Central Braking: Supported by medical-grade 125 mm deluxe covered twin-wheel swivel casters. Stepping on the centralized brake pedal bar firmly anchors all four wheel assemblies simultaneously, preventing accidental bed movement during patient transfers.
Heavy-duty beds are naturally heavier and more robust, making efficient export packing critical to managing landed shipping costs.
Modular Knockdown (KD) Packing: Rather than shipping fully welded monolithic frames, modular head/foot end assemblies and detachable ABS boards pack tightly inside 5-ply reinforced master cartons.
Container Loading Standard (76 Units per 40HQ): In accordance with standard export logistics for clinical beds, 76 complete heavy-duty bed sets fit into a single 40ft High Cube (40HQ) container (approximately 32 to 36 units in a 20GP container), optimizing ocean freight expenditure per bed.
Regulatory Compliance Dossier: Ensure the factory provides audited testing documentation under ISO 13485, CE (MDR Class I), and FDA registrations, accompanied by official IEC 60601-2-52 structural stability test certificates.
Engineering Feature | Standard Hospital Ward Bed | Heavy-Duty Clinical Bed |
Safe Working Load (SWL) | 150 kg – 180 kg (330–400 lbs) | 250 kg – 340 kg (550–750 lbs) |
Steel Tube Thickness | 0.8 mm – 1.0 mm carbon steel | 1.2 mm Thickened Cold-Rolled Steel |
Weld Seam Standard | Manual spot welds | Multi-Axis Robotic Welds (< 1/100,000 defect rate) |
Linear Actuator Thrust | 3000N – 4000N | 6000N (Back/Leg) / 8000N (Vertical Lift) |
Lifting Geometry | Basic scissor linkage (Prone to wobble) | Rigid Bow-Shaped Triangular Lift Columns |
Braking System | Individual plastic wheel brakes | Single-Pedal 4-Wheel Central Braking Bar |
Container Capacity | Varied unstandardized loading | Standardized 76 Units per 40HQ Container |
Specifying heavy-duty hospital beds is an investment in patient safety and equipment longevity. In high-demand clinical environments, choosing beds built with 1.2 mm cold-rolled steel, robotic welds, 6000N+ high-thrust actuators, and rigid bow-shaped lifting columns eliminates frame deformation, minimizes nurse physical strain, and ensures seamless compliance with international hospital procurement tenders.
