Infection Control in Hospitals: Medical Furniture Surface Guide

In inpatient hospital wards and intensive care units, combating Healthcare-Acquired Infections (HAIs)—such as MRSA, VRE, and C. difficile—is an unceasing operational priority. While clinical protocols emphasize hand hygiene and sterile instruments, environmental hygiene audits show that patient beds are among the most frequently touched surfaces in healthcare facilities.

Nurses, doctors, patients, and visitors touch side rails, bed frames, and headboards dozens of times every hour. To eliminate surface cross-contamination, hospital sanitation teams wipe down beds daily using harsh chemical disinfectants: active chlorine bleach, 70% isopropyl alcohol, quaternary ammonium compounds, and hydrogen peroxide vapor.

However, if a medical bed is manufactured using inferior steel coatings or cheap recycled plastics, daily chemical exposure rapidly causes surface blistering, micro-cracking, and paint flaking. These microscopic surface flaws quickly harbor bacterial biofilms that survive routine wiping.

For hospital infection control committees, clinical procurement officers, and medical furniture distributors, this technical sourcing guide outlines the essential surface material standards required to ensure hospital beds remain hygienic, rustproof, and chemical-resistant throughout years of clinical service.

1. Steel Frame Pretreatment: 12-Stage Silane Ceramic Technology

The structural longevity of a medical bed depends primarily on how the raw steel chassis is prepared before the powder paint is baked on.

• The Problem with Basic Iron Phosphate Coatings: Low-cost workshops clean steel with simple solvent wiping or basic iron phosphate baths. Under continuous exposure to hospital bleach and floor wash-down chemicals, moisture penetrates through paint pores, causing creeping rust that blisters the finish from underneath.

• 12-Stage Pretreatment & 200°C Silane Ceramic Conversion: Premium medical bed frames undergo shot-blasting to strip mill scale, followed by an automated 12-stage chemical pretreatment process. This includes an advanced silane ceramic nanotechnology bath that bonds chemically to the cold-rolled steel.

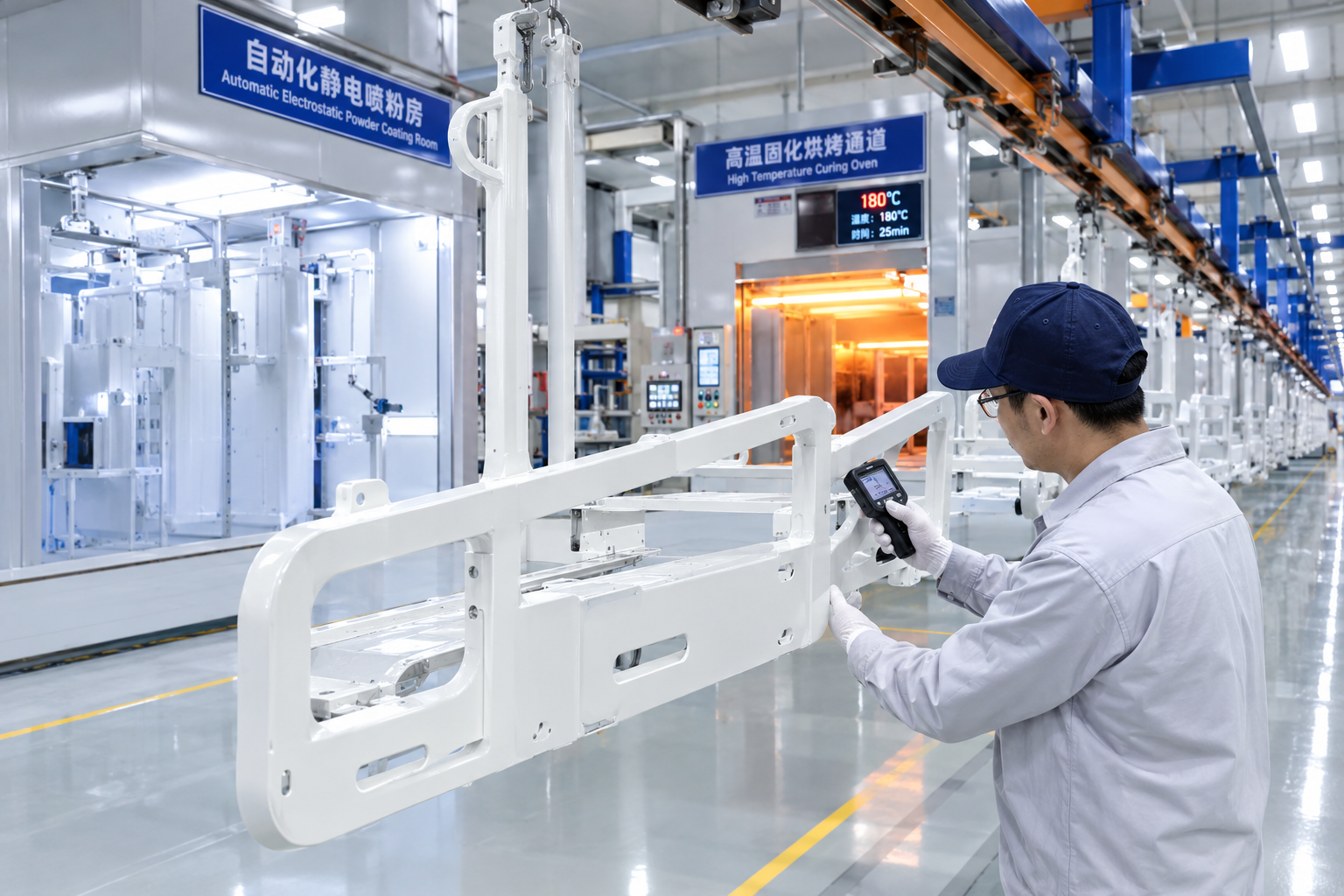

• 200°C High-Temperature Thermal Curing: An electrostatic antimicrobial powder coating is then cured in an oven at 200°C, creating a dense, non-porous cross-linked ceramic-polymer barrier. This finish withstands 1,000+ hours of continuous salt spray testing and resists daily wiping with active chlorine solutions without peeling or corroding.



2. Plastic Purity: 100% Native ABS vs. Recycled Regrind

Headboards, footboards, and split safety side rails receive the highest frequency of direct skin contact and chemical friction.

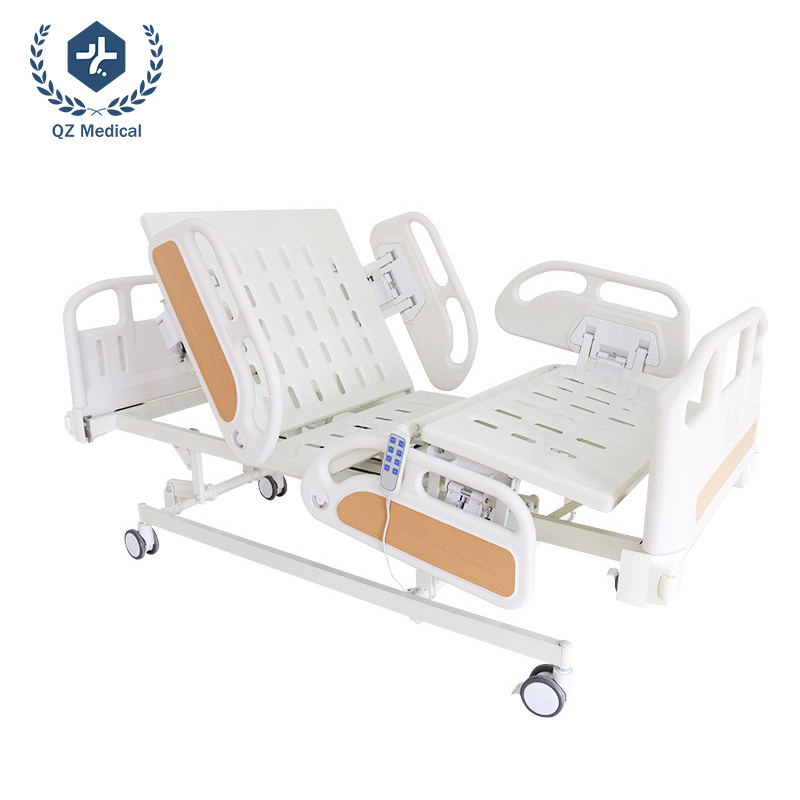

• 100% Native Injection-Molded ABS: Quality hospital beds utilize 100% pure virgin ABS (Acrylonitrile Butadiene Styrene) engineering plastic molded under high hydraulic pressure. Pure native ABS provides a non-porous, smooth molecular structure with zero microscopic cavities, allowing chemical disinfectants to wet the entire surface evenly for complete microbial kill.

• The Risk of Recycled Regrind Plastic: Sub-tier factories cut costs by mixing recycled scrap plastic into their injection barrels. Recycled plastics degrade quickly when wiped with medical alcohol, turning yellow, chalking, and developing micro-fissures that trap organic soil and harbor stubborn bacterial colonies.



3. Deck Architecture: One-Piece Die-Stamped Steel vs. Welded Mesh

How the sleeping platform is engineered directly impacts how quickly and thoroughly housekeeping staff can sanitize the bed between patient admissions.

• The Dirt-Trapping Hazard of Wire Mesh: Old-style welded wire-mesh decks have hundreds of overlapping wire joints and sharp corner intersections. These crevices catch dust, lint, and dried bodily fluids, making thorough mechanical cleaning almost impossible.

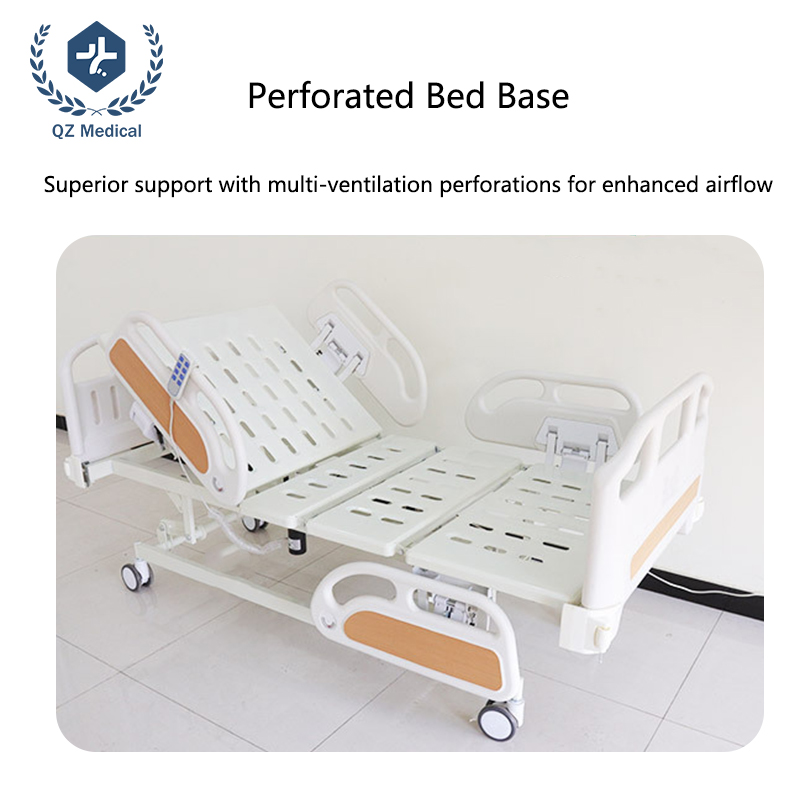

• One-Piece Die-Stamped Cold-Rolled Steel Deck: Modern infection-control beds feature a single-piece cold-rolled steel platform with concave die-stamped airflow holes. All perforated edges are pressed with a burr-free crimping process, leaving no rough spots that could tear mattresses or catch bioburden. Housekeeping staff can sanitize the entire flat steel surface with a single disinfectant wipe.



4. Sealed Casters & Enclosed Drive Components

Cleaning protocols extend to the bottom chassis, where floors are frequently wet-mopped with heavy detergent solutions.

• 125 mm Covered Casters with Sealed Bearings: Sourcing beds equipped with 125 mm deluxe covered noiseless swivel casters molded from high-grade TPR polymer. The covered hub design shields internal self-lubricating ball bearings from water splashes, floor wax, and chemical cleaners, preventing wheel seizure.

• IP-Rated Waterproof Actuators: Electric linear actuators and control boxes must carry at least an IPX4 waterproof rating (or IPX6 for washable beds), ensuring electrical systems remain watertight during routine damp-cloth wipe-downs.

Summary Sourcing Checklist for Hospital Infection Control Committees

Conclusion & Sourcing Recommendation

In the fight against healthcare-acquired infections, medical equipment surface durability is just as vital as medication protocols. By specifying 12-stage silane ceramic powder coatings, 100% native ABS plastics, and seamless die-stamped steel platforms, hospital procurement teams eliminate bacterial reservoirs, extend equipment service life, and protect patient safety.

Partner with an ISO 13485 Certified Medical Furniture Factory

Are you outfitting a sterile hospital ward expansion, updating clinical furniture standards for your healthcare network, or bidding on government hospital tenders?

As a direct medical device manufacturer, QZ Medical provides complete OEM/ODM manufacturing services across our entire manual bed, electric ICU bed, and ward furniture range—engineered specifically to meet international clinical sanitation and infection-control standards.
