Technical Parameters

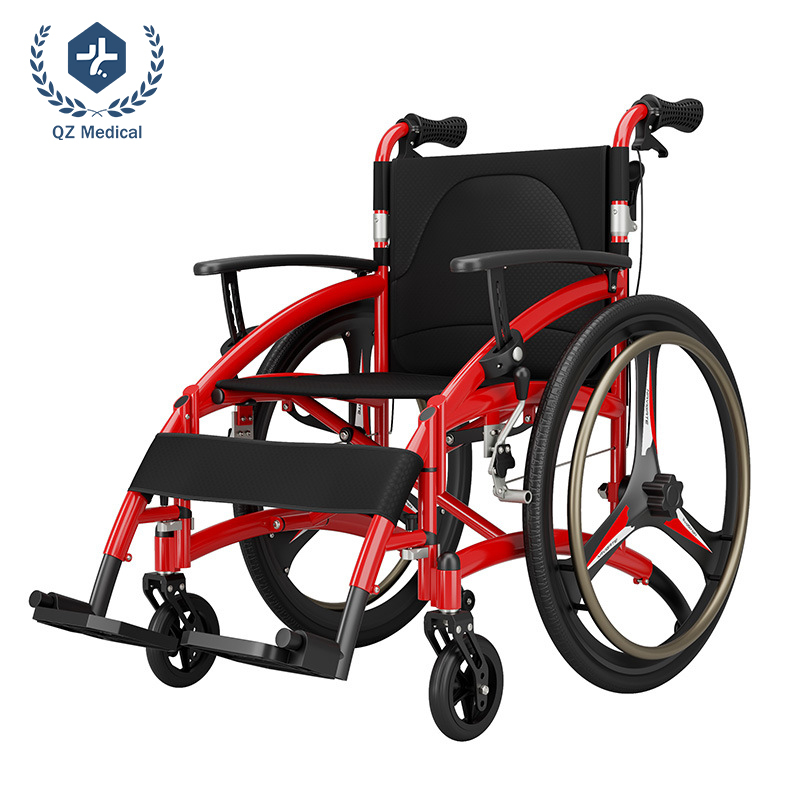

Product Type: Lightweight Manual Wheelchair
Frame Material: Aluminum alloy
Net Weight: Approx. 15.2 kg
Maximum Load Capacity: 100 kg

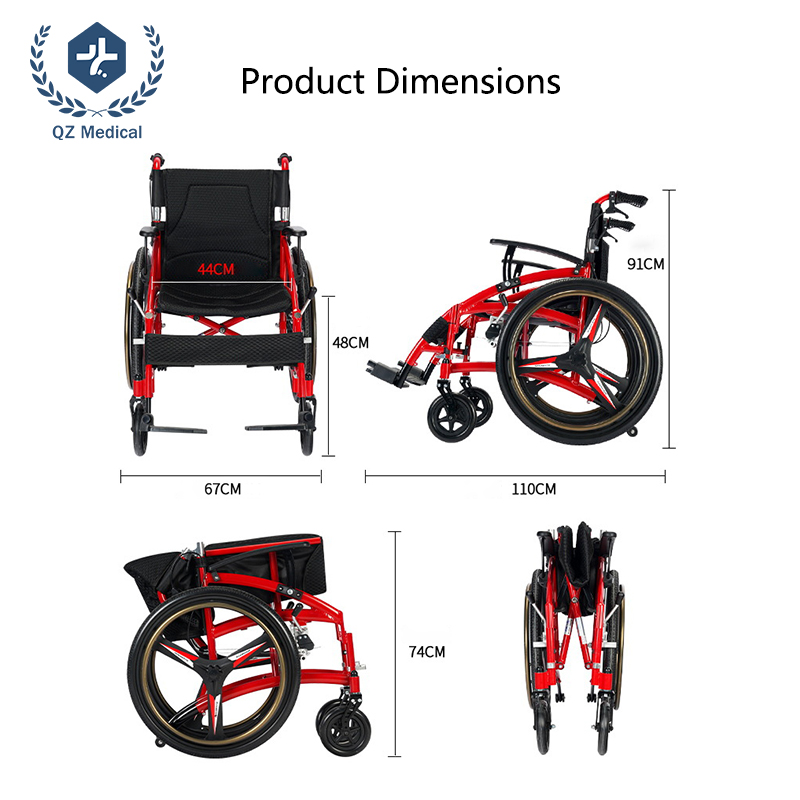

Overall Length: 110 cm
Overall Width: 67 cm
Overall Height: 91 cm
Seat Width: 44 cm
Seat Depth: 41 cm
Seat Height: 48 cm
Front Wheel Size: 6 inch solid tires
Rear Wheel Size: 24 inch solid tires
Folding Size: 84 × 32 × 74 cm
Braking System: Dual manual brake system
Armrests: Adjustable and foldable
Footrests: Detachable and foldable
Anti-Tip Wheels: Included
Product Advantage
Lightweight and Durable Aluminum Alloy Frame
The main frame is constructed from aviation-grade aluminum alloy with powder-coated surface treatment, providing excellent strength, corrosion resistance, and long service life. The lightweight structure improves handling efficiency without compromising stability.
Three-Step Folding Mechanism
The wheelchair features a simple three-step folding process, allowing quick folding of the backrest, footrests, and seat frame. The compact folded size supports convenient storage and transportation in medical facilities and vehicles.
Dual Brake Safety System
Equipped with a double brake system, the wheelchair includes manual parking brakes on both sides and caregiver-operated brake handles. This dual braking design ensures reliable stopping and stable parking during use and patient transfer.
Ergonomic Breathable Seating System
The honeycomb breathable seat cushion and backrest are made from high-elastic mesh fabric, offering excellent ventilation, pressure distribution, and long-term sitting comfort. The materials are skin-friendly, durable, and easy to maintain.
Reinforced Cross-Brace Structure
The double-layer cross-brace support under the seat enhances frame stability and load distribution, improving safety during movement and long-term use.

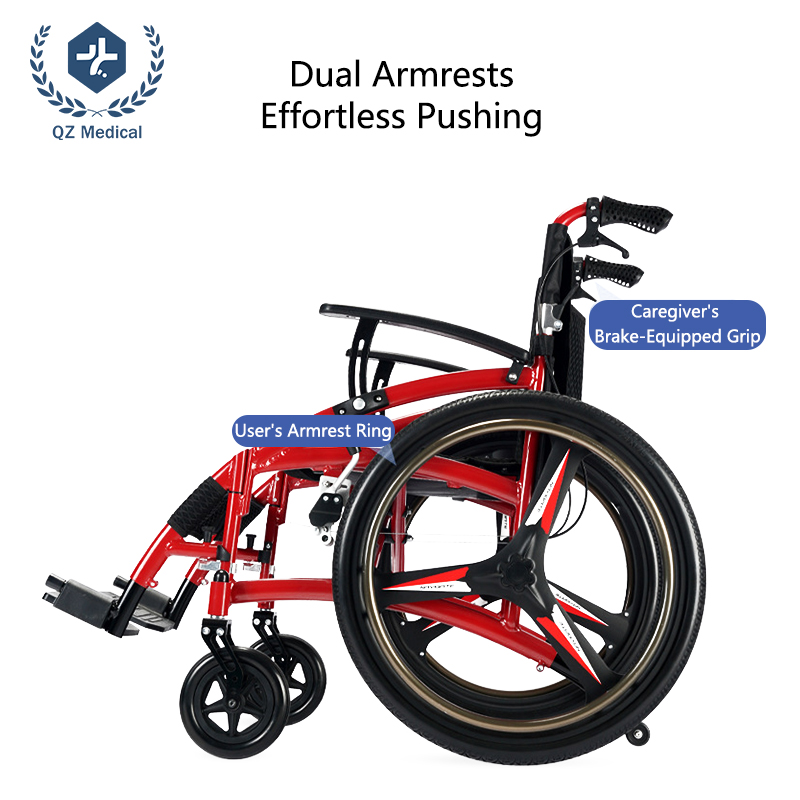

User and Caregiver Friendly Design
The wheelchair supports both self-propulsion and caregiver-assisted pushing. Hand rims allow users to exercise upper limb strength, while the ergonomic push handles with integrated brakes reduce caregiver effort.
Enhanced Safety Features
Rear anti-tip wheels prevent backward tipping on slopes, while solid shock-absorbing tires ensure smooth travel on uneven surfaces. Detachable and foldable leg tubes further reduce overall size when stored.
Product Uses
Hospitals and Clinical Wards
Suitable for patient transport and daily mobility support in hospital environments.
Rehabilitation Centers
Supports active mobility and upper limb exercise during rehabilitation and recovery.
Nursing Homes and Elderly Care Facilities
Provides safe, comfortable, and easy-to-handle mobility assistance for elderly residents.
Home Care and Assisted Living
Ideal for daily use where lightweight handling and caregiver support are required.
Medical Equipment Distribution Projects
Well-suited for distributors supplying durable and lightweight manual wheelchairs to healthcare institutions.
FAQ
Q1：How much does this manual wheelchair weigh?
A: The wheelchair has a net weight of approximately 15.2 kg.
Q2：What material is used for the frame?
A: The frame is made of high-strength aluminum alloy with powder-coated surface treatment.
Q3：Is the wheelchair foldable for transport?
A: Yes. It features a three-step folding mechanism for compact storage and transportation.
Q4：Does the wheelchair include braking systems?
A: Yes. It is equipped with a dual brake system, including user-operated and caregiver-operated brakes.
Q5：Are the wheels solid or inflatable?
A: The wheelchair uses solid, puncture-proof tires with shock absorption.
Q6：Is the wheelchair suitable for self-propulsion?
A: Yes. The hand rims allow users to propel themselves and exercise upper limb strength.
Q7：What safety features are included?
A: Safety features include rear anti-tip wheels, solid tires, stable cross-brace structure, and secure braking.
Q8：Do you support OEM or bulk supply for distributors?
A: Yes. We provide OEM services and support bulk orders for international distributors.
