Technical Parameters

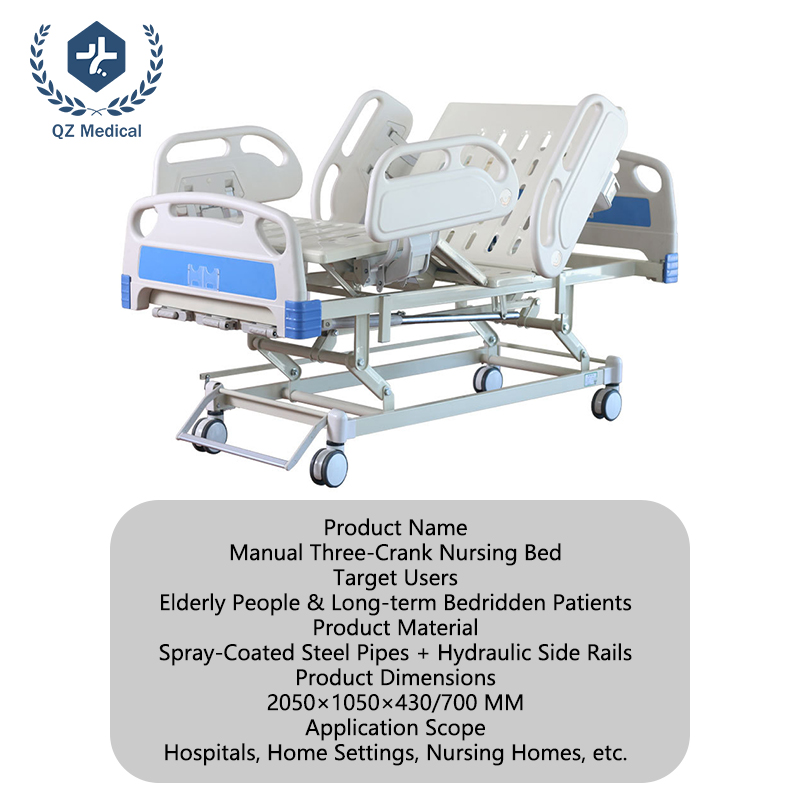

Product Type: Manual Three-Function Nursing Bed

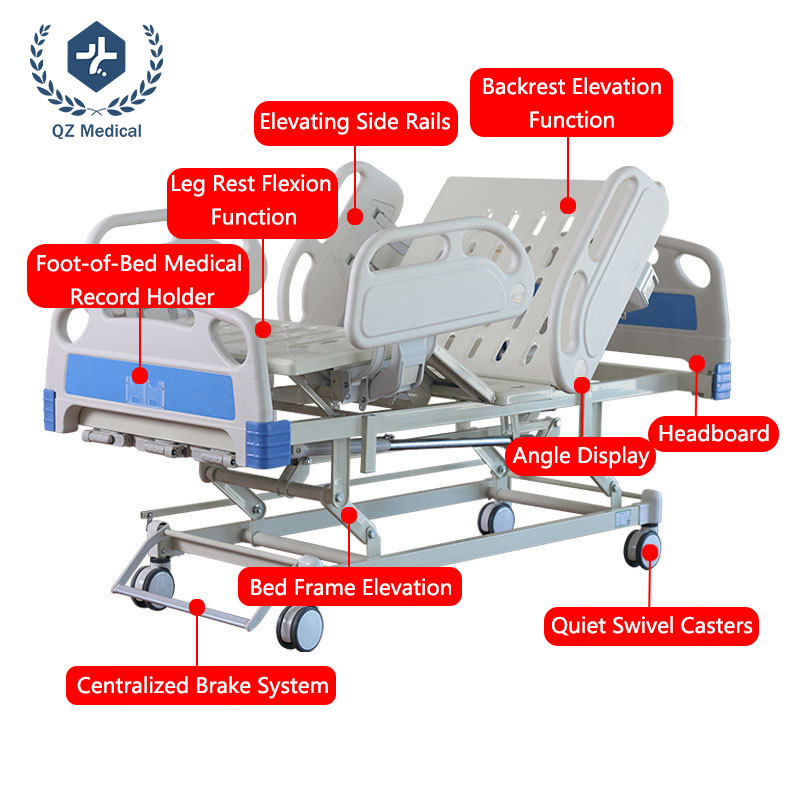

Adjustment Functions:
Overall height adjustment
Backrest elevation
Leg lifting
Bed Surface: Perforated cold-rolled steel, one-piece stamped
Frame Material: Powder-coated steel tubing
Side Rails: Hydraulic side rails with angle indicators
Overall Dimensions: 2050 × 1050 × 430–700 mm
Castors: Silent swivel castors with central braking system
Bumper Wheels: Installed at four corners
Crank Handles: Foldable and retractable
Target Users: Elderly, long-term bedridden patients
Application Areas: Hospitals, nursing homes, home care
Technical Specifications
Model Number: MC-01
Weight Capacity: 150kg (330 lbs)
Frame Material: Cold-rolled steel with powder coating
Bed Surface: One-piece pressed steel with concave perforations for breathability
Height Adjustment Range: 430-700mm
Back Support Angle: 0°-75°
Leg Elevation Angle: 0°-45°
Wheel Type: Quiet multi-directional casters with centralized braking
Weight: 35kg (77 lbs)
Dimensions (Folded): 2050×1050×430mm
Dimensions (Extended): 2050×1050×700mm
Material Specifications
Frame: Cold-rolled steel (2.0mm thickness), powder-coated finish
Bed Surface: One-piece pressed steel with concave perforations
Wheels: Polyurethane with precision ball bearings
Hardware: Stainless steel fasteners, zinc-plated components
Performance Standards
Durability Testing: 50,000-cycle fatigue testing on all moving components
Load Testing: 120% load capacity verification (180kg)
Safety Compliance: CE marking, ISO 13485:2016 certified
Environmental Rating: IPX4 water resistance, operating temperature -10°C to +50°C
Assembly Time: 5 minutes with one person, tool-free design
Included Accessories
Manual nursing bed frame
Cold-rolled steel bed surface
Hydraulic Side Rails with angle display
Multi-directional casters with centralized braking
Anti-collision wheels at all four corners
Hidden foldable handle
User manual (multilingual)
Product Advantage
Integrated Three-Function Manual Adjustment
The bed supports three core manual functions: overall height adjustment, backrest elevation, and leg lifting. These functions allow caregivers to position patients comfortably for rest, feeding, and daily care without electrical dependence.
Cold-Rolled Steel Perforated Bed Surface
The one-piece stamped steel bed surface features recessed perforation for improved airflow and durability. The reinforced structure ensures long service life and stable load-bearing performance.
Adjustable Backrest for Daily Comfort
The backrest can be adjusted freely to help patients sit up and relieve back pressure. This function supports daily activities such as eating, reading, and medical observation.
Leg Elevation for Pressure Relief
The leg section can be raised to improve circulation, reduce numbness, and support rehabilitation needs during prolonged bed rest.

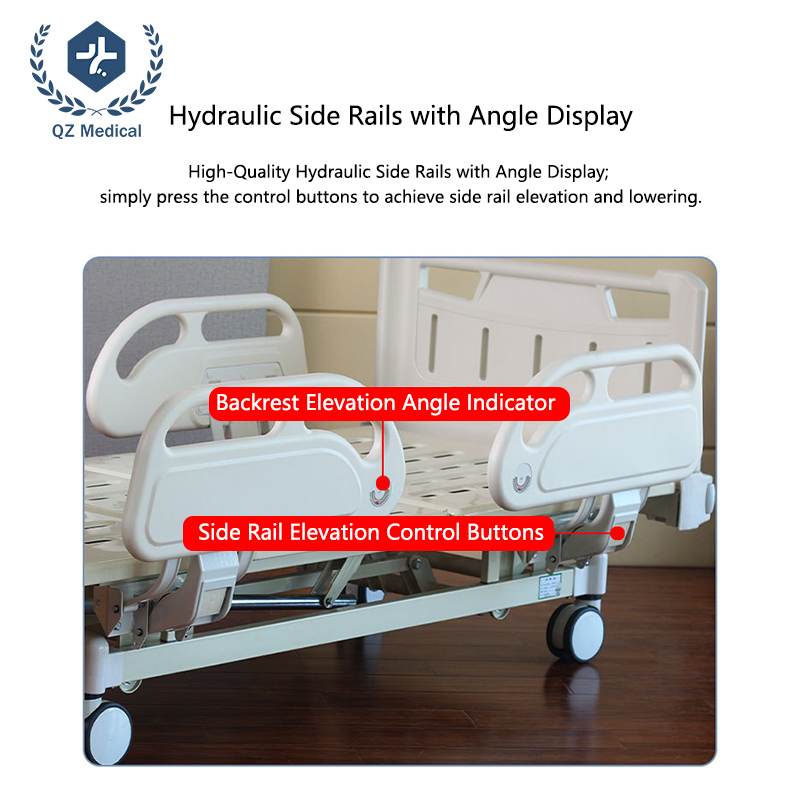

Hydraulic Side Rails with Angle Display
High-quality hydraulic side rails provide safe fall protection and smooth operation. Integrated angle indicators allow caregivers to clearly monitor backrest and tilt positions.
Overall Height Adjustment for Caregiver Ergonomics
The bed height can be adjusted to suit caregivers of different heights, reducing bending and back strain during long-term nursing tasks.
Central Braking Silent Castors
Multi-directional silent castors allow smooth movement, while the central braking system locks all four wheels simultaneously for secure positioning.
Protective Bumper Wheel Design
Bumper wheels at the four corners help prevent wall and furniture damage during bed movement, enhancing safety in confined spaces.
Product Uses
Hospital General Wards
Suitable for non-intensive care wards requiring reliable manual nursing beds.
Nursing Homes and Elderly Care Facilities
Supports long-term care with low maintenance and stable performance.
Home Care for Long-Term Patients
Ideal for families seeking manual, easy-to-use nursing beds without electrical systems.
Clinics and Community Healthcare
Provides flexible patient positioning for basic treatment and observation.
Medical Equipment Distribution Projects
Well-suited for distributors supplying cost-effective nursing beds to healthcare institutions.
FAQ
Q1：Is this bed electric or manual?
A: This is a fully manual nursing bed operated by crank handles.
Q2：What functions does the bed support?
A: It supports overall height adjustment, backrest elevation, and leg lifting.
Q3：Is the bed surface durable for long-term use?
A: Yes. The bed surface is made from one-piece stamped cold-rolled steel for strength and durability.
Q4：Are the side rails safe and easy to operate?
A: Yes. Hydraulic side rails provide smooth lifting and secure protection, with angle indicators for easy monitoring.
Q5：Does the bed include a braking system?
A: Yes. The bed features a central braking system that locks all four castors simultaneously.
Q6：Is the bed easy to move within a room?
A: Yes. Silent swivel castors allow smooth movement, and bumper wheels protect surrounding surfaces.
Q7：Who is this bed suitable for?
A: It is suitable for elderly users and long-term bedridden patients.
Q8：Do you offer OEM or bulk supply options?
A: Yes. OEM services and bulk supply are available for distributors and institutional projects.
