Technical Parameters

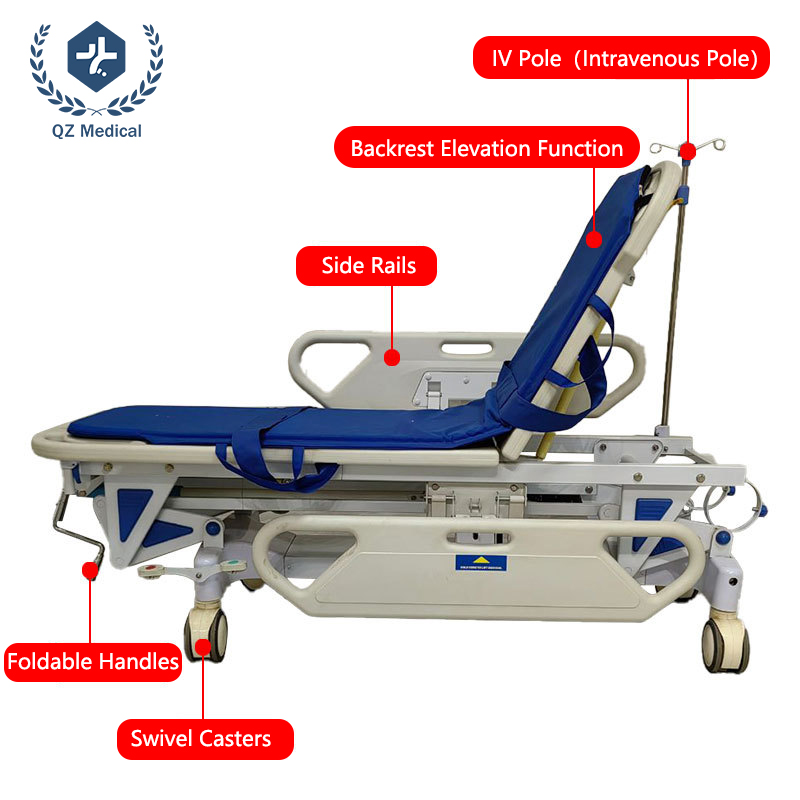

Product Type: Multi-Function Patient Transfer Stretcher
Bed Surface Material: ABS injection-molded panel
Frame Material: Powder-coated steel tubing
Side Rails: Hydraulic side rails
Backrest Adjustment: Up to 75° (gas spring assisted)
Height Adjustment Range: 550–900 mm
Flat Bed Size: 1930 × 640 mm
Castors: Silent swivel castors with central braking system
Mattress: Detachable Oxford fabric mattress with safety straps
Oxygen Cylinder Holder: Suitable for 5L oxygen bottle
Handles: Foldable push handles
Application Areas: Hospitals, emergency departments, clinics
Product Advantage
Durable ABS Molded Bed Surface
The bed platform is manufactured using one-piece ABS injection molding, offering high strength, flame resistance, and deformation resistance. The smooth surface is easy to clean and suitable for medical environments.

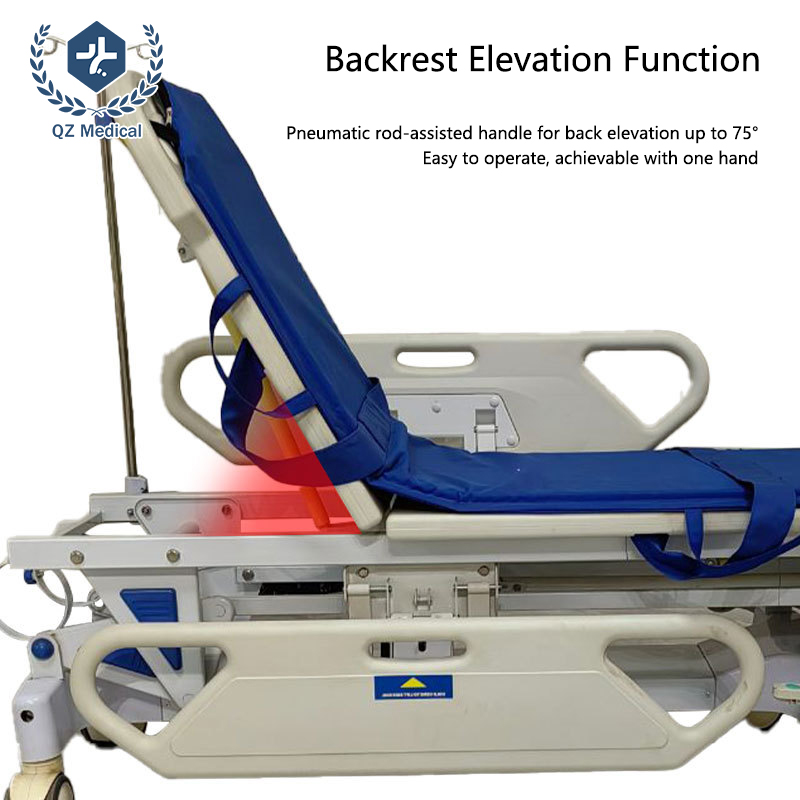

Adjustable Backrest with Gas Spring Support
The backrest can be raised up to 75 degrees with gas spring assistance. The handle-assisted design allows single-hand operation, making patient positioning fast and effortless.

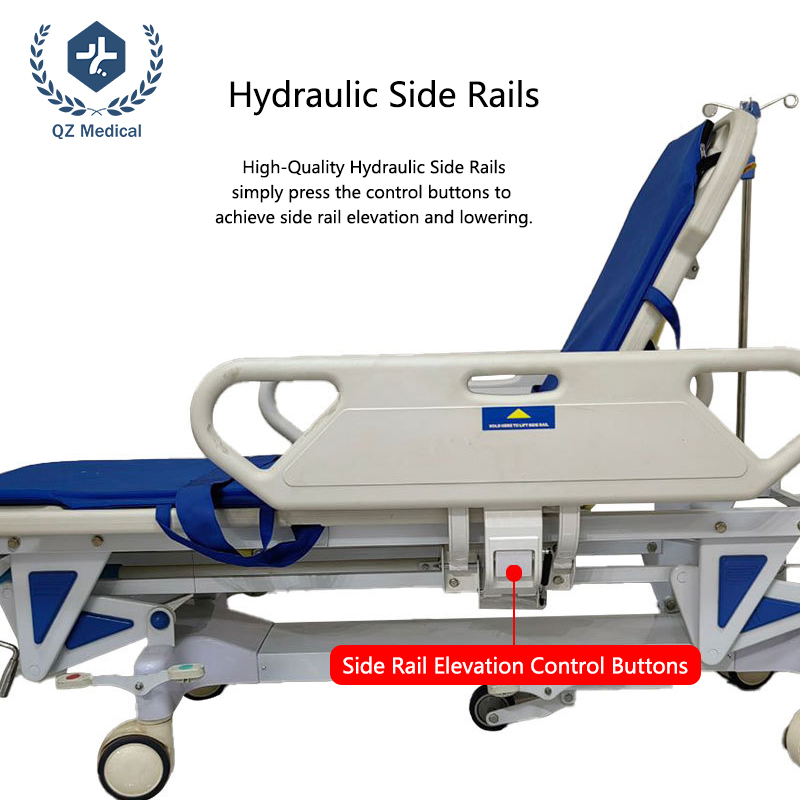

Hydraulic Side Rails for Full Protection
High-quality hydraulic side rails provide reliable fall protection during transport. The rails can be raised or lowered easily using control buttons, ensuring both safety and convenience.
Height Adjustable Bed Structure
The stretcher supports overall height adjustment from 550 mm to 900 mm, allowing caregivers to match different bed heights and reduce physical strain during transfer.
Central Braking Silent Castors
Equipped with silent multi-directional castors and a central braking system, the stretcher can be moved smoothly and locked securely. The red pedal locks all wheels, while the green pedal releases them.
Removable Oxford Fabric Mattress
The stretcher includes a detachable Oxford fabric mattress with two safety straps. The mattress is washable and helps prevent patient slipping or secondary injury during emergency transport.
Integrated Oxygen Cylinder Holder
A reinforced oxygen cylinder holder is installed at the front of the stretcher, suitable for holding a 5L oxygen bottle to support emergency care and patient transport.
Foldable Handles for Easy Operation
Foldable push handles allow flexible operation and space-saving storage when the stretcher is not in use.
Product Uses
Hospital Patient Transfer
Designed for transferring patients between wards, diagnostic rooms, and treatment areas within hospitals.
Emergency and First Aid Transport
Supports rapid and safe patient movement during emergency response and critical care situations.
Clinics and Medical Centers
Suitable for outpatient facilities requiring efficient patient transport solutions.
Medical Equipment Distribution Projects
Ideal for distributors supplying hospital transport equipment to healthcare institutions.
FAQ
Q1：Is this product a nursing bed or a stretcher?
A: This is a patient transfer stretcher designed specifically for patient transportation, not long-term nursing care.
Q2：Does the stretcher support backrest adjustment?
A: Yes. The backrest can be adjusted up to 75 degrees with gas spring assistance.
Q3：Is the stretcher height adjustable?
A: Yes. The stretcher height can be adjusted from 550 mm to 900 mm.
Q4：Are the side rails safe during transport?
A: Yes. Hydraulic side rails provide full protection and are easy to operate.
Q5：Does the stretcher include a braking system?
A: Yes. It features a central braking system with silent castors.
Q6：Is the mattress removable and washable?
A: Yes. The Oxford fabric mattress is detachable and easy to clean.
Q7：Can the stretcher carry oxygen equipment?
A: Yes. A built-in holder supports a 5L oxygen cylinder.
Q8：Do you support OEM or bulk orders?
A: Yes. OEM services and bulk supply are available for distributors and medical projects.
