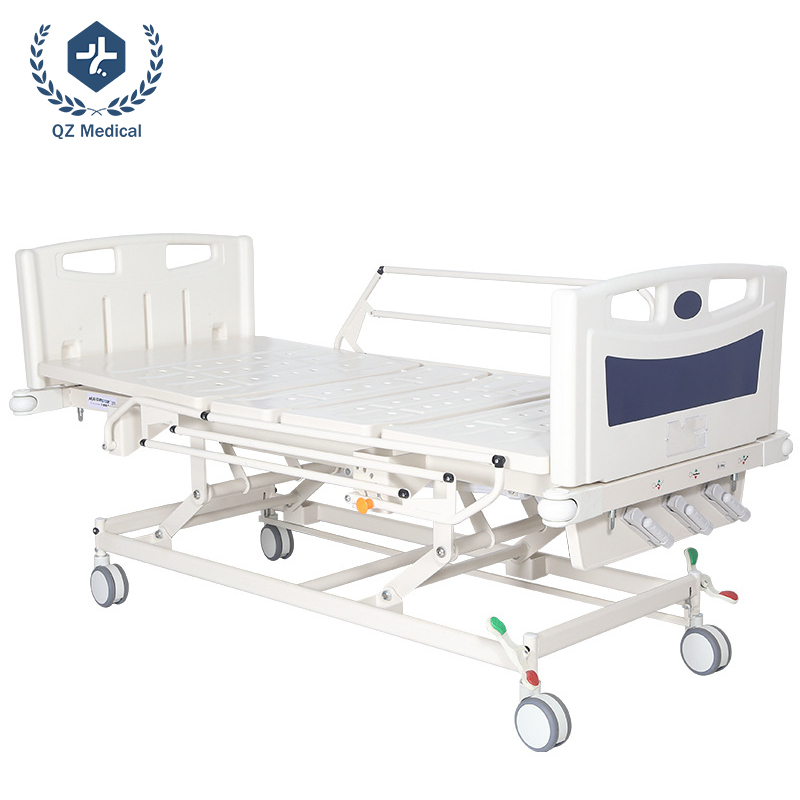

Professional Triple-Crank Nursing Bed - 85° Backrest & 40° Leg Lift, 250kg Capacity with Foldable Aluminum Guardrails & Silent Casters (2150x1030mm, EN 60601-2-52 Certified)

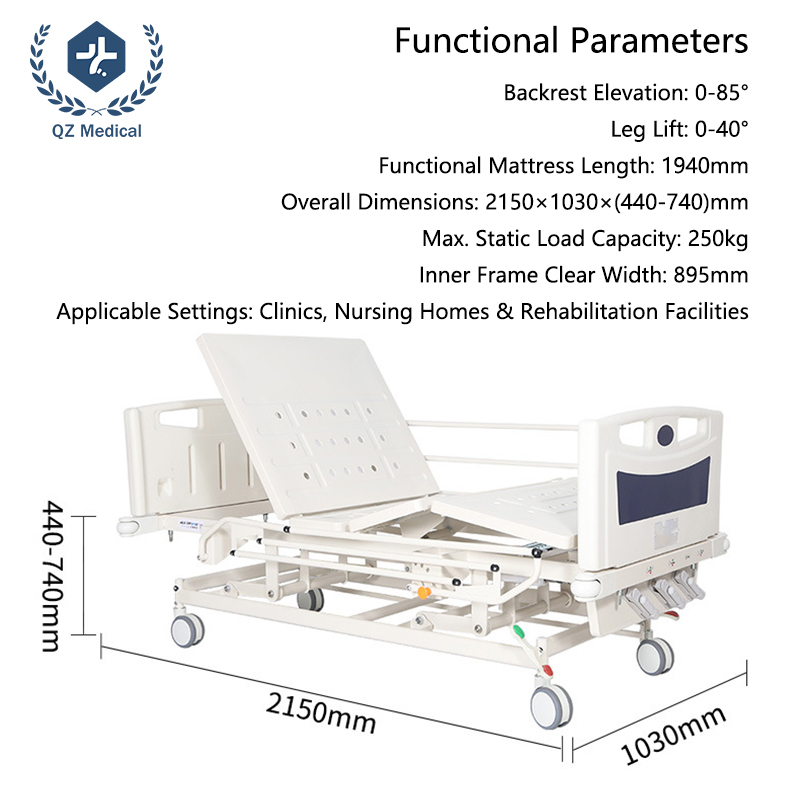

Functional Parameters

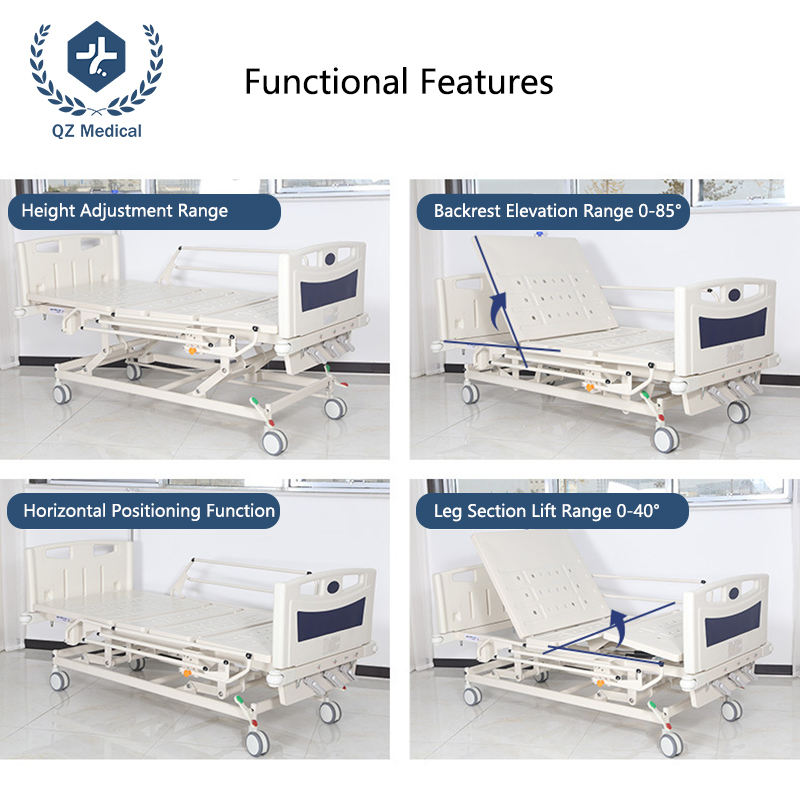

• Backrest Elevation Range: 0-85° adjustable (±1° precision)

• Leg Lift Range: 0-40° adjustable (stepless position retention)

• Overall Height Adjustment: 440-740mm (740mm low position / 440mm high position)

• Functional Mattress Length: 1940mm (compatible with 1940×900mm standard medical mattress)

• External Dimensions: 2150×1030mm (L×W)

• Internal Frame Width: 895mm (minimum support surface width)

• Static Load Capacity: 250kg (uniformly distributed)

• Floor Clearance: ≥120mm (low position mode)

• Mattress Thickness Compatibility: ≤150mm

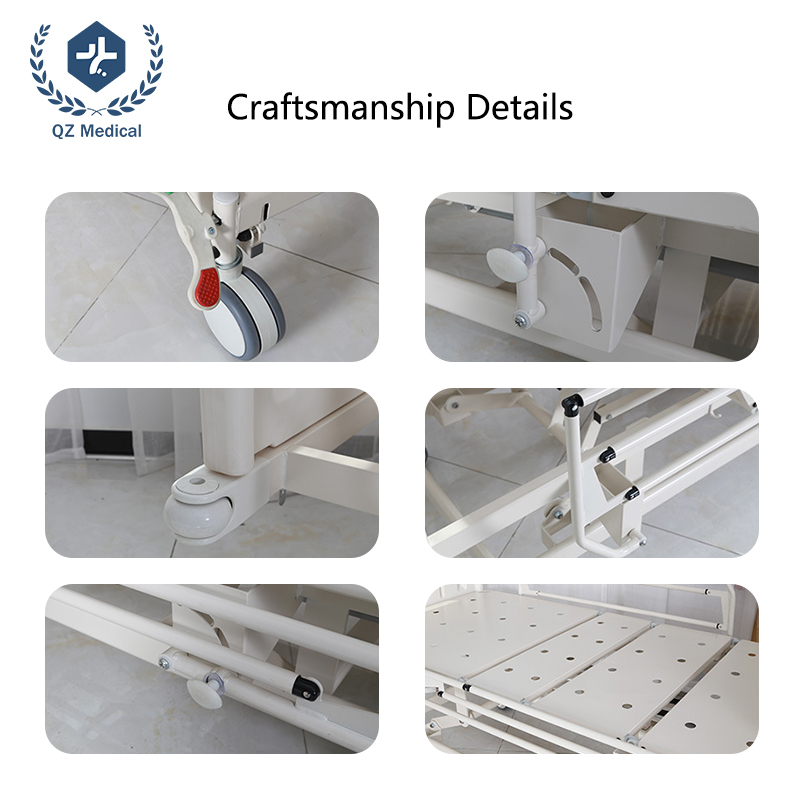

Structural Specifications

• Frame Material: 1.2mm thickened steel (electrostatic anti-corrosion coating)

• Lift Mechanism: Reinforced zigzag lift column + zinc-alloy screw-drive crank

• Bed Platform Structure: Integral stamped steel plate (12 longitudinal ventilation channels)

• Safety Guardrails: Dual-stage locking foldable aluminum anti-drop rails

• Mobility System: Ø125mm mute PU casters (individual brakes, <35dB operating noise)

• Headboard/Footboard: 6mm impact-resistant ABS engineering plastic (IK08-rated edges)

• Joint Protection: Fully enclosed dust covers (crank connection points)

Performance Metrics

• Angular Positioning Accuracy: ±1° (full scale range)

• Mechanical Durability: 7,500 lift cycles certified (EN 1970 compliant)

• Safety Lock Response Time: <0.5 seconds (guardrail activation to lock)

• Operational Torque: 18N·m crank force at 85° backrest position

• Chemical Resistance: Resistant to alcohol/sodium hypochlorite solutions

• Caster Load Capacity: ≥80kg per wheel static load (EN 12549 certified)

• Lifting Speed: 15 seconds for 740mm→440mm travel

Mil-Spec Mechanism

Zigzag lift column + zinc-alloy screw-drive crank: Eliminates wobbling (±1° positioning accuracy)

1.2mm reinforced steel-stamped bed: Distributed load design increases deformation resistance by 30%

Embedded joint protectors: Block dust intrusion, extend screw drive service life

Comprehensive Safety System

Dual fall prevention: Yellow/black guardrail stripes + mechanical auto-lock (response time <0.5s)

360° pinch-free design: Foldable cranks, zero exposed sharp edges

ABS impact-resistant edges: 6mm thickened head/footboard buffer layer (IK08 impact rating)

Clinical Adaptive Engineering

Optimized backrest torque: Only 18N·m force required at 85° sitting position

Low-height mode (740mm): 120mm ground clearance for wheelchair/stretcher transfer

Ventilated bed base: 12 longitudinal airflow channels reduce pressure ulcer risk

Post-Acute Care

Rehabilitation centers: Detachable panels accommodate traction devices; screw-drive enables 15-min interval repositioning

Edge: Meets ISO 10535 positioning standards with 35% lower crank force vs industry average

Elderly Mobility Support

Nursing homes: Dual-stage guardrail locks maintain seated position for 60-min static loading

Edge: Passed EN 1970 fatigue test (7500 lift cycles with zero structural degradation)

Home-Based Care

Home ICU: 1030mm narrow profile clears standard doorways; <35dB caster noise ensures undisturbed sleep

Edge: Alcohol-resistant ABS components cut maintenance costs by 50%

Q1: Does the product have international safety certifications? (e.g., CE/ISO)

A: The bed complies with target market safety standards (e.g., CE/ISO13485). Certificates will be provided based on destination country requirements.

Q2: Is the 250kg weight capacity suitable for bariatric patients? Can it be customized for higher weight?

A: The standard 250kg capacity meets most needs. Customized reinforcement (e.g., 300kg+) is available upon request.

Q3: Is the 895mm inner width suitable for European/American body types?

A: 895mm inner width aligns with global medical bed standards (typically 900-1000mm in EU/US), complemented by 1030mm outer width for optimal comfort.

Q4: Does the height range (440-740mm) facilitate wheelchair transfer and nursing tasks?

A: The 740mm high position aids wheelchair transfers, while 440mm low position reduces fall risks and aligns with caregiver ergonomics.

Q5: Can the aluminum guardrails prevent falls? Are they pinch-proof?

A: Reinforced aluminum foldable rails pass rigidity tests. Hinges include safety gaps to prevent finger pinching.

Q6: How is mobility and noise of silent casters on hard floors?

A: High-resilience rubber casters passed 72hr rolling tests with ≤40dB noise (below 50dB hospital night standard). Each caster has individual brakes.

Q7: What are the advantages of the arched lifting mechanism vs hydraulic systems?

A: The steel arch structure eliminates hydraulic leaks. Crank-driven screw rods ensure ±2mm precision over 10 years, reducing maintenance costs by 60%.

Q8: Does the ventilated bed design prevent pressure ulcers? How to sanitize it?

A: Perforated steel bedpan (≥35% open area) exceeds industry breathability standards. Epoxy-coated surfaces withstand sodium hypochlorite/alcohol disinfection.
