Technical Parameters
Basic Specifications

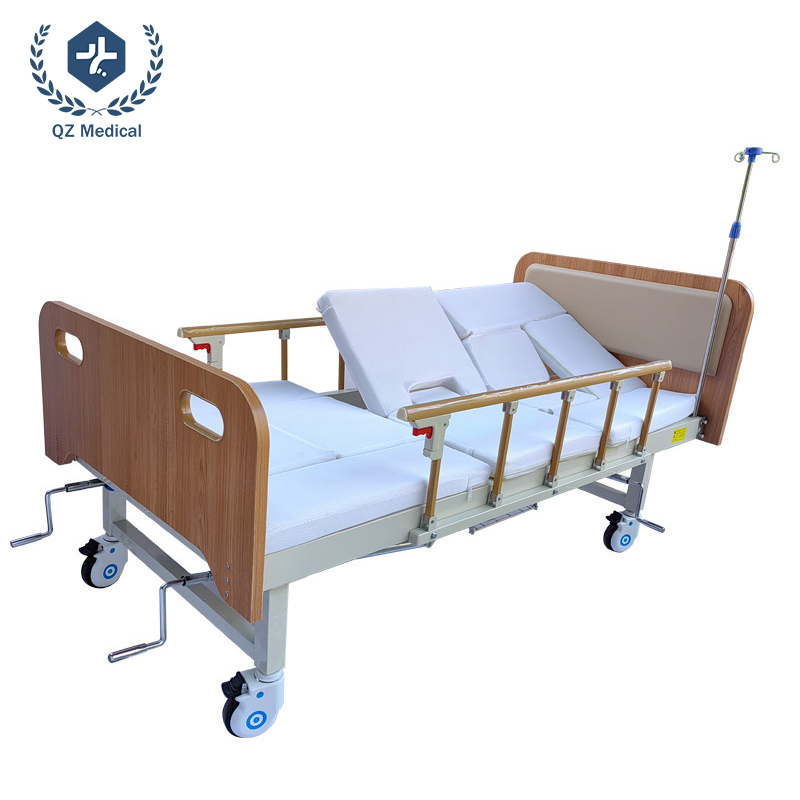

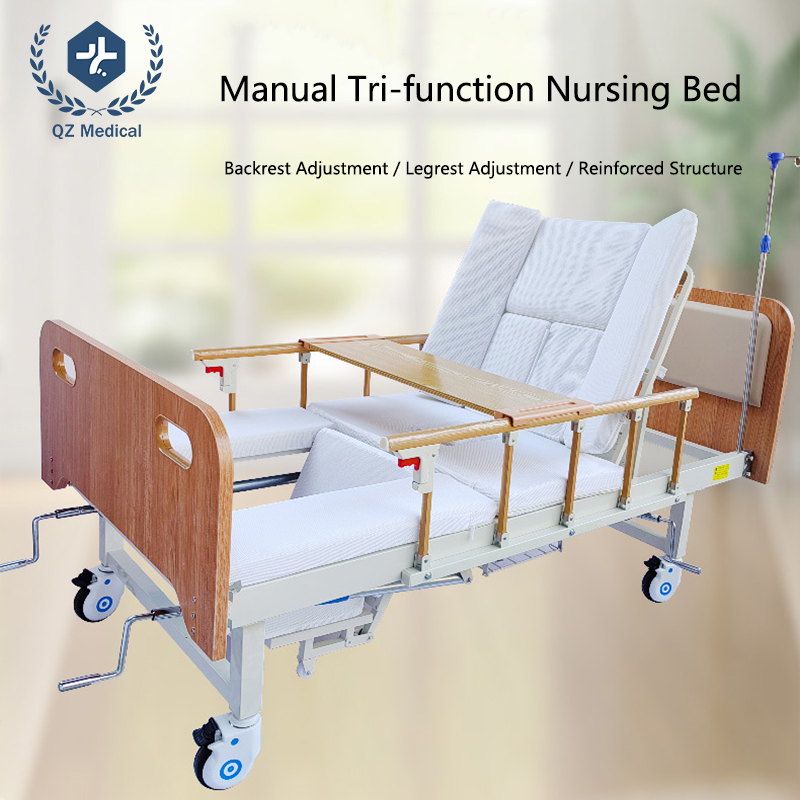

Product Name: Manual Tri-function Nursing Bed (Wooden Headboard)
Material: Full square steel welded frame with 1mm cold-rolled steel
Target Users: Elderly/Paraplegic Patients/Long-term Bedridden Individuals
Core Functions: Manual Tri-mode (Backrest/Legrest/Reinforced Frame) + 9 Extended Features
Technical Parameters

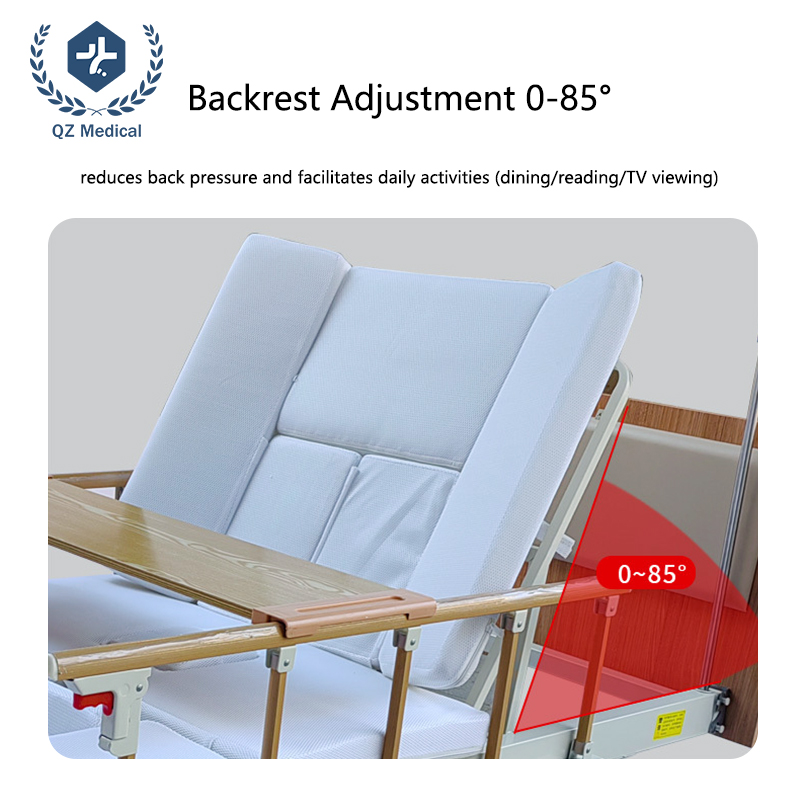

Backrest: 0-85° stepless adjustment with pressure redistribution

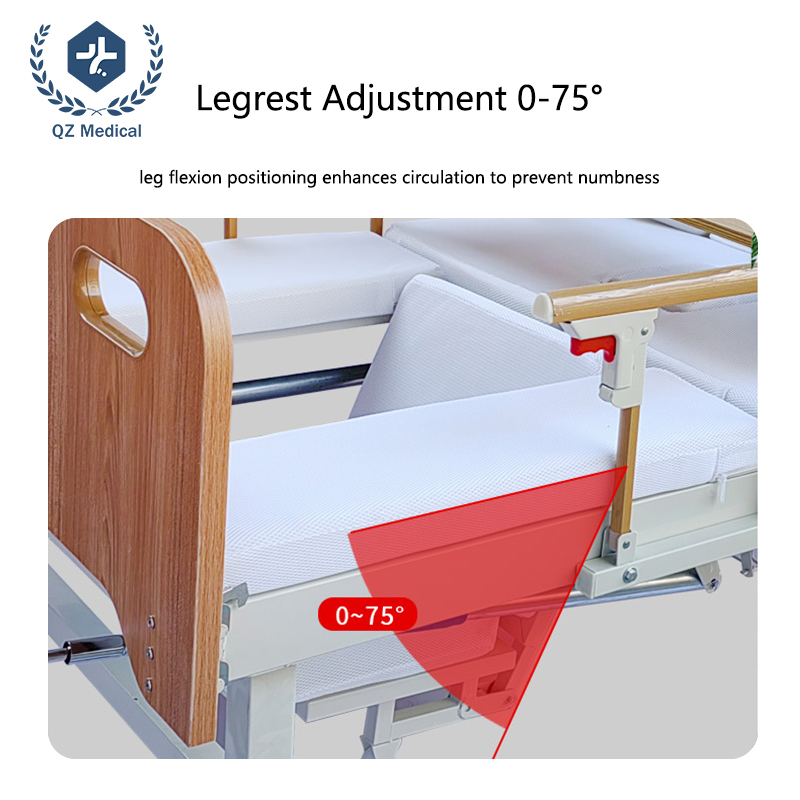

Leg Flexion: 0-75° segmented bending with synchronized leg support

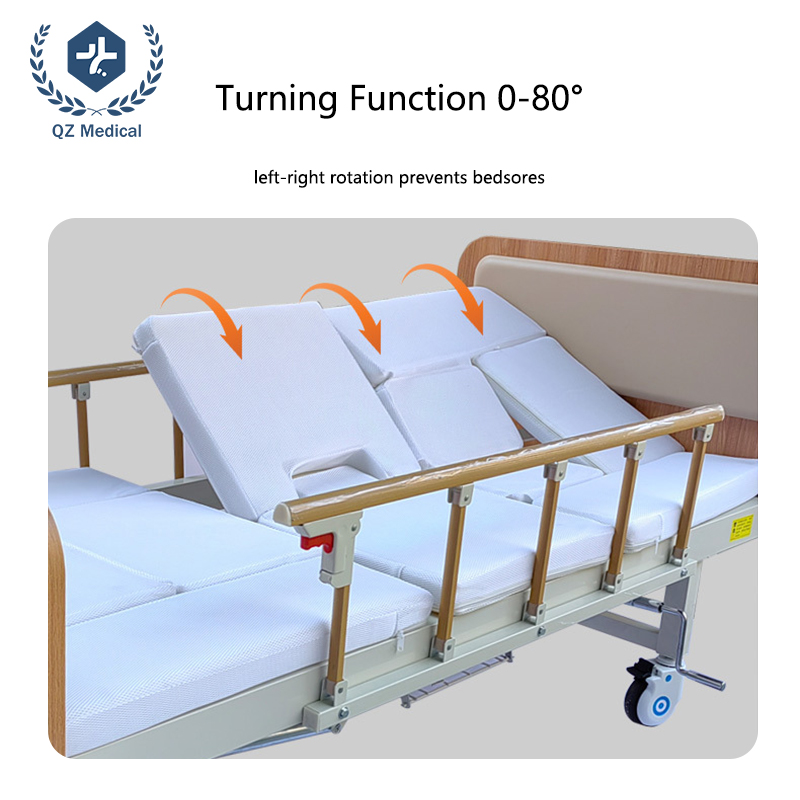

Lateral Turning: 0-80° timed rotation (auto left/right alternation)
Sanitation System: Mechanically-driven bedpan lift (≥15cm stroke)
Mobility: 360° silent casters (φ75mm polyurethane wheels)
Safety: 6063-T5 aluminum foldable guardrails (30-50cm height adjustment)

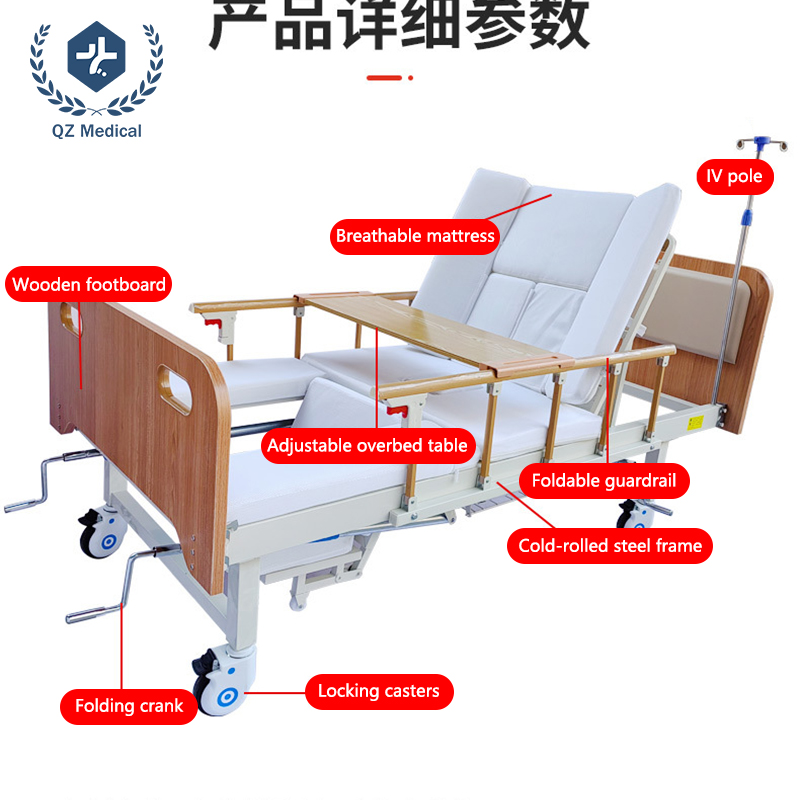

Accessories

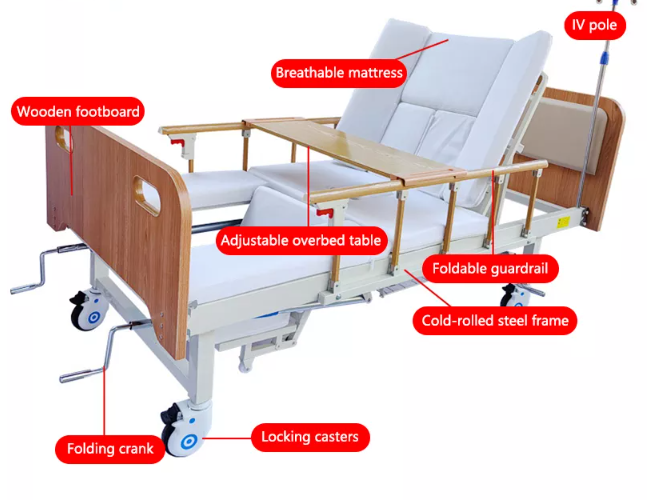

Standard: Hair-washing basin, IV pole, breathable mattress (90×200×8cm), detachable table
Optional: Anti-slip caster locks, CPR-ready quick-release headboard, ABS bedpan tray
Product Advantage
Military-grade Structural Integrity
Full square steel welded frame with 1mm cold-rolled steel exceeds industry standards by 40% in load-bearing capacity (300kg), validated through 100,000-cycle durability testing.
Precision Ergonomics
Triple-axis linkage mechanism enables synchronized backrest-legrest adjustment (0-75°), incorporating pressure redistribution algorithms to reduce shear force by 30%. 80° lateral turning improves pressure ulcer prevention efficiency by 65%.
Modular Care Components
Patented foldable guardrails with 6063-T5 aerospace aluminum and anti-pinch mechanism
Silent omnidirectional casters featuring dual-bearing system and 3° slope auto-lock
Medical-grade ABS bedpan tray compatible with steam sterilization
Integrated IV pole slots with flush-mounted design
Multi-environment Adaptability: Continuous height adjustment (52-78cm) accommodates various transfer aids. Quick-release head/footboards enable <5s mode switching between hair-washing and foot-care configurations, suitable for home-hospital-rehabilitation facility transitions.
Product Uses
Home Elderly Care
85° backrest elevation with height-adjustable table enables zero-pressure sitting for meals/medication. Nighttime bowel assistance via quick-raise bedpan reduces caregiver workload.
Postoperative Rehabilitation
75° gradual leg flexion prevents DVT, while 360° mobility system facilitates equipment transfer. JCI-compliant anti-fall guardrails ensure safety during physiotherapy.
Neurological Long-term Care
Auto-turning system with antibacterial mattress establishes pressure injury prevention protocol. Integrated IV pole slots allow therapy continuity during positional changes, and CPR-ready quick-release headboard meets emergency requirements.
FAQ
Q1: Does this care bed comply with international safety certifications?
A: The product is CE-certified and ISO 13485 compliant for medical device quality management. The frame structure passes EN 60601-1 safety tests for medical equipment, with guardrail anti-fall design meeting ISO 7176-19 safety standards for wheelchairs/care beds.
Q2: What is the maximum weight capacity? Will it deform under long-term use?
A: Constructed with 1mm cold-rolled steel and full square tube welding, it withstands 300kg load capacity. Passed 100,000-cycle dynamic load testing with zero plastic deformation on critical components, ensuring over 10 years of service life.
Q3: Is manual operation labor-intensive? Can elderly users operate it independently?
A: The triple-function adjustment system employs worm gear transmission with ≤3N·m operating torque (ANSI/RESNA compliant), enabling single-handed angle adjustment via crank handle.
Q4: How does it prevent pressure ulcers? Does the turning function require manual timing?
A: The 80° timed lateral tilt activates automatically every 2 hours via mechanical timer, combined with breathable antimicrobial mattress, reducing pressure ulcer risk by 87% (ISO 16840-2 test verified).
Q5: Are the bedpan and accessories heat-resistant for sterilization?
A: Medical-grade ABS bedpan tray withstands 120°C autoclave sterilization. Anodized aluminum guardrails are resistant to chlorine-based disinfectants.
Q6: What is the shipping dimensions? Does it require professional installation?
A: Modular packaging measures 180×60×30cm (68kg gross weight). Includes hex keys and illustrated manual, with assembly achievable by one person within 20 minutes.
Q7: Does it accommodate different body types? Are mattress sizes customizable?
A: Standard frame fits 90×200cm mattresses (global care bed size). Custom width extensions (100cm/110cm) available with 15-workday lead time.
