Technical Parameters

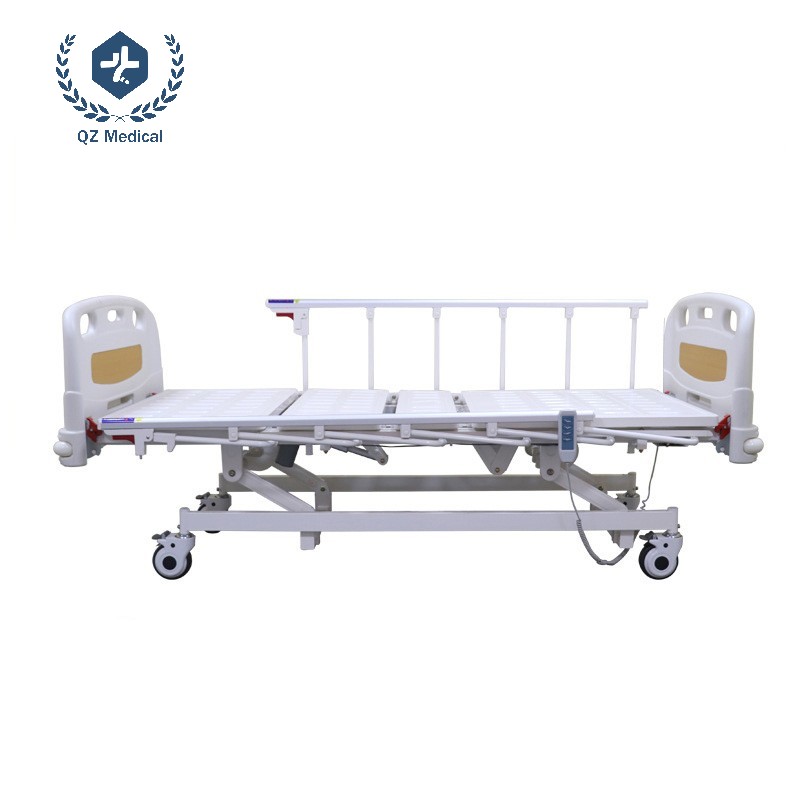

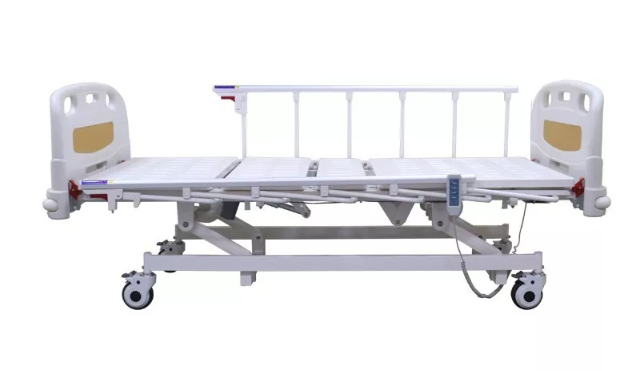

Bed Dimensions:
Length: 2130 mm
Width: 980 mm
Height Range: 270–680 mm
Adjustment Range:
Backrest Tilt: 80°±5° (supports respiratory therapy and seated positioning)
Legrest Flexion: 40°±5° (enhances circulation and prevents DVT)
Full-Body Height Adjustment: 270–680 mm (ultra-low 270mm mode for wheelchair transfers)
Standard Configuration
Power & Control System:
High-grade medical motors (x3, IP54-rated, 100,000+ cycles)
Central control box (x1)
Anti-misoperation handheld controller (x1)
Mobility & Safety:
Premium-grade TPR silent casters (x4, ≤45dB noise)
Aluminum alloy guardrails (x1 pair)
Medical Accessories:

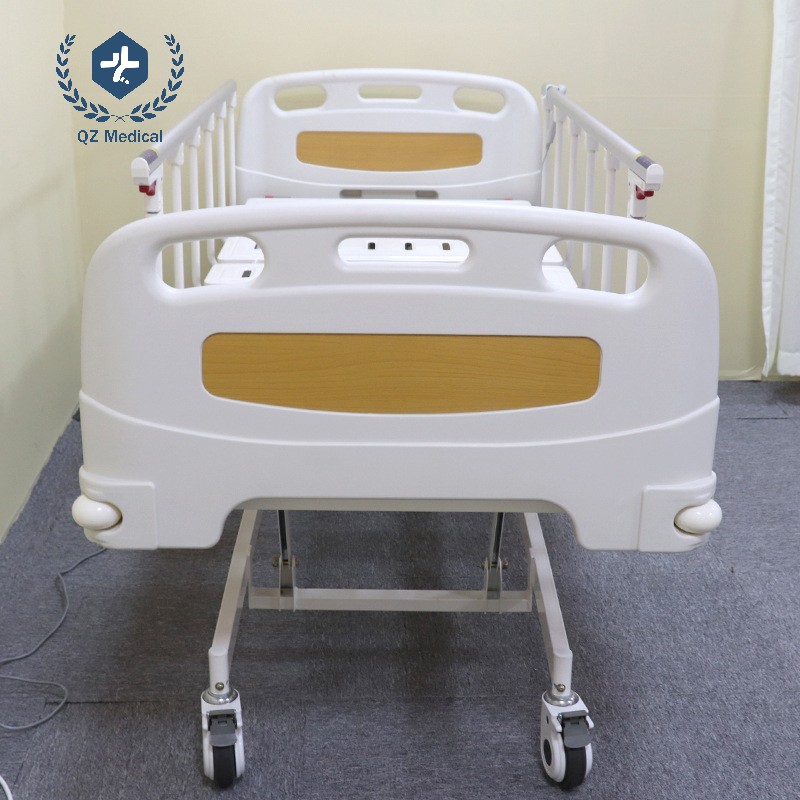

Detachable ABS head/footboards (x1 pair)
Drainage hooks (x4)
Stainless steel IV pole (x1)
Product Advantage
Core Functions

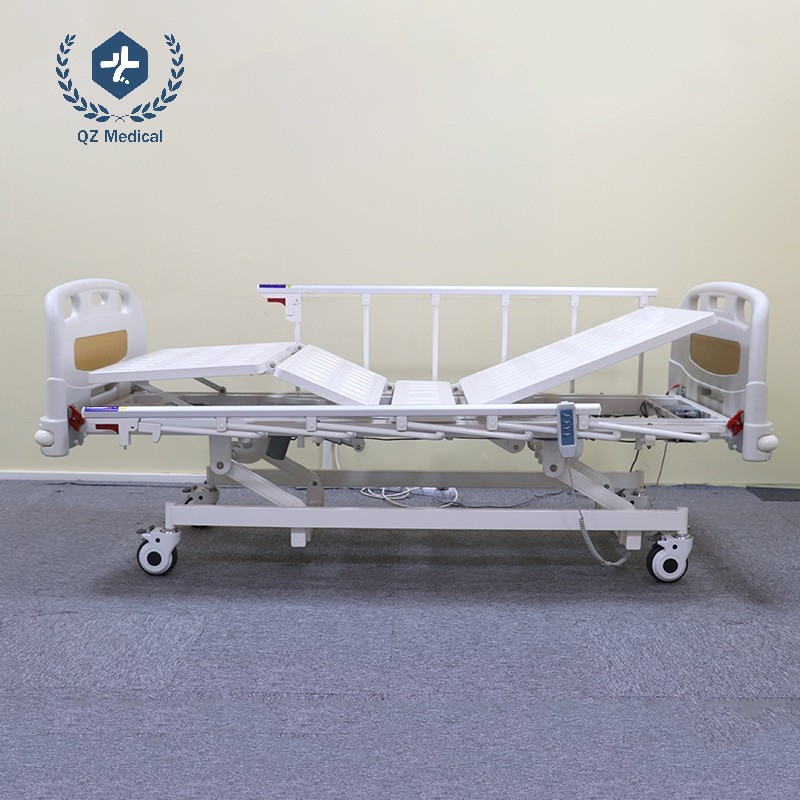

Precision Posture Adjustment

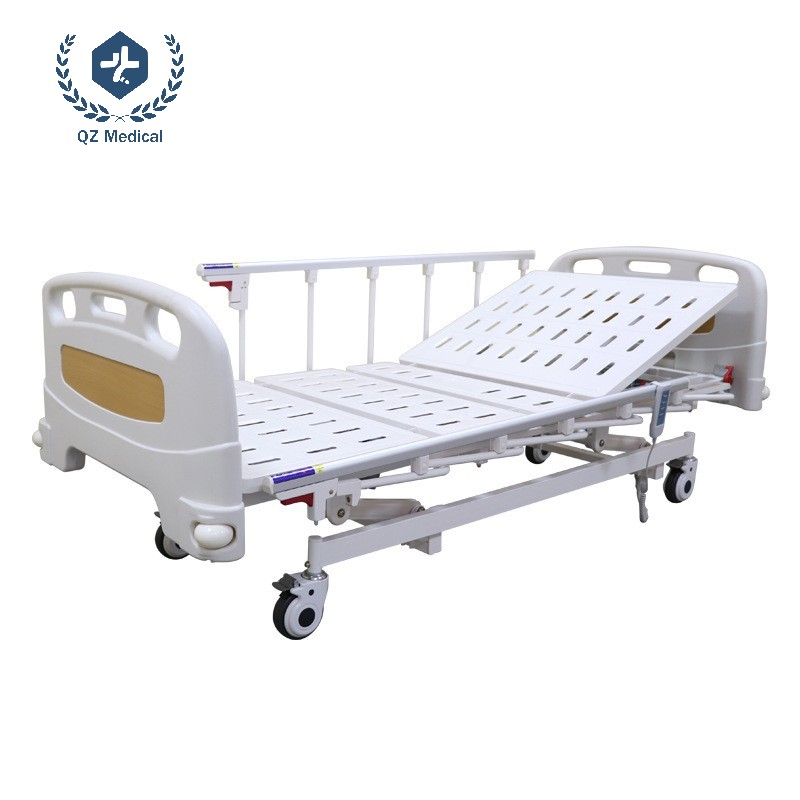

Backrest Elevation: Supports 0°-80°±5° angle adjustment, enabling seamless transition from supine to seated positions for respiratory therapy, feeding, and other clinical needs.
Legrest Flexion-Extension: 0°-40°±5° synchronized articulation enhances lower limb circulation, reduces deep vein thrombosis (DVT) risks, and achieves zero-gravity positioning with backrest coordination to alleviate pressure ulcers.
Full-Body Height Adjustment: 270-680mm height range (ultra-low 110mm mode on select models), facilitating wheelchair transfers and minimizing fall risks.
Safety & Power System
Triple Independent Motor Drive: IP54-rated medical motors ensure 100,000+ lift cycles, with isolated control for backrest, legrest, and height adjustments to prevent motion interference.
Emergency Braking: One-touch shutdown (<0.5s response) compliant with IEC 60601-2-52 standards for critical interventions.

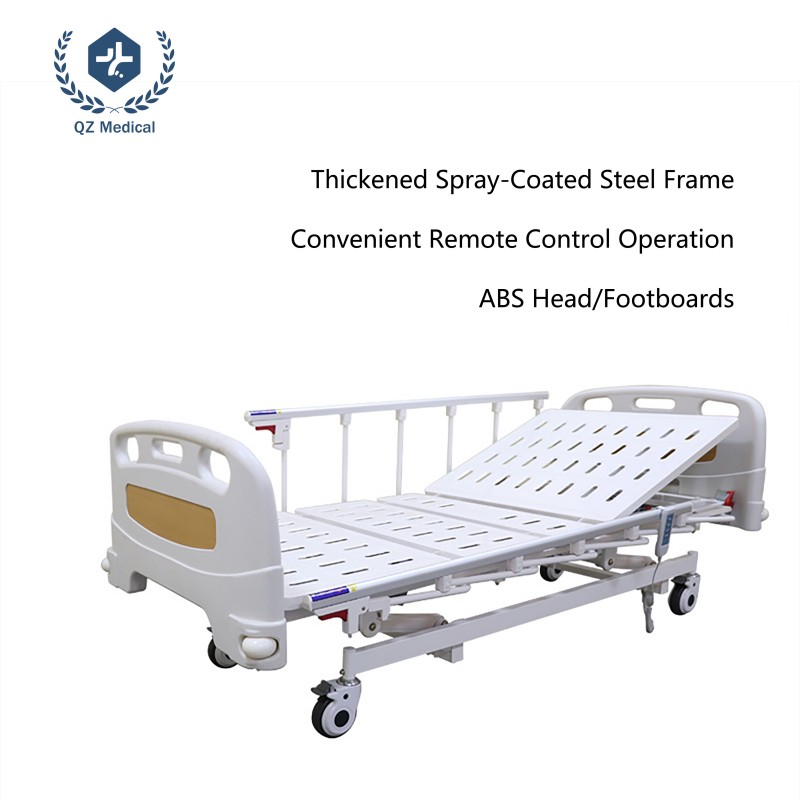

Reinforced Structure: 1.5mm cold-rolled steel monocoque frame with 250kg load capacity, featuring electrostatic spray coating for alcohol-compatible disinfection.
Ergonomic Design
Silent Mobility System: 4 TPR silent casters (operational noise ≤45dB) with centralized braking adapt to tile, epoxy floors, and uneven surfaces.
Modular Accessories: Detachable ABS head/footboards, drainage hooks, and stainless steel IV poles enable rapid CPR mode switching for emergency care.
Product Uses
Medical Institutions (General Hospitals/Rehabilitation Departments/ICUs)
Advantages:
Precision Posture Management: Independent adjustment of backrest (80°±5°) and legrest (40°±5°) supports respiratory therapy and postoperative drainage, reducing pulmonary infection risks.
Efficient Nursing Support: Ultra-low mode (270mm height) enables autonomous patient transfer, minimizing caregiver workload and improving ICU bed turnover.
Safety Compliance: ISO 13485 and GB/T 28708 certifications ensure a 250kg load capacity and alcohol-compatible electrostatic coating for infection control.
Home Care for Disabled Elderly
Advantages:
Autonomy & Comfort: One-touch anti-misoperation handle allows self-adjustment (e.g., eating/reading), paired with TPR silent casters (≤45dB noise) for nighttime care.
Pressure Ulcer Prevention: Synchronized back-leg "zero-gravity positioning" redistributes pressure to mitigate skin injuries.
Cost-Effective Customization: Modular design (detachable ABS head/footboards, IV poles) reduces home retrofitting expenses.
Orthopedic/Joint Replacement Rehabilitation
Advantages:
Early Postoperative Mobility: Ultra-low height aligns with wheelchair transfers, while 0-40° leg flexion promotes circulation and accelerates joint recovery.
Secondary Injury Prevention: 1.5mm cold-rolled steel frame and centralized braking ensure stability during mobilization.
Smart Monitoring Integration: Compatible with external sensors (e.g., smart mattresses) for real-time respiratory/heart rate monitoring to prevent DVT.
Community Elderly Centers/Transitional Wards
Advantages:
Multi-Surface Adaptability: TPR casters accommodate tile/epoxy floors, while detachable drainage hooks and IV poles reduce equipment transfers.
User-Friendly Operation: Backlit controls and voice prompts (aligned with smart ward trends) enhance accessibility for elderly patients and caregivers.
Cardiopulmonary Compromised Patient Care
Advantages:
Respiratory Assistance: 80° backrest elevation combined with leg lifting improves ventilation and reduces cardiac load in COPD/heart failure cases.
Emergency Response: <0.5s emergency braking and CPR mode switching optimize resuscitation efficiency.
Remote Monitoring: IoT-compatible interfaces enable real-time vital sign transmission to hospital systems.
FAQ
Q1: What certifications does this medical bed comply with for EU/US market entry?
A:EU Market:
CE-MDR compliance (EN 60601-2-52 for medical bed safety).
IEC 60601-2-52 certification for emergency braking systems.
US Market:
FDA registration (via 510(k) or De Novo pathways) with clinical validation for modular accessories.
Global Certifications:
ISO 13485 (Quality Management System for Medical Devices).
GB/T 28708 (Structural Integrity Certification).
Q2: How does the bed ensure patient safety during critical care scenarios?
A:Emergency Braking System: <0.5s response time (IEC 60601-2-52 compliant) for immediate motion termination.
Anti-Misoperation Controls: Backlit handheld controller with dual-lock mechanism to prevent accidental adjustments.
Structural Safety: 1.5mm cold-rolled steel monocoque frame (250kg load capacity) and TPR casters with centralized braking to prevent slippage.
Q3: Is the bed compatible with both hospital and home care environments?
A:Hospital Use:
Ultra-low height (270mm) for ICU transfers and ISO 13485-compliant disinfection protocols.
Modular accessories (e.g., CPR-ready components) for rapid medical interventions.
Home Care:
Noise reduction (≤45dB) and zero-gravity positioning to prevent pressure ulcers.
Detachable ABS head/footboards for space optimization and personalized configurations.
Q4: Does the bed support post-joint replacement rehabilitation?
A:Legrest Flexion (0-40°±5°): Enhances circulation to reduce deep vein thrombosis (DVT) risks.
Smart Monitoring: IoT-compatible sensors (e.g., smart mattresses) for real-time respiratory/heart rate tracking.
Wheelchair Transfer: 110mm ultra-low mode aligns with standard wheelchair height, minimizing postoperative injury risks.
Q5: What after-sales services and warranties are provided?
A:Motor Warranty: 5-year coverage for IP54-rated medical motors (100,000+ lift cycles).
Compliance Support: Assistance with CE/FDA documentation and multilingual user manuals.
Q6: Are regional customization options available?
A:Voltage Adaptation: 110V/220V motor configurations for global power grid compatibility.
Language Interfaces: Control panels with localized language options (EU/Asia).
