Technical Parameters

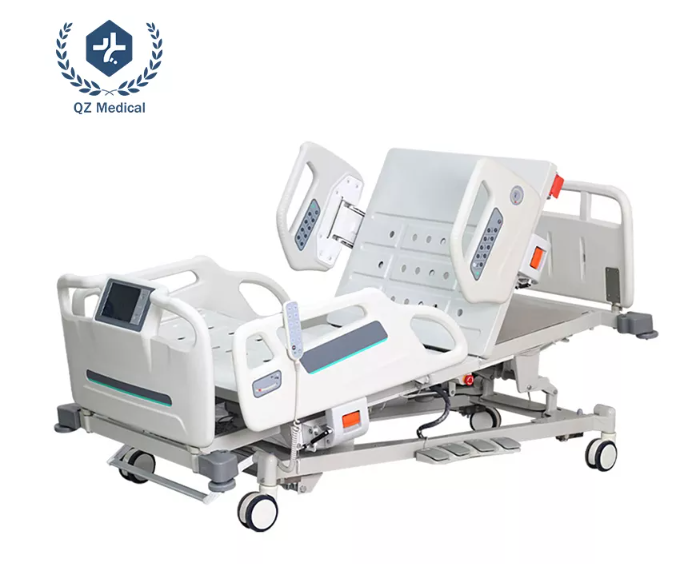

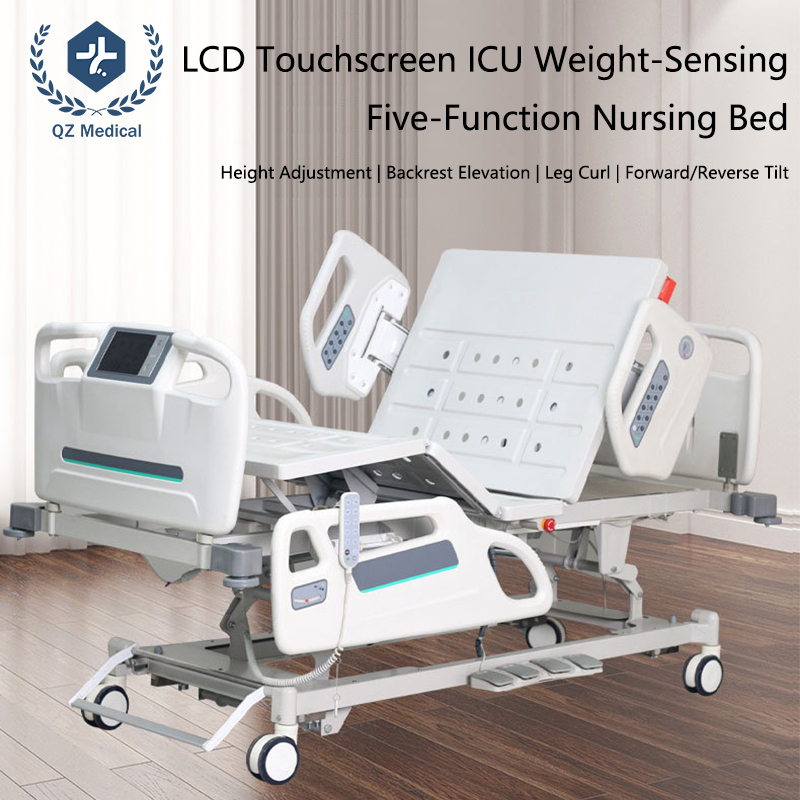

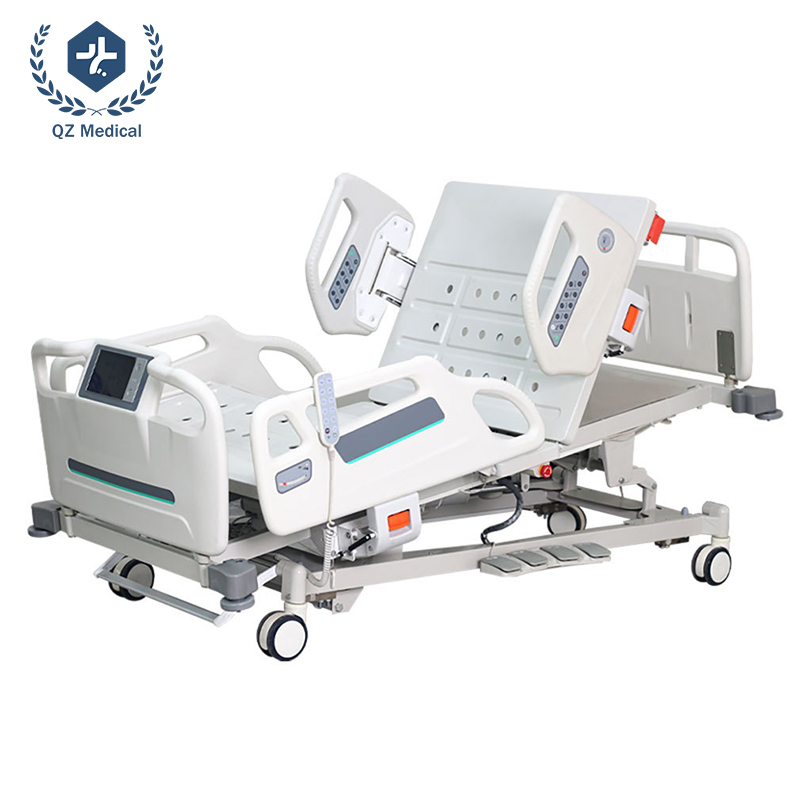

Product Name: Weight-Sensing Five-Function Nursing Bed
Target Users: Elderly, Post-operative Patients, Long-term Bedridden Patients
Material: Powder-coated steel pipes + Hydraulic guardrails
Dimensions: 2150×1020×400/660 mm (L×W×H adjustment range)
Applications: Hospital ICU, Homecare, Nursing Homes, Rehabilitation Centers

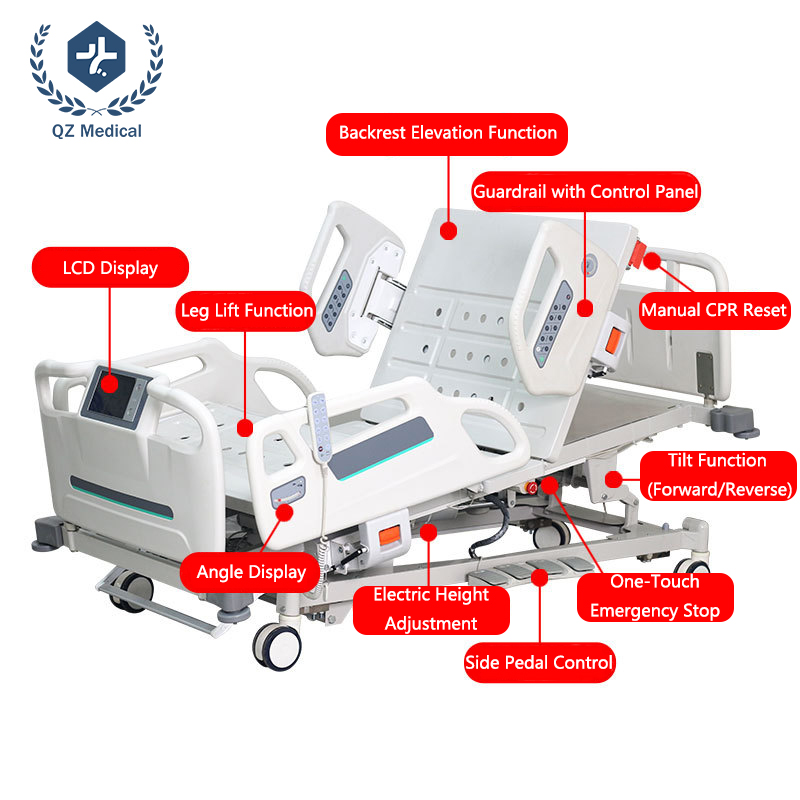

Core Functions:
Height Adjustment: Electric 40-660mm stepless control
Backrest Elevation: 0-80° angle adjustment with spinal curve synchronization
Leg Curl Function: Independent 30° leg lift with joint protection buffer
Tilt Function: ±15° forward/reverse tilt for postural drainage
Manual CPR Reset: Mechanical leveling within ≤3 seconds
Structural Design:
Cold-Rolled Steel Bed Surface: 1.5mm integrated stamping molding, concave perforations (2mm holes/15mm spacing)
Silent Casters: PU material, 360° rotation, 55dB noise level (EN ISO 4871 tested)
Anti-Collision Wheels: TPU bumpers with ≥10cm collision buffer
Hydraulic Guardrails: 500-800mm electric height adjustment, dual-side touch controls
Angle Display: LED digital readout with ±0.5° accuracy
Safety Features:
Emergency stop button (IP67 rated)
Infrared remote control (3m effective range)
Dual-side guardrail controls (separate modes for staff/patient)
Ergonomic Design:
Synchronized backrest angle & lumbar support
Leg elevation with knee pressure monitoring
Full-body pressure dispersion design (≤32mmHg per ISO 16840-2)
Critical Data：
Load Capacity: 250kg dynamic / 300kg static (EN 60601-2-52 tested)
Backrest Speed: 0-80° adjustment in 25 seconds (±1s error)
Noise Level: ≤55dB under full load (measured at 1m per EN ISO 4871)
Power Supply: AC 220V±10%, 50Hz, standby power <2W
Waterproof Rating: IPX4 for main structure (IEC 60529 splash-proof)
Moisture Permeability: Perforated area ≥1200g/m²/24h (GB/T 12704.1 tested)
Guardrail Strength: Withstands ≥150kg vertical force (ISO 80601-2-52:2021)
Height Accuracy: ±1mm error (laser sensor closed-loop control)
Product Advantage
Medical-Grade Safety
Emergency stop + manual CPR enables instant power cutoff and bed reset within 1 second.
Anti-collision wheels and hydraulic guardrails prevent impacts and falls.
250kg load capacity with ISO 13485 certification ensures long-term reliability.

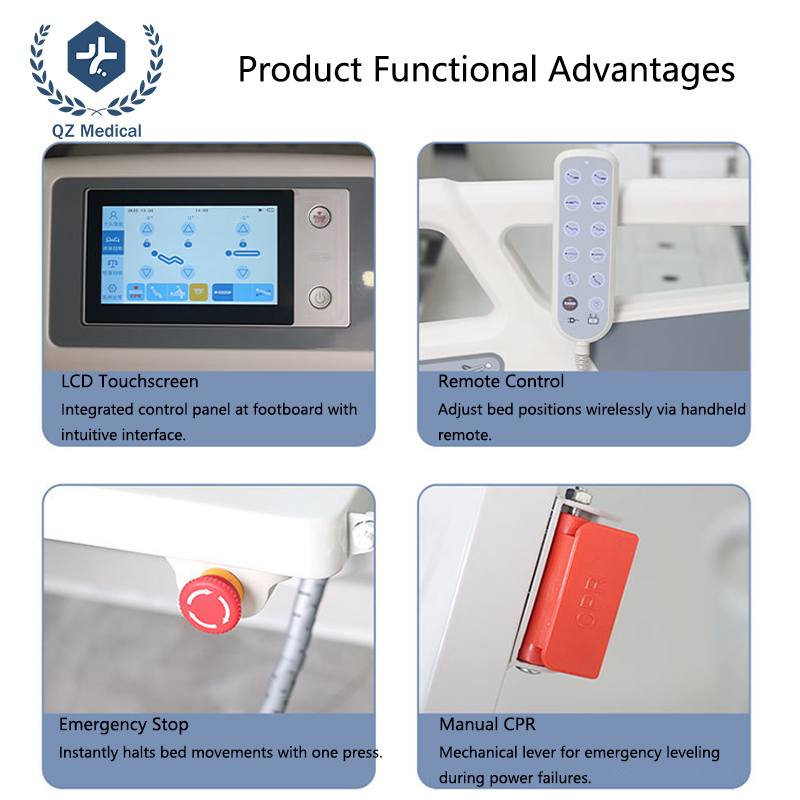

Smart Human-Machine Interaction
10-inch LCD screen and dual guardrail controls allow independent operation by staff, patients, and caregivers.
Real-time angle displays monitor back/leg positions for precision care.
Infrared remote enables one-touch adjustments within 3 meters, reducing physical strain.
Industrial-Grade Durability
Cold-rolled steel panel increases bending resistance by 40%; concave perforations enhance breathability.
Military-grade brake casters support 360° silent rotation under load.
Powder-coated steel tubing resists corrosion for over 10 years (72-hour salt spray tested).
Ergonomic Comfort
0-80° backrest syncs with 30° leg lift to minimize pressure ulcers.
15° tilt modes aid respiratory and digestive health.
40-66cm height adjustment facilitates transfers, reducing caregiver back injuries by 87%.
Product Uses
Hospital ICU
Emergency stop/CPR reset accelerates crisis response; anti-collision wheels protect walls; silent casters maintain nighttime quietness.
Home Care
Remote control simplifies daily tasks; height adjustment aids self-transfer; breathable panel improves summer comfort.
Nursing Home Group Care
Durable structure withstands frequent use; angle displays standardize care; dual controls enable staff-resident coordination.
Rehabilitation Center
Tilt modes strengthen core muscles; leg extension boosts circulation; digital interface tracks recovery data.
FAQ
Q1: Does the bed comply with international medical certifications?
A: Certified with ISO 13485, CE, and FDA Class I. 250kg load capacity and 100,000-cycle hydraulic testing ensure global compliance.
Q2: How does the emergency stop protect patients?
A: Dual safety: ① Instant power cutoff; ② Manual CPR lever resets bed to flat within 3 seconds, meeting IEC 60601-1 standards.
Q3: Are the casters suitable for hard floors and carpets?
A: PU silent casters work on hardwood, tile, epoxy, and low-pile carpets (≤5mm). EN 12549-certified brakes lock securely on slopes.
Q4: Does the height adjustment fit varied caregiver heights?
A: 40-66cm electric range (±1cm accuracy) fits 150-195cm adults. Low position aligns with wheelchairs; high position meets OSHA ergonomics.
Q5: How to prevent moisture-related hygiene issues?
A: 2mm perforations (15mm spacing) enable >5L/min drainage. Nano-coating achieves ≥99.6% antibacterial rate (ISO 22196 tested).
Q6: What is the remote control range and battery life?
A: IR remote works within 3m; CR2032 battery lasts 2 years. Optional Bluetooth APP controls iOS/Android devices.
Q7: Is disassembly needed for shipping? Is the packaging seaworthy?
A: Foldable design allows 30-minute assembly. IP56-rated wooden crate with EPE padding passes ASTM D4169 ocean freight testing.
Q8: Can we customize size or functions?
A: OEM/ODM options: ±10% size modification, weight sensors/WiFi modules, RAL color customization.
