In an Intensive Care Unit (ICU), every piece of equipment plays a direct role in patient outcomes. Unlike standard medical ward beds, an ICU bed is a critical care workstation that must support continuous patient monitoring, rapid emergency interventions, and precise therapeutic positioning.
For hospital procurement managers, medical device distributors, and healthcare contractors, evaluating ICU beds goes far beyond comparing basic prices. Sourcing the wrong specification can lead to clinical inefficiencies, caregiver fatigue, or worse—compliance issues during hospital audits.
To help you make an informed sourcing decision, here are the top 5 essential features to prioritize when evaluating electric ICU beds for modern critical care units.
In critical care, accurate body weight measurement is vital. ICU patients suffering from stroke, severe trauma, renal failure, or cardiac conditions frequently require precise fluid balance monitoring and exact drug dosage calculations—especially during thrombolysis therapy or dialysis.
Moving a critically ill, tube-connected patient onto a standalone floor scale is risky and labor-intensive.

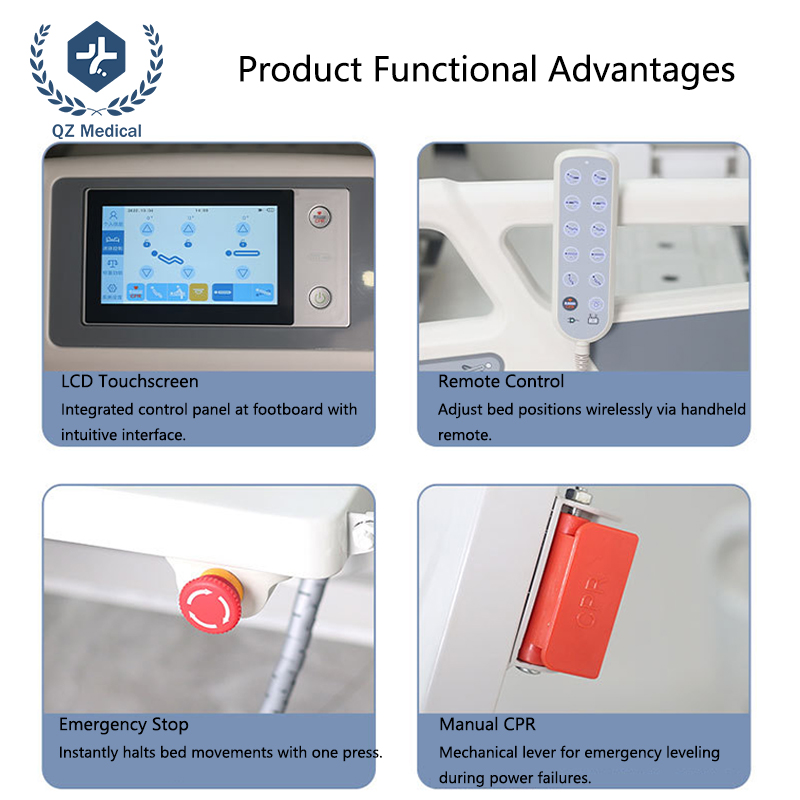

What to look for in a modern ICU bed: Look for ICU beds equipped with an integrated digital weighing scale system. The most efficient designs feature an intuitive touchscreen LCD display panel mounted at the footboard. This allows nursing staff to monitor real-time weight changes continuously without disturbing the patient.
Patient positioning in the ICU is a therapeutic intervention, not just a matter of comfort. Proper elevation and tilting are necessary to improve pulmonary ventilation, prevent venous thrombosis, and manage patient shock.

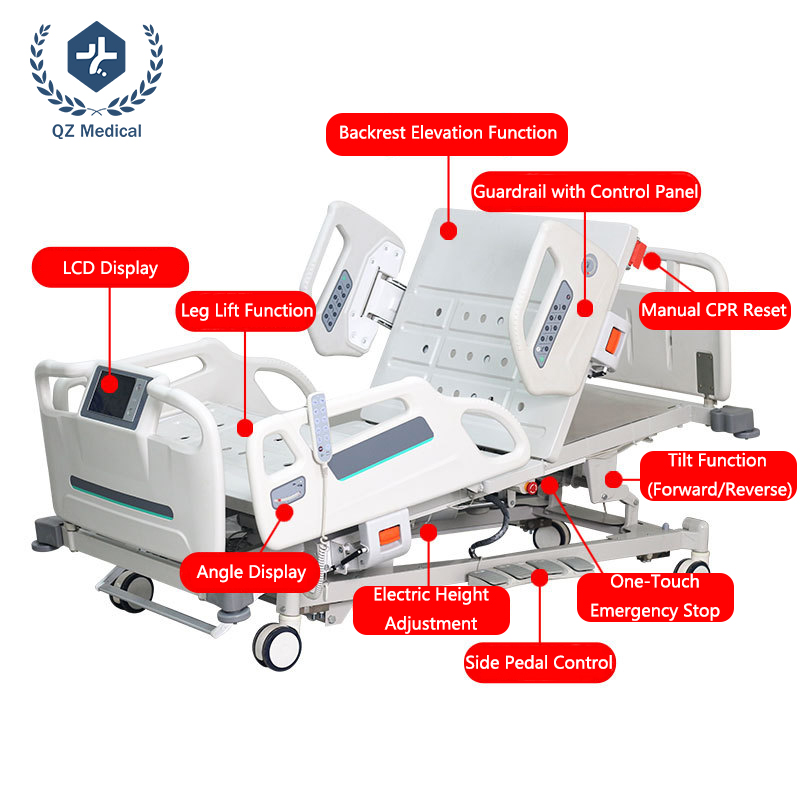

A high-spec critical care bed should offer smooth, motorized adjustment across 5 core functions:
Backrest Elevation (0–75°): Relieves lung pressure and assists in respiratory therapy.
Leg Section Elevation (0–35°): Promotes lower-limb circulation and reduces swelling.
Vertical Height Lift (e.g., 400 mm – 660 mm): Protects caregiver ergonomics during daily wound care and hygiene routines.
Trendelenburg Tilt: Tilts the entire bed frame backwards to increase blood flow to vital organs during hypotension or shock.
Reverse Trendelenburg Tilt: Elevates the upper body while keeping the torso straight, aiding cardiac function and surgical recovery.
High-grade ICU beds utilize quiet, heavy-duty linear actuators that deliver whisper-quiet, jolt-free transitions, ensuring patient stability throughout posture changes.
In critical care scenarios, cardiac arrest can happen in seconds. Electric motors, while convenient for daily positioning, move at a measured pace. During a medical emergency, resuscitation protocols require the bed surface to instantly return to a completely flat, rigid horizontal plane.
Essential emergency features to specify in your sourcing list:
Mechanical CPR Quick-Release Lever: A physical release mechanism situated near the bed frame that instantly bypasses the electric motor and flattens the backrest within one second. Crucially, a mechanical CPR system functions reliably even during power outages or electrical failures.
Master Emergency Stop Button: An accessible emergency kill-switch that halts all motorized movements immediately if a cable snag or mechanical obstruction occurs.
Patient falls from hospital beds remain a primary safety concern in healthcare facilities worldwide. However, side rails in an ICU setting must do more than just act as physical barriers—they need to enhance clinical workflow.
Key design details to evaluate:
Hydraulic Soft-Drop Mechanism: Side rails equipped with hydraulic dampeners lower smoothly and silently with a single latch press, avoiding sudden jarring movements or loud noises that startle ICU patients.
Dual-Sided Embedded Control Keypads: Controls built directly into both the inner and outer surfaces of the side rails allow patients to adjust basic comfort settings, while giving nurses full master override control from the exterior.
Visual Angle Indicators: Integrated mechanical angle dials on the side rails provide nurses with immediate visual verification of backrest elevation and Trendelenburg tilt angles, ensuring accurate medical record charting.
The ICU environment requires rigorous sanitation routines. Every component of the bed frame must withstand frequent disinfection with harsh clinical chemicals without rusting or degrading.
Structural and compliance checklist for B2B buyers:
Perforated Cold-Rolled Steel Bed Platform: One-piece stamped steel platform panels with ventilation holes ensure high structural rigidity, prevent mattress moisture accumulation, and allow for effortless surface wiping.
Protective Corner Bumper Wheels: Four rotating bumper wheels installed at the frame corners absorb impacts during patient transport, protecting both the bed structure and hospital ward walls.
Silent Multi-Directional Castors: Heavy-duty swivel castors with central or individual braking systems provide smooth, noise-free transport between operating theaters and ICU wards.
International Regulatory Certifications: Ensure your supplier manufactures under strict ISO 13485 medical quality systems, with products carrying CE and FDA documentation for smooth customs clearance and local medical device registration.
Sourcing electric ICU beds requires balancing advanced clinical technology with long-term structural durability. By prioritizing features like precision patient weighing, 5-function motorized positioning, instant mechanical CPR release, hydraulic smart guardrails, and international regulatory compliance, healthcare procurement officers can ensure both clinical excellence and optimal return on investment.
Are you planning an ICU upgrade, a hospital tender procurement, or looking to expand your medical equipment distribution portfolio?
As a dedicated manufacturer of clinical patient care beds, we offer full OEM/ODM customization services—including custom frame colors, multi-language LCD touchscreen interfaces, specialized ICU mattresses, and optimized export packaging designed to maximize container space and reduce freight costs.
[Contact Our Engineering Team Today] to request a detailed technical brochure, competitive factory-direct quotation, or sample evaluation.
