Views: 0 Author: Site Editor Publish Time: 2026-09-02 Origin: Site
When sourcing hospital beds, nursing home beds, and long-term care equipment from overseas factories, healthcare procurement officers and medical equipment distributors frequently face a confusing pricing landscape. Factory quotations for medical beds can range from $150 to $300 for entry-level manual units to $800 to $1,500+ for motorized intensive care (ICU) beds.
To an untrained buyer, two beds might look similar in catalog photographs. However, dramatic price differences reflect underlying structural durability, motor engineering, clinical safety mechanisms, and shipping efficiency. Choosing an artificially cheap bed often leads to frame bending, premature motor burnout, high return rates, and expensive liability claims.
This B2B cost guide outlines the five primary manufacturing factors that determine factory wholesale pricing, helping healthcare buyers budget accurately and source high-durability medical equipment.
The drive mechanism is the single largest component cost in medical bed manufacturing.
Manual Crank Drive ($150 – $350 Price Band): Manual 2-crank and 3-crank beds operate purely through mechanical screw rods and fold-away hand cranks. Because they contain zero motors, battery packs, or electronic control boards, their initial capital expenditure (CapEx) is low. High-quality manual beds use hardened alloy screw rods with internal gear reduction, while sub-par beds use soft carbon steel threads that strip under continuous heavy loads.

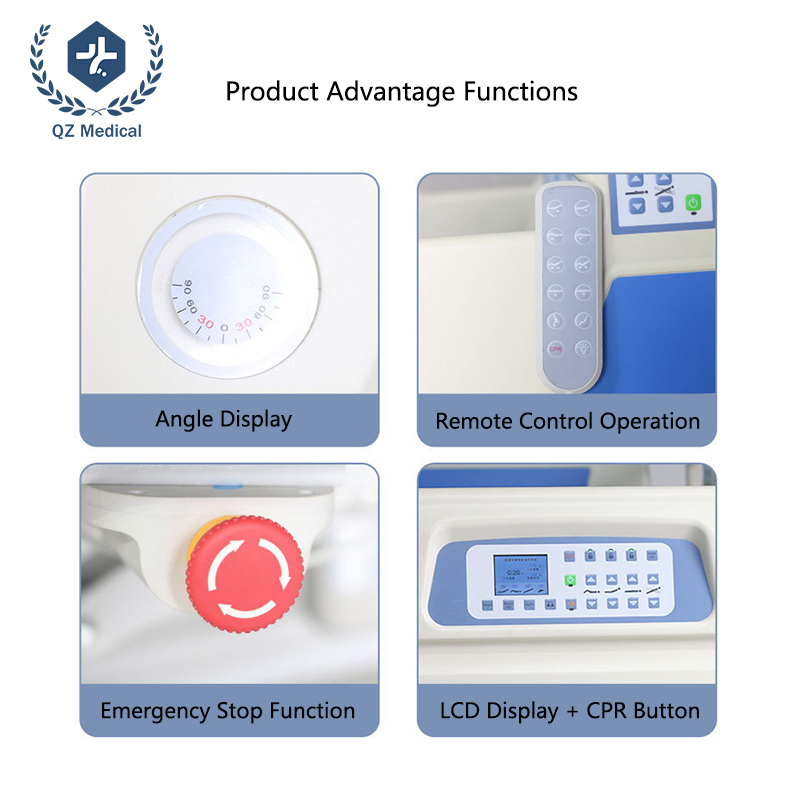

Motorized Actuators ($500 – $1,500+ Price Band): Electric beds rely on linear actuators, motor control boxes, and handheld remotes. Sourcing beds powered by certified linear actuators (such as Jiecang or Moteck motors) ensures quiet operation (below 45dB) and verified endurance over 20,000+ continuous cycles. Low-tier factories often cut costs by installing uncertified generic actuators that run noisily, generate excessive heat, and fail within months in busy care homes.
Structural frame integrity dictates whether a bed lasts 12 months or over a decade in high-occupancy clinical wards.
Raw Steel Tube Thickness: Reputable medical manufacturers fabricate bed chassis from 1.0 mm to 1.2 mm thickened cold-rolled steel square tubing (such as 30×60 mm primary beams), supporting safe working loads of 200 kg to 250 kg (440–550 lbs). Low-cost workshops cut frame weight by using thin 0.6 mm to 0.8 mm scrap steel that sags and wobbles during patient transfers.

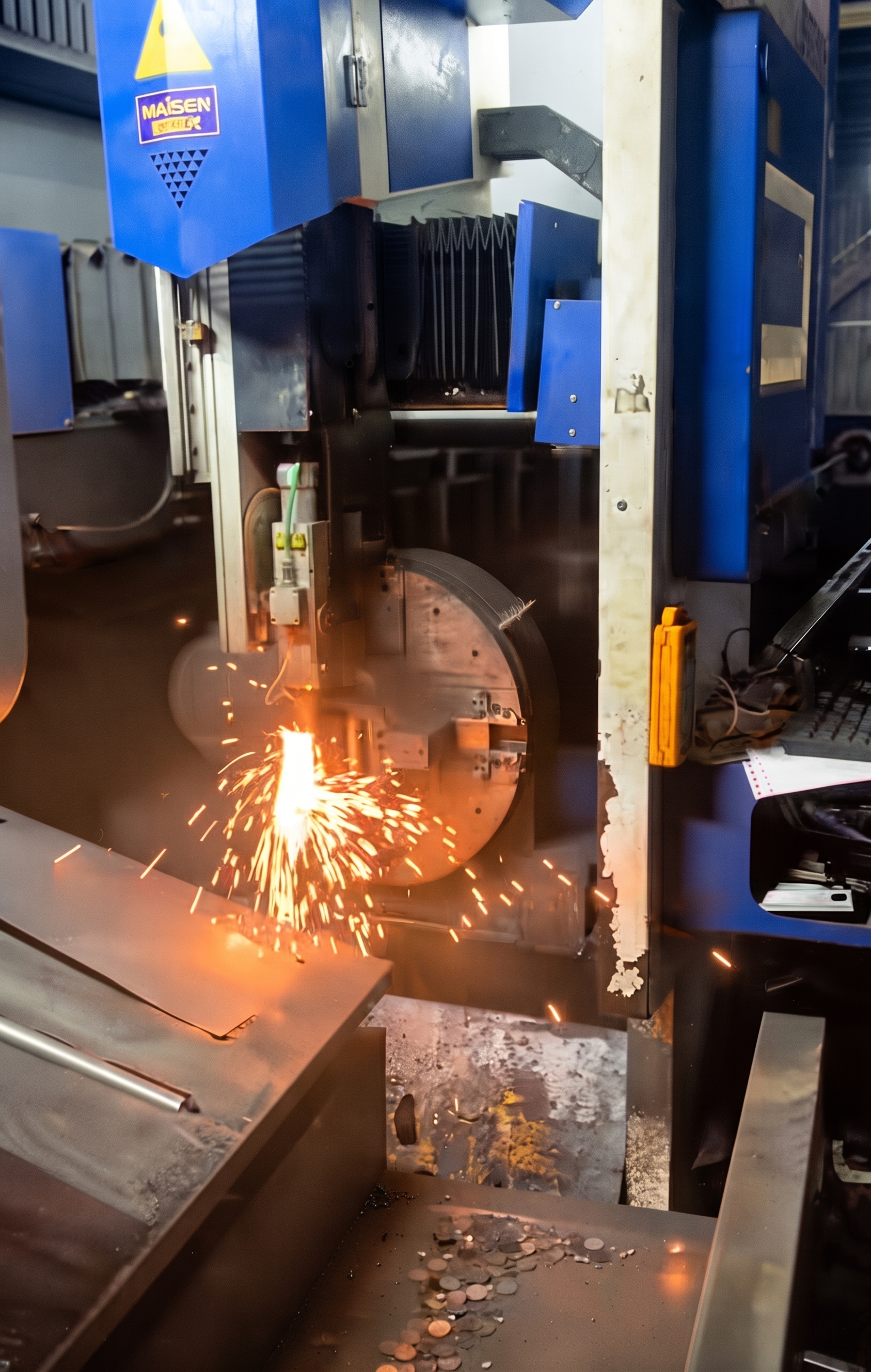

Automated Robotic Welding: High-precision robotic welding ensures deep weld penetration and clean seam finishing, maintaining a structural weld failure rate of less than 1 in 100,000.
12-Stage Anti-Corrosion Treatment: Institutional beds must withstand frequent chemical disinfection. Top factories apply a 12-stage surface preparation process, including 200°C silane ceramic conversion and 200°C thermal powder curing. Cheap paint coatings chip easily, exposing raw steel to rust in humid climates.
Safety hardware choices directly influence both manufacturing costs and patient injury liability.

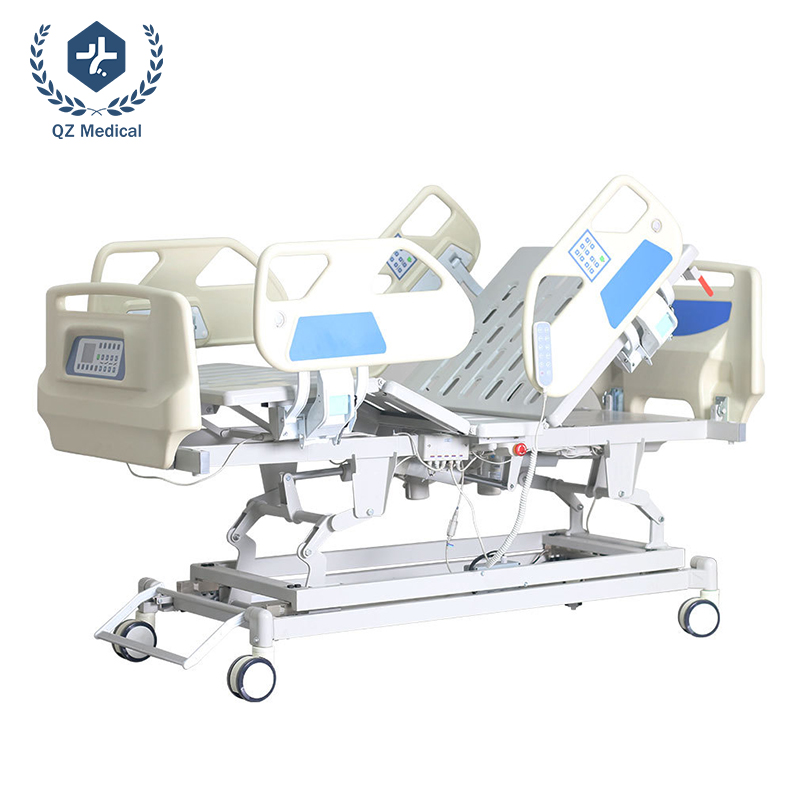

Side Guardrails:
Basic Aluminum Collapsible Rails: Economical, functional, and lightweight, suitable for standard clinic budgets.
S-Shape Stainless Steel Rails & 4-Piece Split ABS Rails: Carry a higher price point due to complex molding and internal hydraulic damping cylinders, but provide superior anti-pinch safety, drop-down soft buffering, and embedded angle indicators.
ABS Plastic Purity: End boards molded from 100% native ABS engineering plastic resist heavy impacts and harsh cleaning sprays without yellowing or cracking. Sub-tier manufacturers blend cheap recycled regrind plastic that turns brittle over time.
Caster Mobility: Standard individual casters cost less, but 125 mm deluxe covered noiseless swivel casters and single-pedal central braking systems save valuable nursing time during patient transport and ensure rock-solid stationary locking.
In international B2B trade, your landed cost per bed is heavily influenced by ocean freight rates. Transporting assembled, bulky beds means paying thousands of dollars to ship empty air.
Knockdown (KD) Flat-Pack Engineering: High-efficiency manufacturers design beds with modular sub-assemblies packed inside reinforced corrugated master cartons lined with EPE foam edge guards.
Container Loading Capacity: KD flat-pack packaging increases 40ft High Cube (40HQ) container loading capacity from ~120 units up to 155–165+ units. This 20% to 30% increase in packing density substantially lowers landed sea freight costs per unit, protecting your wholesale profit margins.
Fast Destination Assembly: Pre-assembled modular joints allow destination warehouse technicians to assemble beds in under 15 minutes without specialized tools.
Verifying factory certifications protects importers against customs seizures and legal non-compliance.
ISO 13485 Medical Device Standard: Working with an ISO 13485 certified direct factory guarantees that every production batch undergoes 100% load testing, electrical safety checks, and traceable quality documentation.
Target Market Clearances: Ensure the factory maintains valid CE (MDR) documentation for European import and FDA registrations for the United States, allowing hassle-free customs clearance and tender eligibility.
Bed Category | Typical Factory FOB Range | Key Cost Drivers | Best-Fit Procurement Use |
Manual 2-Crank Bed | $160 – $260 | Steel gauge, ABS boards, aluminum rails | Basic clinics, relief aid, nursing homes |
Manual 3-Crank Bed | $220 – $360 | Height lift mechanism, central brake bar | Long-term eldercare, sub-acute wards |
Electric 3-Function Bed | $450 – $750 | Actuator brand, handheld remote, steel deck | General hospital wards, assisted living |
Electric 5-Function ICU Bed | $850 – $1,500+ | Trendelenburg tilt, weighing scale, LCD panel | Intensive care units, trauma centers |
When evaluating wholesale hospital bed quotations, look beyond the initial FOB unit price. Factoring in steel gauge thickness, motor reliability, safety hardware, container shipping density, and ISO 13485 certification ensures you select a dependable manufacturing partner that protects your brand reputation and maximizes long-term return on investment.
Are you budgeting for a new hospital wing, expanding an assisted living facility, or sourcing competitive medical beds for your wholesale distribution network?
As a direct medical equipment manufacturer, we provide transparent factory-direct pricing across our entire manual and electric care bed lines, backed by complete OEM/ODM customization (custom frame finishes, private-label branding, customized dimensions, and container-optimized flat-pack packaging).
