Technical Parameters
Seat Width: 46 cm
Front Seat Height: 47 cm
Rear Seat Height: 45 cm
Armrest Height: 23 cm
Backrest Height: 40 cm
Seat Depth: 40 cm
Front Wheel: 6-inch
Rear Wheel: 14-inch
Unfolded Dimensions: 92 × 59 × 91 cm (L × W × H)
Folded Dimensions: 65 × 23 × 72.5 cm (L × W × H)
Weight: 11.3 kg
Max Load Capacity: 100 kg
Product Advantage
1. Structural Innovation

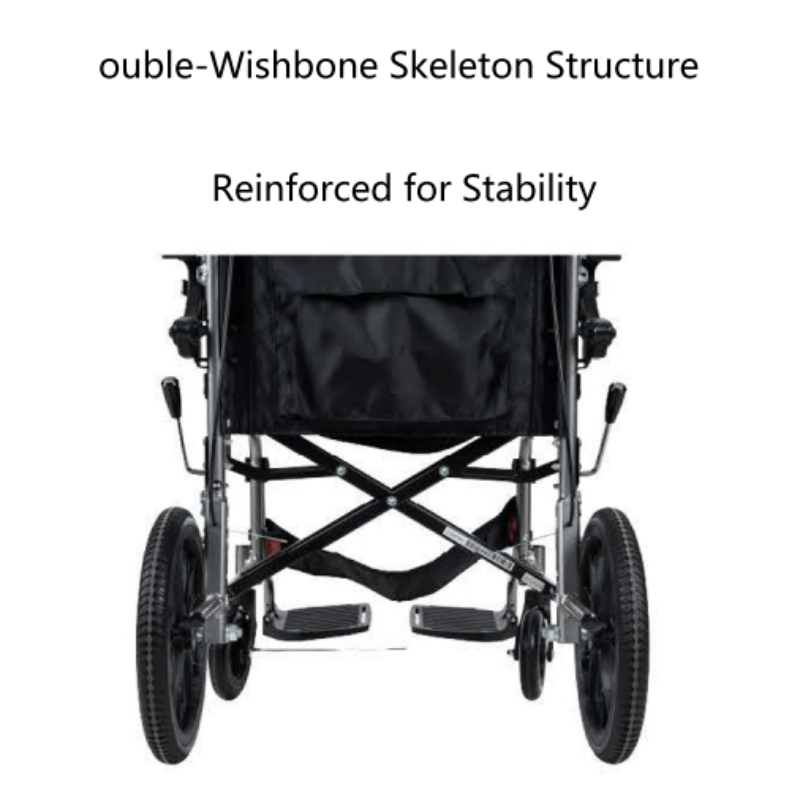

Dual-Fork Reinforced Frame: Enhances torsional strength with lightweight aluminum alloy, reducing tipping risks.
14-Inch Injection-Molded Wheels: Precision-molded hubs with rubber treads minimize rolling resistance and improve traction on varied terrains.
2.Ergonomic Comfort

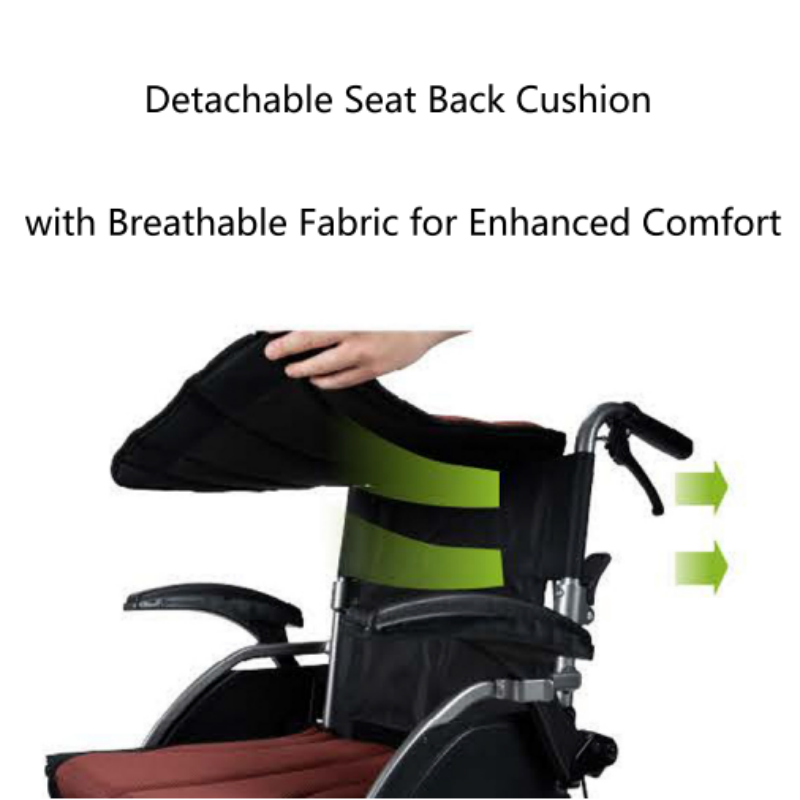

Detachable Breathable Seat: 800D nylon fabric with ventilated padding prevents heat buildup and allows easy cleaning.

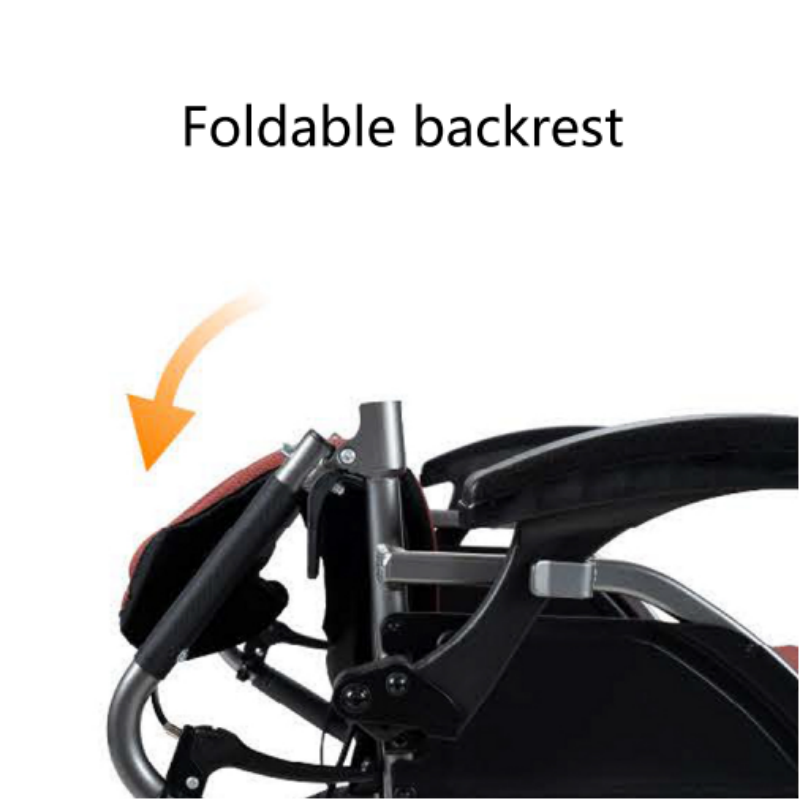

Adjustable Components: Armrest height (23cm), seat depth (40cm), and reclining backrest adapt to diverse body types and rehabilitation stages.
3. Portability & Safety

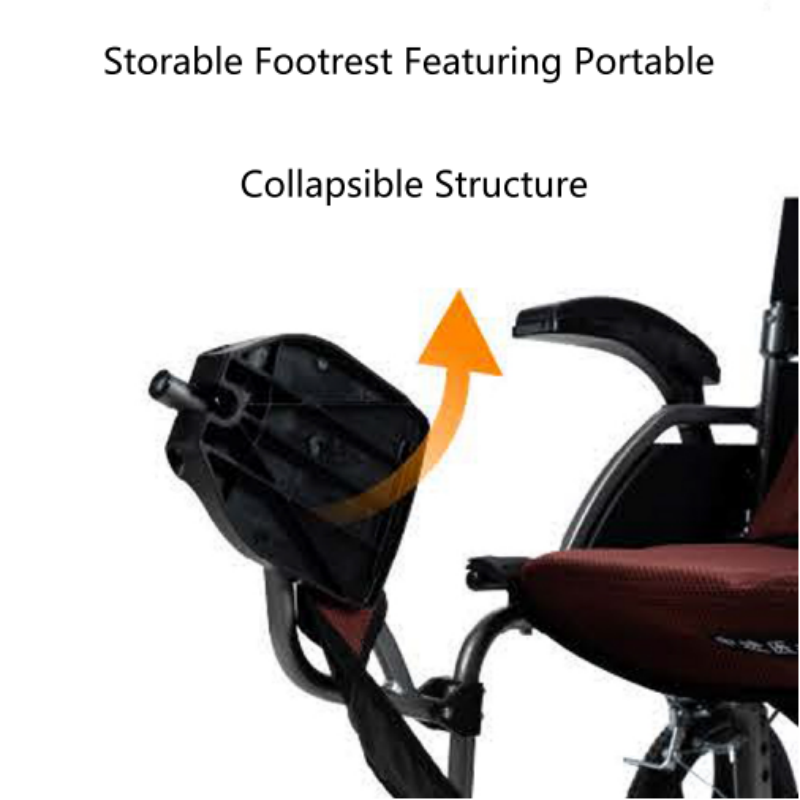

Foldable Design: Collapses to 65×23×72.5cm (L×W×H) with retractable footrests for compact storage.
Electromagnetic Braking: Auto-lock on slopes and power-off braking ensure safety during inclines.
Product Uses
1. Home Care
Compact folding size (0.23㎡) suits small living spaces. Liftable armrests facilitate safe transfers from beds or sofas.
2.Medical & Rehabilitation Use
Breathable seat and adjustable backrest support prolonged therapy sessions. 14-inch wheels ensure smooth mobility in clinics and ramps.
3.Outdoor & Travel
Weather-resistant wheels handle uneven surfaces like park trails. Lightweight construction eases public transport access.
FAQ
Q1: Does the wheelchair meet international safety standards?
A1: Yes. It complies with ISO 9001 standards, EU CE certification (EN 12183:2023), and US FDA registration (Class I medical device). Materials are RoHS compliant.
Q2: How is the wheelchair packaged for shipping?
A2: Each unit is packed in 5-ply corrugated box with EPE foam, optional wooden crates. Folded dimensions: 65×23×72.5cm, gross weight 13.5kg. Compatible with FCL/LCL sea/air freight.
Q3: Is the wheelchair suitable for various body types?
A3: Max load 100kg. Seat width 46cm (customizable to 50cm). Recommended for users 140-195cm tall. Adjustable seat depth (40cm) fits 90% of adults.
Q4: Are there batteries or restricted components?
A4: No. It is purely mechanical, compliant with IATA air transport regulations. No special declarations required.
Q5: Can you customize colors or accessories?
A5: Yes. Custom logos, seat colors (Pantone codes), and accessories (anti-slip handles, cup holders, etc.) available.
Q6: What are payment terms and lead time?
A6: Payment via TT/LC: 30% deposit + 70% against B/L copy. Standard order: 15 days. Customized: 30 days (excl. shipping).
