Technical Parameters
Frame Material: A7003 Aviation-Grade Aluminum Alloy
Net Weight: 17.5kg
Load Capacity: 100kg
Dual Motor Power: 500W (250W x 2)
Max Speed: ≤6km/h
Climbing Angle: 3° < X < 17°
Expanded Dimensions (LWH): 1030 * 650 * 900mm
Folded Dimensions (LWH): 710 * 340 * 900mm
Battery Type: Lithium-ion (24V 7.8Ah)
Range per Charge: 15km
Seat Width: 460mm
Seat Depth: 410mm
Front Seat Height: 470mm
Backrest Height: 400mm
Front Wheel Size: 7″ (Puncture-Resistant Rubber)
Rear Wheel Size: 12″ (High-Traction PU Tires)
Adjustable Armrest Height: 250mm
Braking System: EABS Automatic Emergency Brake
Product Advantage

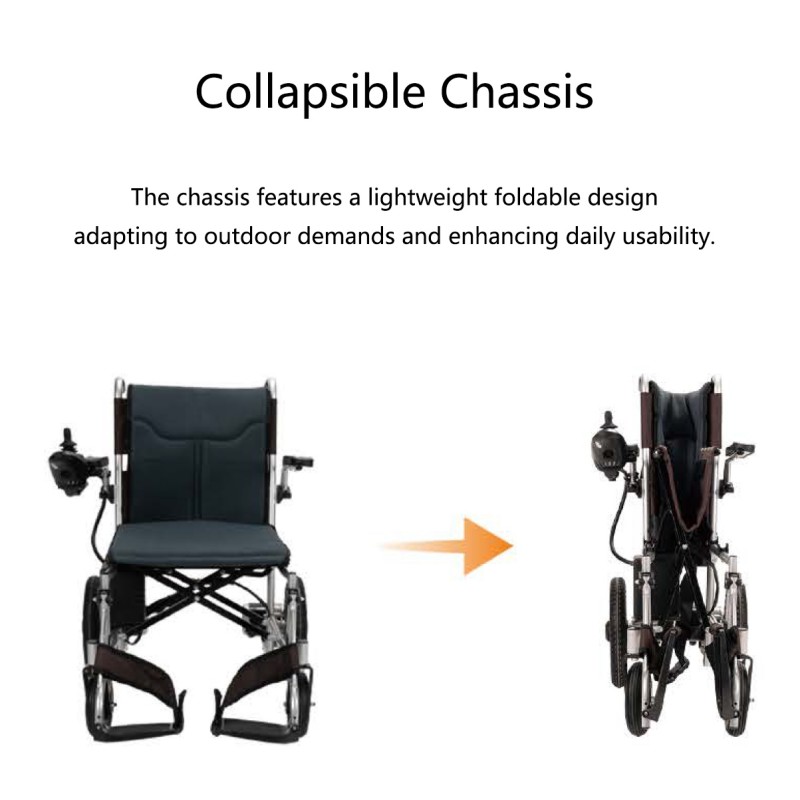

Triple-Folding Mechanism
60% space-saving design for effortless storage in cars/elevators.

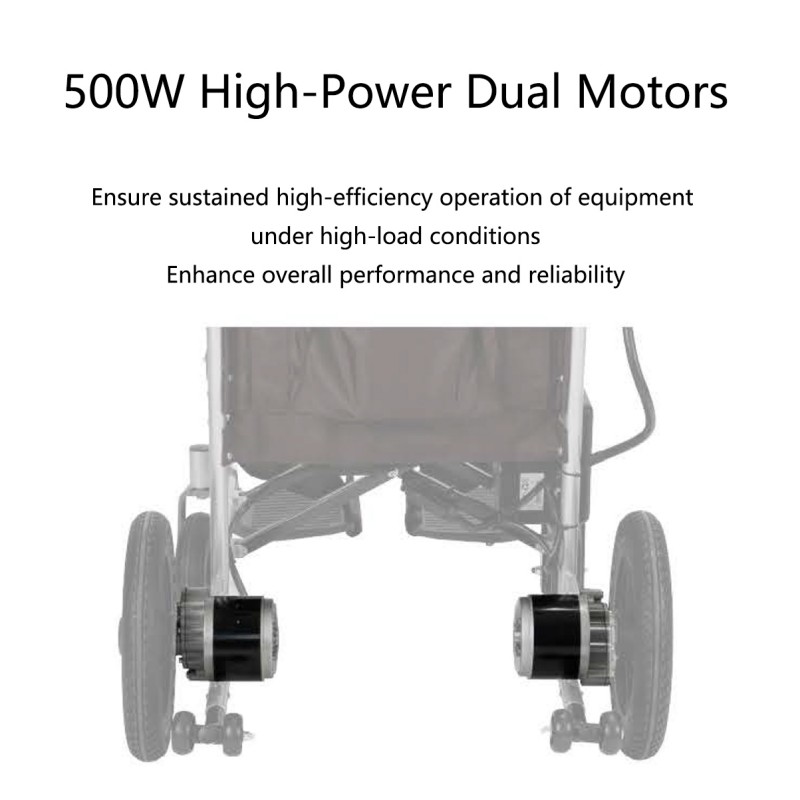

Dual 500W Motors & 12" Rear Wheels
Delivers stable power and tackles slopes up to 17°.
EABS Emergency Braking
0.2s response time with 7" anti-tip front wheels for enhanced safety.
Customizable Comfort
460mm seat width, 410mm depth, and 470mm adjustable height for personalized ergonomics.
Aviation-Grade Durability
Exceeds ISO 7176 standards for long-term reliability.
Product Uses
Residential Use

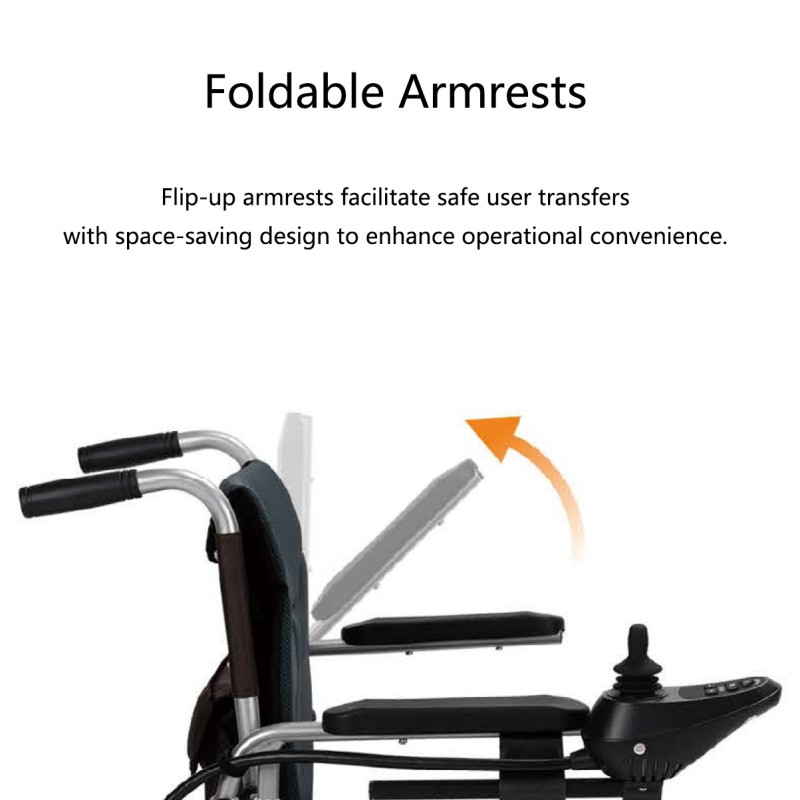

Foldable armrests and compact storage simplify home transfers.
City Navigation
12" wheels + lithium battery (3hr runtime) handle urban obstacles like curbs and ramps.
Medical Settings
Sanitizable frame and silent operation comply with hospital requirements.
Travel Ready
Airline-compliant detachable battery (24V7.8AH) and trunk-friendly folded size.
Therapeutic Training
Precise 6km/h speed control supports rehabilitation exercises.
FAQ
Q1: Is the lithium battery allowed for air transport? Are special documents required?
A1: The 24V 7.8Ah lithium battery passed UN38.3 safety test and complies with IATA Dangerous Goods Packing Instruction 968. Air transport requires MSDS + UN38.3 Certificate.
Q2: Does the 100kg maximum load include both user and luggage?
A2:The 100kg capacity refers to user weight only. Additional attachments (e.g. oxygen tanks/bags) should not exceed 5kg.
Q3: How does it perform in rainy or humid conditions?
A3: The A7003 aluminum frame has anti-corrosion coating, and motors are rated IP54 (dust/water resistant). Avoid submersion in water.
Q4: Does the folded size fit standard car trunks?
A4: Folded size 710 * 340 * 900mm fits most sedan trunks (e.g. Toyota Camry: 1100 * 1000mm trunk base). Disassembly takes <30s with tool-free design.
Q5: Can it be manually pushed if dual motors fail?
A5: Yes. Engage manual override mode by pulling the red lever under the seat. 12" rear wheels allow caretaker-assisted pushing.

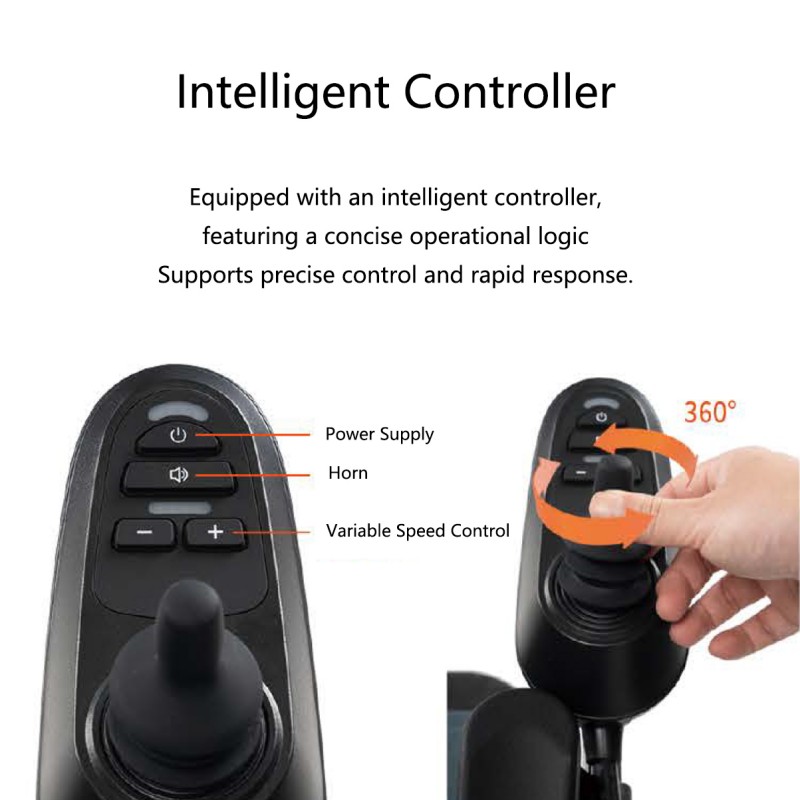

Q6: Is the controller suitable for users with limited hand mobility?
A6: The joystick controller supports 5-direction operation (forward/backward/left/right/stop) with 200-1000gf adjustable sensitivity. Optional sip-and-puff control available.
