Technical Parameters
Core Specifications
Functions: Triple motorized (Backrest elevation/Knee break/Height adjustment)
Construction: 1.2mm cold-rolled steel frame + impact-resistant ABS rails
Mattress Area: 2000×900mm (effective support surface)
Load Capacity: 200kg (static) / 150kg (dynamic)
Functional Parameters

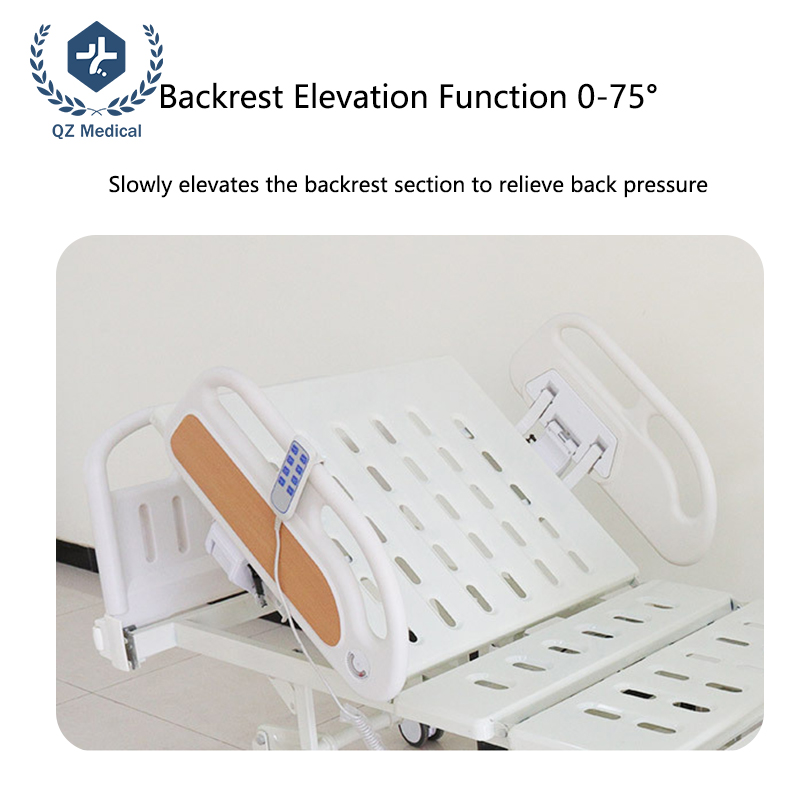

Backrest Range: 0-75° motorized stepless

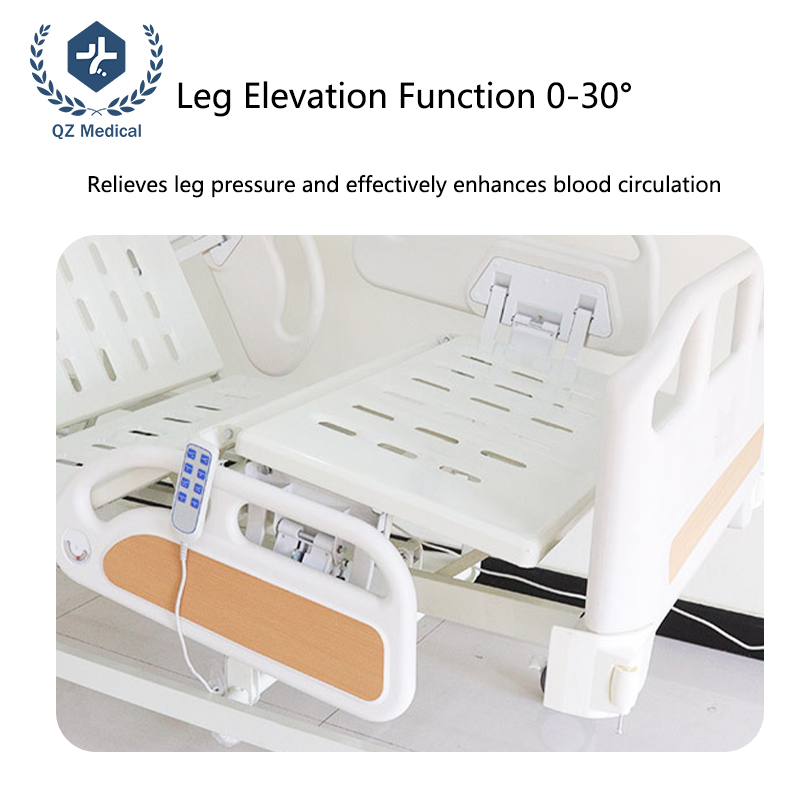

Legrest Flexion: 0-30° knee joint elevation
Height Adjustment: 420-680mm (floor-to-mattress)

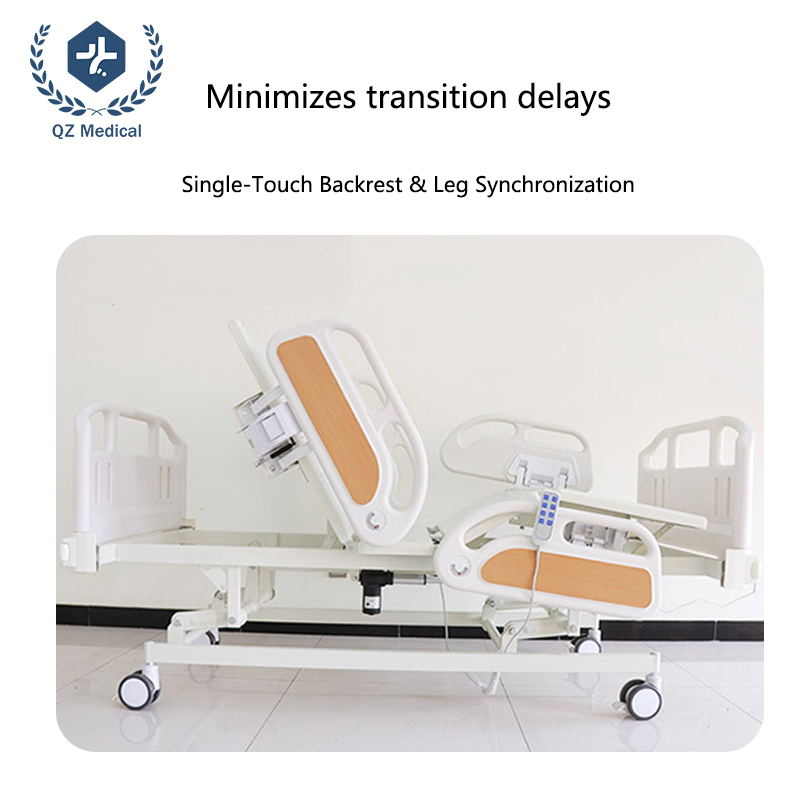

Combo Operation: One-touch synchronized backrest & legrest
Structural Configuration

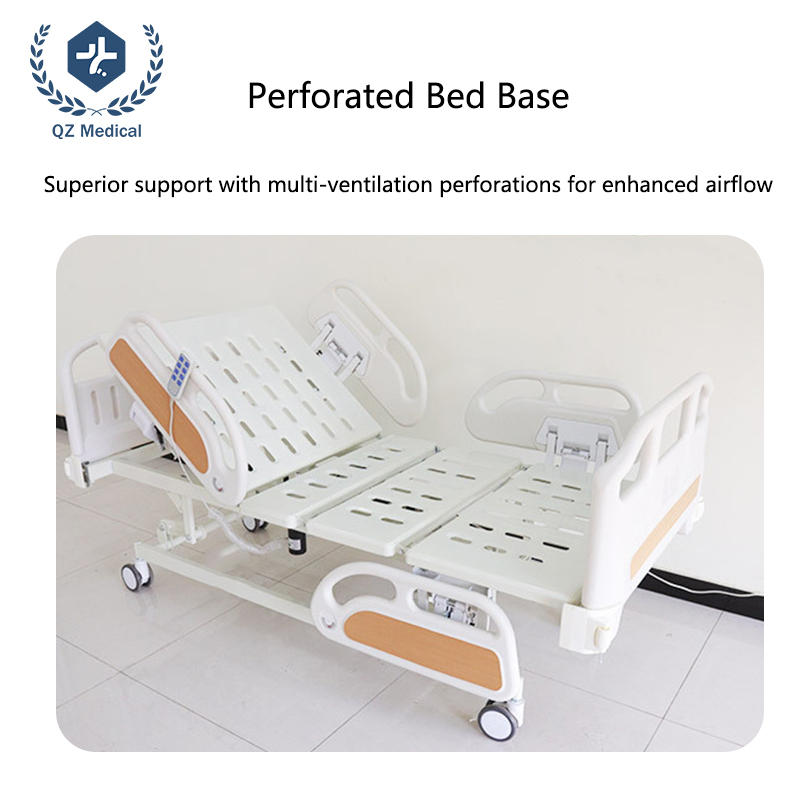

Bed Base: Perforated steel panel (Φ8mm holes, 1200+ vents)
Safety System: Hydraulic 4-section folding rails (0-90° stepless)
Mobility: Φ125mm PU silent casters (individual wheel locks)
Control: 2.4GHz wireless remote (emergency stop/position memory)
Physical Properties
Net Weight: 68kg
Shipping Weight: 85kg (with shock-proof packaging)
Package Dimensions: 1850×650×280mm (master carton)
Assembly
Mount casters on inverted frame
Install bilateral hydraulic rails
Secure headboard & footboard
Product Advantage
Triple Motorized Functions
Backrest elevation (0-75°) aids sitting transitions; leg lift (0-45°) enhances blood circulation; full-bed height adjustment (430-700mm) accommodates diverse user needs, reducing caregiver strain.
Military-Grade Structure
Reinforced steel frame supports 300kg weight; moisture-resistant solid wood panels; silent sliding tracks and 15cm raised guardrails provide dual fall protection, with a lifespan exceeding 10 years.
Ergonomic Design
German-engineered silent casters (360° rotation + individual brakes) enable noiseless mobility; high-density foam mattress (8cm thickness, antimicrobial fabric) is machine-washable; remote control features emergency stop and memory functions with <1s response time.
Medical Compliance
Meets ISO 13485 medical device standards; pre-drilled oxygen支架 ports on head/footboards; 5° anti-aspiration tilt for clinical scenarios like post-surgery recovery and paralysis care.
FAQ
Q1: Does the product meet international medical device standards? What certifications does it have?
A: The product complies with ISO 13485 Medical Device Quality Management System and holds CE certification (EU safety) and FCC compliance (US market). Motors, circuits, and materials meet RoHS environmental directives, ensuring global regulatory compliance.
Q2: Is the bed frame durable? What is its weight capacity?
A: The frame uses 1.5mm thickened cold-rolled steel tubes (300kg capacity) and E1-grade solid wood panels (moisture/insect-resistant). Critical joints are reinforced with military-grade bolts, passing 100,000-cycle fatigue tests for a lifespan exceeding 10 years.
Q3: How is the export packaging designed to prevent damage? Can we customize it?
A: Standard export packaging includes 5-layer corrugated boxes + shockproof foam + fully enclosed wooden crates. The bed is disassembled for shipping, with motors and remotes in anti-static bags. Custom options: brand logo printing, multi-language manuals, and moisture-proof container packaging (additional cost).
Q4: Does the remote support multiple languages?
A: The remote includes 5 languages (CN/EN/ES/FR/AR); others are customizable. A manual crank is provided for emergency adjustments.
Q5: Can the bed fit mattress sizes in different countries? Are mattress materials customizable?
A: The bed fits standard single mattresses (200×90cm); wider sizes (e.g., 220×110cm) are customizable. Mattress options: high-density cold foam (default) or latex/memory foam (+30% cost), 8-15cm thick, all with removable antimicrobial covers.
Q6: How stable are the silent casters on different floors (e.g., carpets, tiles)?
A: The casters use TPE damping + dual-bearing design. On carpets, rotation auto-locks; on hard floors, brakes withstand 150kg lateral force. Passed EN 12549:2019 noise tests (<20dB), suitable for hospitals and homes.
Q7: Can the voltage be customized (e.g., 110V/220V)?
A: Motors default to 100-240V wide voltage (no converter needed).
