Technical Parameters
Structural Parameters
Weight Capacity: ≥280 kg
Material: Cold-rolled steel
Overall Dimensions (L×W×H): 2170 × 1070 × 440-660 mm
Functional Parameters

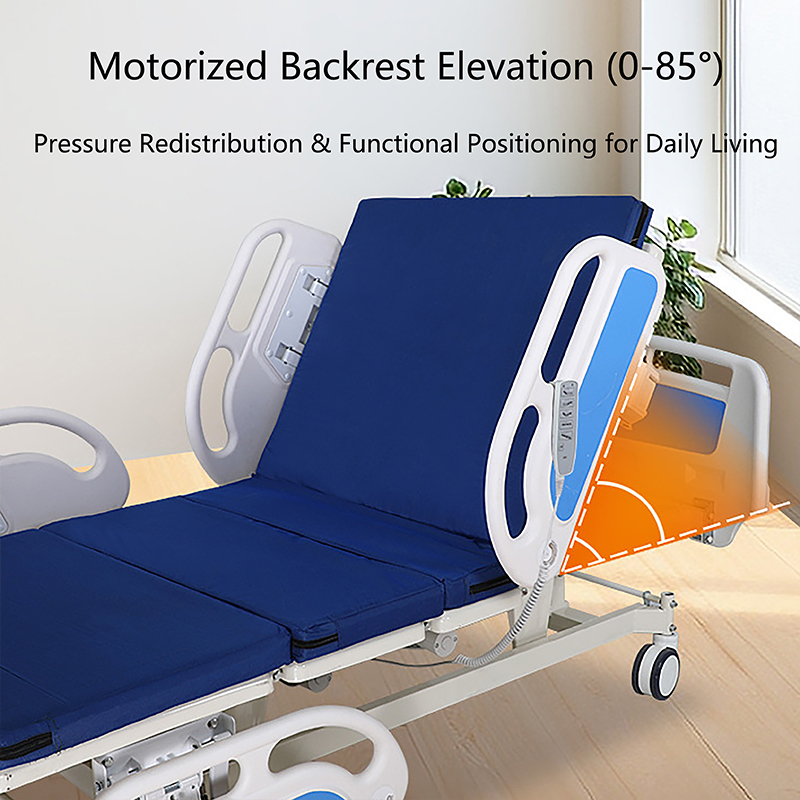

Backrest Angle Range: 0-85°

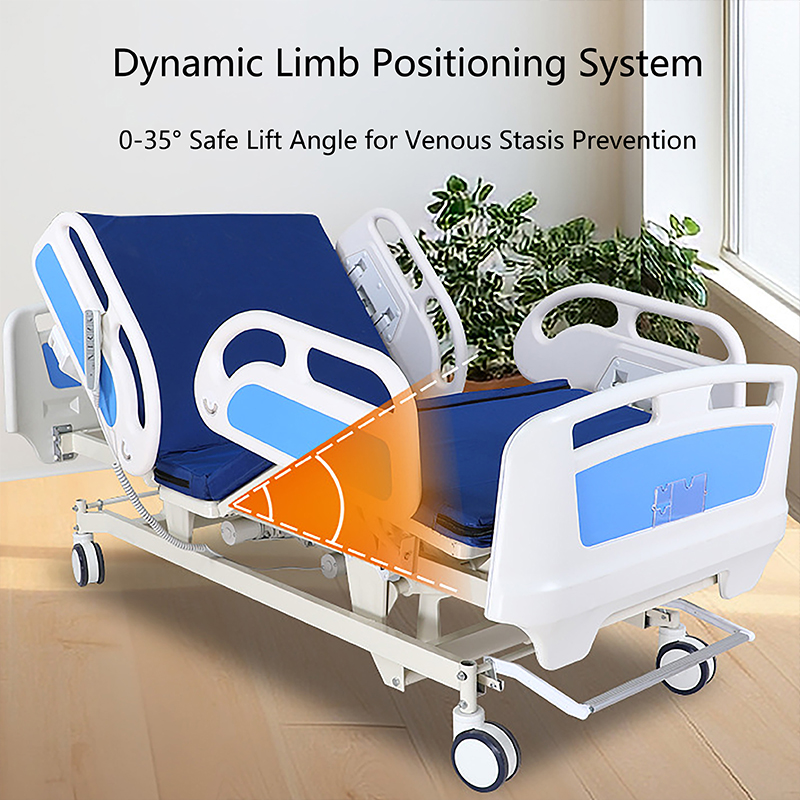

Legrest Angle Range: 0-35°
Height Adjustment Range: 440-660 mm
Tilt Function: 0-35° (Fowler & Reverse Trendelenburg)
Intended Users
Elderly individuals
Paralyzed patients
Patients requiring assisted mobility

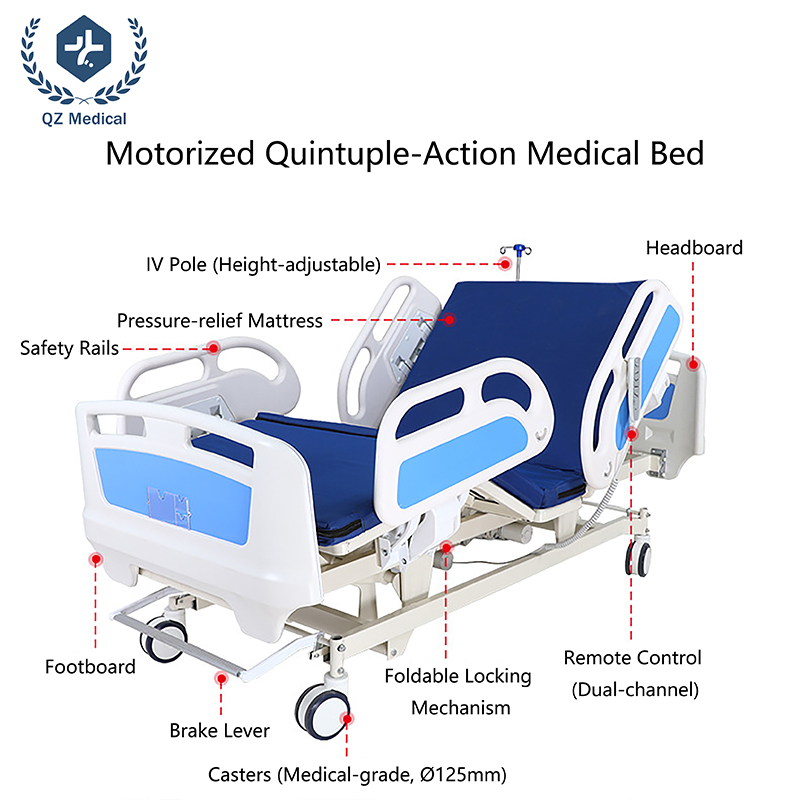

Standard Accessories
Bed frame with headboard/footboard
4-piece ABS hydraulic safety rails
Detachable table tray (food-grade certified)
Adjustable IV pole
Lockable medical-grade casters
Product Advantage
Competitive Advantages
Smart Drive System
German precision motors with dual-safety hydraulics operate at <40dB noise, achieving millimeter-level positioning and 10,000-hour continuous service life.
Triple Safety Architecture
200N impact-resistant ABS guardrails with four-point interlocking
EN 60601-2-52 certified anti-rollover frame
Emergency power-off protection
Medical-grade Engineering
Antimicrobial cold-rolled steel perforated panels (38% ventilation area) and 16 pressure-relief zones prevent bedsores.
Omni-directional Adjustment
Proprietary "Zero-Gravity" mode (15° forward + 30° backward tilt) with tri-joint motion synchronization algorithm.
Maintenance Efficiency
Modular design enables 5-minute head/footboard replacement, IPX4 waterproof controls, and LED error diagnostics.
Product Uses
1. Home Elderly Care
Silent motors + auto-backlit remote (>15lux activation) and height memory function adapt to caregivers’ needs.
2. Neurological Rehabilitation Wards
30-second guardrail disassembly and CT/MRI-compatible transfer interface for stroke patient logistics.
3. Postoperative Care Units
Chlorine-resistant 304 stainless steel frame and FDA-compliant ABS tray for 45° feeding positioning.
4. Community Wellness Facilities
ISO 13485-certified motors handle 40 daily adjustments, with anti-tangle cables for multi-user safety.
5. Home Hospice Care
FMEA-validated progressive tilt (0.5°/sec) and memory foam interface ensure pain-free terminal care.
FAQ
Q1: Does the product comply with EU MDR and US FDA regulations?
A: Certified with CE Mark (EN 60601-2-52 anti-rollover tested), motor system meets ISO 13485 QMS, FDA 510(k) registration in progress. Compliance documentation available upon request.
Q2: Can shipping packaging protect heavy components (e.g. steel frame) from shock/humidity?
A: Triple-layer corrugated boxes with EPE cushioning, VCI anti-rust film on frame surfaces. Passed ISTA 3A simulation tests, suitable for maritime container environments.
Q3: Will frequent disinfection corrode the bed?
A: 304 stainless steel frame with electrophoretic coating (1000h salt spray resistance), ISO 10993-5 certified ABS parts. Compatible with 75% ethanol & chlorine-based disinfectants (3x daily).
Q4: Can motors withstand 24/7 hospital operation?
A: Motors with overload protection, MTBF ≥15,000 hours. 3-year or 10,000-cycle warranty (whichever comes first).
Q5: Are hydraulic guardrails compatible with ISO 7176-19:2008 wheelchair standards?
A: 120mm guardrail spacing (AS 3853.1 compliant), height adjustable 650-900mm. Compatible with Hoyer Advance® sling bars.
Q6: Are localized accessories available (e.g. US IV poles/EU plugs)?
A: Customizable: ① ANSI/AAMI ES60601-1 IV poles ② 100-240V universal power module ③ NEMA 5-15P/CE Schuko plugs.
