Technical Parameters
Core Functions

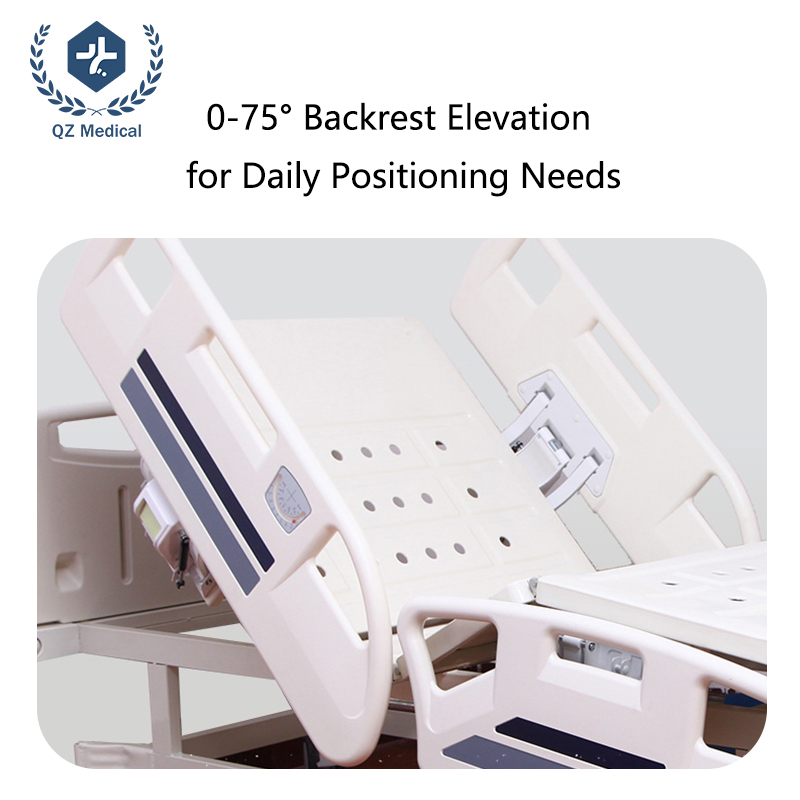

Backrest Range: 0~75° (stepless adjustment)

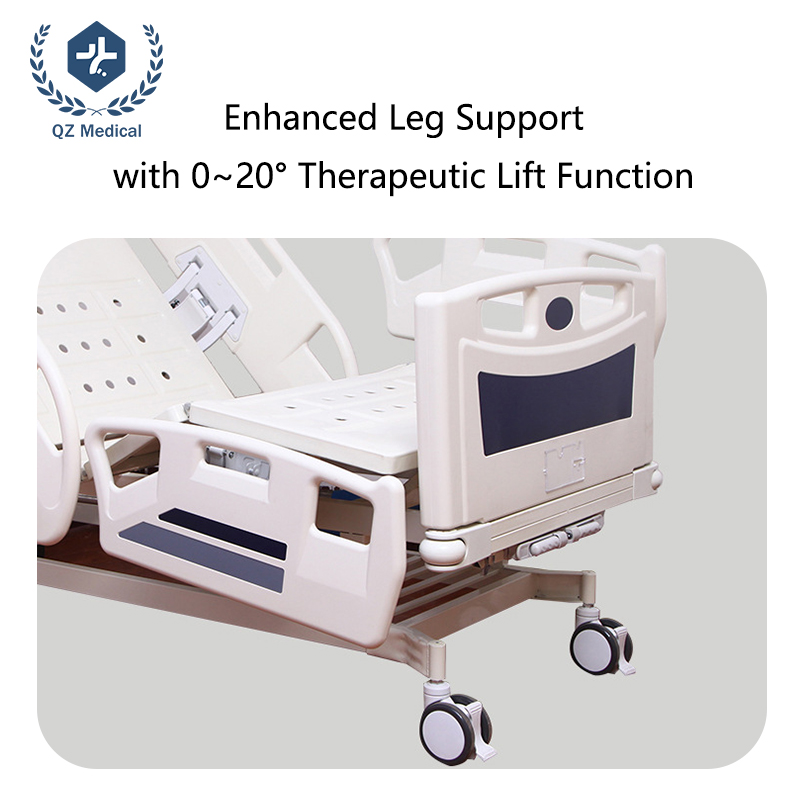

Leg Lift Range: 0~20° (segmented control)

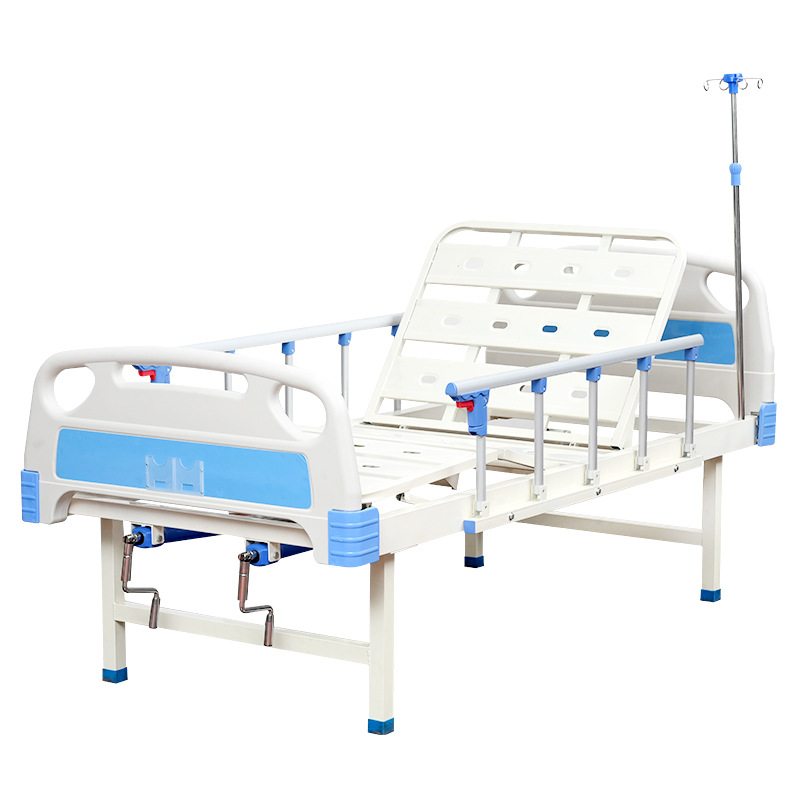

Operation: Dual independent manual cranks
Assist System: Gas-spring noise-free lifting (<25dB)
Safety Monitor: Mechanical angle indicator on full-wrap guardrail
Physical Specifications
Deck Size: 1.95×0.9m (6'4"×2'11")
Max Load: 800kg (1,764 lbs)
User Capacity: 8-person reinforced design

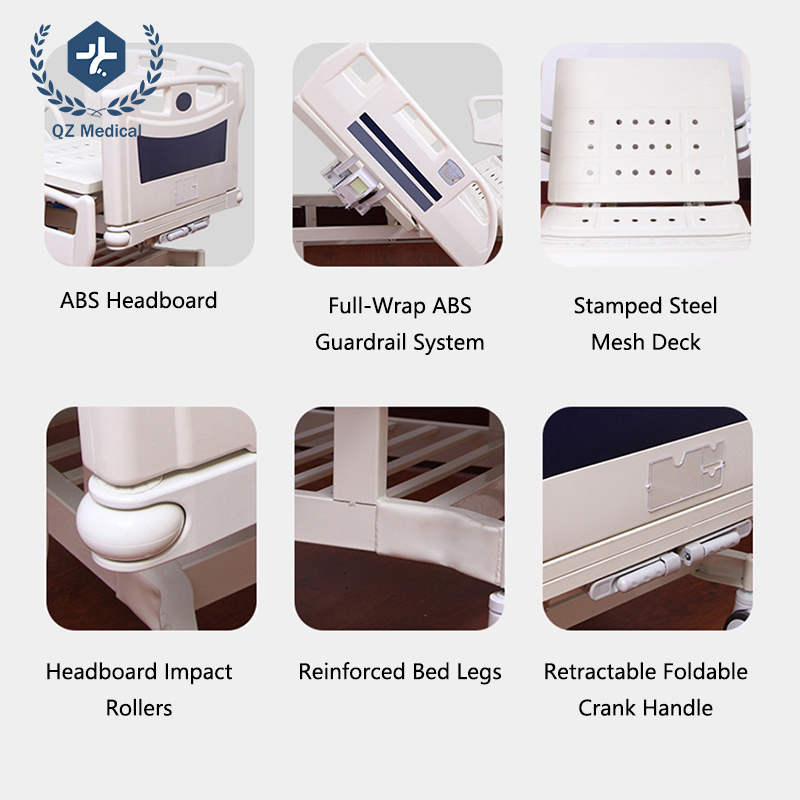

Structural Components
Main Frame: Cold-rolled steel (Q235B carbon structural steel)
Guard System: 3.5mm reinforced full-wrap ABS rails
Headboard Unit: Antibacterial ABS + impact rollers
Support System: Stamped steel deck + reinforced legs
Drive Mechanism: Precision bearing retractable crank
Certifications
Compliance: ISO 13485 Medical Device QMS
ASTM F2090 Static Load Test (800kg certified)
Gas-Spring 20,000-cycle fatigue certification (>5-year lifespan)
RoHS/REACH hazardous substance compliance
Special Designs
Bedsore Prevention: Perforated matrix airflow deck
Export Ready: KD modular packaging (3 parts)
Installation: 30-minute setup (multilingual video included)
Product Advantage
Six Technological Advantages for Superior Care:

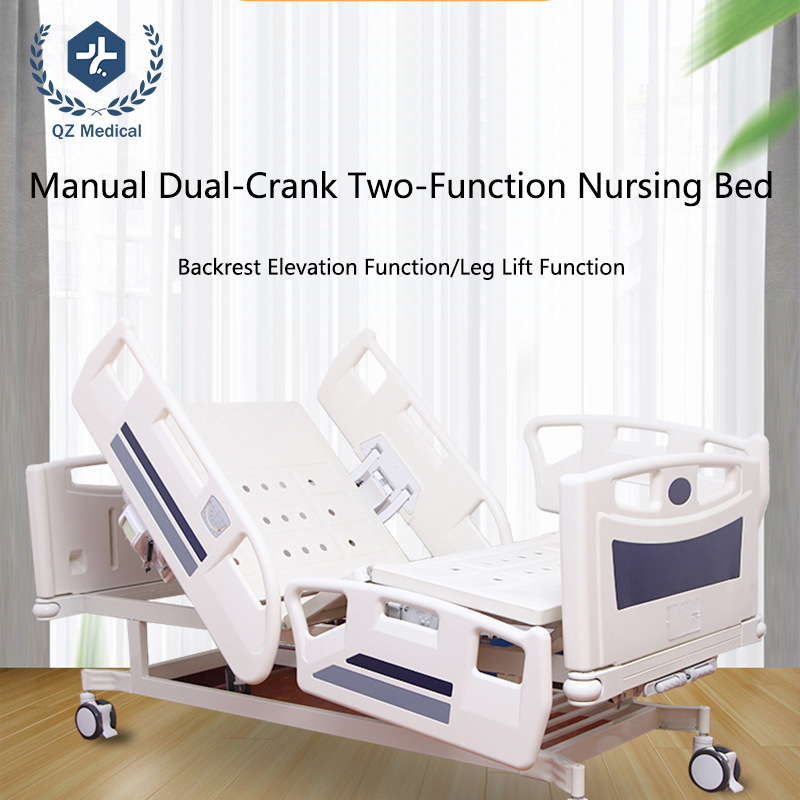

Dual-Crank Precision Control: Independent manual cranks enable segmented adjustment (0–75° backrest / 0–20° leg section) for rehabilitation and ergonomic positioning;

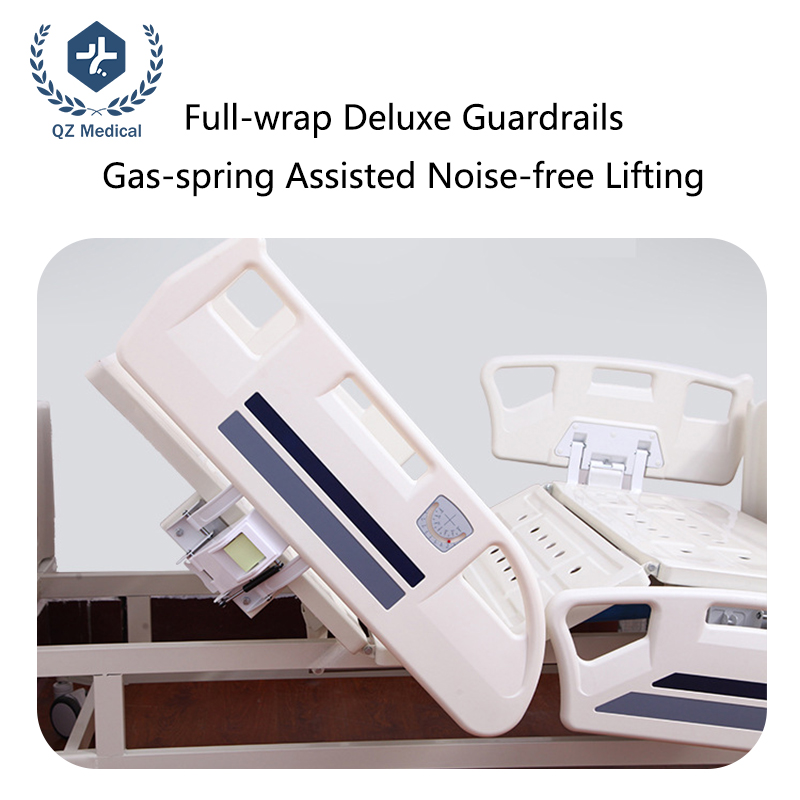

Enhanced Safety: Molded ABS full-wrap guardrails prevent falls and impacts, with angle indicators ensuring operational accuracy;
Silent & Robust Build: Gas-spring assisted lifting eliminates mechanical noise, while reinforced legs and stamped steel deck support 800kg (8-person load capacity), exceeding industry norms;
Medical-Grade Materials: Cold-rolled steel frame resists corrosion/impact, ABS headboard and guards are easy to sanitize and anti-aging;
User-Centric Details: Retractable foldable crank saves space, headboard wheels protect walls;
Longevity Engineering: Precision bearings and thickened steel extend service life, reducing maintenance costs.
Product Uses
Home Care
Backrest elevation aids seniors in self-repositioning; leg lift prevents edema; wrap-around guards reduce fall risks during nighttime care.
Post-Op Rehabilitation
75° backrest supports respiratory therapy and feeding; 20° leg elevation boosts blood flow; high load capacity accommodates diverse patient builds.
Long-Term Bedridden Care
Noise-free gas-spring lifting avoids sleep disruption; antibacterial ABS headboard enables easy sterilization; stamped deck enhances airflow to prevent pressure ulcers.
Community Clinics
Foldable cranks optimize storage; reinforced legs ensure stability under frequent use; protective wheels facilitate bed reorganization.
FAQ
Q1: What is the maximum weight capacity? How does the structure ensure safety?
A: The reinforced cold-rolled steel frame passes static load tests, supporting 800kg (approx. 8-person weight), exceeding standard nursing beds (300kg). Military-grade bearings at critical joints and a monobloc stamped deck increase torsional resistance by 40%.
Q2: How does the dual-crank function operate? Is angle adjustment precise?
A: Dual retractable cranks independently control backrest (0-75°) and leg section (0-20°). Gas-spring assistance reduces operating force by 50%. Guardrails feature mechanical angle indicators with ≤±1.5° deviation.
Q3: Does the product comply with medical device export certifications?
A: Structure complies with ISO 13485 Medical Device QMS. Materials pass RoHS/REACH hazardous substance tests. CE certification documents provided (FDA registration customizable) for EU/US markets.
Q4: How is noise reduction achieved? What is the gas spring lifespan?
A: Nitrogen-filled gas springs replace mechanical gears, operating at <25dB(A). Springs pass 20,000-cycle fatigue tests (zero leakage), equivalent to 5+ years at 10 uses/day.
Q5: Can ABS guardrails withstand sudden impacts?
A: 3.5mm reinforced ABS polymer passes ASTM F2090 drop tests, resisting 150J impact (equivalent to 70kg patient collision). Dual-lock mechanisms prevent accidental release.
Q6: Is it compatible with motorized assistive devices?
A: Pre-installed ISO 7175 interfaces allow motorization upgrades (customizable). Undercarriage cable management supports major-brand CPR release devices.
Q7: Will metal fatigue occur after long-term use?
A: Critical load-bearing parts use Q235B carbon structural steel (yield strength 235MPa) with high-frequency quenching. Welded joints pass X-ray inspection with 100,000-cycle fatigue life.
Q8: How are packaging and assembly handled for international shipping?
A: KD (Knock-Down) packaging splits the bed into 3 modules (frame/deck/accessories), increasing container utilization by 60%. Includes HD assembly video & multilingual manual (30-min installation).
