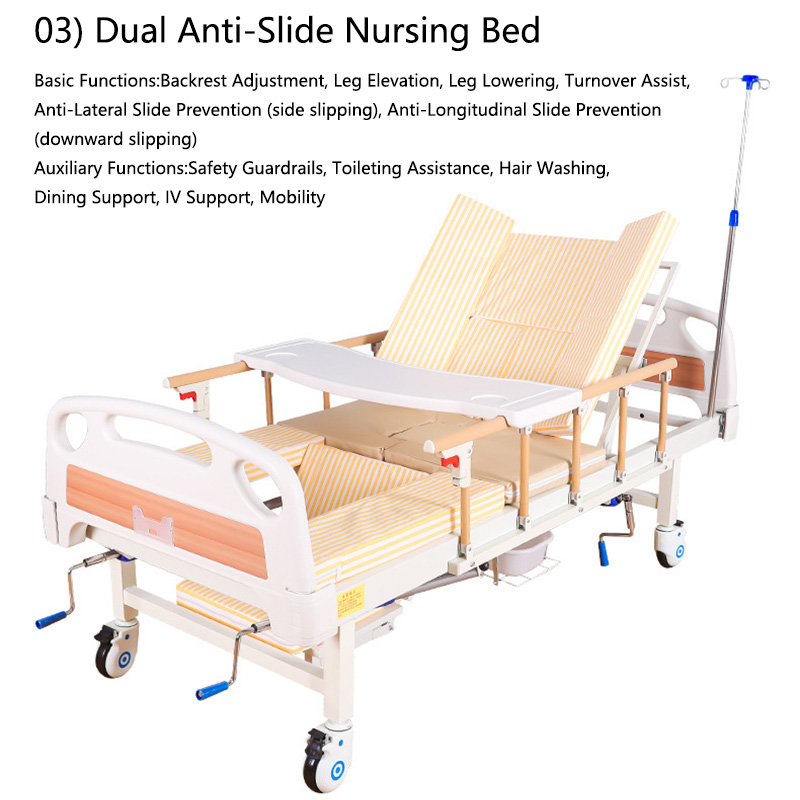

5-Function Manual Hospital Bed with Anti-Slide Backrest & Trendelenburg Positioning - 45° Turnover Assist, Detachable Bedpan & Silent Casters for Elderly/Paralyzed Patient Care

Core Functions

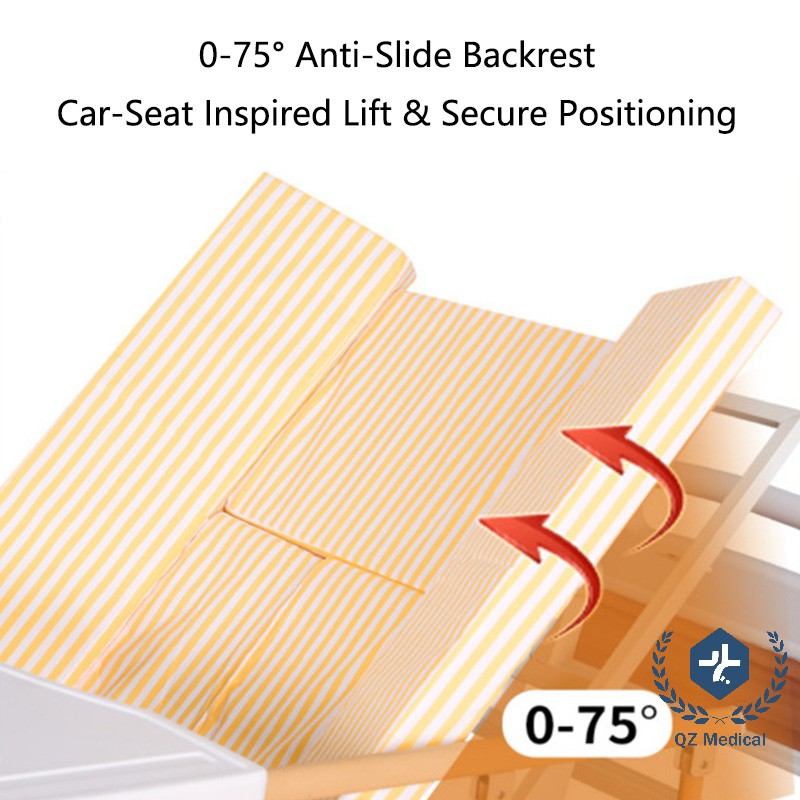

Backrest Adjustment: 0°–75° with anti-slide mechanism (prevents user sliding during elevation).

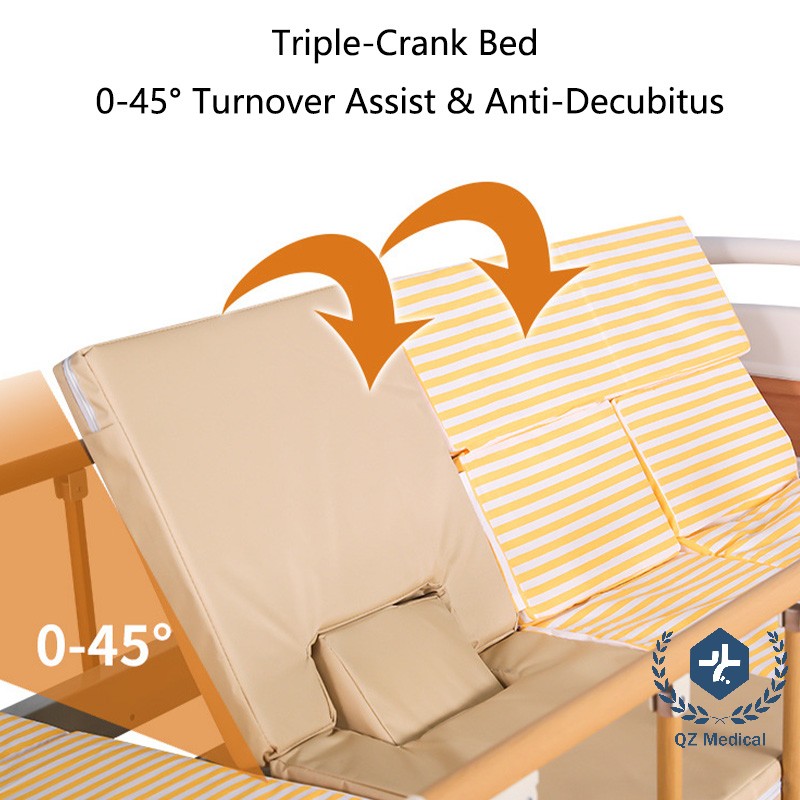

Turnover Assist: 0°–45° lateral tilt for pressure relief and repositioning.

Leg Section Control

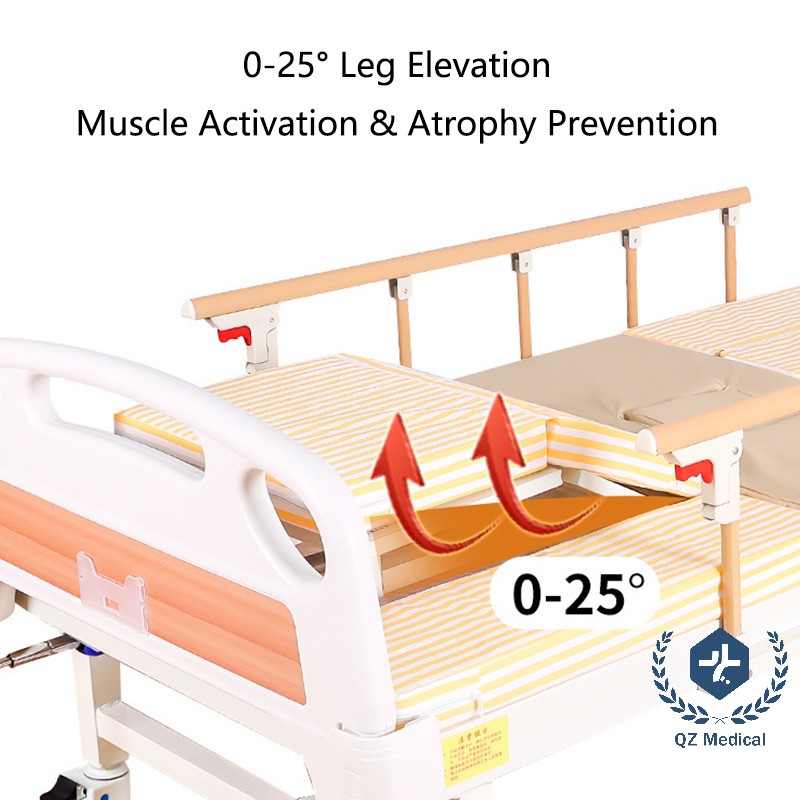

Leg Elevation: 0°–25°

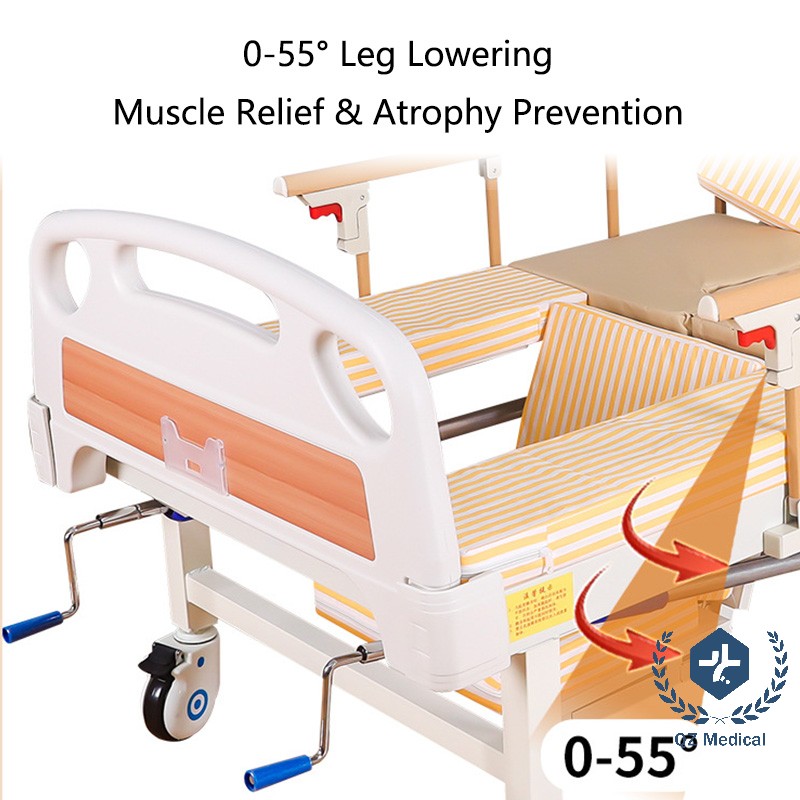

Leg Lowering: 0°–55° (supports Trendelenburg position).

Toileting Assistance: Detachable bedpan with waterproof drainage system.

Mobility: 360° lockable casters for stable movement.

Daily Care Features

Foldable dining table for meals.

Removable wash basin for foot/hair care.

Integrated IV pole for medical support.

Safety Design: ABS guardrails with anti-collision edges.

Technical Specifications

Frame Dimensions: 210cm (L) × 96cm (W) × 50cm (H).

Mattress Surface: 200cm × 90cm, compatible with 5–10cm thick mattresses (6cm waterproof default).

Adjustment Ranges

Backrest: 0°–75°

Leg Section: -25° to 55°

Turnover: 0°–45°

Material: Reinforced cold-rolled steel frame (1.5mm thickness) with anti-rust phosphating coating.

Packaging & Components

Packaging Size: 205cm × 95cm × 28cm (disassembled with shockproof foam).

Standard Configuration:

Bed frame, head/footboards, mattress, crank handle, guardrails, tray table, IV pole, casters, wash basin, bedpan.

Ergonomic Design:

Dual anti-sliding mechanisms (0-75° backrest elevation + 0-15° anti-slip tilt) prevent patient displacement, while leg lift (0-25°) and descent (0-55°) functions reduce muscle strain and atrophy.

Enhanced Safety:

Arc-shaped anti-collision edges, thickened steel frame (load capacity >250kg), and impact-resistant ABS head/footboards ensure all-round protection.

Modular Versatility:

Waterproof cushioning with toileting ports simplifies hygiene, while detachable guardrails, IV poles, and wash basins support diverse care needs. Foldable cranks optimize space efficiency.

Durable Construction:

Corrosion-resistant cold-rolled steel frame and high-density waterproof mattress ensure longevity. Lockable casters provide stable mobility.

Efficiency-Driven Care:

0-45° turning function enhances blood circulation and prevents pressure ulcers. Quick-switch modes (dining/washing/flat lying) reduce caregiver workload.

Home Care:

Compact packaging (205cm×95cm×28cm) enables easy installation. Anti-slide backrest and toileting functions empower families to manage daily care independently.

Rehabilitation Centers:

Adjustable leg angles support post-surgery recovery training, while turning functionality accelerates rehabilitation. IV poles facilitate continuous therapy.

Senior Facilities:

Pressure ulcer prevention and integrated hair/foot washing modules enhance elderly comfort. Reinforced structure ensures durability for long-term use.

Postoperative Recovery:

75° semi-recumbent positioning alleviates respiratory/digestive discomfort. Detachable dining table promotes patient self-feeding.

Long-Term Bedridden Care:

Tri-function synergy reduces repositioning frequency. Waterproof materials minimize infection risks, and guardrails prevent accidental falls.

Q1: Is the product certified for international quality and safety?

A: The Zhongqu Nursing Bed is certified under ISO 13485 (Medical Device Quality Management System) and complies with CE standards (EU safety certification), ensuring adherence to global medical device regulations. Key components (e.g., cold-rolled steel frame, ABS headboards) undergo pressure resistance, corrosion resistance, and eco-friendly testing, supported by third-party inspection reports.

Q2: How is the packaging designed to prevent damage during shipping?

A: The product is shipped in disassembled packaging (205cm×95cm×28cm), with the bed frame and accessories individually wrapped in shock-absorbent foam and reinforced edges. For transportation, flat placement and load avoidance are recommended. Assembly manuals and video guides are provided, requiring only basic household tools.

Q3: Is manual operation labor-intensive? Can elderly caregivers use it independently?

A: Equipped with an energy-saving gear transmission system, the crank requires ≤5N·m of torque for adjustment, making it effortless for elderly users. Anti-slide mechanisms (0-75° backrest) and foldable cranks simplify operation, enabling safe use without professional training.

Q4: What is the maximum weight capacity? Is it suitable for obese patients?

A: The thickened cold-rolled steel frame supports a static load ≥250kg and dynamic load ≥150kg, suitable for users weighing up to 220kg. The widened bed surface (90cm), anti-slide function, and curved guardrails ensure stability and safety for obese patients.

Q5: Can it accommodate mattresses of different thicknesses? Is it compatible with memory foam or air mattresses?

A: The default 6cm high-density waterproof mattress is adjustable (±3cm in height), compatible with 5-10cm thick mattresses (including memory foam and air mattresses). Guardrail height auto-adjusts to mattress thickness to prevent falls.

Q6: How to clean the waterproof toileting area? Does it have antibacterial features?

A: The detachable PU waterproof cushion features seamless lamination for easy wiping. The bed frame’s drainage holes and antibacterial coating (compliant with ISO 22196) effectively inhibit bacterial growth.

Q7: Are accessories charged separately? Can configurations be customized?

A: The base package includes guardrails, cranks, casters, etc. (see packing list). Optional accessories (e.g., IV poles, wash basins) can be added or removed. OEM/ODM services are available to comply with regional regulations and care preferences.
