Technical Parameters

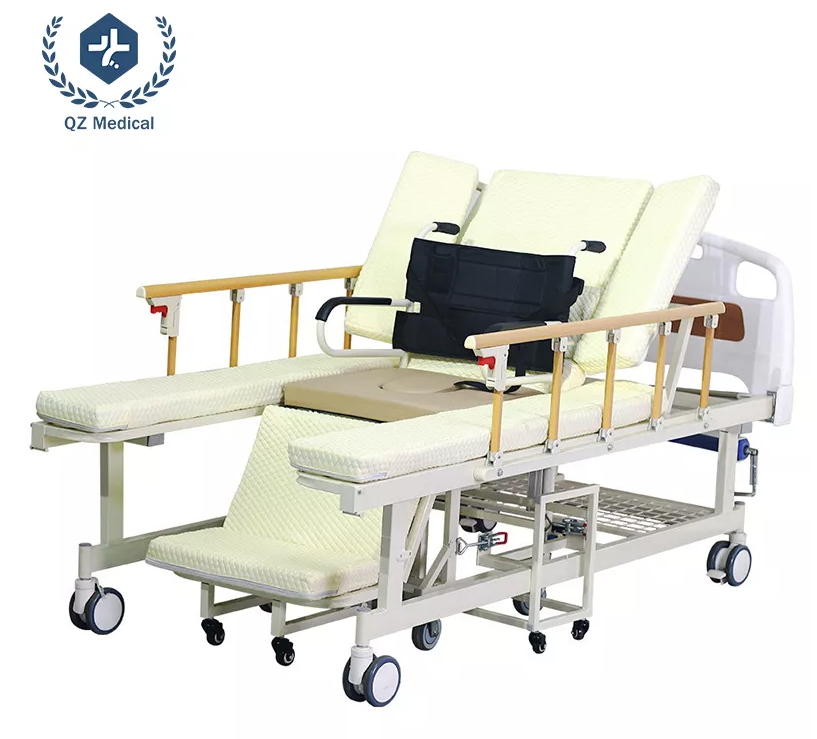

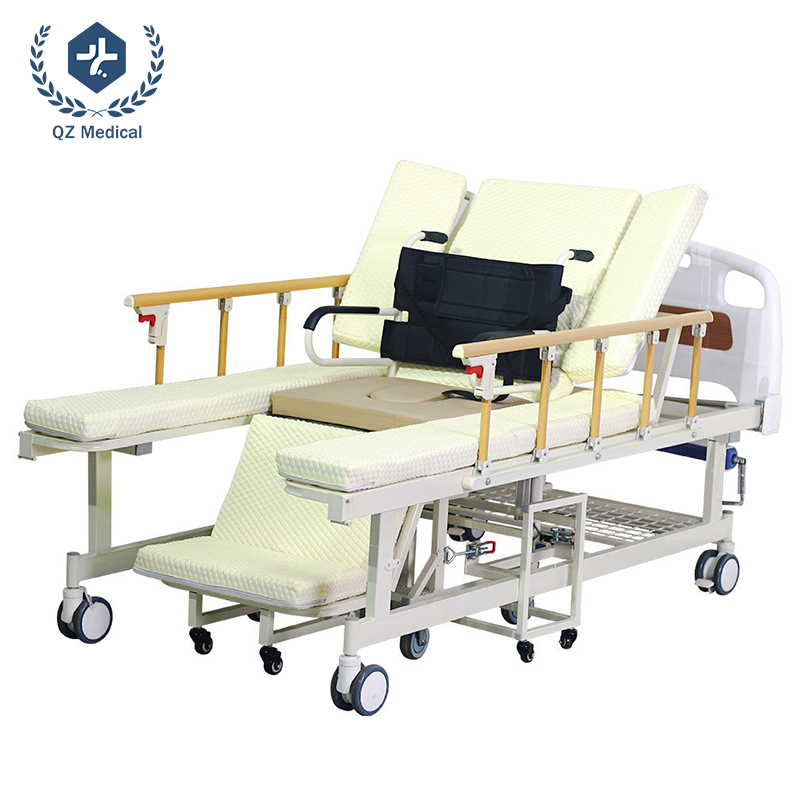

Product Name: Anti-Slip Wheelchair Nursing Bed
Target Users: Elderly, long-term bedridden patients
Material: Spray-coated steel tube
Dimensions:
Bed size: 2120×1060×610mm
Wheelchair size: 500×540mm
Applications: Hospitals, homes, senior care facilities

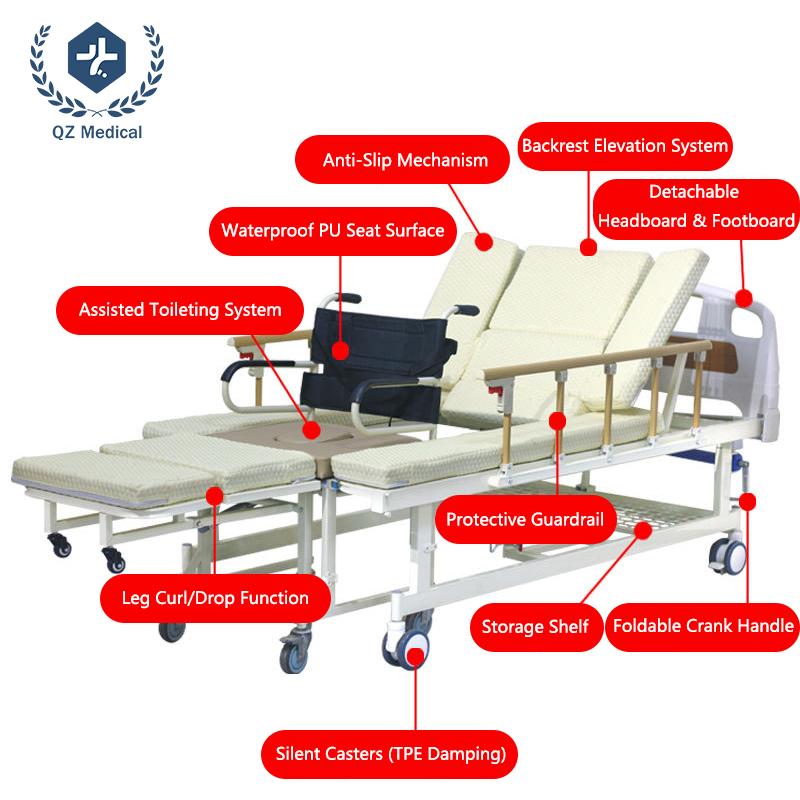

Core Features:
Anti-Slip Backrest: 0-80° adjustable angle with inward-moving panels

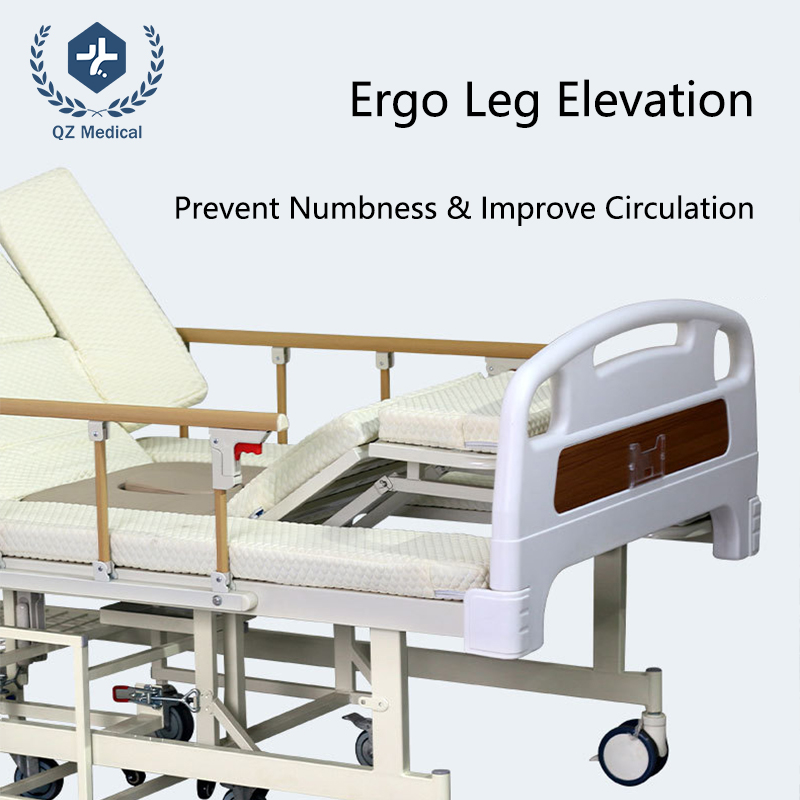

Leg Elevation/Declination: Upward leg extension & downward bending for foot care

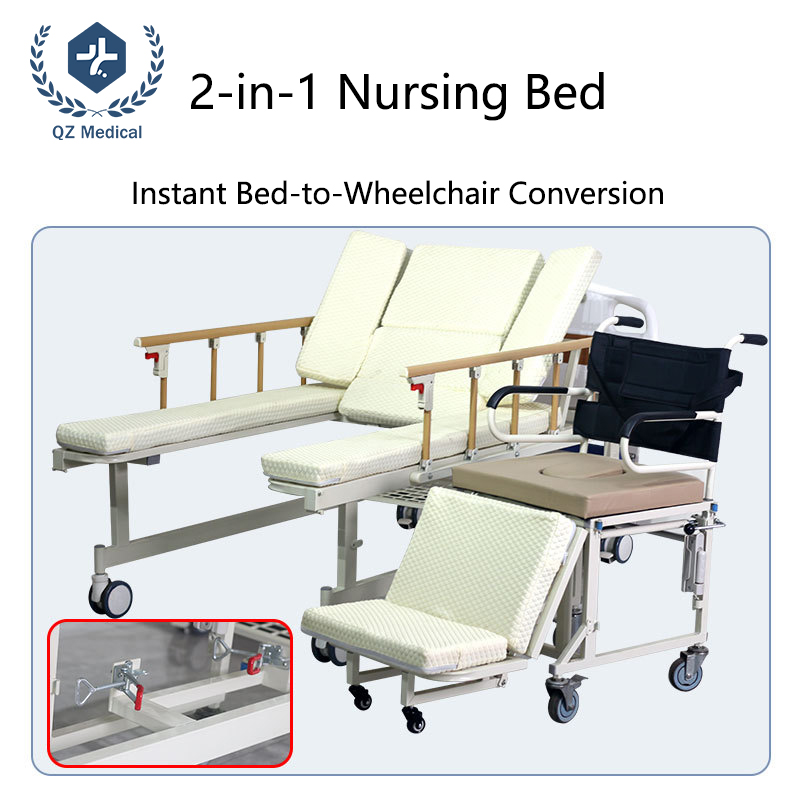

Bed-Chair Separation: 3-second detachment via patented buckles
Assisted Toileting: Crank-operated toilet pan (antibacterial PP material)
Safety Design:
Heightened guardrail (35cm aluminum alloy), one-touch folding
Silent casters: TPE damping core + dual brake system (<30dB noise)
Material Specifications:
Mattress: 6cm thickness (4cm coconut fiber + 2cm high-density foam), breathable & pressure-relieving
Waterproof PU seat: ISO 10993 biocompatibility certified
ABS head/footboard: Detachable, non-toxic & wear-resistant
Accessories:
Foldable IV stand (3kg load capacity)
Hidden storage racks (bilateral, 10kg capacity)
Effort-saving cranks (40% force reduction)
Product Advantage

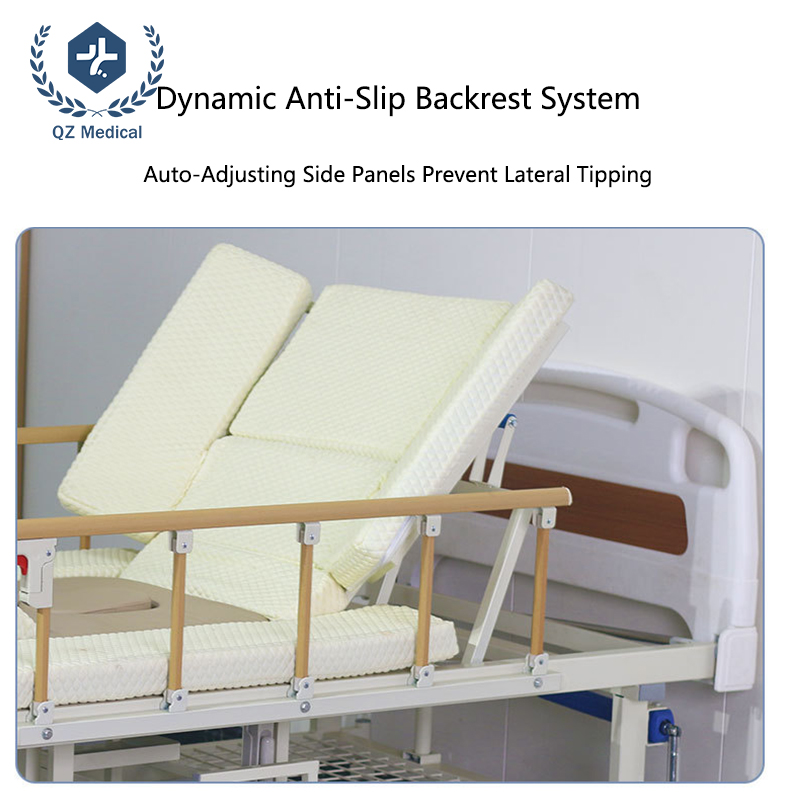

Dynamic Anti-Slip System
The backrest adjusts steplessly from 0-80°, with inward-moving side panels forming a semi-enclosed structure to prevent lateral sliding. The 35cm 6063-T5 aluminum guardrail with dual locks reduces fall risks by 70%.
Medical-Grade Integration
Patented buckles enable 3-second bed-chair separation, paired with an antibacterial PP toilet pan, foldable IV stand, and waterproof PU wheelchair seat. Silent casters with TPE damping and dual brakes operate below 30dB noise.
Rehabilitation-Optimized Structure
Hydraulic leg elevation/declination (0-60° segmented adjustment) enhances blood circulation. The 6cm composite mattress (coconut fiber + high-density foam) complies with ISO 7176-19 pressure distribution standards to prevent pressure ulcers.
User-Centric Details
ABS antibacterial headboard, hidden storage racks, bilateral e
Product Uses
Hospital Critical Care
Silent casters and rapid-sanitizing toilet pans comply with GB 15982 infection control standards, minimizing patient transfers for post-operative and long-term bedridden care.
Home Accessibility Retrofit
Bed-chair separation requires only 1.5m² space, with foldable accessories saving storage area. The anti-slip mechanism meets EN 12182 safety certification, reducing risks for seniors living alone.
Institutional Senior Care
Modular design enables batch management, while waterproof materials cut maintenance costs. Synchronized backrest/leg adjustments support group rehabilitation sessions.
Post-Surgical Home Recovery
Leg angle precision aligns with knee rehabilitation protocols. Pneumatic buffering enables 5°/s gradual adjustment, facilitating phased recovery programs.
FAQ
Q1: Does the nursing bed comply with international medical device certifications?
A: The product is certified under ISO 13485 for medical device quality management. Key components (e.g., silent casters, hydraulic systems) meet EU EN 12182 safety standards for assistive products, while the mattress complies with ISO 7176-19 for pressure injury prevention, ensuring compliance with EU/US market regulations.
Q2: How does the anti-slip mechanism ensure stability when sitting up?
A: The backrest panels dynamically retract inward by 5mm for every 15° of sitting angle adjustment, achieving a maximum 12° inward tilt. Combined with anti-slip rubber base pads (friction coefficient ≥0.6), it provides dual protection against tipping.
Q3: Is bed-chair separation easy? What is the wheelchair’s weight capacity?
A: The patented buckle enables 3-second separation. The wheelchair mode supports up to 150kg (tested per GB/T 24434), with anti-tip brackets and 600D Oxford reinforcement straps for safe mobility.
Q4: Are the waterproof PU seat and ABS materials resistant to disinfectants?
A: The PU seat passes ISO 10993 biocompatibility tests, tolerant to 75% alcohol and chlorine-based disinfectants. The ABS headboard resists chemical corrosion, meeting high-frequency sterilization demands in medical settings.
Q5: Can the bed accommodate users of different body sizes? (e.g., height 150-190cm)
A: With a 212cm bed length, 50cm adjustable seating area (via sliding rails), and extendable leg rests (80-120cm), it accommodates 95% of adult body types.
Q6: How do the silent casters perform on hard floors and carpets?
A: TPE damping cores with polyurethane treads reduce noise to <30dB on hard floors. Carpet resistance is ≤15N (tested per EN 12183), with dual brakes to lock 360° rotation.
Q7: How are packaging and assembly handled during shipping?
A: Reinforced EPE + wooden crate packaging with pre-assembled critical components. End-users can complete installation in 6 steps (20 minutes) .
