Technical Parameters
Components
PP guardrail: 4 sets
Silent casters: 6 sets with central brake system
Retractable design: 1 set (leg section)
Electric motor system: 5 groups (including backup power)
Curved hook design: 4 sets (drainage hooks)

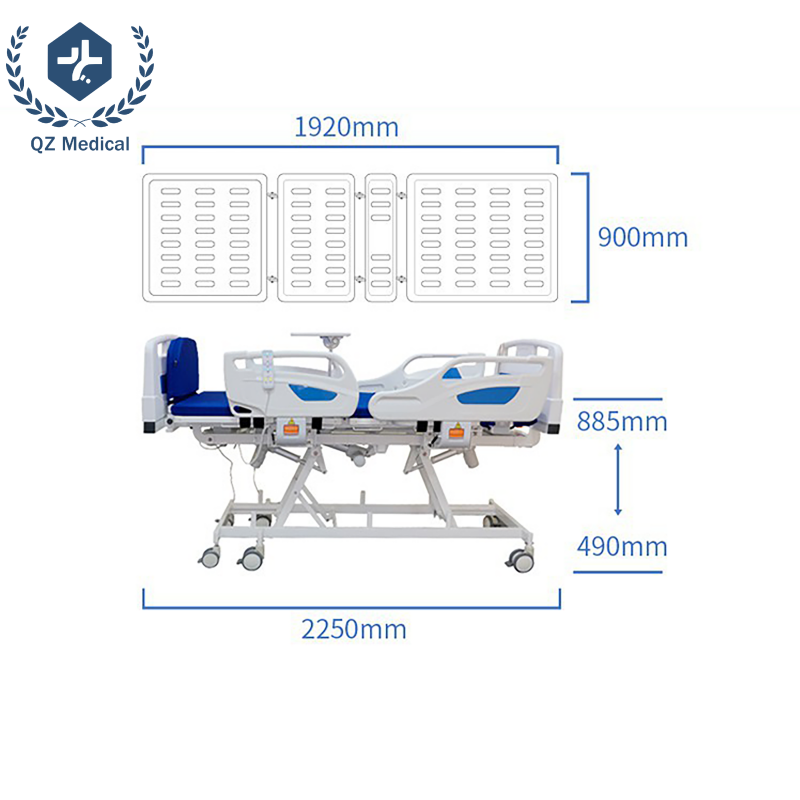

Dimensions
Overall: 225cm (L) × 108cm (W)
Bed panel: 192cm (L) × 90cm (W)
Height adjustment range: 49-88cm (from floor to bed surface)

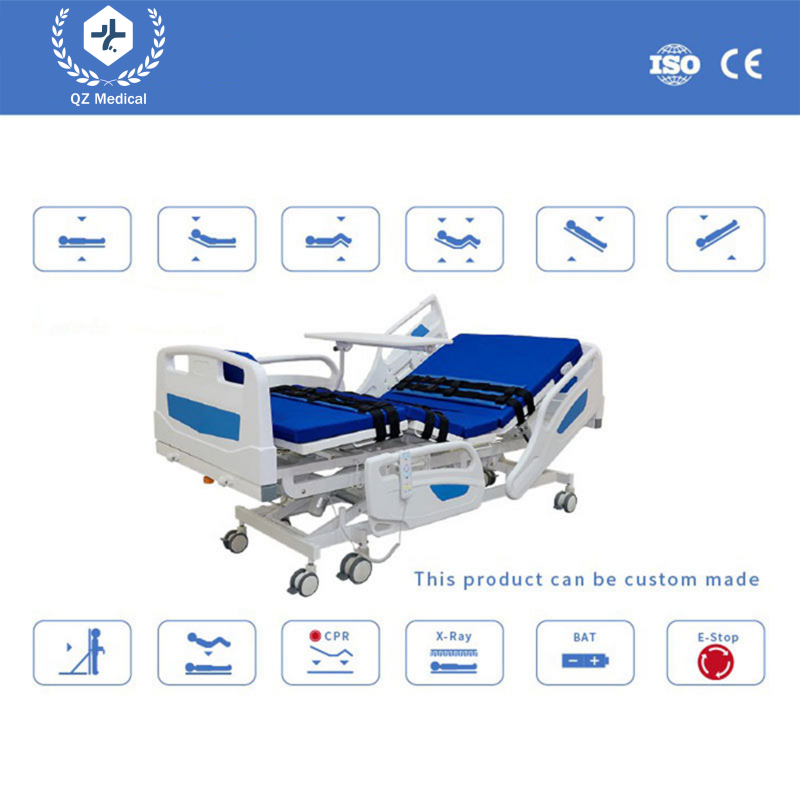

Angular Adjustment
Backrest tilt: 70°±5° (ISO 60601-2-52 compliant)
Leg section tilt: 30°±5°
Trendelenburg/Reverse Trendelenburg: 15°±2°

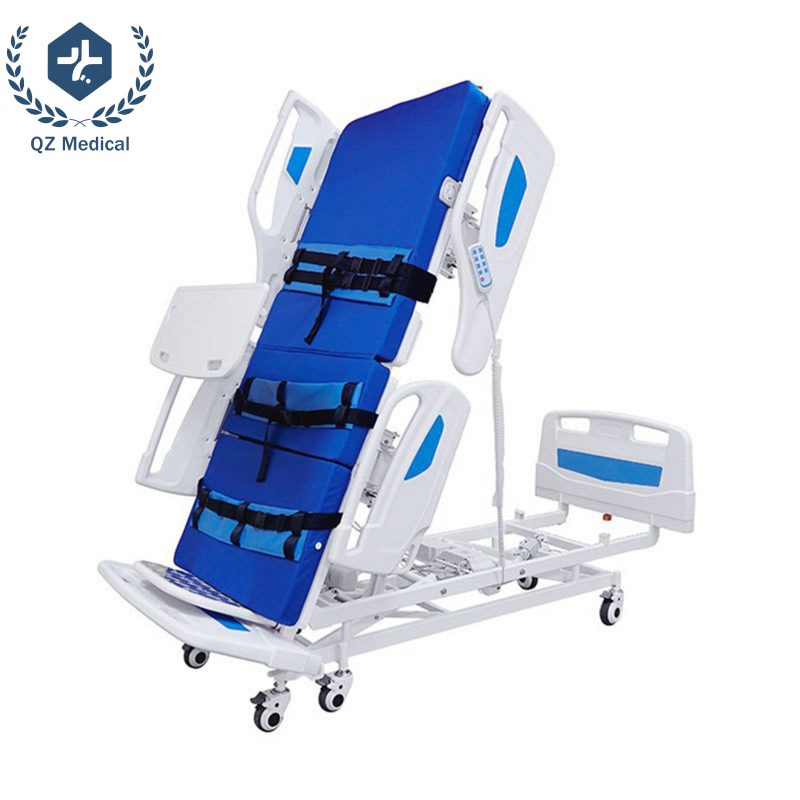

Standing assist: 85°+5° (with anti-slip mechanism)
Product Advantage
Core Configuration & Functional Highlights
Dual-Mode Intelligent Control System
Handheld Controller: Compliant with human-machine interaction standards (EN 60601-1-6), equipped with anti-misoperation buttons and backlit display. Supports independent adjustments by patients (0-80° backrest elevation / 0-30° leg flexion/extension) and precise control by nursing staff.
Emergency Braking System: One-touch emergency stop switch (response time < 0.5 seconds) to instantly halt all motor operations.
High-Strength Modular Bed Structure
Bed Plate Assembly: Formed via one-piece stamping of 1.2mm cold-rolled steel, featuring a 50-group air hole matrix distribution. With a load-bearing capacity of 250kg, the hemmed-edge design ensures a burr-free surface compatible with repeated alcohol/chlorine disinfectant wiping.
X-Ray Penetration Optimization: Built-in carbon fiber composite backplate (attenuation rate < 5%), enabling direct imaging by DR/CR devices and reducing patient transfer risks.
Silent & Safe Mobility System
TPR Silent Casters: Six independent-brake 万向轮 (150mm diameter) with TPR material for vibration-damping and noise reduction (operation noise ≤ 45dB). Passed ISO 7176-9 anti-fatigue testing, suitable for multi-scenarios including ceramic tile/epoxy flooring.
Fall Protection: Retractable footrest interlocked with bed height sensors, automatically extending to cover height differences; three-point seatbelt provides posture fixation.
Medical-Grade Power System
MOTECK Motor Set: Five German imported brushless motors (IP54 protection rating), supporting 100,000 lifting/lowering cycles (MTBF ≥ 15,000 hours). Integrated with CAN-Bus control for 0.1° angle fine-tuning.
Side Rail Buffer Mechanism: Dual hydraulic damping hinges + electromagnetic locking device, with adjustable opening/closing buffer time (0.8-1.2 seconds) to prevent pinch injuries.
Product Uses
1. Home Care Scenarios
Manual hospital beds are ideal for long-term home rehabilitation of patients with paralysis, post-surgery recovery, or chronic illnesses. The adjustable backrest (0-80°) and leg flexion (0-40°) enable patients to reposition themselves independently, preventing pressure ulcers and improving blood circulation. Equipped with silent casters and detachable guardrails, the bed ensures safe mobility and fall prevention. Accessories like wooden meal trays and IV poles support daily care needs. Studies show that such beds improve home care quality scores by 20%, while modular designs (e.g., Hebei manufacturers) simplify cleaning with alcohol-wipe surfaces.
2. Hospital Wards & Rehabilitation Centers
In medical facilities, manual beds are widely used in general wards, emergency rooms, and rehabilitation units. The high-strength steel frame (static load capacity ≥250kg) provides stable support for frequent adjustments. Clinicians can efficiently control backrest and leg angles via triple crank handles, complying with YY9706.252-2021 postural standards. For example, hospitals adopting these beds reduced nursing time by 15% and increased patient satisfaction by 12%. Additional features like anti-permeation mattresses and CPR emergency reset (≤5 seconds) enhance clinical adaptability.
3. Nursing Homes & Long-Term Care Facilities
For elderly populations, manual beds are preferred for their cost-effectiveness and durability. The 4x6cm reinforced load-bearing beams and 10,000-cycle weld testing ensure longevity under intensive use. Customizable designs (e.g., wood-toned finishes) reduce the "medicalized" appearance, boosting residents’ psychological comfort. Case studies demonstrate a 25% reduction in pressure ulcer incidence and 18% improvement in caregiver efficiency. Safety features like central brake casters and fall-prevention guardrails (gaps <12cm) further mitigate risks for mobility-impaired seniors.
4. Rehabilitation Clinics & Emergency Relief
In rehabilitation therapy, the bed’s precision angle adjustment supports progressive training (e.g., controlled limb movement ranges). Expandable functions via physical therapy equipment interfaces (e.g., traction brackets) aid motor recovery. During disasters, its quick-assembly features and non-electric operation provide stable care environments for casualties. For instance, post-earthquake deployments improved casualty transfer efficiency by 40%. The bed’s powder-coated steel surfaces and rust-proof components also meet hygiene requirements in temporary settings.
FAQ
Q1: Are the beds compatible with different voltage standards?
A: Yes. Our beds support 100-240V AC auto-sensing with customizable plugs (Type A/B/C/G) for global markets.
Q2: How do you ensure stability during transport?
A: Beds are disassembled into IP67-rated crates with anti-shock foam and desiccant. Full pre-shipment testing (ISTA 3A standard) is provided.
Q3: What safety features prevent patient falls?
A: Integrated siderail locking sensors, anti-entrapment algorithms, and emergency battery backup are standard.
Q4: Can beds be customized for bariatric or pediatric use?
A: We offer:
Weight capacity: 200kg (standard) / 500kg (bariatric)
Dimensions: Adjustable frame lengths (1800-2200mm)
Mattress compatibility: Airflow/anti-decubitus systems
Q6: How do you handle regulatory documentation?
A: We supply full Technical File, DoC, and country-specific labels (multilingual IFU, GSPD for EU).
Q7: Are your beds compatible with hospital EHR systems?
A: Optional CAN-Bus/HL7 interface enables integration with nurse call systems and patient monitors.
