Technical Parameters

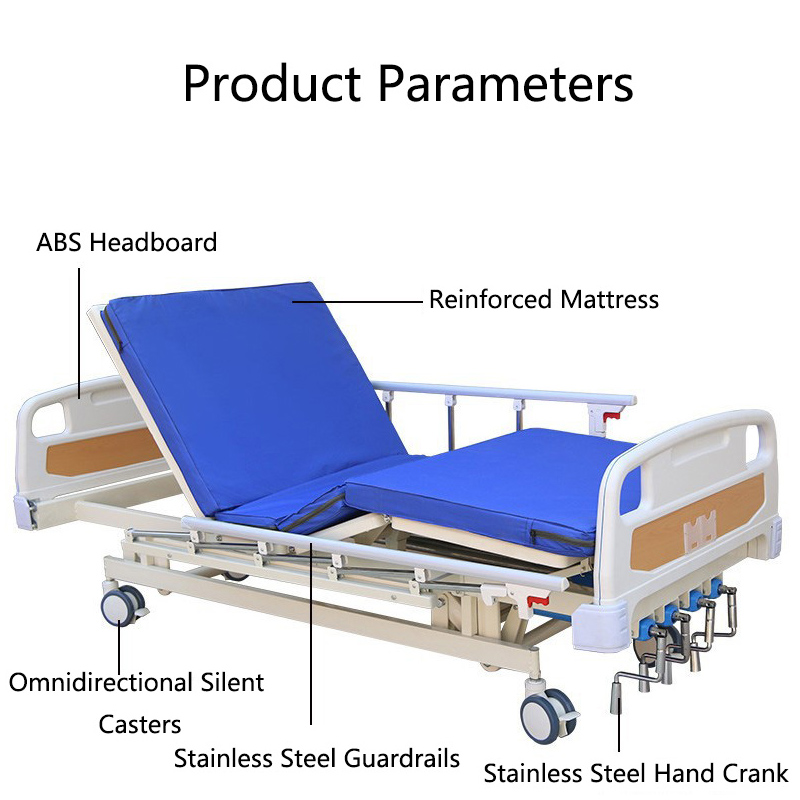

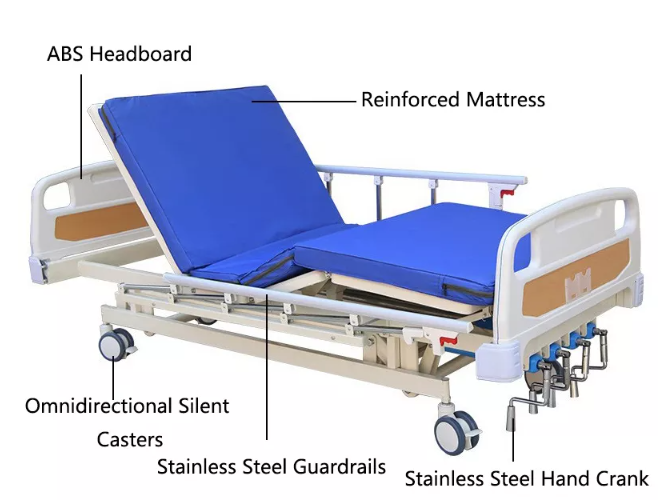

Accessories:
ABS Headboard
Omnidirectional Silent Casters
Reinforced Mattress
Stainless Steel Guardrails
Stainless Steel Crank Handle
Key Specifications:
1. Headboard Material: Reinforced ABS
2. Frame Material: Reinforced Cold-Rolled Steel
3. Bed Dimensions: 200×90×50cm (L×W×H)
4. Toilet Opening Size: 200×280mm (Optional)
5. Manual Five Functions:

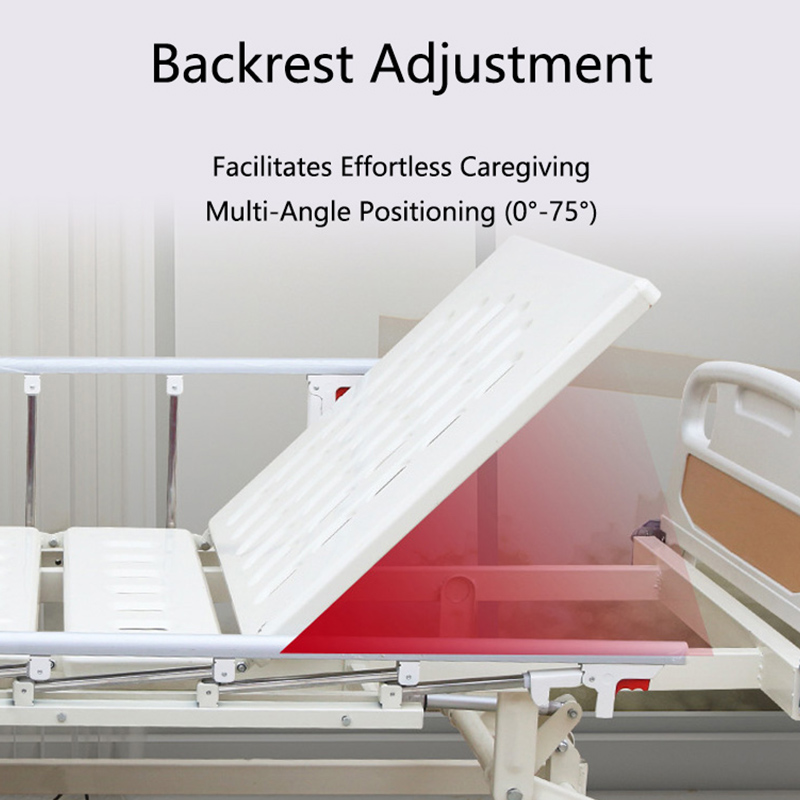

Backrest Adjustment: 0~75°

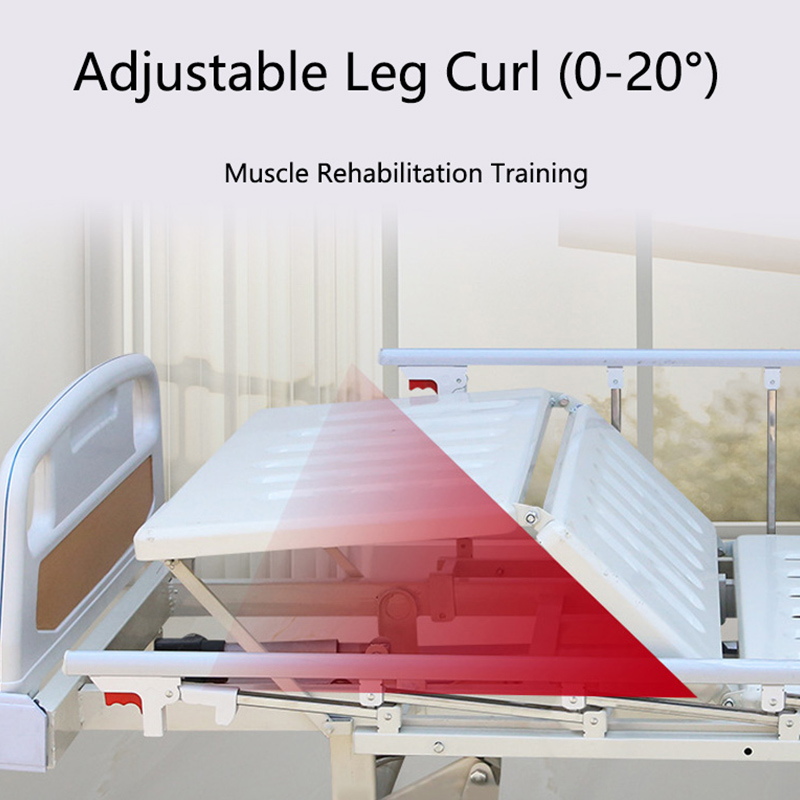

Leg Lift: 0~20°
Overall Height Adjustment: 420~680mm
Front/Rear Tilt: 0~12°

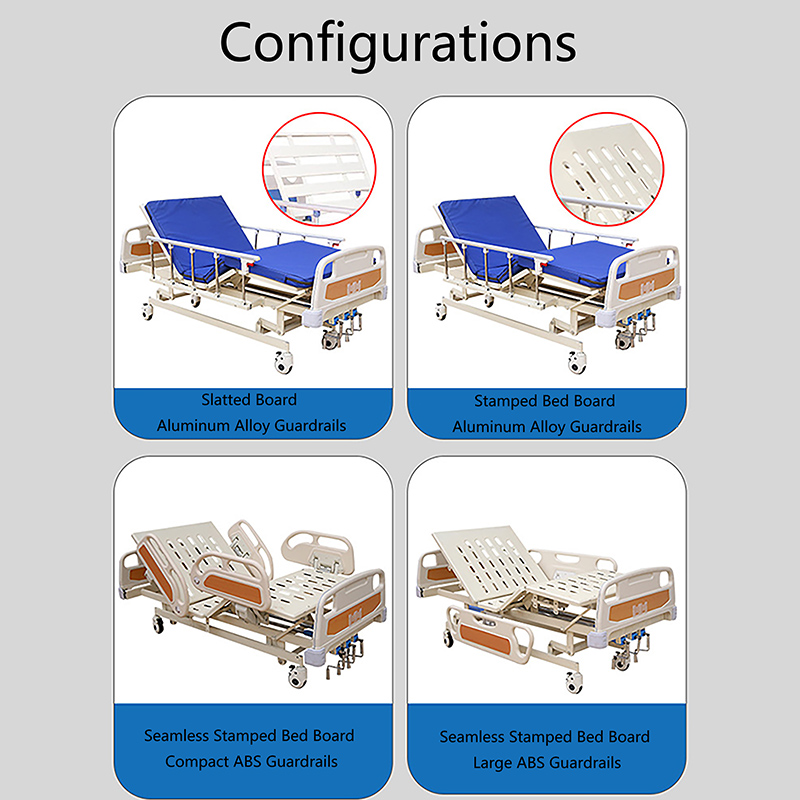

Optional Configurations:
1. Slatted Bed Board + Aluminum Alloy Guardrail
2. Integral Stamped Bed Board + ABS Four Small Guardrails
3. Integral Stamped Panel + Aluminum Alloy Guardrail
4. Integral Stamped Bed Board + ABS Large Guardrail
Product Advantage
Military-grade construction with 1.2mm cold-rolled steel plate undergoes high-temperature electrostatic spraying, achieving 300kg load capacity and 40% higher deformation resistance than industry standards.
Ergonomic drive system with patented gearbox reduces operating torque to ≤5N·m, enabling full-range adjustment within 15 seconds per function while consuming 50% less effort. Anti-reverse mechanism eliminates accidental slippage.
Modular hygienic design features medical-grade ABS guardrails with snap-on connectors (disinfection-friendly surface >99% antimicrobial rate) and seamless stamped bed boards compatible with autoclave sterilization.
Smart mobility system incorporates medical-grade PU silent casters with dual-bearing structure (rolling resistance <0.03), featuring quad-independent brakes with <0.5s response time for multi-surface adaptability.
Customizable configurations include 6 combinations of bed boards and guardrails, with toilet module installation completed within 3 minutes, meeting needs from post-operative care to home hospice.
Product Uses
1. Hospital Wards
Height adjustment aligns with nurse workflow; tilt function aids IV management; compact ABS guardrails prevent falls for conscious patients.
2. Home Care
Silent casters and low-profile design ease room transfers; removable toilet opening and premium mattress enhance comfort and hygiene.
3. Rehabilitation Centers
Coordinated backrest/leg rest adjustments simulate sitting posture for core muscle training; slatted board supports rehabilitation equipment mounting.
4. Post-Operative Care Units
12° Trendelenburg position aids shock recovery; seamless stamped bed boards withstand rigorous ICU sterilization protocols.
5. Senior Facilities
Large ABS guardrails and anti-slip cranks ensure dementia patient safety; 90cm width facilitates safe repositioning, reducing caregiver strain.
FAQ
Q1: Does the product comply with international medical device certifications?
A: Certified with CE Marking (EN 60601-1) and ISO 9001, meeting import regulations for EU, North America, Middle East, and Southeast Asia markets.
Q2: Can the frame withstand long-term heavy-duty use?
A: Constructed with 1.5mm reinforced cold-rolled steel (tensile strength ≥340MPa), passing 100,000-cycle fatigue test. Maximum load capacity 350kg, suitable for patients with BMI ≤40.
Q3: Is manual adjustment complicated?
A: Five-function crank handles enable independent control. Single-function full-range adjustment takes only 15 seconds (e.g., 0→75° backrest requires 18 rotations). Gearbox transmission efficiency >92%, operable single-handedly by female caregivers.
Q4: How do guardrails prevent patient falls?
A: Two safety options:
• Aluminum guardrail: 32cm height, 8cm vertical spacing, compliant with EN 12385 safety gap standards
• ABS large guardrail: 40cm height with anti-slip strips, lateral impact resistance >500N
Q5: How is damage prevented during shipping?
A: Military-grade packaging: Modular frame design (largest component 120×90×25cm), EPE cushioning + steel reinforcement. Passed ISTA 3E testing, withstands 1.5m drop impact.
Q6: Can dimensions be customized for hospital needs?
A: Customization available:
• Length: 180/200/220cm (±2cm tolerance)
• Width: 80/90/100cm
• Toilet opening position: Centered or offset (min. 15cm from edge)
