| Quantity: | |
|---|---|
Technical Parameters
Expanded Dimensions (L×W×H): 960×595×860mm
Folded Dimensions (L×W×H): 420×595×760mm
Seat Width: 460mm
Seat Depth: 420mm
Front Seat Height: 500mm
Battery (Lithium): 24V 10.4Ah
Range: 15km
Backrest Height: 380mm
Motor Power: 200W
Net Weight: 18kg
Speed: ≤6km/h
Load Capacity: 100kg
Climbing Angle: 6°≤X≤10°
Front Wheel Size: 7"
Rear Wheel Size: 10.5"
Armrest Height: 220mm
Product Advantage
1.Advanced Drive System

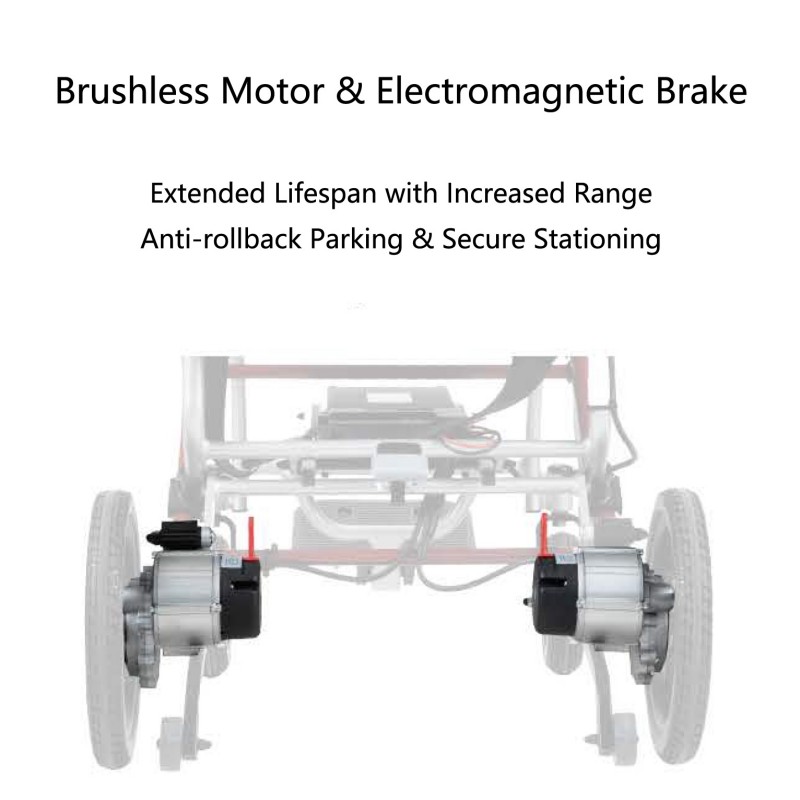

Brushless Motor & Electromagnetic Brake: 50,000-hour operational lifespan with zero maintenance, equipped with auto-lock braking system preventing 6°-10° slope slippage
Dual Wheel Configuration: 7" front/10.5" rear pneumatic wheels ensure 12mm obstacle clearance capability

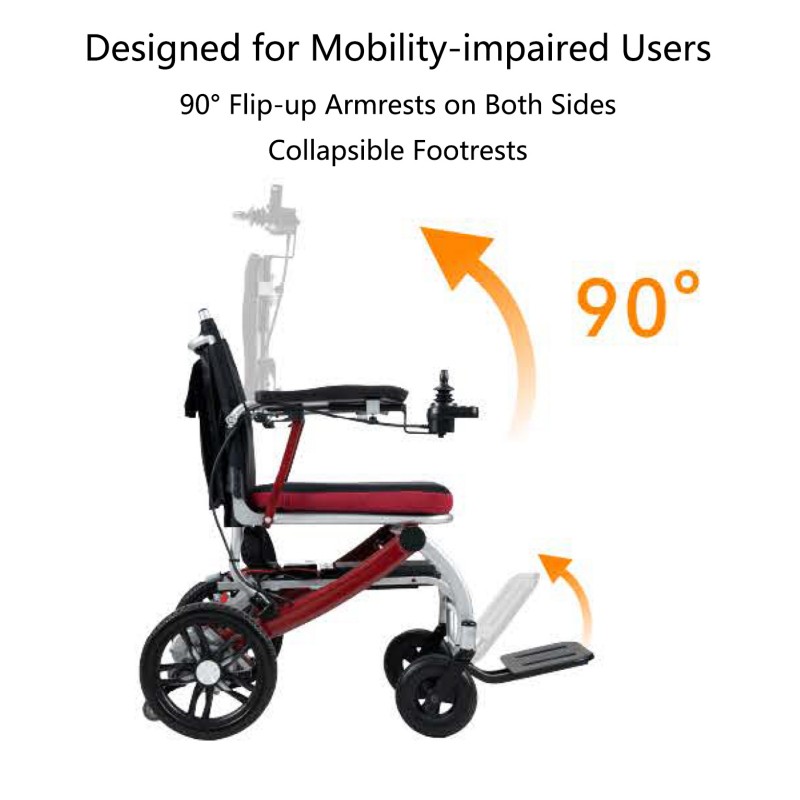

2.Intelligent Ergonomics

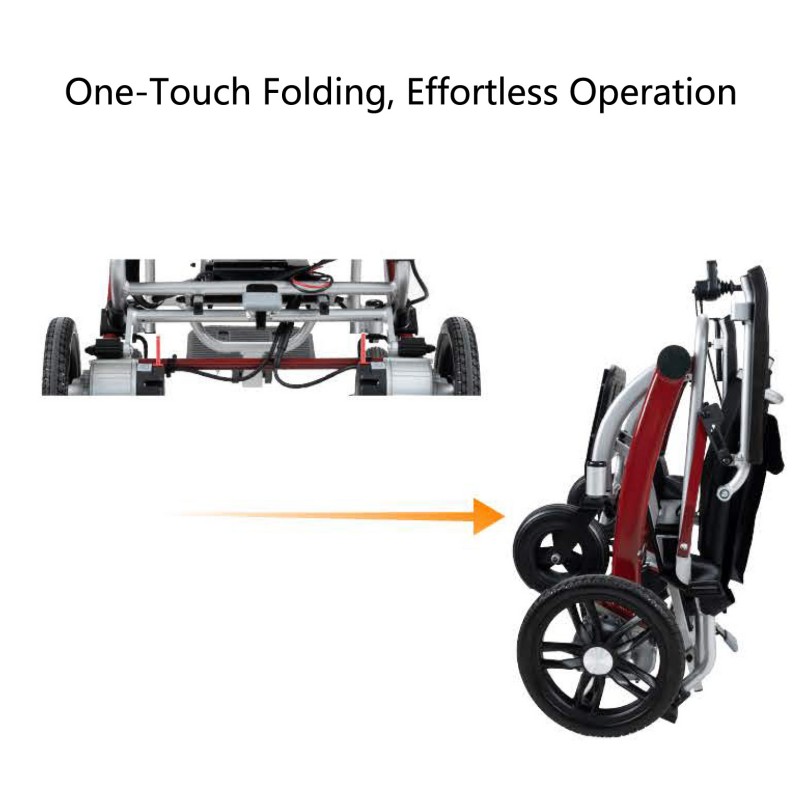

One-Touch Folding Mechanism: Achieves 65% space reduction in 3 seconds

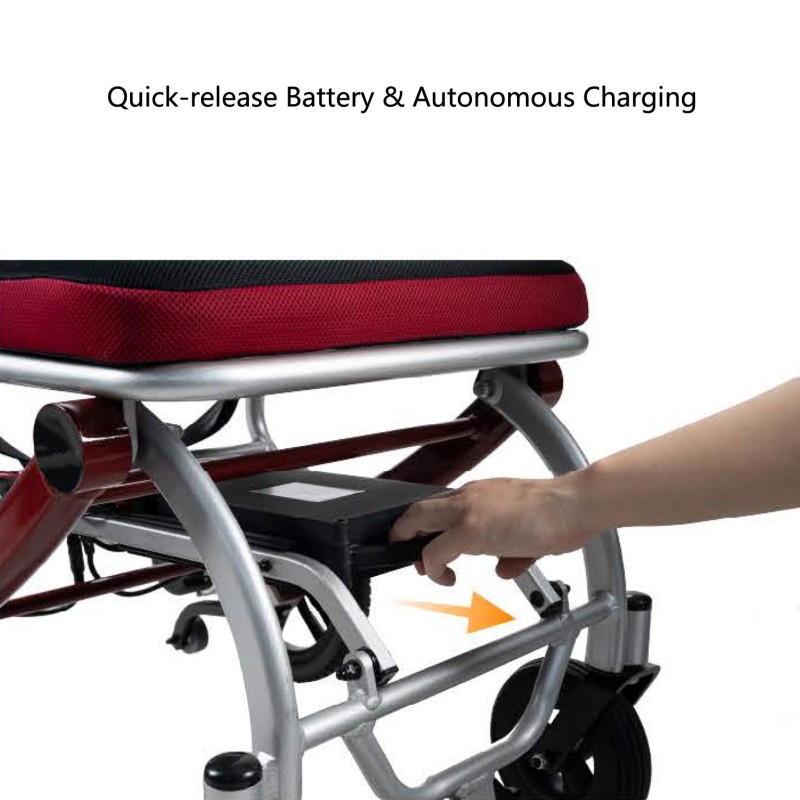

Modular Battery Design: IP67-rated removable power unit supports parallel charging
3.Medical-Grade Adaptability
Three-Point Support Structure: 380mm backrest with lumbar reinforcement distributes pressure across 12 contact points
Dynamic Load Management: Aircraft-grade aluminum frame withstands 200,000 fatigue cycles
Product Uses
1.Medical Facilities
The 760mm folded height complies with ISO hospital bed clearance standards, enabling seamless bed-to-examination room transfers with its 1.8m turning radius.
2.Public Transport
FAA-certified foldable structure allows aircraft overhead compartment storage, while 420mm seat depth meets EN 12183 rail vehicle seating requirements.
3.Home Care
UL-listed battery system ensures 24hr standby power, combined with 6km/h safety speed perfect for assisted living environment navigation.
4.Urban Mobility
IP54-rated components withstand 3hr rain exposure, with 15km range covering 92% of metro station service areas.
FAQ
Q1: Can the lithium battery be shipped by air?
A: The battery meets IATA PI 965 Section II requirements for air/sea freight. MSDS and UN38.3 documentation provided. Original packaging recommended (with 5cm fireproof foam).
Q2: Is this classified as medical equipment?
A: Classified as Class I non-measuring medical device in EU (MDR 2017/745). Requires HCPCS code (E1161 or K0008) based on usage in the US.
Q3: Can it fit standard shipping containers when folded?
A: Folded dimensions 420×595×760mm. 832 units loadable in 40HQ container (3-layer stacking with 5cm clearance). EPE corner protectors recommended for motor shafts.
Q4: Is it suitable for rough terrain?
A: 10.5" rear pneumatic tires clear 12mm obstacles. For slopes over 10°, enable assist mode (requires optional hill-climbing kit with +30N·m torque).
Q5: Is it safe in rainy conditions?
A: Critical components rated IP54 (motor shaft IP67). Safe for 3-hour moderate rain use. Avoid water over 50mm depth.
Q6: Is customization available for body types?
A: Modular seat width (430-500mm)/depth (400-450mm) adjustment. Custom options include +150mm footplates or reinforced frame (130kg payload).
