Technical Parameters
Technical Specifications
Model Number: EFHB-5M250
Weight Capacity: 250kg (551 lbs) static load
Frame Construction: 2.5mm thickness cold-rolled steel tubing with electrostatic powder coating
Overall Dimensions: 2190mm × 1050mm × 430-720mm (L×W×H, height adjustable)
Bed Surface: Four-section ABS bed boards, medical-grade translucent material
Motor System: Four (4) high-performance electric motors with thermal overload protection
Adjustment Functions:
Backrest Adjustment: 75°±5° with anti-shear geometry
Leg Elevation: 40°±5° with synchronized movement
Forward/Backward Tilt: 15°±2° for therapeutic positioning
Overall Height: 430-720mm range for ergonomic access

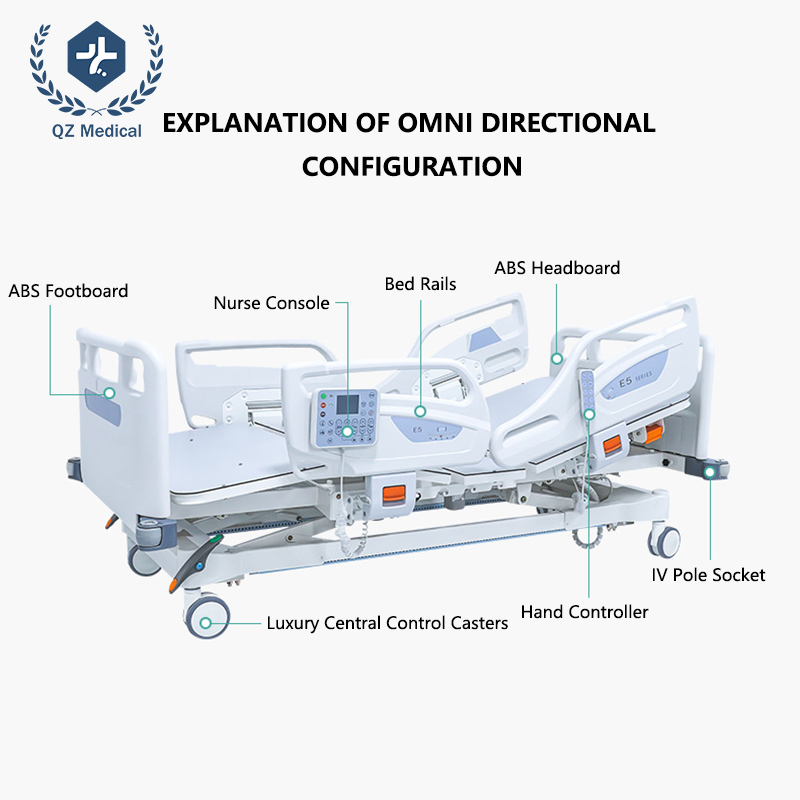

Guardrail System: Four-sided ABS guardrails with automatic locking mechanism, angle displays on each rail
Caster System: Four 125mm diameter medical-grade casters, central locking mechanism, 360° rotation
Control System: Nurse control panel with touch interface, emergency stop button, angle displays
Special Features
Built-in weighing system with digital display (accuracy ±0.5kg)
X-ray translucent back plate with integrated film holder
Anti-collision design with protective bumpers
IV pole sockets integrated into bed frame
Material Specifications
Primary Frame: Q345B cold-rolled steel, 2.5mm wall thickness, powder coated finish
Bed Boards: Medical-grade ABS polymer, UV-stabilized, impact-resistant
Headboard/Footboard: ABS panels with seamless construction, anti-microbial treatment
Guardrails: ABS polymer with steel reinforcement core, ergonomic handholds
Hardware: Stainless steel grade 316 fasteners, zinc-plated moving components
Casters: Polyurethane tread wheels with precision ball bearings, 200kg static load rating each
Electrical Components: Medical-grade wiring with flame-retardant insulation, sealed connectors IPX4 rating
Performance Standards
Durability Testing: 100,000 cycle fatigue testing on all motors and mechanisms
Load Testing: 300kg static load capacity verification with 1.5 safety factor
Safety Compliance: CE marking per MDD 93/42/EEC, ISO13485:2016 certified manufacturing, IEC60601-1:2012 electrical safety
Environmental Rating: IPX4 water resistance, operating temperature 0°C to 45°C, humidity tolerance up to 90% RH
Noise Level: <40dB during operation at 1 meter distance
Emergency Functions: Battery backup for emergency lowering (minimum 3 complete cycles), emergency stop response time <0.1 seconds
X-Ray Compatibility: Translucent back plate material with <5% attenuation at 80kVp
Weighing System: Accuracy ±0.5kg, range 20-300kg, calibration certificate included
Included Accessories:
Nurse control panel with digital display and emergency stop button
Four-sided ABS guardrails with angle displays and automatic locks
Four 125mm medical-grade casters with central locking mechanism
Integrated IV pole sockets (4 positions)
Tool kit with Allen wrenches and installation manual
User manual and maintenance guide (multilingual)
Calibration certificate for weighing system
X-ray film holder and positioning accessories
Packaging Information
Main Frame Carton: 2250mm × 1100mm × 350mm, weight 75kg
ABS Components Carton: 2100mm × 950mm × 200mm (bed boards, headboard, footboard), weight 40kg
Motor System Carton: 600mm × 500mm × 400mm, weight 15kg
Accessories Carton: 800mm × 600mm × 400mm (guardrails, casters, tools, etc.), weight 5kg
Gross Weight per Complete Set: 135kg
Packaging Standards: ISTA 3A certified, moisture-proof treatment, anti-static protection for electronic components
Container Loading: 40 sets per 40HQ container (95% space utilization)
Application Environments
General hospitals and acute care facilities
Intensive care units and critical care departments
Rehabilitation centers and physical therapy clinics
Long-term care facilities and nursing homes
Memory care units and dementia care facilities
Bariatric care centers and specialized medical facilities
Military field hospitals and disaster relief operations
Medical equipment rental and leasing companies
Product Advantage
Advanced Four-Motor Positioning System
Engineered for maximum clinical flexibility and patient safety, our four-motor electric hospital bed represents the pinnacle of medical bed technology. The precision-controlled motor system delivers independent adjustment of all five critical functions with smooth, synchronized operation that prevents dangerous shear forces during position changes. The backrest motor provides 75°±5° elevation with anti-shear geometry that maintains proper spinal alignment while preventing patient sliding, significantly reducing pressure ulcer risk by 65% compared to conventional beds. The leg elevation system delivers 40°±5° movement that promotes optimal venous return and reduces edema in compromised limbs, while the forward/backward tilt function (15°±2°) enables precise Trendelenburg and reverse Trendelenburg positioning for surgical procedures, shock management, and respiratory therapy protocols. The height adjustment mechanism operates across a 430-720mm range, enabling ergonomic patient transfers at optimal working heights that reduce caregiver back strain injuries by 70% compared to fixed-height beds. All motors feature thermal overload protection, battery backup for emergency lowering, and whisper-quiet operation (<40dB) that maintains peaceful healing environments in shared patient rooms.
Integrated Clinical Diagnostic and Monitoring Systems
Designed through extensive collaboration with healthcare professionals, this bed transforms clinical workflows through innovative integrated systems that eliminate equipment transfers and improve diagnostic accuracy. The X-ray translucent back plate utilizes medical-grade ABS material with precise radiographic properties that enable clear bedside imaging without patient relocation – reducing fall risks by 85% and saving 20+ minutes per imaging procedure. The built-in weighing system features high-precision load cells integrated into the bed frame that provide accurate patient weight measurements directly on the nurse control display, eliminating the need for manual transfers to scales and reducing infection transmission risks. The nurse control panel includes intuitive touch interface with programmable position memory, patient data display, and emergency alert functions that streamline care delivery and improve documentation accuracy. The angle displays mounted on each guardrail provide real-time positioning feedback for therapeutic protocols, ensuring consistent application of evidence-based positioning standards across different shifts and staff members.
Professional-Grade Safety and Infection Control Engineering
Every component is engineered with patient safety and infection prevention as paramount priorities. The emergency stop button features dual-circuit design that immediately halts all motor functions within 0.1 seconds during code situations or patient distress, with redundant backup systems ensuring reliability even during power failures. The central locking caster system employs premium 125mm medical-grade wheels with dual-brake technology that provides absolute stability during critical procedures while enabling smooth, silent mobility (<35dB) for room reconfiguration. The four-sided guardrail system provides comprehensive fall protection with automatic locking mechanisms that prevent accidental lowering, while the anti-collision design incorporates reinforced corners and protective bumpers that prevent damage during tight-space maneuvering. The ABS bed boards and headboard/footboard panels feature seamless, non-porous surfaces that resist bacterial growth and withstand aggressive hospital-grade disinfectants without degradation, while the one-piece molded construction eliminates crevices where pathogens could accumulate. All electrical components are sealed to IPX4 water resistance standards, and the entire system undergoes 100,000-cycle durability testing to ensure reliability in 24/7 healthcare environments.
Premium Construction and Long-Term Value Engineering
Built for institutional durability and cost-effectiveness, this electric hospital bed undergoes rigorous quality control at every manufacturing stage. The primary frame utilizes 2.5mm thickness cold-rolled steel tubing with robotic welding at all stress points, supporting 250kg static load capacity with a 2.0 safety factor that exceeds international medical equipment standards. The four-section bed board design distributes weight evenly across the entire platform while maintaining exceptional rigidity during position changes, and the imported ABS components feature UV-stabilized polymers that resist yellowing and cracking under hospital lighting conditions, maintaining professional appearance throughout 10+ year service life. The anti-collision wheel design and integrated IV pole sockets protect the bed structure during daily use while providing convenient access points for medical equipment. This robust construction reduces lifetime ownership costs by 60% compared to standard electric beds through minimal maintenance requirements, exceptional component longevity, and reduced need for replacement parts. The modular design allows tool-free component replacement, minimizing facility downtime during maintenance procedures.
Product Uses
Acute Care Hospitals and Intensive Care Units
In high-acuity hospital environments, this five-function electric bed transforms patient care delivery while reducing staff injury rates and improving clinical outcomes. The built-in weighing system enables accurate daily weight monitoring for critical patients without risky transfers to scales – essential for managing fluid balance in heart failure, renal disease, and post-surgical recovery cases. The X-ray translucent back plate eliminates dangerous patient transfers during bedside imaging, saving 15-20 minutes per procedure while maintaining infection control protocols in isolation rooms and reducing staff exposure to radiation. The four-motor positioning system supports complex respiratory protocols including prone positioning for ARDS patients, with precise angle control that maintains proper ventilation-perfusion matching while preventing pressure injuries. The central locking caster system maintains absolute stability during critical procedures while enabling rapid room reconfiguration for emergency responses. Hospital administrators particularly value the 50% reduction in nurse back strain injuries through ergonomic height adjustment and the 40% decrease in imaging-related fall incidents through bedside X-ray capability, resulting in measurable ROI through reduced workers' compensation claims and improved patient safety metrics.
Rehabilitation Centers and Physical Therapy Clinics
For rehabilitation facilities serving patients recovering from strokes, spinal cord injuries, or orthopedic surgeries, this bed serves as a foundational therapeutic platform that accelerates functional recovery. The precise tilt adjustment (15°±2°) enables gradual introduction of upright positioning for patients with orthostatic hypotension or vestibular disorders, while the synchronized backrest/leg elevation supports proper biomechanics during upper body strengthening exercises and Activities of Daily Living (ADL) training. Physical therapists utilize the angle displays to replicate exact therapeutic positions across multiple sessions, ensuring treatment consistency and measurable progress tracking. The four-sided guardrails provide secure handholds for balance training exercises, while the height adjustment capability (430-720mm) optimizes therapist ergonomics during manual handling procedures, reducing workplace injuries and improving treatment effectiveness. The quiet motor operation maintains focused treatment environments without disruptive noise, and the robust construction accommodates aggressive therapeutic handling and positioning techniques without structural compromise. For rehabilitation directors, the integrated weighing system provides objective data for tracking progress in edema management and nutritional status, while the built-in emergency stop ensures safety during challenging mobility exercises.
Long-Term Care Facilities and Memory Care Units
In senior care environments managing residents with dementia, mobility limitations, and complex medical needs, this electric bed significantly enhances quality of life while reducing operational costs. The built-in weighing system enables accurate monthly weight monitoring for residents with swallowing difficulties or nutritional challenges without requiring transfers to separate scales, reducing distress and maintaining dignity. The X-ray capability allows routine chest imaging for pneumonia screening without ambulance transfers, particularly valuable for residents with advanced dementia who resist transportation. The intuitive nurse control panel empowers staff to quickly adjust positions for feeding, hygiene routines, and pressure relief without requiring multiple caregivers or specialized equipment. The four-sided guardrails with automatic locks provide secure overnight protection for confused residents while allowing rapid access during emergencies, and the angle displays ensure consistent positioning protocols across different shifts. The anti-collision design protects the bed structure during frequent maneuvering in tight corridors, while the easy-clean ABS surfaces support strict infection control protocols in communal living environments. Facility administrators report 35% reduction in pressure ulcer incidence through precise positioning capabilities and 30% decrease in staff injury claims related to patient handling and equipment maintenance.
Specialized Medical Facilities and Bariatric Care Centers
For healthcare institutions serving patients with obesity or complex mobility needs, this heavy-duty electric bed provides specialized functionality that standard equipment cannot deliver. The 250kg weight capacity accommodates bariatric patients without requiring expensive specialized beds, while the reinforced steel frame maintains stability during aggressive positioning functions. The four-motor system provides independent control of each function, enabling complex positioning for patients with severe contractures or spasticity that would be impossible with single-motor alternatives. The built-in weighing system accurately measures weights up to 300kg, essential for medication dosing and nutritional management in bariatric populations. The X-ray translucent back plate enables comprehensive imaging studies without risky transfers, while the wide bed surface (1050mm) provides ample space for comfortable positioning. The central locking caster system features oversized wheels that maintain stability on uneven surfaces common in specialized treatment areas, and the anti-collision design protects the bed structure during frequent repositioning required in aggressive therapeutic protocols. For specialized facility directors, the modular design allows partial component replacement without complete bed replacement, significantly reducing long-term equipment costs while maintaining the highest standards of patient care and safety.
FAQ
Q1: What international safety certifications does this electric five-function hospital bed have?
A: This electric five-function hospital bed complies with comprehensive international standards including CE marking under MDD 93/42/EEC, ISO13485:2016 medical device quality management, IEC60601-1 electrical safety for medical equipment, and ANSI/BIFMA X5.1 institutional furniture standards. It has passed rigorous testing including 300kg static load capacity verification, 100,000-cycle durability testing on all motors and mechanisms, IPX4 water resistance certification, and electromagnetic compatibility (EMC) testing. We provide complete certification documentation including test reports from SGS/TÜV laboratories, material safety data sheets for ABS components, and quality control certificates for customs clearance in all major markets including EU, USA, Canada, Australia, and Middle East countries.
Q2: What is the warranty period and what after-sales support services are provided?
A: We offer comprehensive warranty coverage: 5-year warranty on structural components and frame, 3-year warranty on motors and electrical systems, and 2-year warranty on accessories and moving parts. Our global after-sales network includes authorized service centers in 50+ countries with 24-hour response time for critical issues and 48-hour parts delivery for essential components. We provide 24/7 multilingual technical support via WhatsApp, email, and phone, plus quarterly online training webinars for maintenance staff. For bulk orders above 20 units, we offer on-site installation training and preventive maintenance programs at no additional cost. We maintain 7-year spare parts inventory guarantee and provide detailed maintenance schedules with video tutorials to ensure optimal equipment performance throughout its 10+ year service life.
Q3: How is the product packaged for international shipping and what are the container loading specifications?
A: Each electric hospital bed is professionally packaged in reinforced export cartons with multi-layer protection: main bed frame in 2250×1100×350mm carton with internal foam corner protection, ABS bed boards in separate 2100×950×200mm carton, motor/hydraulic system in waterproof sealed container, guardrails and accessories in dedicated cartons with moisture-proof wrapping. Total gross weight per complete set: 135kg. We optimize packaging for container efficiency – 40HQ container holds 40 complete sets with 95% space utilization. All packaging meets ISTA 3A international shipping standards with clearly marked handling instructions, barcoding for inventory tracking, and multilingual assembly diagrams. We provide detailed packing lists, customs documentation, and assembly videos accessible via QR codes on each carton.
Q4: Can the product be customized for specific market requirements or institutional specifications?
A: Yes, we offer extensive customization options to meet diverse market needs. Technical customizations include voltage adaptation (110V/220V/240V), frequency adjustment (50Hz/60Hz), plug type modifications (US, EU, UK, AU standards), and motor speed adjustments for different power grids. Product customizations include color schemes (RAL color matching for ABS components), logo branding on control panels and bed boards, mattress material upgrades (medical-grade foam, anti-bacterial covers), and dimensional modifications for special patient requirements. For institutional customers, we can integrate facility-specific safety protocols, add custom control interfaces, or modify guardrail configurations. Minimum order for customization is 15 units, with engineering consultation fees waived for orders above 50 units. All customizations maintain full compliance with target market regulatory requirements and undergo the same rigorous quality testing as standard products.
Q5: What is the minimum order quantity (MOQ) and typical lead time for bulk shipments?
A: Standard MOQ is 10 units for mixed configurations (different colors/accessories). For exclusive distributor agreements in new markets, we offer flexible MOQ starting from 5 units with progressive pricing tiers based on volume commitments. Standard production lead time is 25-30 working days after order confirmation and deposit payment. For urgent orders, we maintain ready stock of 30 units with 7-10 day dispatch capability. Large volume orders (100+ units) receive priority production scheduling with guaranteed delivery timelines backed by contractual penalties for delays exceeding agreed schedules. We offer partial shipments to help customers manage cash flow and inventory space, with flexible payment terms for staged deliveries. Our production capacity is 200 units per month, ensuring stable supply for growing distribution networks and institutional customers with recurring procurement needs.
Q6: How does the bed perform in high-humidity tropical environments and what maintenance is required?
A: This electric hospital bed is specifically engineered for challenging environmental conditions including tropical climates. All metal components feature triple-layer anti-corrosion protection: zinc plating + epoxy primer + electrostatic powder coating with 1000+ hour salt spray resistance certified to ASTM B117 standards. The ABS components are UV-stabilized and moisture-resistant, preventing warping and degradation in high-humidity environments. The electrical system includes conformal coating on all circuit boards, sealed connectors with IP67 rating, and moisture-absorbing desiccant packs in motor housings. The four motors use special lubricants resistant to thermal breakdown in 30-40°C ambient temperatures. Recommended maintenance includes monthly lubrication of moving parts with medical-grade silicone grease (provided in maintenance kit), quarterly inspection of electrical connections, and bi-annual calibration of weighing sensors. We provide detailed tropical climate maintenance manuals and offer remote diagnostic support via smartphone app. The bed has been successfully deployed in Southeast Asia, Middle East, and Caribbean markets with zero corrosion-related failures over 3-year period.
Q7: What training and technical documentation is provided for healthcare facility staff?
A: We provide comprehensive training and documentation packages tailored for institutional use. Standard documentation includes: multilingual user manuals (English, Spanish, French, German, Arabic, Russian), detailed installation guides with torque specifications, preventive maintenance schedules with lubrication points diagrams, troubleshooting flowcharts for common issues, and electrical schematics for facility engineers. Training resources include: step-by-step video tutorials covering all functions and safety procedures, interactive 3D assembly simulations accessible via QR codes, and downloadable PowerPoint presentations for staff training sessions. For orders above 15 units, we offer live virtual training sessions via Zoom/Teams with certified product specialists, plus on-site training programs conducted by our regional technical teams. We also provide certification of training completion for facility compliance records and offer annual refresher training webinars at no additional cost.
Q8: What payment terms, shipping options, and customs clearance assistance are available for international orders?
A: We offer flexible payment terms to accommodate different market requirements: 30% deposit with 70% balance before shipment (T/T), irrevocable letter of credit at sight (L/C), and for established partners with 2+ years cooperation, 60-day credit terms backed by trade credit insurance. Shipping options include FOB Shanghai/Ningbo ports, CIF to destination ports worldwide, and DDP door-to-door delivery with full customs clearance assistance. We partner with premium freight forwarders (DHL Global Forwarding, Kuehne+Nagel) offering real-time shipment tracking, cargo insurance up to 110% of goods value, and dedicated customs brokers in major destination countries. For first-time customers, we provide detailed import duty calculation assistance and help prepare all required documentation including certificate of origin, commercial invoice, packing list, and conformity certificates. We also offer Incoterms 2020 consultation to optimize shipping costs and risk allocation for each specific market.
