In modern healthcare facilities, motorized hospital beds, bariatric nursing beds, and intensive care units (ICUs) are complex electro-mechanical systems. While structural steel frames provide the skeleton, the linear electric actuators and digital control box serve as the muscles and brain of the bed.
In high-occupancy hospital wards, electric actuators adjust patient posture dozens of times each day: elevating backrests for meal intake, raising leg sections for venous drainage, and lifting the entire bed platform for nurse hygiene routines.
Specifying generic or under-engineered electric motors creates severe clinical bottlenecks:
Motor Overheating & Stalling: Undersized actuators fail under bariatric patient loads, tripping internal thermal fuses;
Acoustic Disturbance: Cheap planetary gears whine and rattle, disturbing fragile patient sleep in quiet wards;
Fluid Ingress Failures: Non-sealed control boxes short-circuit during hospital disinfectant wash-downs.
To protect hospital capital investments and eliminate maintenance headaches, biomedical engineers, hospital procurement committees, and medical equipment distributors must understand how to evaluate medical-grade linear actuator systems.
This technical sourcing guide outlines the core engineering criteria for hospital bed drive systems: thrust ratings, waterproof washability, nurse attendant control architectures, and international electrical safety compliance.
A common error during hospital bed procurement is assuming all actuators on a 3-function or 5-function bed share identical power specifications. Different bed articulation joints encounter drastically different dynamic leverage forces.
Backrest Actuator (6000N Push Force): Elevating a bedridden patient from supine to a high-Fowler position (0° to 70° or 75°) places intense leverage force against the upper frame. High-grade medical beds utilize actuators delivering a minimum of 6000N (approx. 600 kg) push force, ensuring smooth, strain-free torso elevation even when heavy patients lean back forcefully.
Knee / Leg Section Actuator (4000N Push Force): Flexing the knee and calf section (0° to 35°) requires less downward force, typically powered by a 4000N linear actuator engineered for smooth articulated contouring.

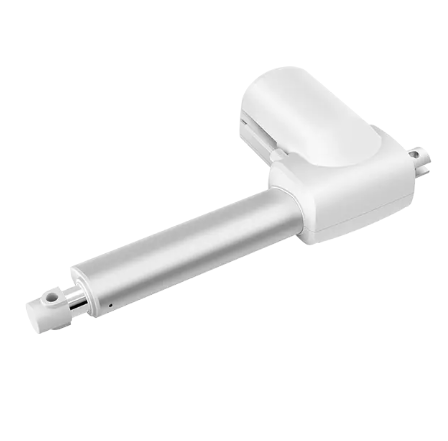

Vertical Hi-Low Lift Actuator (8000N High-Torque Thrust): Lifting the combined weight of the patient, thick mattress, steel deck, side rails, and medical accessories vertically (from 380–720 mm or 450–850 mm) requires high torque. Quality beds deploy heavy-duty 8000N push-force actuators, providing stable, wobble-free vertical travel without frame twisting.
Acoustic Decibel Standards (<45dB): In recovery wards, motor sound levels must remain whisper-quiet. Precision internal worm drives and self-lubricating nylon gears maintain operating noise strictly below 45dB, preserving a peaceful healing environment.
Hospital hygiene protocols demand frequent chemical disinfection. The ingress protection (IP) rating dictates how the bed can be cleaned between patient admissions.
Standard IPX4 Liquid Protection (Routine Clinical Wiping):
All basic medical actuators and control boxes must meet at least IPX4 ingress protection. This guarantees internal electronics are shielded against fluid splashes, liquid medications, and routine surface wipe-downs using chlorine bleach, 70% isopropyl alcohol, and disinfectant sprays.
Heavy-Duty IPX6 / IPX6W Washable Systems (Automated Wash Tunnels):
For high-acuity trauma centers, surgical suites, and burn units where beds pass through automated washing chambers, beds require IPX6 or IPX6W waterproof systems. These feature hermetically sealed O-rings, ultrasonic-welded motor casings, and waterproof cable connector glands that withstand high-pressure water jets from any direction without electrical leakage.
Managing patient safety requires an engineered hierarchy between what the patient can adjust and what clinical staff control.
Patient Hand Pendant (Ergonomic Convenience): A lightweight, drop-resistant wired hand controller allowing the patient to adjust comfort angles independently (backrest and knee rest) without calling nursing staff for basic posture adjustments.

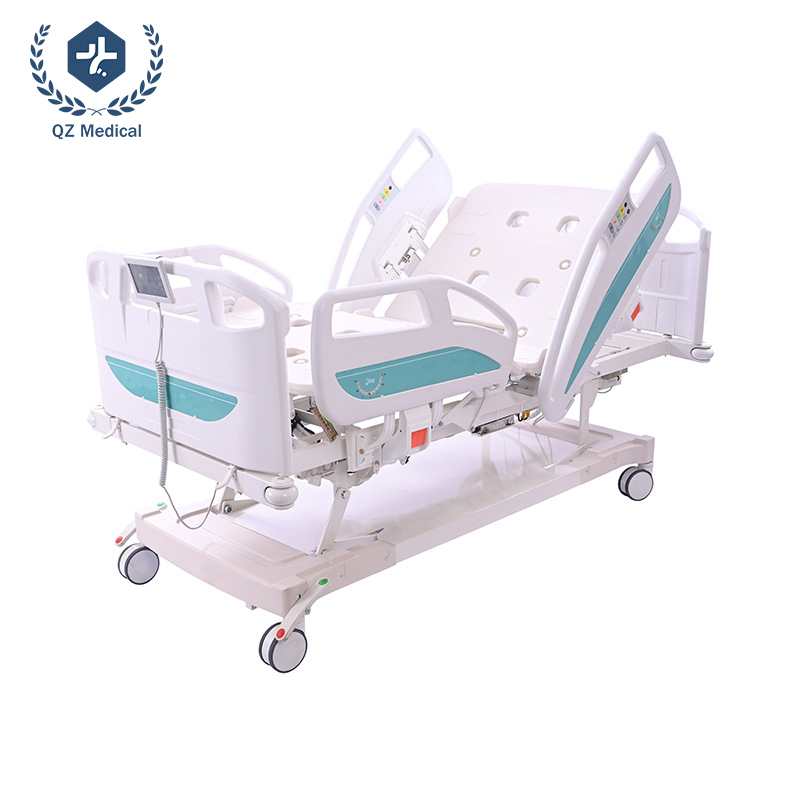

Nurse Attendant Control Panel (ACP / Footboard Console): Mounted on the exterior of the footboard or embedded into split ABS side rails, out of the patient's reach. Crucial clinical features include:
Individual Function Lockouts: Nurses can mechanically or digitally lock specific articulation buttons (such as locking the backrest flat following spinal or abdominal surgery to prevent accidental patient movement);
One-Touch Clinical Positions: Instant presets for Trendelenburg / Reverse Trendelenburg (0° to 14°), vascular chair positioning, and cardiac chair seating;
Emergency Electrical CPR Flattening: Instantly flattens the entire bed platform with a single button press.
Failsafe Battery Backup Systems: In the event of a power outage or during inter-departmental patient transport, built-in rechargeable lithium or lead-acid battery packs maintain 50 to 100 complete articulation cycles, ensuring vital patient positioning remains active.
Medical electrical equipment must satisfy rigorous international electro-medical safety directives:
EN/IEC 60601-1 & IEC 60601-2-52 Safety Standards: Actuators and control modules must undergo rigorous factory dielectric strength, insulation resistance, and earth leakage current verification. Quality manufacturers subject actuators to continuous life testing exceeding 20,000 continuous full-load cycles under audited ISO 13485 quality systems.
Direct AC Corded vs. Battery-Powered Selection: While acute ICU beds utilize internal battery backup systems, long-term care facilities frequently source corded electric AC designs (such as the QME-LTC5/002 Series) that plug directly into wall mains (110V–240V NEMA plug), eliminating chemical battery degradation and replacement budgets across multi-bed facilities.
Container Loading Efficiency: Standard hospital ward beds are packed in flat-pack knockdown (KD) master cartons at 76 complete units per 40ft High Cube (40HQ) container (approximately 32 to 36 units per 20GP container), while modular long-term care beds load at 88 complete sets per 40HQ container, protecting delicate actuator linkages while optimizing ocean freight expenditure.
Engineering Parameter | Low-Cost Commercial Actuator | Certified Medical Bed Actuator System |
Max Thrust Capacity | 2000N – 3000N (Prone to overload) | 6000N (Back) / 8000N (Vertical Hi-Low Lift) |
Acoustic Noise Level | > 55dB (Noticeable motor gear whine) | Whisper-Quiet Performance (< 45dB) |
Ingress Protection (IP) | Non-sealed or basic IPX1 | IPX4 (Wipe-down) to IPX6 (Washable Chamber) |
Safety Lockout Control | None (Simple 2-button switch) | Nurse ACP Console with Individual Lockouts |
Duty Cycle Testing | 3,000 – 5,000 cycles | 20,000+ Continuous Full-Load Test Cycles |
Emergency Power | None | Integrated Battery Backup (50–100 Cycles) |
Regulatory Compliance | Uncertified or generic CE | Audited IEC 60601-1, IEC 60601-2-52, ISO 13485 |
In electric medical bed procurement, the actuator system dictates total cost of ownership. Sourcing beds equipped with properly sized 6000N to 8000N thrust actuators, IPX4/IPX6 fluid ingress protection, and dedicated nurse attendant control consoles with function lockouts guarantees patient comfort, protects caregiver safety, and prevents costly biomedical equipment breakdowns.
Are you outfitting an intensive care ward expansion, upgrading motorized clinical beds, or sourcing high-reliability medical furniture for your regional distribution network?
As a direct medical device manufacturer, QZ Medical provides complete OEM/ODM manufacturing services across our entire electric ICU bed, ward care bed, and long-term care furniture portfolio—fully supported by certified high-thrust actuator systems, custom control architectures, private-label branding, and container-optimized export packaging.
