Technical Parameters

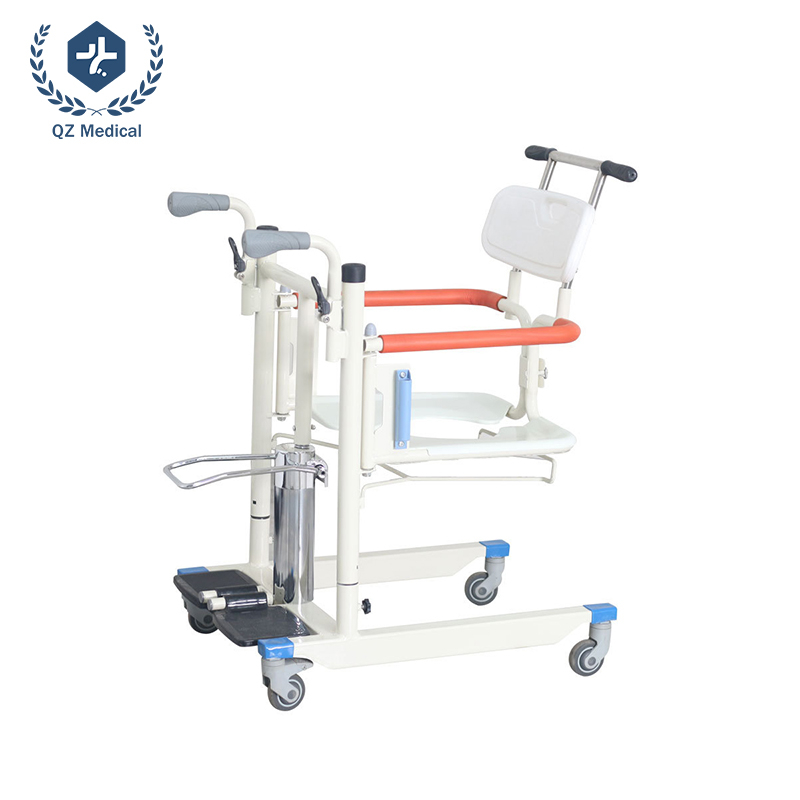

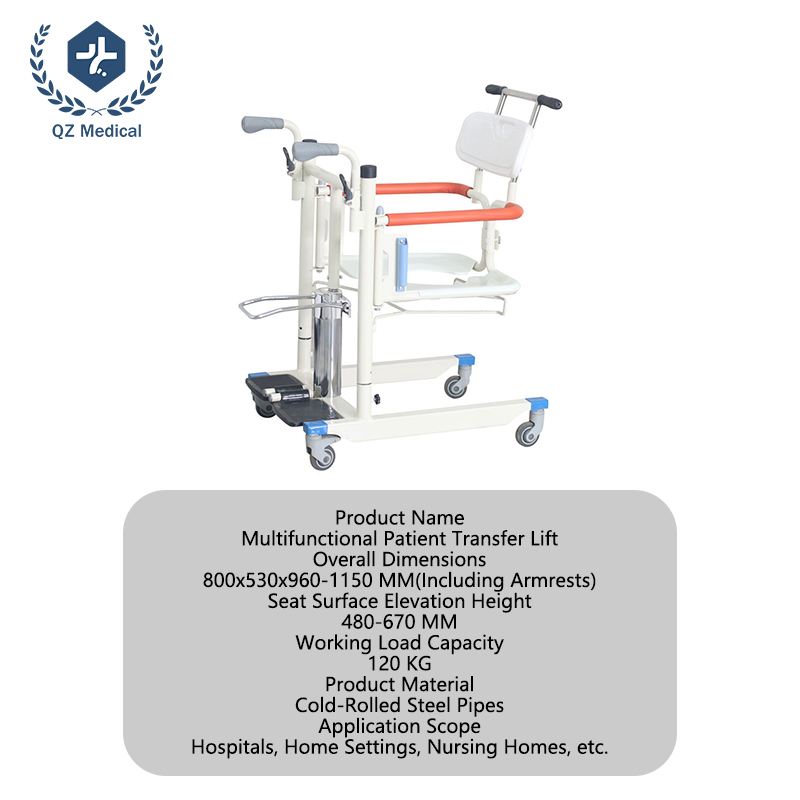

Product Type: Electric Patient Transfer Chair
Functions: Electric lifting, mobility, commode assistance
Frame Material: Cold-rolled steel tubing, powder-coated
Seat Height Adjustment Range: 480–670 mm
Overall Dimensions: 800 × 530 × 960–1150 mm (with armrests)
Maximum Load Capacity: 120 kg
Backrest Design: 180° open-back with safety lock
Castors: Silent multi-directional castors with brakes
Armrests: Non-slip rubber handles
Footrest: Integrated non-slip foot platform
Target Users: Elderly, long-term bedridden patients
Application Areas: Home care, nursing homes, hospitals
Technical Specifications
Model Number: Not specified
Weight Capacity: 120kg (265 lbs)
Frame Material: 2mm cold-rolled steel with electrostatic powder coating
Seat Height Range: 480-670mm
Backrest Opening: 180° (left/right adjustable)
Wheel Type: Quiet multi-directional casters with centralized braking
Weight: 35kg (77 lbs)
Outer Dimensions: 800×530×960-1150mm (with handles)
Inner Dimensions: 700×450×850-1050mm
Material Specifications
Frame: 2mm cold-rolled steel, electrostatic powder coating
Seat Surface: Durable, non-slip material
Toilet Bowl Bracket: Removable, adjustable
Handles: Anti-slip rubber
Wheels: Polyurethane with precision ball bearings
Performance Standards
Durability Testing: 20,000-cycle rotation testing
Load Testing: 120kg static load verification
Safety Compliance: CE marking, ISO 13485:2016 certified
Emergency Function: Emergency stop button for immediate power cut-off
Environmental Rating: Operating temperature -10°C to +50°C
Included Accessories
Multi-Functional Electric Lift Transfer Device
180° backrest opening mechanism
Removable toilet bowl bracket
Anti-slip rubber handles
Quiet multi-directional casters with centralized braking
User manual (multilingual)
Footrest feature

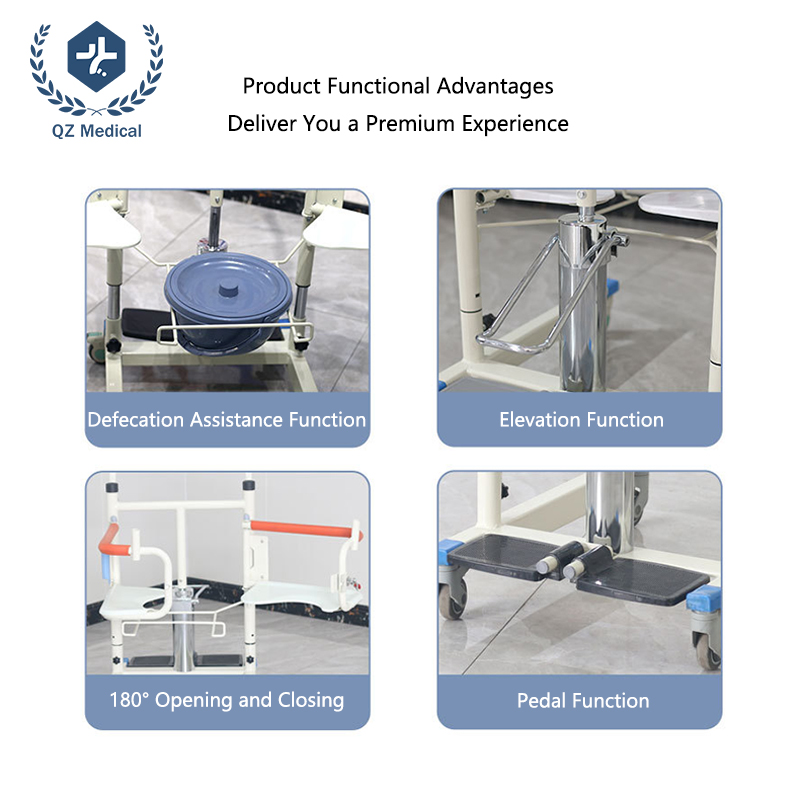

Product Advantage
Integrated Transfer and Toileting Solution
This transfer chair combines patient transfer, lifting, and toileting assistance into one device. By reducing repeated lifting and repositioning, it significantly lowers caregiver workload and improves daily care efficiency.
Electric Height Adjustment for Easy Transfer
The electrically adjustable seat height allows smooth lifting and lowering to match beds, sofas, or toilets. This function enables caregivers to transfer patients without bending, lifting, or carrying.
180-Degree Open-Back Design
The backrest can be opened to both sides up to 180 degrees, allowing the chair to be positioned directly behind the patient. This design enables safe and easy transfer without physically lifting or holding the patient.
Reinforced Steel Frame Structure
The main support frame is constructed from thickened cold-rolled steel tubing with a surface powder-coating finish. The structure is strong, stable, corrosion-resistant, and designed for long-term daily use.
Commode Function with Removable Pan
The chair is equipped with a detachable commode system, allowing patients to use the toilet without being transferred again. The removable commode frame simplifies cleaning and hygiene management.
Smooth Mobility with Silent Lockable Castors
Multi-directional silent castor wheels allow smooth movement across different surfaces. The advanced braking system ensures stable positioning during transfer and toileting.
Ergonomic and Safe User Support
Non-slip rubber armrests improve grip and stability for users during transfer. The integrated footrest provides secure foot placement and reduces the risk of secondary injury.
Product Uses
Home Care for Elderly and Bedridden Patients
Ideal for families providing daily care at home, enabling safe transfer and toileting with minimal physical effort.
Nursing Homes and Elderly Care Facilities
Improves caregiver efficiency by allowing single-person operation during patient movement and hygiene care.
Hospitals and Rehabilitation Centers
Suitable for non-intensive care wards requiring frequent patient transfer between bed, chair, and toilet.
Long-Term Care and Assisted Living
Supports daily mobility and hygiene routines for residents with limited movement.
Medical Equipment Distribution Projects
Well-suited for distributors supplying patient transfer and hygiene assistance equipment to care institutions.
FAQ
Q1：Is this product a wheelchair or a lift?
A: This is a patient transfer chair designed for lifting, transferring, and toileting assistance. It is not intended for long-distance wheelchair use.
Q2：What type of users is this transfer chair suitable for?
A: It is suitable for elderly users and long-term bedridden patients who require assisted transfer and toileting.
Q3：Does the chair support electric height adjustment?
A: Yes. The seat height can be adjusted electrically to assist safe transfer.
Q4：Can one caregiver operate the transfer chair alone?
A: Yes. The design allows single-person operation without lifting or carrying the patient.
Q5：Is the chair easy to move and secure?
A: Yes. It features silent castors with braking function for smooth movement and stable positioning.
Q6：Does the chair include a toileting function?
A: Yes. A removable commode pan is included for convenient hygiene care.
Q7：What material is used for the frame?
A: The frame is made of reinforced cold-rolled steel with powder-coated surface treatment.
Q8：Do you support OEM or bulk supply for care facilities?
A: Yes. OEM services and bulk supply are available for distributors and institutional buyers.
