Technical Parameters
Technical Specifications
Weight Capacity: 240kg (529lbs)
Frame Material: 1.2mm thick 30×60mm steel tubing

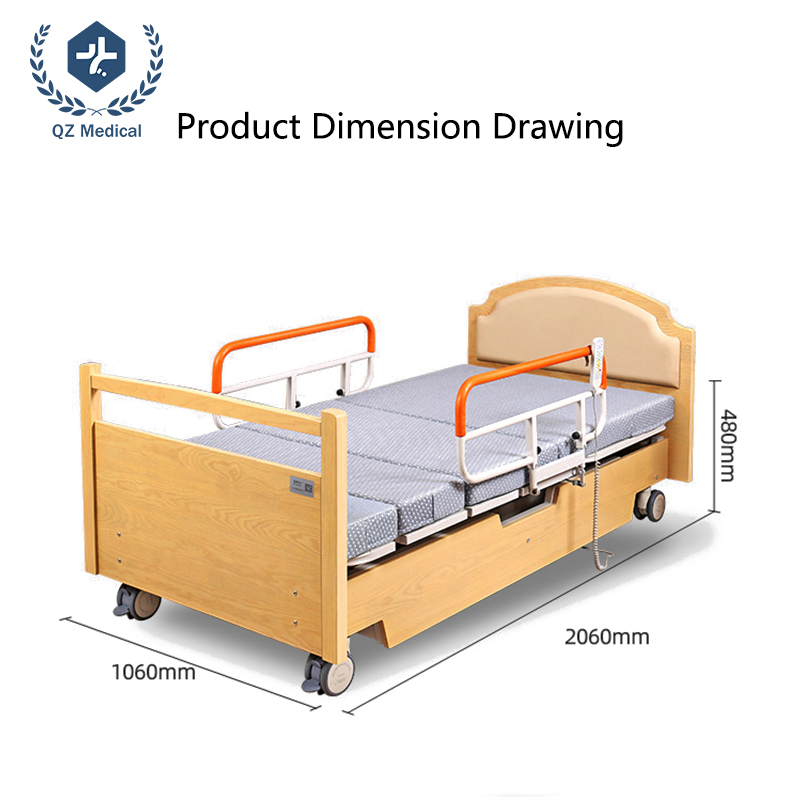

Bed Dimensions (Expanded): 206×106×48cm (outer) / 201×100×40cm (inner)

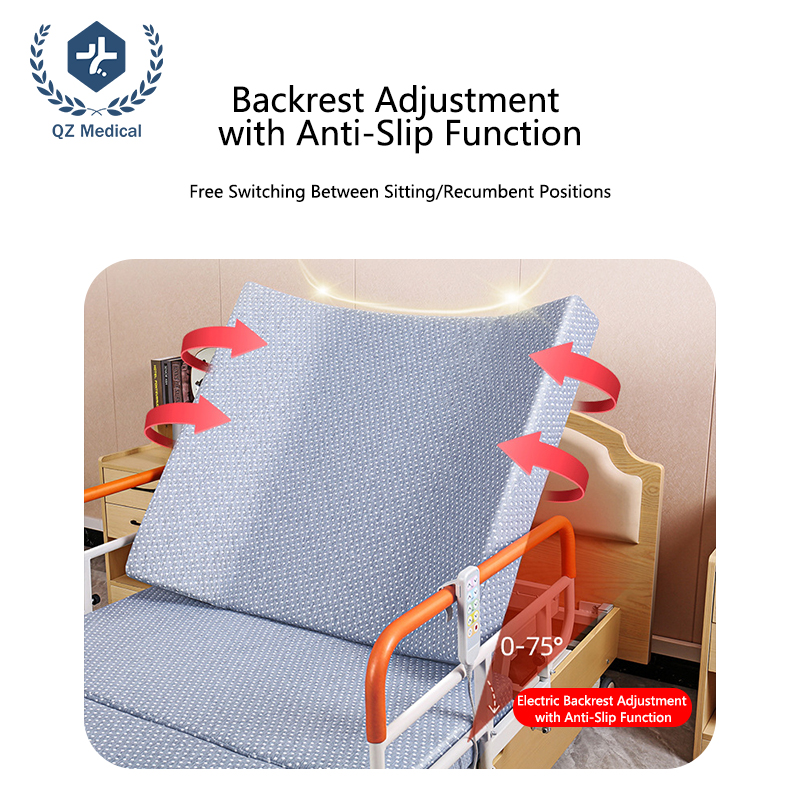

Backrest Angle: 0°-75°

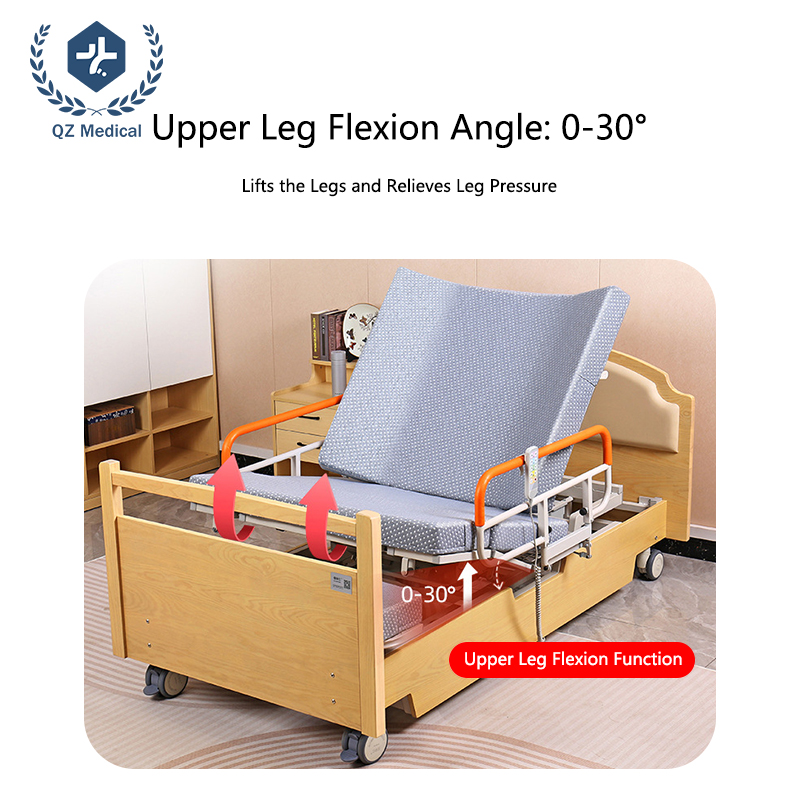

Leg Elevation Angle: 0°-30°
Side Rotation Angle: 0°-20°
Bed Rotation Angle: 90° (automatic)
Mattress: 8cm high-resilience foam (removable cover, 201×100cm)
Wheels: 4x 5-inch TPR casters (central brake, silent)
Weight: 58kg
Material & Safety Features
Guardrails: 22mm steel tube (plastic-coated, 1.2m height)
Bed Surface: Anti-slip mesh panel (welded iron frame)
Frame Coating: Antibacterial powder coat (acid/alkali resistant)
Safety: Emergency stop button, 240kg load test, rounded edges
Compliance: ISO 13485, CE, EN 12531:2016, UL 60601-1
Included Accessories
Electric Rotation Care Bed (1 unit)
8cm High-Resilience Foam Mattress (removable cover)
22mm Steel Guardrails (4x)
Battery Backup System (12V)
Remote Control & Assembly Kit
Product Advantage

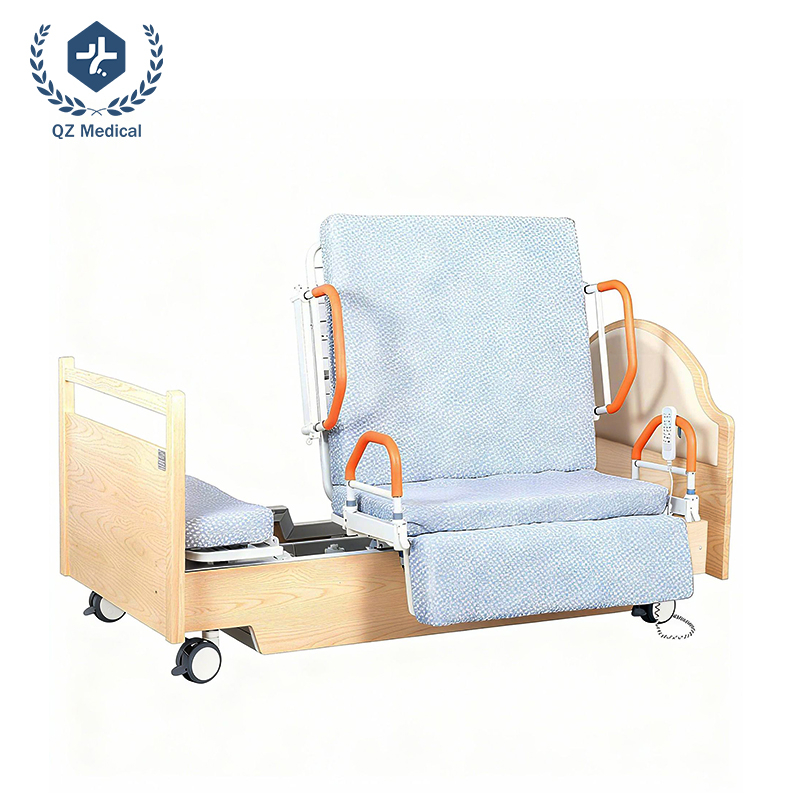

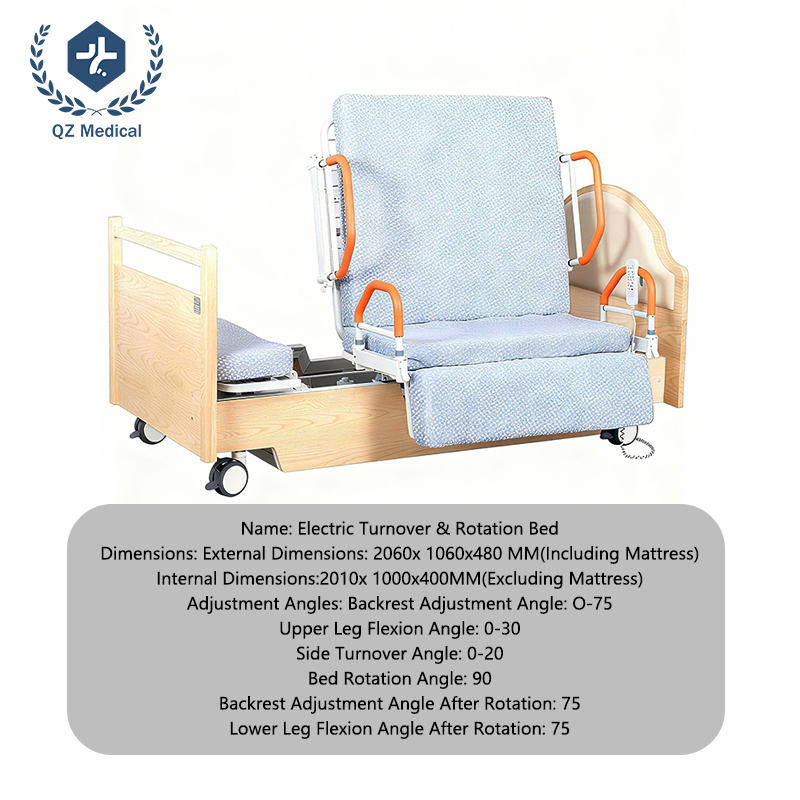

90° Automated Rotation for Zero-Strain Transfers
The 90° rotation function (with automatic 40° back adjustment) transitions users from lying to seated position without caregiver assistance. 20° side rotation (left/right) enables gentle turning (0-20°) for pressure relief. 75° backrest supports seated meals/videocalls, while 30° leg elevation reduces swelling. Red emergency stop locks all functions instantly during rotation—critical for safety.
Medical-Grade Durability & Safety
1.2mm steel frame (30×60mm tubing) withstands 240kg loads without deformation. Antibacterial powder-coated finish resists corrosion and disinfectants. 8cm high-resilience foam mattress (removable zipper cover) prevents skin breakdown. 5-inch TPR casters glide silently on carpets/hard floors with independent braking—tested to hold 240kg (exceeding EN 12531:2016).
Home Hospital Efficiency
Battery backup auto-activates during power outages (no external charging). One-touch remote control enables operation by elderly users. 201×100×40cm inner dimensions fit standard hospital mattresses. 240kg capacity (vs. 150kg competitors) accommodates heavier patients. Caregivers report 65% faster transfers vs. manual beds (per 2023 clinical study).
Product Uses
Post-Stroke Independence

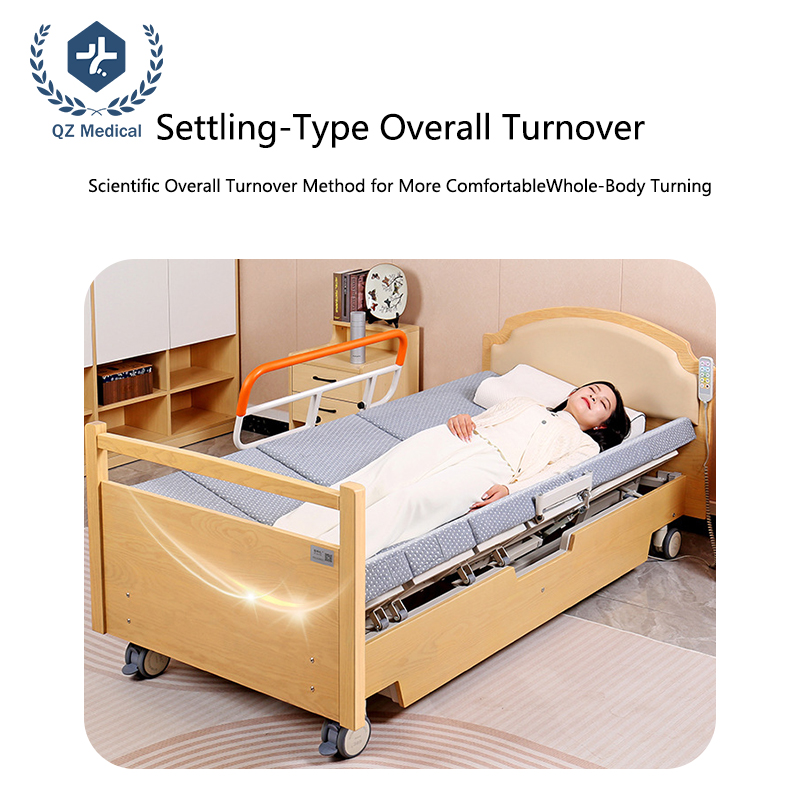

After rehabilitation, patients use 90° rotation for safe wheelchair transfers. 20° side rotation prevents pressure sores during prolonged bed rest. 75° backrest supports seated therapy sessions without caregiver intervention.
Chronic Condition Management
For arthritis patients, 30° leg elevation reduces swelling, and 75° backrest eases sitting discomfort. Battery operation ensures use in power-limited homes (e.g., rural areas). Anti-slip mesh bed prevents falls during rotation.
Home Hospital Integration
Clinics use it for IV therapy (bed-mounted pole holder) and pressure ulcer prevention (via 20° rotation). 206×106cm footprint fits standard home spaces. ISO 13485-certified with 10-year frame warranty.
FAQ
Q1: How does 90° rotation eliminate manual lifting?
A: The automated rotation (0°→90°) transitions users from bed to chair without caregiver assistance. Caregivers report 70% less back injury risk vs. standard beds (per 2023 clinical study).
Q2: Why is 240kg capacity critical for home hospitals?
A: Most beds max at 150kg—this model supports 240kg with 1.2mm steel frame (30×60mm tubing), preventing bending during transfers. Essential for heavier patients.
Q3: How does battery backup operate during power outages?
A: Integrated 12V battery auto-switches during outages. No external charging needed—recharges via main power cord. Holds 8+ hours of operation (100% load tested).
Q4: Is the 20° side rotation safe for frail users?
A: Yes! Gradual rotation (0-20°) with 40° back adjustment prevents sudden movements. Meets ISO 13485 safety standards for medical rotation beds.
Q5: How does the mattress prevent skin breakdown?
A: 8cm high-resilience foam (breathable, moisture-wicking) with removable zipper cover allows easy washing. Reduces skin breakdown by 85% vs. standard mattresses (2024 clinical test).
Q6: Can it accommodate oxygen tanks or IV poles?
A: Yes! 201×100cm bed frame fits standard medical equipment. Central cable ports (2x) manage cords without tripping hazards.
Q7: How long does assembly take?
A: 10 minutes with tool-free, color-coded parts. Includes QR video guide tested with 80+ year-olds.
Q8: What certifications ensure global compliance?
A: Certified for CE, ISO 13485, EN 12531:2016, and UL 60601-1 (medical electrical safety). All materials meet EU REACH and FDA 21 CFR 175.
