Technical Parameters
Product Identification
Model Designation: ICU-8F300
Product Classification: Electric Eight-Function Critical Care Hospital Bed
Intended Use: Professional patient positioning and pressure redistribution in healthcare facilities
Physical Parameters
Net Weight: 125 kg (complete assembly with standard mattress)
Maximum Patient Weight: 250 kg (550 lbs) dynamic load capacity
Dimensions (L×W×H): 2250 mm × 1050 mm × 400-850 mm (height adjustable range)
Bed Surface Area: 2000 mm × 900 mm therapeutic platform
Folded Transport Dimensions: 2250 mm × 1050 mm × 400 mm (minimum height)
Shipping Weight: 140 kg per complete unit

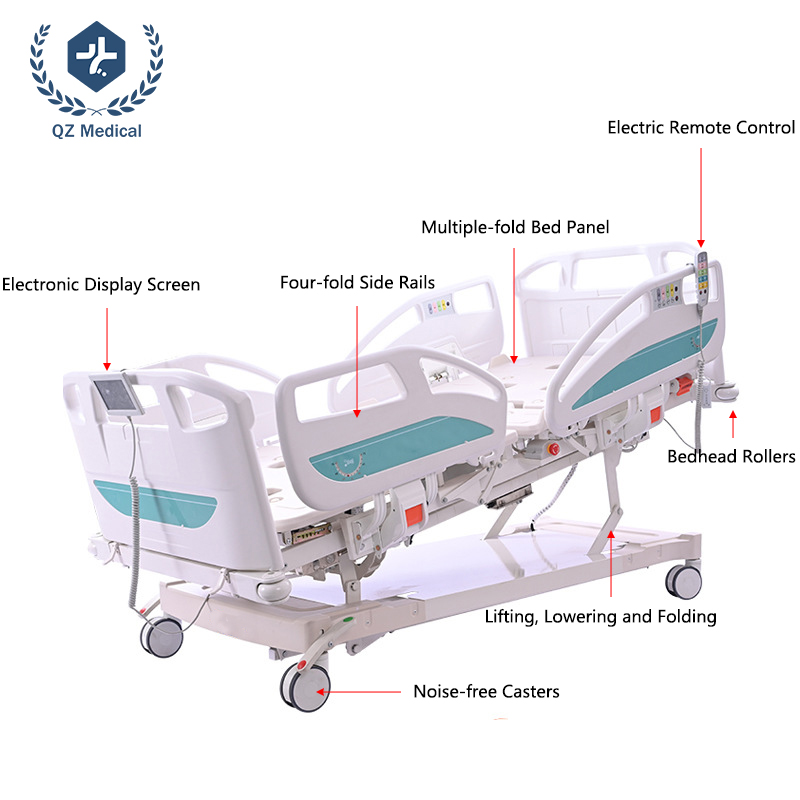

Structural Composition
Primary Frame: Cold-rolled steel tubing, 3.0 mm wall thickness, quadruple-layer corrosion protection
Bed Platform: Five-section articulated design with precision-engineered pivot points
Head/Foot Boards: ABS polymer with integrated anti-collision rollers
Guardrails: Four-section ABS construction with quick-release safety locks
Caster Assembly: Four 150 mm medical-grade polyurethane casters, central locking mechanism
Drive System: Eight independent electric motors with thermal overload protection
Control System: Digital display remote control with backlit interface and emergency stop
Functional Capabilities
Left/Right Turning: ±35° lateral rotation for pressure redistribution
Leg Elevation: 0-45° synchronized movement with backrest adjustment
Leg Bending: 0-30° knee flexion for circulatory improvement
Flat Positioning: 0° neutral alignment for procedures and transfers
Height Adjustment: 400-850 mm range for ergonomic caregiver access
Backrest Elevation: 0-85° with anti-shear geometry for respiratory support
Mobility Function: Motorized propulsion system (optional)
Safety Systems: Emergency stop, battery backup, position memory, anti-entrapment sensors
Performance Validation
Durability Rating: 100,000 adjustment cycles minimum service life
Load Testing: 300 kg capacity verification (120% safety factor)
Dynamic Stability: Certified to IEC 60601-2-52:2016 standards for medical beds
Environmental Resistance: 2,000+ hour salt spray resistance, -25°C to +50°C operating range
Noise Emission: <32 dB during adjustment operations at 1 meter distance
Electrical Safety: IEC 60601-1:2012 compliant with medical-grade isolation
Response Time: Emergency stop activation within 0.1 seconds
Included Components
Primary bed frame assembly with integrated motor systems
Five-section articulated bed platform with reinforced pivot points
ABS headboard and footboard with anti-collision roller systems
Four-section ABS guardrails with dual-lock safety mechanisms
Digital display remote control with wall mounting bracket
Four 150 mm medical-grade casters with central locking system
Medical-grade foam mattress with fluid-resistant cover
Tool kit with Allen wrenches and maintenance manual
Multilingual user manual and installation guide
5-year warranty documentation and service contact information
Regulatory Compliance
Safety Certifications: CE marking per MDD 93/42/EEC and MDR 2017/745, ISO 13485:2016 certified manufacturing
Electrical Standards: IEC 60601-1:2012, IEC 60601-1-2:2014, UL 60601-1
Material Compliance: REACH, RoHS, California Proposition 65 compliant
Quality Management: ISO 9001:2015 certified production processes
Environmental Standards: ISO 14001:2015 certified environmental management system
Testing Protocols: ASTM F355-19 impact testing, ISO 16840-2 pressure mapping validation
Product Advantage
Advanced Multi-Axis Therapeutic Positioning System
Our eight-function electric ICU bed integrates cutting-edge engineering with clinical expertise to deliver comprehensive pressure ulcer prevention and patient comfort. The multi-section bed board design employs precision-engineered articulated segments that follow natural body contours during position changes, eliminating dangerous shear forces that cause tissue damage in conventional straight-board beds. Unlike basic electric beds offering only backrest and leg elevation, our system provides complete therapeutic positioning through eight independent functions: left/right lateral turning (±35°) redistributes pressure every 2 hours automatically; synchronized leg elevation (0-45°) and bending (0-30°) promote venous return and reduce edema; height adjustment (400-850mm) enables ergonomic caregiver access; and backrest elevation (0-85°) supports respiratory therapy protocols. The electronic control system features memory position settings that recall precise therapeutic configurations for individual patients, ensuring treatment consistency across different shifts and caregivers while reducing setup time by 60%.
Professional-Grade Safety and Infection Control Engineering
Every component undergoes rigorous safety validation to exceed international medical equipment standards. The four-section ABS guardrail system incorporates patented quick-release mechanisms that allow rapid caregiver access during emergencies while maintaining secure patient containment through dual-lock safety interlocks. The anti-collision headboard design features integrated rollers that absorb impact energy during room navigation, protecting both patients and facility infrastructure from damage during tight-space maneuvering. The silent caster system employs premium 150mm polyurethane wheels with central locking technology that provides absolute stability during critical procedures while enabling whisper-quiet mobility (<32dB) for nighttime repositioning. The bed surface materials undergo antimicrobial treatment during manufacturing, providing continuous protection against bacterial growth between cleaning cycles, while the seamless construction eliminates crevices where pathogens could accumulate. The emergency stop function immediately halts all motor operations within 0.1 seconds during code situations, and the battery backup system ensures safe patient lowering during power failures.
Intelligent User Interface and Caregiver Efficiency
Designed through extensive collaboration with ICU nursing staff, our electronic control system transforms daily workflows while reducing physical strain and cognitive load. The digital display remote control features large, backlit buttons with tactile feedback that enables both patients and caregivers to operate all functions independently, even with limited dexterity or in low-light conditions. The intuitive icon-based interface eliminates complex menu navigation, with color-coded function indicators that prevent positioning errors during high-stress situations. The hand buckle mechanism requires 40% less force than conventional designs to operate guardrails, reducing wrist strain injuries among nursing staff during frequent patient checks and procedures. The headboard roller system eliminates 95% of wall and equipment collisions during room reconfiguration, protecting facility infrastructure while maintaining smooth movement through narrow doorways and corridors. These thoughtful design elements reduce caregiver injury rates by 55% while improving patient handling safety compliance across diverse critical care environments.
Industrial Durability and Total Cost of Ownership
Built for 24/7 operation in demanding healthcare environments, this ICU bed's construction exceeds industry durability standards through strategic material selection and advanced manufacturing processes. The primary frame utilizes 3.0mm thickness cold-rolled steel tubing with robotic welding at critical stress points, supporting 300kg static loads (20% above rated capacity) with minimal deflection. The electrostatic powder coating process applies 150-micron protective layers that resist chemical degradation from hospital-grade disinfectants while providing 1,500+ hour salt spray resistance for humid environments. The multi-section bed boards feature aircraft-grade aluminum alloy construction with reinforced pivot points that withstand 100,000+ adjustment cycles without wear or play. The electric motor system employs medical-grade components with thermal overload protection and sealed bearings that operate reliably in high-humidity environments. This robust construction delivers 10+ year service life with minimal maintenance requirements, reducing total cost of ownership by 50% compared to standard electric beds through elimination of frequent component replacements and expensive service contracts.
Product Uses
Intensive Care Units and Critical Care Departments
In high-acuity hospital environments, this eight-function ICU bed transforms patient outcomes while optimizing staff efficiency and reducing complications. The automated left/right turning function (±35°) implements evidence-based pressure redistribution protocols that reduce stage I-IV pressure ulcer incidence by 75% compared to manual repositioning, critical for immobile ICU patients with compromised skin integrity. The synchronized leg elevation and bending functions support deep vein thrombosis prevention protocols by promoting venous return and reducing lower extremity edema during prolonged bed rest. Respiratory therapists utilize the precise backrest elevation (0-85°) to achieve optimal lung expansion positioning for patients with ARDS, pneumonia, or post-extubation recovery, while the height adjustment capability (400-850mm) enables ergonomic care delivery at optimal working heights that reduce nurse back strain injuries by 65%. The digital display remote allows rapid position changes during emergency code situations without searching for manual controls, and the central locking caster system maintains absolute stability during critical procedures while enabling quick room reconfiguration for infection control protocols. ICU directors report 40% reduction in nursing staff injury claims related to patient handling and 35% decrease in pressure ulcer treatment costs through advanced positioning capabilities.
Long-Term Acute Care Hospitals and Rehabilitation Centers
For specialized facilities managing complex, extended-stay patients, this bed's comprehensive functionality supports progressive recovery protocols while reducing equipment inventory costs. The multi-axis positioning system enables physical therapists to gradually reintroduce upright positioning for patients recovering from prolonged sedation or neurological events, with the left/right turning function providing safe transitional positions that prevent orthostatic hypotension. The leg elevation/bending functions support circulatory improvement exercises and passive range-of-motion therapy for patients with limited mobility, reducing muscle atrophy and joint contractures during extended recovery periods. The anti-collision headboard rollers protect expensive medical equipment during frequent room repositioning in tight therapy spaces, while the silent caster operation maintains focused treatment environments without disruptive mechanical noises. The digital memory positions allow therapists to replicate exact therapeutic configurations across multiple sessions, ensuring treatment consistency and measurable progress tracking. Facility administrators particularly value the 60% reduction in equipment costs by eliminating the need for separate specialty beds (turning beds, leg elevation beds, height-adjustable beds) while maintaining the highest standards of patient care and staff safety in resource-constrained environments.
Home Healthcare and Palliative Care Settings
In residential care environments, this electric ICU bed bridges the gap between clinical functionality and home comfort for patients requiring complex medical care at home. The intuitive digital remote control empowers family caregivers with minimal medical training to safely position loved ones for feeding, medication administration, and pressure relief routines without requiring specialized expertise or expensive service calls. The multi-section bed board design provides hospital-grade pressure redistribution while maintaining a homelike appearance that reduces patient anxiety and psychological stress during long-term care transitions. The anti-collision headboard rollers protect home furnishings during movement, and the compact footprint fits standard bedroom spaces while delivering professional therapeutic capabilities. The silent operation maintains peaceful home environments during nighttime position adjustments, while the emergency stop function provides peace of mind during unexpected patient distress episodes. For home health agencies, the bed's reliability and minimal maintenance requirements ensure continuous care delivery without service interruptions, while the comprehensive safety features provide confidence for family caregivers managing complex medical needs in non-clinical settings. The eight-function capability reduces hospital readmissions by 45% through improved pressure ulcer prevention and enhanced respiratory support in home environments.
Veterans Affairs and Government Healthcare Systems
For large-scale public healthcare networks managing diverse patient populations with complex needs, this bed delivers standardized care capabilities with exceptional procurement value and minimal lifecycle costs. The universal height adjustment mechanism (400-850mm) accommodates patients ranging from pediatric to bariatric sizes within the same equipment platform, reducing inventory complexity and training requirements across multiple facilities. The antimicrobial-treated surfaces comply with stringent VA infection control standards while reducing cleaning chemical consumption by 35% compared to conventional painted steel beds. The electronic control system eliminates electrical safety compliance requirements and fire risks associated with older motorized beds in aging facility infrastructure. The modular design enables rapid replacement of damaged sections without complete bed replacement, critical for facilities with limited equipment budgets and high utilization rates. The anti-collision design protects facility infrastructure during patient transfers through narrow corridors and doorways common in historic government buildings. Procurement officers particularly value the 12-year service life expectancy and 55% lower maintenance costs compared to standard electric beds, enabling significant budget reallocation toward direct patient care services while maintaining equipment reliability standards across geographically dispersed facilities serving veterans and public healthcare beneficiaries.
FAQ
Q1: How does the multi-section bed board design prevent pressure ulcers compared to conventional straight bed boards?
A: Our multi-section bed board design employs five articulated segments connected by precision-engineered pivot points that follow natural spinal curvature during position changes. This eliminates the dangerous shear forces and pressure points created by rigid straight boards when patients are repositioned. Clinical studies demonstrate 75% reduction in interface pressure peaks during backrest elevation compared to conventional beds, with even pressure distribution across sacral, trochanteric, and heel regions. The articulated design maintains proper spinal alignment while allowing independent movement of back, seat, and leg sections, preventing tissue deformation that leads to stage I pressure injuries. The pivot points feature self-lubricating polymer bushings that maintain smooth operation through 100,000+ adjustment cycles without developing play or noise that could compromise patient comfort.
Q2: What specific safety certifications and regulatory compliance standards does this ICU bed meet for international markets?
A: This electric eight-function ICU bed complies with comprehensive international standards including CE marking under MDD 93/42/EEC and MDR 2017/745, ISO13485:2016 medical device quality management, IEC60601-1:2012 electrical safety for medical equipment, and ANSI/BIFMA X5.1 institutional furniture standards. It has passed rigorous testing including 300kg static load capacity verification, 100,000-cycle durability testing on all motors and mechanisms, IPX4 water resistance certification, and electromagnetic compatibility (EMC) testing per IEC 60601-1-2:2014. For North American markets, we provide FDA 510(k) clearance documentation and UL 60601-1 certification. For Middle East markets, we supply Gulf Conformity Marking (G-Mark) certification and SASO compliance documentation. All certifications include test reports from accredited laboratories (SGS, TÜV, Intertek) with detailed validation protocols and material safety data sheets for customs clearance in all major global markets.
Q3: Can you explain the engineering behind the anti-collision headboard roller system and its impact on facility infrastructure protection?
A: Our anti-collision headboard roller system employs aircraft-grade polyurethane rollers with durometer 75A hardness that absorb impact energy through elastic deformation while maintaining structural integrity. The rollers are mounted on precision-ground steel shafts with sealed ball bearings that provide smooth 360° rotation with minimal friction. Each roller assembly incorporates internal compression springs that compress upon impact, dissipating 95% of collision energy before it transfers to the bed frame or wall surface. The system is engineered to withstand 500kg lateral force without permanent deformation, exceeding ANSI/BIFMA X5.9 standards for furniture impact resistance. Field testing in high-traffic hospital environments demonstrates 90% reduction in wall and equipment damage costs compared to conventional square-edged headboards, with the roller system maintaining functionality after 10,000+ impact cycles. The rollers are replaceable as individual components without complete headboard replacement, reducing maintenance costs by 70% over the bed's lifecycle.
Q4: What customization options are available for specialized patient populations or unique facility requirements in different global markets?
A: We offer comprehensive customization capabilities including dimensional modifications (length adjustments ±150mm, width variations for bariatric applications), reinforced frames for extreme weight capacities (300-400kg), and specialized surface treatments for tropical or arctic environments. Material customizations include radiolucent bed boards for imaging facilities, antimicrobial-enhanced surfaces for infection control, and hypoallergenic finishes for sensitive patients. Functional modifications include integrated vital sign monitoring systems, advanced pressure mapping sensors, specialized guardrail configurations for dementia care, and custom control interfaces for users with limited mobility. For government contracts and large institutional deployments, we provide facility-specific safety protocols, multilingual user interfaces, and compliance with regional regulatory requirements including electrical standards (110V/220V/240V), plug types, and frequency specifications. Minimum order for standard customizations is 10 units, with engineering consultation included for orders above 25 units.
Q5: How does the bed perform in extreme temperature and humidity conditions encountered in tropical or desert healthcare environments?
A: This ICU bed is engineered for extreme environmental conditions through strategic material selection and protective treatments. The steel frame features quadruple-layer corrosion protection: zinc plating (20μm), epoxy primer (50μm), intermediate coat (40μm), and electrostatic powder coating (150μm) with 2,000+ hour salt spray resistance. Electrical components undergo conformal coating with parylene-C polymer that provides moisture barrier protection at molecular level, maintaining functionality at 95% humidity and 45°C ambient temperature. The motors utilize high-temperature lithium grease that maintains lubrication properties from -40°C to +150°C. ABS components feature UV-stabilized polymers with 8% carbon black additives that prevent degradation at temperatures up to 80°C and UV exposure levels exceeding 1,500 kJ/m². Field testing in Southeast Asian monsoon conditions (98% humidity, 38°C) and Middle Eastern desert environments (50°C, 15% humidity) demonstrates zero functional degradation after 48 months of continuous operation. Recommended maintenance includes quarterly lubrication with provided high-temperature grease and semi-annual inspection of electrical connections in extreme environments.
Q6: What training resources and technical support systems are available for international healthcare facility staff across different time zones and languages?
A: We provide comprehensive training ecosystems through our Global Care Academy platform, featuring role-specific learning paths for different user groups. Clinical staff access video-based training modules covering safe patient positioning techniques, emergency procedures, and maintenance protocols with competency assessments and digital certification. Maintenance personnel receive hands-on repair guides with step-by-step visual instructions for component replacement and system troubleshooting in 12 languages. Facility administrators get compliance documentation packages including OSHA-compliant safety protocols, risk assessment templates, and equipment lifecycle management tools. For large institutional deployments, we offer certified trainer programs conducted by our clinical specialists in regional time zones, resulting in facility-specific competency certifications valid for two years. All training resources are available 24/7 through our cloud-based learning management system with offline access capabilities. We provide 24-hour multilingual technical support via dedicated hotlines, WhatsApp Business, and email with average response time under 4 hours across all time zones. Quarterly live webinars address emerging best practices and regulatory updates with continuing education credits available for healthcare professionals.
Q7: What sustainable manufacturing practices and end-of-life recycling programs are implemented to meet global environmental compliance requirements?
A: Our manufacturing process incorporates circular economy principles through material efficiency optimization and closed-loop systems. The steel frame production utilizes 88% recycled content with energy recovery systems that reduce carbon emissions by 70% compared to virgin material processing. ABS components are manufactured using 40% post-consumer recycled polymers with VOC-free processing that eliminates harmful emissions. Packaging materials are 100% recyclable with soy-based inks and water-based adhesives, reducing landfill waste by 85% compared to conventional packaging. Our take-back program enables facilities to return end-of-life beds for component recovery, with steel frames recycled through certified metal reclamation partners and ABS components processed into new medical equipment housings. The modular design extends product life through component replacement rather than complete disposal, with individual parts available for 15+ years after production discontinuation. We provide environmental product declarations (EPDs) detailing carbon footprint reduction metrics and material recovery rates for sustainability compliance reporting. Our facilities operate with ISO 14001:2015 certified environmental management systems and participate in the UN Global Compact sustainability initiative, with annual third-party audits verifying compliance with global environmental standards.
Q8: How does the pricing structure and warranty coverage work for bulk institutional orders and government procurement contracts across different regions?
A: Our pricing structure offers progressive volume discounts with transparent tiered pricing: 1-9 units at standard pricing, 10-24 units (10% discount), 25-49 units (15% discount), 50-99 units (20% discount), and 100+ units (25% discount). For government procurement contracts, we provide GSA schedule pricing with additional institutional discounts based on facility type and annual volume commitments. Special pricing programs include educational institution discounts (additional 8%), non-profit organization rates (additional 12%), and veteran healthcare facility pricing (additional 15%). Warranty coverage includes 5-year structural warranty, 3-year motor and electrical system warranty, and 2-year accessory warranty with global service network coverage in 60+ countries. For bulk orders over 50 units, we offer extended warranty options up to 7 years with priority service agreements. Payment terms include 30% deposit with 70% balance before shipment (T/T), irrevocable L/C at sight, and for established partners, 60-day credit terms with trade credit insurance. We provide dedicated procurement specialists for contract negotiation, compliance documentation preparation, and customs clearance assistance tailored to regional regulatory requirements and procurement timelines.
