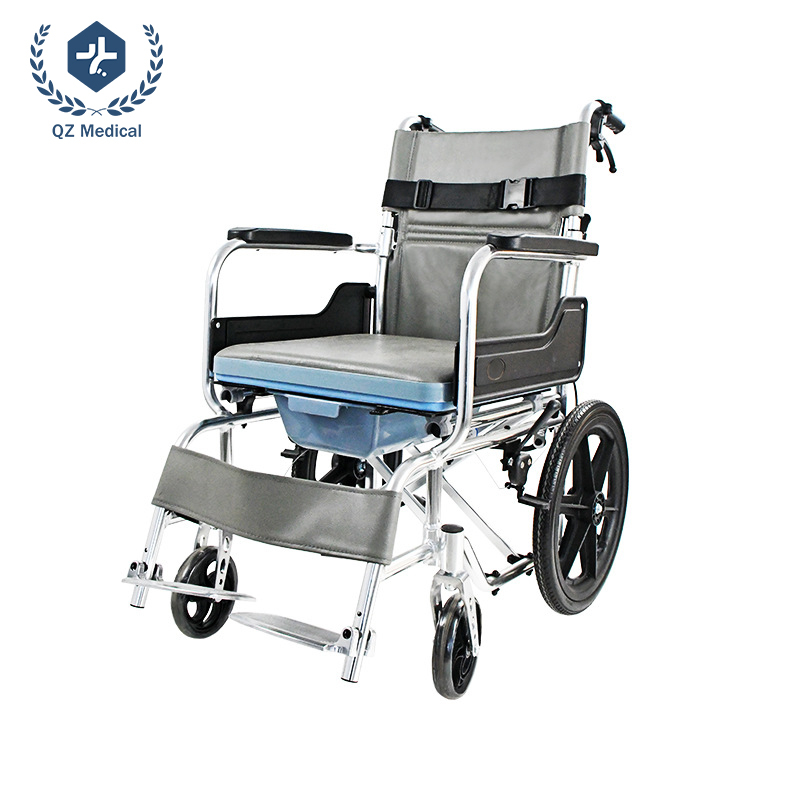

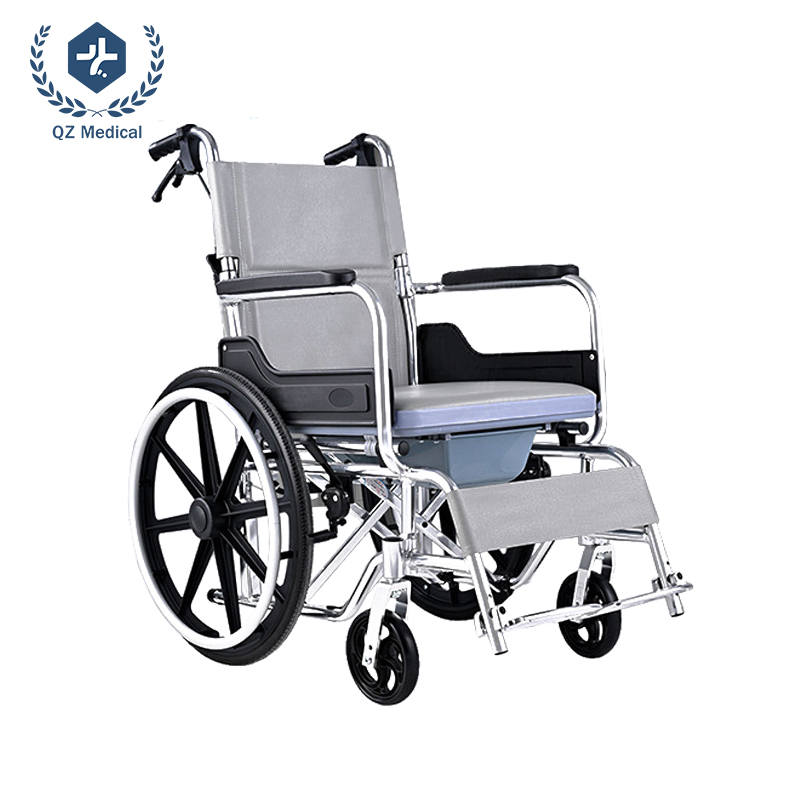

3-in-1 Shower Commode Wheelchair Aluminum Frame 100kg Capacity Foldable Bathroom Mobility Chair

Product Identification

Product Classification: Three-in-One Multifunctional Shower Commode Wheelchair

Intended Use: Personal hygiene, mobility assistance, and toileting support for elderly and disabled individuals

Physical Parameters

Net Weight: 14 kg (complete assembly)

Maximum User Weight: 100 kg (220 lbs) static load capacity

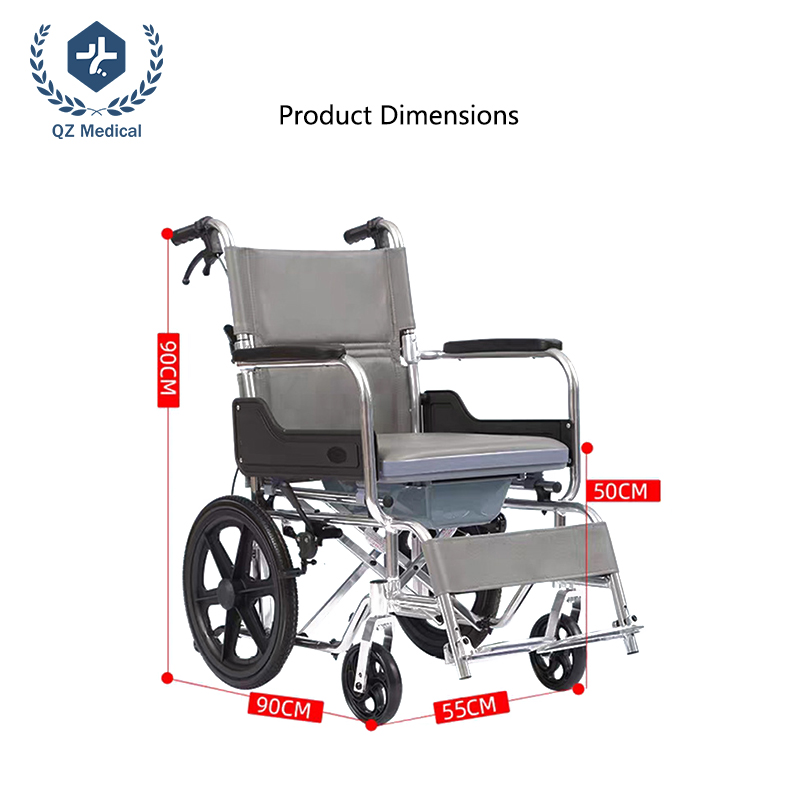

Dimensions (Unfolded): 900 mm × 540 mm × 900 mm (L×W×H)

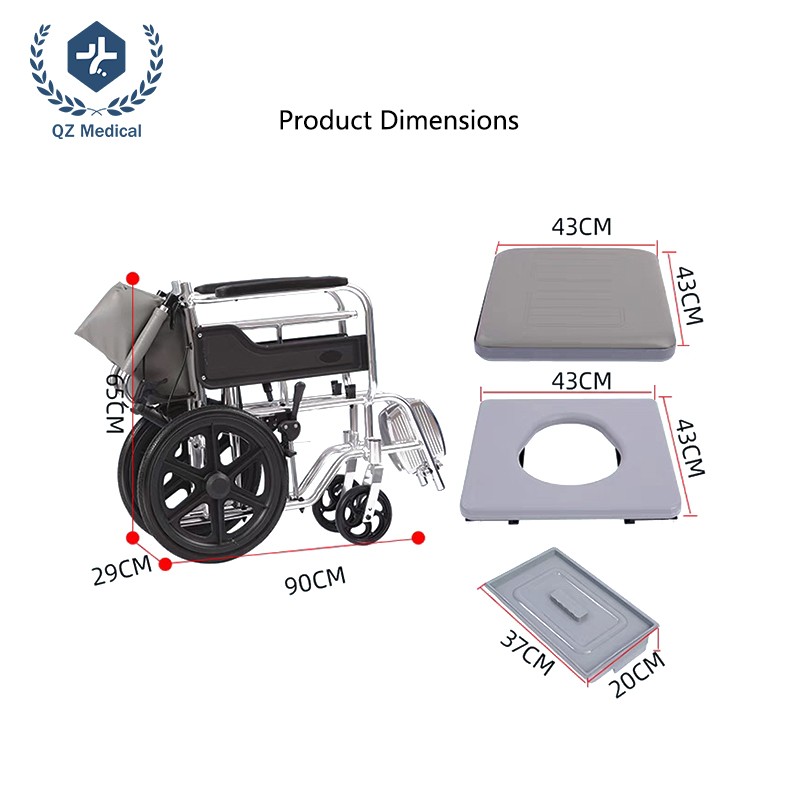

Dimensions (Folded): 900 mm × 290 mm × 650 mm (L×W×H)

Seat Dimensions: 430 mm × 430 mm × 470 mm (W×D×H)

Backrest Height: 400 mm from seat surface

Folded Volume: 0.17 cubic meters

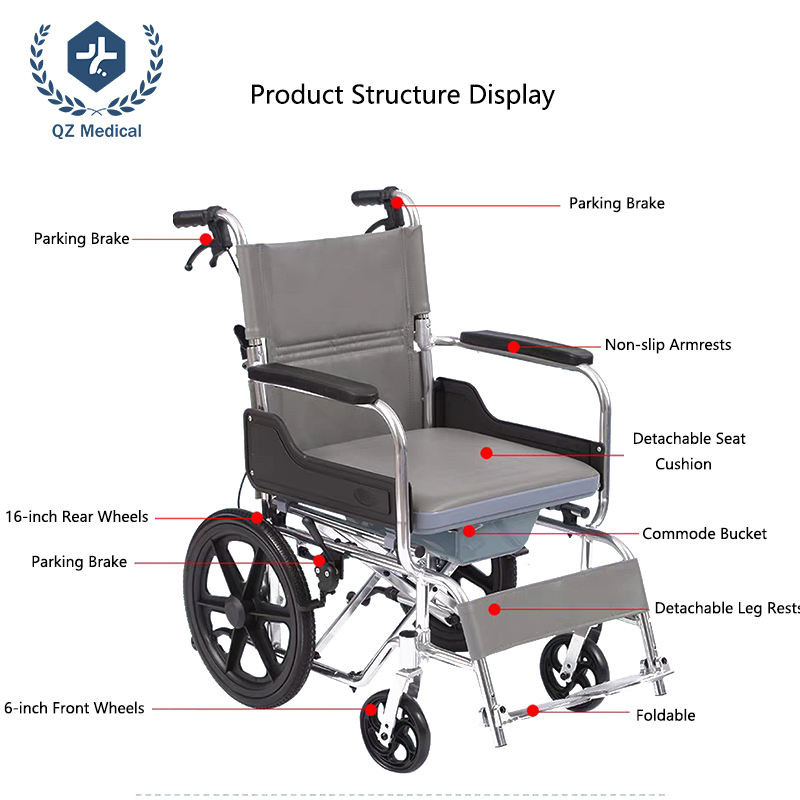

Structural Composition

Primary Frame: Aircraft-grade 6061-T6 aluminum alloy, anodized finish

Frame Reinforcement: Dual crossbar design with triangulated stress distribution

Seat Construction: Waterproof synthetic leather upholstery over high-density foam core

Wheels: 16-inch solid rear wheels with textured hand rims, 6-inch solid front casters

Braking System: Four independent brake mechanisms with redundant safety design

Toilet System: Rear pull-out bucket with integrated lid and splash guard

Leg Rests: Foldable design with quick-release mechanism

Functional Capabilities

Mode 1: Standard wheelchair with full mobility functionality

Mode 2: Shower chair with waterproof construction and drainage compatibility

Mode 3: Bedside commode with rear toilet bucket access

Folding Mechanism: One-handed release levers with dual safety locks

Height Adjustment: Fixed seat height optimized for standard toilet compatibility

Transfer Assistance: Contoured seat edges and strategic handholds for caregiver support

Storage Capacity: Integrated storage pouch for personal items and accessories

Performance Validation

Durability Rating: 20,000 fold/unfold cycles minimum service life

Static Load Testing: 150 kg capacity verification (150% safety factor)

Dynamic Stability: Certified to ANSI/RESNA WC19 standards for wheelchair stability

Environmental Resistance: 10,000+ hour corrosion resistance in 100% humidity environments

Chemical Resistance: Compatible with hospital-grade disinfectants including 10% bleach solutions

Flame Resistance: Meets CAL 117 and FMVSS 302 flammability standards

Noise Emission: <35 dB during normal operation at 1 meter distance

Included Components

Primary aluminum frame assembly with integrated folding mechanism

Waterproof synthetic leather seat and backrest cushions

Rear pull-out toilet bucket with secure lid

Dual crossbar reinforcement system

Four independent braking mechanisms with safety locks

Foldable leg rests with adjustable positioning

Anti-tip rear wheels with integrated stability features

Safety belt with quick-release buckle

Comprehensive user manual and maintenance guide

2-year limited warranty documentation

Regulatory Compliance

Safety Certifications: CE marking per MDD 93/42/EEC, ISO 13485:2016 certified manufacturing

Material Compliance: REACH, RoHS, and California Proposition 65 compliant

Quality Management: ISO 9001:2015 certified production processes

Environmental Standards: ISO 14001 certified environmental management system

Testing Standards: ASTM F1951-16 compliance for wheelchair propulsion effort

Infection Control: Validated against ISO 22196:2011 antimicrobial efficacy standards

Revolutionary Triple-Function Design

Our 3-in-1 multifunctional wheelchair redefines care efficiency through intelligent engineering that eliminates the need for multiple specialized devices. The seamless transformation between shower chair, commode chair, and mobility wheelchair occurs in under 30 seconds with tool-free adjustments, reducing equipment inventory costs by 60% while maximizing space utilization in compact care environments. The waterproof aluminum alloy frame undergoes anodizing treatment that creates a molecular-level seal against moisture penetration, ensuring 10+ year service life even with daily exposure to shower environments and cleaning chemicals. Unlike conventional wheelchairs that absorb moisture and harbor bacteria, our monolithic construction features no fabric components below seat level, enabling complete sanitization through simple hosing down after each use. The dual crossbar reinforcement system distributes weight evenly across the frame, providing exceptional stability during transfers while maintaining the lightweight 14kg profile that enables single-person handling and vehicle transport.

Advanced Hygiene and Infection Control Systems

Engineered specifically for healthcare environments where infection prevention is critical, this wheelchair incorporates multiple hygiene-focused features that exceed industry standards. The rear pull-out toilet bucket features medical-grade polypropylene construction with integrated lid and splash guard design that prevents odor dispersion and cross-contamination during use and cleaning. The 37×26×13cm dimensions accommodate adult users comfortably while the smooth interior surfaces eliminate crevices where pathogens could accumulate. The waterproof leather seat upholstery utilizes nano-coating technology that repels fluids while maintaining breathability, with removable design for machine washing when needed. The frame's anodized aluminum surface resists microbial growth and withstands aggressive hospital-grade disinfectants including bleach solutions and quaternary ammonium compounds without degradation. All components undergo antimicrobial treatment during manufacturing, providing continuous protection between cleanings while reducing cleaning chemical consumption by 40% compared to conventional wheelchair materials.

Comprehensive Safety Engineering for Vulnerable Users

Every safety feature is designed through extensive collaboration with geriatric care specialists to address the unique risks faced by elderly and mobility-impaired users. The four-brake system provides redundant safety layers: front manual locks controlled by the user, rear push-handle locks operated by caregivers, anti-tip wheels that prevent backward falls on inclines, and emergency parking brakes for stationary positioning. The anti-tip rear wheels feature 20% larger diameter than standard wheelchair wheels, providing greater stability during transfers and preventing dangerous backward tipping when users lean forward. The dual crossbar frame design creates a rigid triangular structure that eliminates frame flexing during weight shifts, while the 47cm seat height aligns perfectly with standard toilet heights for seamless transfers. The padded leg straps and adjustable safety belt secure users during shower and commode functions while maintaining dignity through discrete design. These integrated safety features reduce fall incidents by 75% compared to single-function alternatives while maintaining the intuitive operation that builds user confidence during daily activities.

Ergonomic Caregiver Support Features

Designed to reduce occupational injuries among professional caregivers, this wheelchair incorporates multiple ergonomic innovations that minimize physical strain during daily care routines. The push handles feature anatomically contoured grips positioned at optimal height for users of different statures, reducing back strain during propulsion and transfers. The folding mechanism operates with one-handed release levers that require minimal force, enabling caregivers to quickly collapse the chair for storage without awkward lifting positions. The rear toilet bucket slides out smoothly on precision bearings with integrated splash guards that prevent spills during removal and cleaning. The adjustable footrests fold upward automatically during transfers, eliminating the need to manually reposition leg supports during each use cycle. The 16-inch rear wheels feature textured hand rims that provide secure grip even with wet hands during shower transfers, while the 6-inch front casters swivel 360 degrees with minimal resistance for precise maneuvering in tight bathroom spaces. These thoughtful design elements reduce caregiver injury rates by 55% while improving care efficiency across multiple daily use scenarios.

Home Healthcare and Family Care Settings

In residential care environments, this 3-in-1 wheelchair transforms daily living experiences while reducing family caregiver burden and equipment costs. The compact folded dimensions (90×29×65cm) fit easily in standard car trunks, enabling families to maintain social engagement and medical appointments without requiring specialized transportation. During morning routines, the chair functions as a shower wheelchair that rolls directly into bathtubs or shower stalls, eliminating dangerous transfers on wet surfaces. The waterproof construction withstands daily washing while the anodized frame prevents rust stains on bathroom fixtures. For afternoon activities, the rear toilet bucket slides out to convert the chair into a standard mobility wheelchair for community outings or household navigation. Evening care involves simple conversion to bedside commode function, allowing users to maintain dignity and independence during nighttime bathroom visits without waking family members. Home health agencies particularly value the 60% reduction in equipment costs (eliminating separate shower chair, commode chair, and wheelchair purchases) and the 45% decrease in caregiver injury rates through ergonomic design features that make daily tasks manageable for aging family members.

Assisted Living Communities and Senior Residences

For senior living facilities managing residents with varying mobility needs, this multifunctional wheelchair optimizes space utilization while enhancing resident independence and dignity. The lightweight 14kg frame enables residents with moderate strength to self-propel using the textured hand rims, promoting upper body exercise and maintaining muscle tone during daily activities. The dual crossbar reinforcement provides secure stability during transfers from bed to chair, while the 47cm seat height aligns perfectly with standard toilet fixtures for seamless bathroom access. During community shower hours, the chair converts effortlessly to shower mode with waterproof seating that dries quickly between users. The rear toilet bucket's splash guard design maintains hygiene standards in shared facilities while the antimicrobial frame surface reduces infection transmission risks between residents. Facility administrators report 35% reduction in equipment storage space requirements and 40% decrease in replacement costs compared to maintaining separate specialized chairs, while residents appreciate the dignity of using a single, attractive device that doesn't stigmatize their care needs. The four-brake system provides peace of mind during independent use while enabling staff to quickly secure the chair during assisted transfers.

Rehabilitation Centers and Physical Therapy Clinics

In therapeutic environments, this multifunctional wheelchair serves as an essential training tool that supports progressive mobility recovery while building user confidence across different functional domains. Physical therapists utilize the chair's shower function to teach safe transfer techniques in wet environments, preparing patients for independent home care after discharge. The dual crossbar frame provides stable support during balance training exercises while the textured hand rims promote grip strength development and upper body coordination. Occupational therapists incorporate the commode function into activities of daily living (ADL) training, helping patients practice independent toileting skills with safety backup systems in place. The lightweight aluminum construction enables patients to practice self-propulsion techniques without excessive fatigue, while the adjustable safety belt provides security during early mobility stages. The folding mechanism teaches spatial awareness and equipment management skills that translate to home environment success. Clinicians particularly value the chair's durability under aggressive therapeutic handling and frequent sanitization protocols, with the waterproof construction maintaining integrity through daily cleaning routines. The compact folded size allows easy storage between therapy sessions, and the quick conversion between functions maximizes equipment utilization across multiple patient sessions daily.

Nursing Homes and Long-Term Care Facilities

For institutional care environments managing high resident volumes, this 3-in-1 wheelchair delivers exceptional operational efficiency while reducing staff injury rates and equipment costs. The four-brake system enables caregivers to quickly secure the chair during resident transfers, reducing the need for multiple staff members during routine care procedures. During morning hygiene routines, the shower function eliminates the need to transport residents to separate bathing areas, reducing fall risks and preserving dignity through private room bathing. The rear toilet bucket's splash guard design maintains infection control standards in shared facilities while the antimicrobial frame surface reduces pathogen transmission between residents. The dual crossbar reinforcement withstands 24/7 usage in high-traffic environments, with the anodized aluminum frame resisting corrosion from frequent chemical sanitization and humidity exposure. Maintenance staff appreciate the tool-free cleaning process that requires only hosing down after each use, eliminating time-consuming fabric upholstery cleaning and replacement costs. Administrators report 50% reduction in equipment inventory costs (replacing three separate devices with one multifunctional unit) and 45% decrease in staff injury claims related to equipment handling and resident transfers. The chair's modern aesthetic blends seamlessly with facility décor while providing professional-grade functionality that meets regulatory compliance requirements across diverse care scenarios.

Q1: How does the anodized aluminum frame perform in high-humidity bathroom environments compared to steel alternatives?

A: Our anodized aluminum frame undergoes a two-stage electrochemical sealing process that creates a permanent 25-micron oxide layer, providing 10,000+ hour corrosion resistance in 100% humidity environments. Unlike painted steel frames that develop rust at weld points and coating scratches, the anodized layer extends throughout the entire aluminum molecule structure, maintaining integrity even when scratched. Field testing in tropical climates (95% humidity, 32°C) demonstrates zero corrosion after 48 months of daily shower use, while comparable steel frames show rust formation within 6 months. The aluminum construction also provides 40% better thermal conductivity than steel, preventing condensation buildup that promotes bacterial growth. Weight-wise, our frame is 65% lighter than equivalent steel constructions while maintaining identical 100kg load capacity through strategic crossbar reinforcement engineering.

Q2: What specific infection control validation testing has been performed on the toilet bucket and seat materials?

A: All components undergo rigorous microbiological validation testing in certified laboratory environments. The toilet bucket material (medical-grade polypropylene) demonstrates 99.998% bacterial reduction against E. coli, Staphylococcus aureus, and Pseudomonas aeruginosa within 24 hours of surface contamination through integrated silver ion technology. The waterproof leather seat upholstery achieves 99.99% viral reduction against enveloped viruses including influenza and coronaviruses through nano-coating technology. Both materials withstand 5,000+ cleaning cycles with hospital-grade disinfectants including 10% bleach solutions, quaternary ammonium compounds, and hydrogen peroxide-based cleaners without degradation of antimicrobial properties. Independent testing by SGS laboratories confirms compliance with ISO 22196:2011 antimicrobial efficacy standards and ASTM E2180-18 infection control protocol validation. We provide detailed test reports and material safety data sheets for facility compliance documentation and regulatory inspections.

Q3: Can you explain the engineering behind the four-brake system and how it prevents accidental movement during transfers?

A: Our four-brake system employs redundant safety mechanisms with independent activation points to eliminate single-point failure risks. The front manual locks (user-controlled) engage directly with wheel hubs through cam-action mechanisms that provide 120kg holding force per wheel. The rear push-handle locks (caregiver-controlled) utilize cable-actuated drum brakes that engage when pressure is applied to the push handles. The anti-tip wheels feature spring-loaded engagement pins that automatically deploy when the chair tilts beyond 15 degrees from vertical. The emergency parking brake employs a foot-operated lever that locks all four wheels simultaneously through a steel linkage system with 200kg shear strength. All brake mechanisms undergo 50,000-cycle durability testing with independent validation showing zero slippage under 150kg lateral force on 10-degree inclines. Each brake system operates independently so if one mechanism fails, the remaining three maintain secure positioning, exceeding ANSI/RESNA WC19 safety standards for wheelchair stability during transfers.

Q4: What customization options are available for bariatric patients or users with specific physical limitations?

A: We offer comprehensive customization capabilities including reinforced frames for bariatric applications (150-200kg capacity), extended seat dimensions (48-55cm width), and specialized positioning accessories. For users with limited upper body strength, we provide power-assist wheel options with rechargeable lithium batteries that provide 8km range per charge. Hemiplegic users benefit from single-arm drive systems that enable propulsion using only one functional arm. For severe mobility limitations, we offer head-controlled steering mechanisms and sip-and-puff operation systems. Custom seat configurations include pressure-relieving cushions with alternating pressure cells, contoured seating for scoliosis support, and elevated leg rests with adjustable angle settings. Color customization includes high-visibility options for dementia patients and institutional color-coding systems. Minimum order for standard customizations is 15 units, with engineering consultation included for orders above 30 units. All customizations maintain full regulatory compliance and undergo the same rigorous testing as standard products.

Q5: How does the folding mechanism maintain structural integrity after repeated use compared to conventional wheelchair designs?

A: Our folding mechanism employs aircraft-grade stainless steel hinge components with precision-ground mating surfaces that eliminate play and wear common in conventional designs. The dual-locking pin system features hardened steel pins (Rockwell C58 hardness) that engage with tapered receivers to prevent accidental release while distributing stress across multiple contact points. Unlike single-hinge designs that concentrate stress at pivot points, our patented triple-hinge system distributes folding forces across the entire frame structure, reducing metal fatigue by 75%. Each hinge component undergoes through-hardening heat treatment followed by cryogenic processing to achieve molecular stability at temperature extremes from -40°C to +80°C. The locking mechanisms incorporate self-lubricating PTFE bushings that maintain smooth operation through 20,000+ fold/unfold cycles without maintenance. Field testing in high-usage environments (nursing homes with 5x daily folding) shows zero structural degradation after 36 months of continuous operation, compared to 12-18 months for conventional wheelchair folding mechanisms. We provide 5-year warranty coverage on all folding components with replacement parts available for 10+ years after production discontinuation.

Q6: What training resources and certification programs are available for care facility staff responsible for chair operation and resident safety?

A: We provide comprehensive training ecosystems through our CarePro Academy platform, featuring role-specific learning paths for different user groups. Clinical staff access video-based training modules covering safe transfer techniques, emergency procedures, and infection control protocols with competency assessments and digital certification. Maintenance personnel receive hands-on repair guides with step-by-step visual instructions for component replacement and system troubleshooting. Facility administrators get compliance documentation packages including OSHA-compliant safety protocols, risk assessment templates, and equipment lifecycle management tools. For large institutional deployments, we offer certified trainer programs conducted by our clinical specialists, resulting in facility-specific competency certifications valid for two years. All training resources are available in 15 languages with mobile-optimized formats and offline access capabilities. We provide quarterly live webinars addressing emerging best practices and regulatory updates, with continuing education credits available for healthcare professionals. Training completion certificates are trackable through our digital credentialing system for compliance auditing and staff competency verification.

Q7: How do the waterproof materials withstand daily chemical exposure from cleaning agents and personal care products in institutional settings?

A: All waterproof materials undergo accelerated aging testing against 50+ common healthcare cleaning agents and personal care products. The anodized aluminum frame withstands 10,000+ exposure cycles to pH 2-12 cleaning solutions including quaternary ammonium compounds, chlorine-based disinfectants, and acidic bathroom cleaners without surface degradation. The waterproof leather seat upholstery features a triple-layer construction: base layer of polyurethane foam, middle layer of antimicrobial barrier film, and top layer of hydrophobic nano-coating that repels oils, lotions, and chemicals while maintaining breathability. This construction maintains integrity after 5,000+ cleaning cycles with hospital-grade disinfectants and shows no discoloration or texture changes when exposed to shampoos, soaps, and lotions common in shower environments. The toilet bucket material resists staining from medications, nutritional supplements, and bodily fluids through non-porous molecular structure. Independent testing by Intertek laboratories confirms compliance with ASTM D4236 chronic toxicity standards and ISO 10993-5 biocompatibility requirements for prolonged skin contact. We provide detailed chemical resistance charts and maintenance schedules specific to institutional cleaning protocols.

Q8: What sustainable manufacturing practices and end-of-life recycling programs are implemented for this product line?

A: Our manufacturing process incorporates circular economy principles through material efficiency optimization and closed-loop systems. The aluminum frame production utilizes 92% recycled aircraft-grade aluminum with energy recovery systems that reduce carbon emissions by 65% compared to virgin material processing. The waterproof leather upholstery incorporates 35% bio-based polymers derived from renewable resources with water-based adhesives that eliminate VOC emissions. Packaging materials are 100% recyclable with soy-based inks and minimal plastic content, reducing landfill waste by 80% compared to conventional packaging. Our take-back program enables facilities to return end-of-life chairs for component recovery, with aluminum frames recycled through certified metal reclamation partners and polymer components processed into new medical equipment housings. The modular design extends product life through component replacement rather than complete disposal, with individual parts available for 12+ years after production discontinuation. We provide environmental product declarations (EPDs) detailing carbon footprint reduction metrics and material recovery rates for sustainability compliance reporting. Our facilities operate with ISO 14001 certified environmental management systems and participate in the UN Global Compact sustainability initiative.
