Technical Parameters

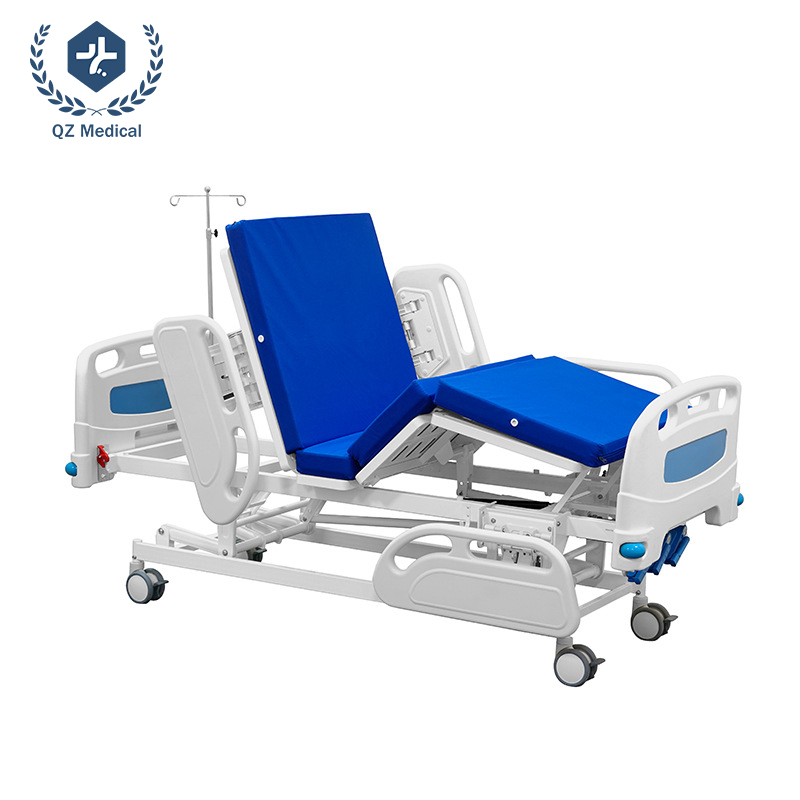

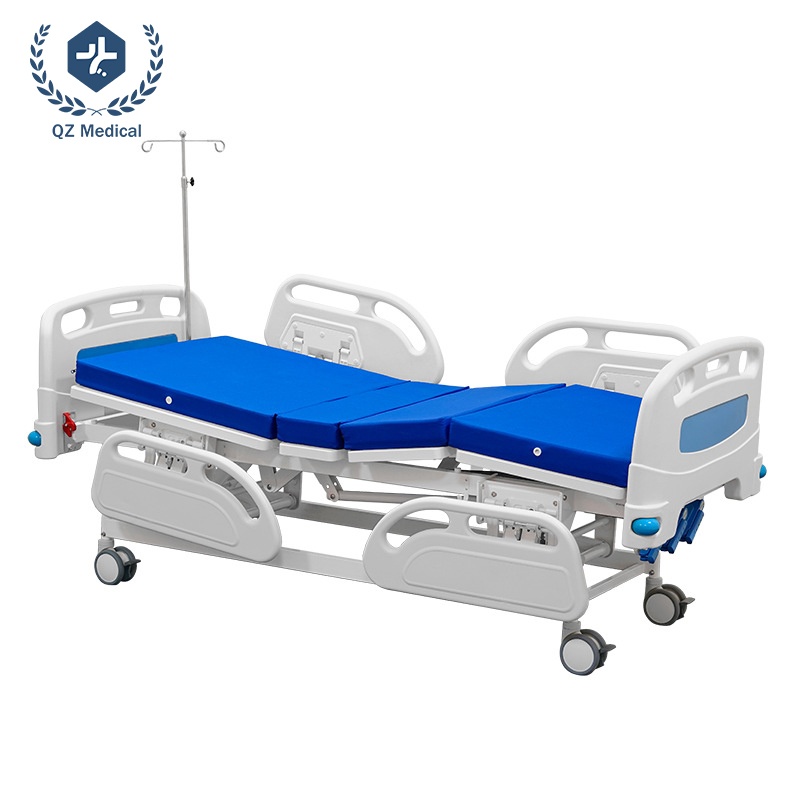

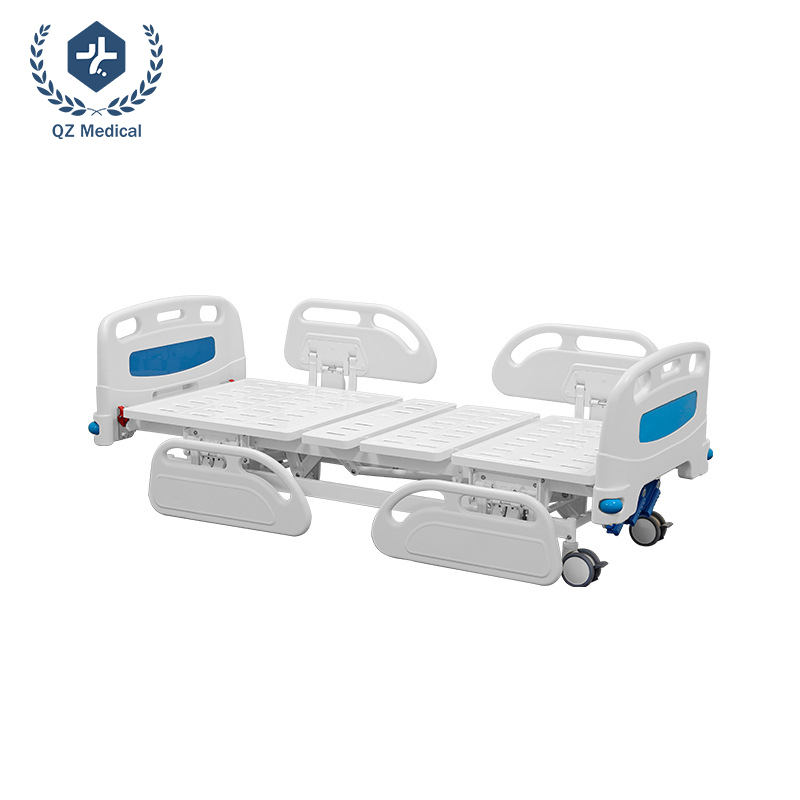

Product Type: Manual Three Crank Nursing Bed
Adjustment Functions: Backrest + leg section + overall height
Backrest Adjustment: Up to 70° ±5°
Leg Adjustment: Up to 45° ±5°
Height Adjustment Range: 400–720 mm
Frame Material: Powder-coated steel structure
Headboard / Footboard: ABS material, removable
Bed Platform: Four-section ventilated steel panels
Side Rails: Adjustable PP side rails
Castors: 125 mm medical-grade silent castors with brakes
Load Capacity: 200 kg

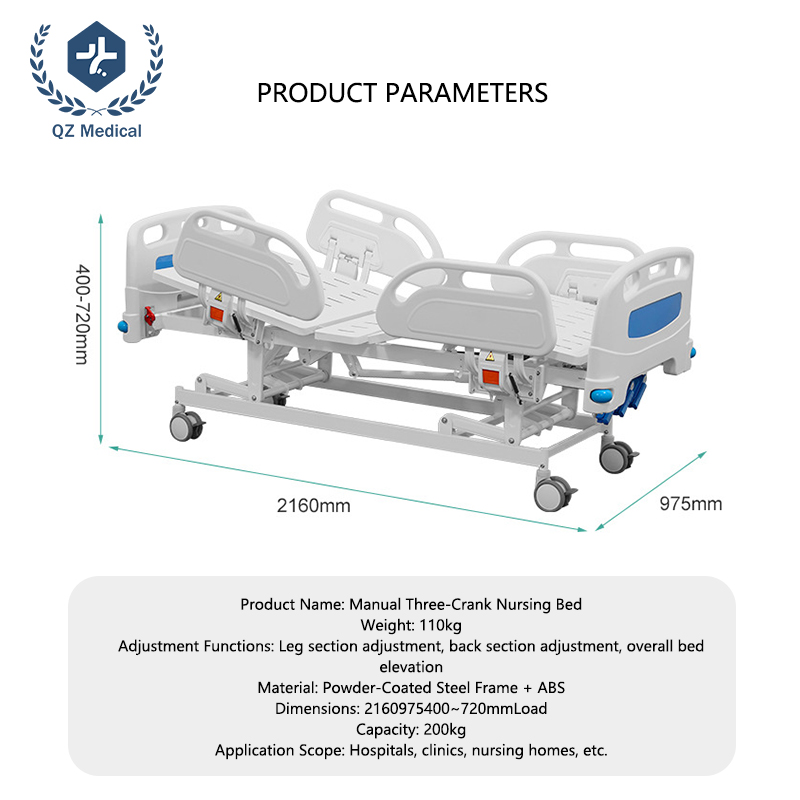

Overall Dimensions: 2160 × 975 × 400–720 mm
Product Weight: Approx. 110 kg
Accessories Included: IV pole, medical mattress, anti-collision wheels, foldable crank handles
Application Areas: Hospitals, clinics, nursing homes, rehabilitation centers
Product Advantage
Three Crank Manual Adjustment System
The bed is equipped with a three crank system that allows independent adjustment of the backrest, leg section, and overall bed height. Caregivers can easily position patients at comfortable and functional angles, improving daily care efficiency.
Adjustable Backrest and Leg Positioning
The backrest adjusts up to approximately 70 degrees, while the leg section supports elevation up to approximately 45 degrees. These functions help relieve pressure on the back and lower limbs, improving comfort for long-term patients.
Overall Height Adjustment for Nursing Convenience
The bed height can be adjusted from 400 mm to 720 mm, allowing caregivers to work at an ergonomic height and reducing physical strain during patient care and transfers.
Reinforced Steel Frame with ABS Components
The bed frame is constructed from powder-coated steel for strength and corrosion resistance. ABS headboard and footboard panels are durable, impact-resistant, and easy to clean, making them suitable for medical environments.

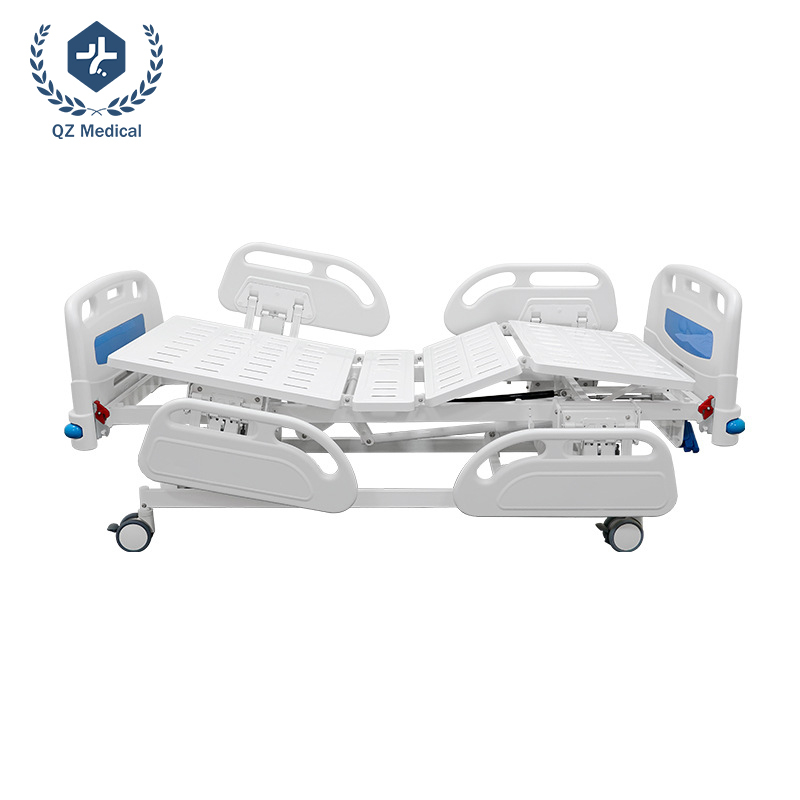

Four-Section Ventilated Bed Platform
The four-section bed platform features perforated panels to enhance air circulation and improve patient comfort during extended use. The structure offers strong load-bearing capacity and long-term stability.
Medical-Grade Silent Castors with Braking
Equipped with 125 mm medical-grade silent castors, the bed moves smoothly and quietly. The integrated braking system allows secure fixation during nursing care.
Safe and Practical Side Rail Design
The bed includes adjustable PP side rails that provide effective fall protection while allowing easy access for caregivers when folded down.

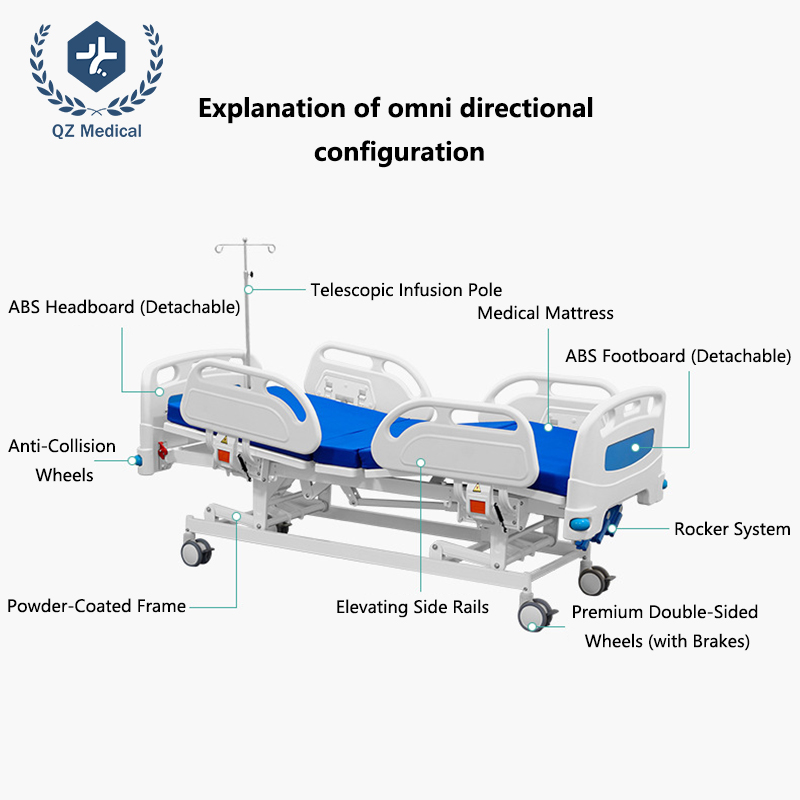

Comprehensive Medical Accessories
Standard configuration includes removable headboard and footboard, stainless steel IV pole, medical mattress, anti-collision wheels, and foldable crank handles, supporting daily clinical use.
Product Uses
Hospitals and Clinics
Ideal for general wards and outpatient care where manual adjustment meets daily nursing needs and cost efficiency is required.
Rehabilitation and Convalescent Centers
Supports patient positioning for rehabilitation exercises and recovery periods.
Nursing Homes and Long-Term Care Facilities
Provides stable and safe support for elderly residents and long-term patients.
Medical Engineering and Distribution Projects
Suitable for bulk procurement, tenders, and distributor supply to healthcare institutions.
FAQ
Q1：Is this nursing bed electric or manual?
A: This is a manual nursing bed operated by a three crank adjustment system.
Q2：What functions does the bed support?
A: It supports backrest adjustment, leg elevation, and overall bed height adjustment.
Q3：Is the bed suitable for hospital use?
A: Yes. It is designed for hospitals, clinics, and institutional healthcare environments.
Q4：What is the adjustment range of the bed height?
A: The bed height can be adjusted from 400 mm to 720 mm.
Q5：What materials are used in the bed structure?
A: The bed is made of powder-coated steel with ABS headboard and footboard components.
Q6：Are the wheels safe and stable?
A: Yes. The bed features medical-grade silent castors with braking function for safe positioning.
Q7：Does the bed include side rails for patient safety?
A: Yes. Adjustable PP side rails are included to enhance patient protection.
Q8：Do you support OEM or bulk orders for distributors?
A: Yes. We provide OEM services and support bulk supply for international distributors and healthcare projects.
