When hospital procurement directors and medical equipment distributors evaluate overseas manufacturing partners, glossy catalog photographs are not enough. In high-occupancy hospital wards, patient safety and institutional reputations depend on whether equipment stands up to years of around-the-clock clinical demands.
A bent bed frame during patient repositioning, a stripped hand crank gear, or an electric actuator failure in an intensive care ward can trigger catastrophic liability claims.
At QZ Medical, quality is engineered into every production phase. Operating under an audited ISO 13485 medical device quality management system with verified CE (MDR) and FDA registrations, our factory enforces multi-tier quality control protocols across all raw materials, robotic welding lines, powder coating booths, and packaging cells.
Here is an inside look at how our testing laboratories verify structural durability, electrical safety, and clinical readiness before our containers depart for international ports.
A medical bed or patient transfer stretcher must support not just patient weight, but the combined downward forces of bariatric users, heavy medical mattresses, and sudden dynamic transfer impacts.

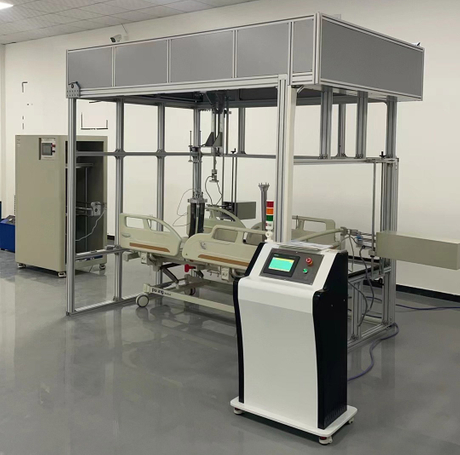

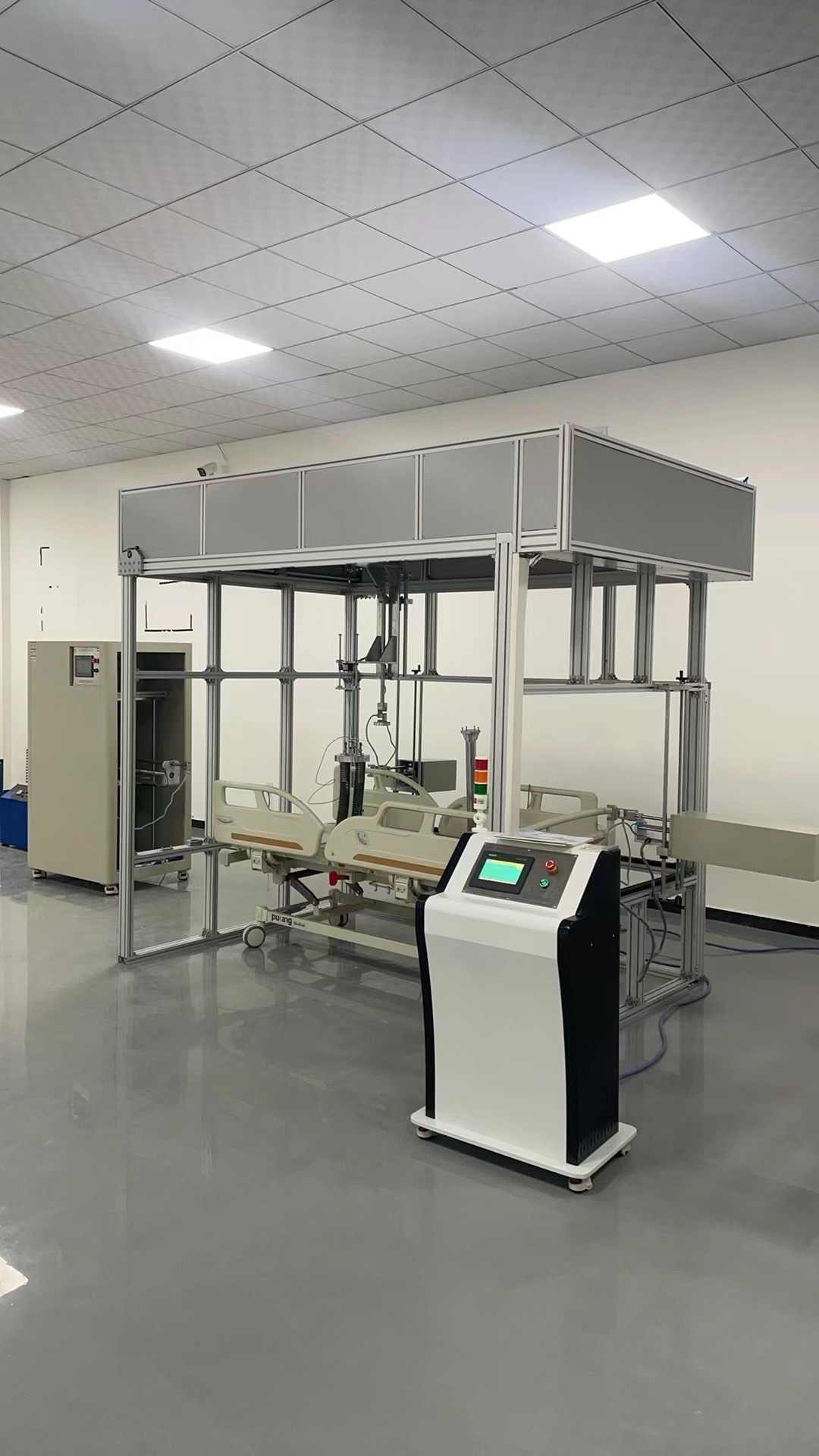

340 kg Static Overload Stress Test: While our standard adult hospital beds specify a safe working load of 200 kg to 250 kg (440–550 lbs), sample units from every production lot are placed under hydraulic weight presses calibrated to 340 kg (750 lbs) for 24 continuous hours. Electronic sensors measure bed platform deflection, ensuring the cold-rolled steel chassis recovers with zero permanent structural deformation.
Dynamic Cyclic Fatigue Simulation: Using automated pneumatic cycle rigs, beds undergo more than 10,000 continuous patient shifting cycles, verifying that hinge joints, rivet pivots, and drop-down side rail linkages maintain tight mechanical tolerances without looseness or squeaking.
Weld seam integrity is the backbone of durable medical equipment. Manual welding in small workshops often suffers from irregular weld penetration and hidden slag inclusions that crack under repeated stress.

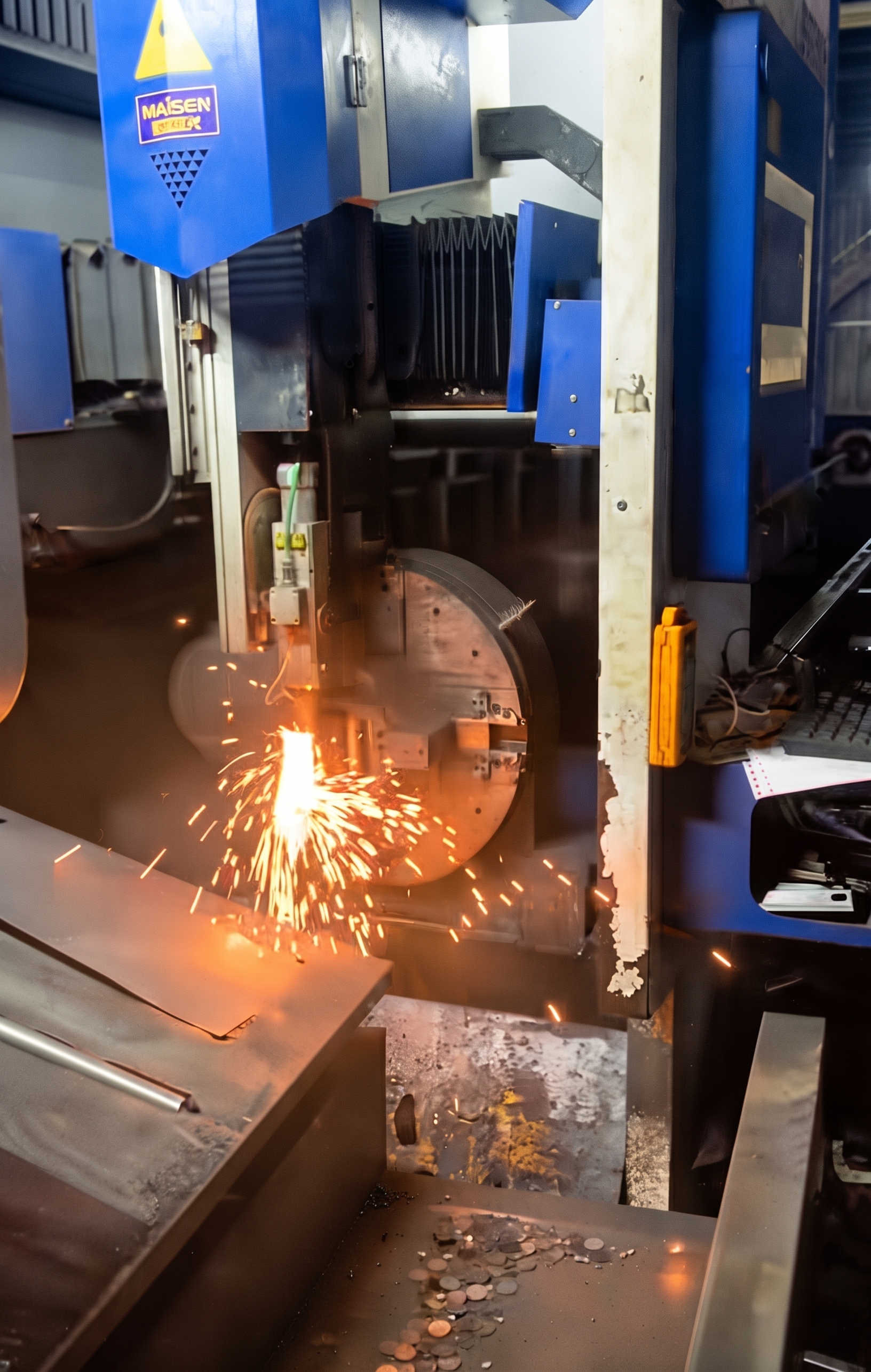

High-Precision Multi-Axis Robotic Welding: At QZ Medical, all primary load-bearing chassis beams, caster mounting brackets, and lifting columns are welded by automated robotic welding cells.
Deep Penetration & Low Defect Rates: Robotic torches maintain exact arc lengths and travel speeds, achieving deep, consistent weld penetration across thickened cold-rolled steel square tubes. This automated process maintains a structural weld defect rate of less than 1 in 100,000, virtually eliminating weld failure risks during daily patient care.
Motor reliability is paramount for motorized care beds and electric transfer chairs. Motors must operate quietly to preserve healing sleep in hospital wards.
20,000 Continuous Cycle Durability Bench: Linear electric actuators undergo rigorous endurance testing on automated test benches. Actuators must complete over 20,000 continuous full-extension and retraction cycles under maximum rated load without overheating, gear slippage, or current spikes.
Acoustic Decibel Monitoring (<45dB): In our sound-testing booth, motors are monitored using precision decibel meters to ensure operational sound levels remain strictly below 45dB—meeting the strict acoustic standards required in private patient rooms and intensive care units.
Hospital beds and mobility aids encounter harsh chemical cleaning daily. Without proper chemical pretreatment, moisture penetrates paint micro-pores, leading to bubbling rust.

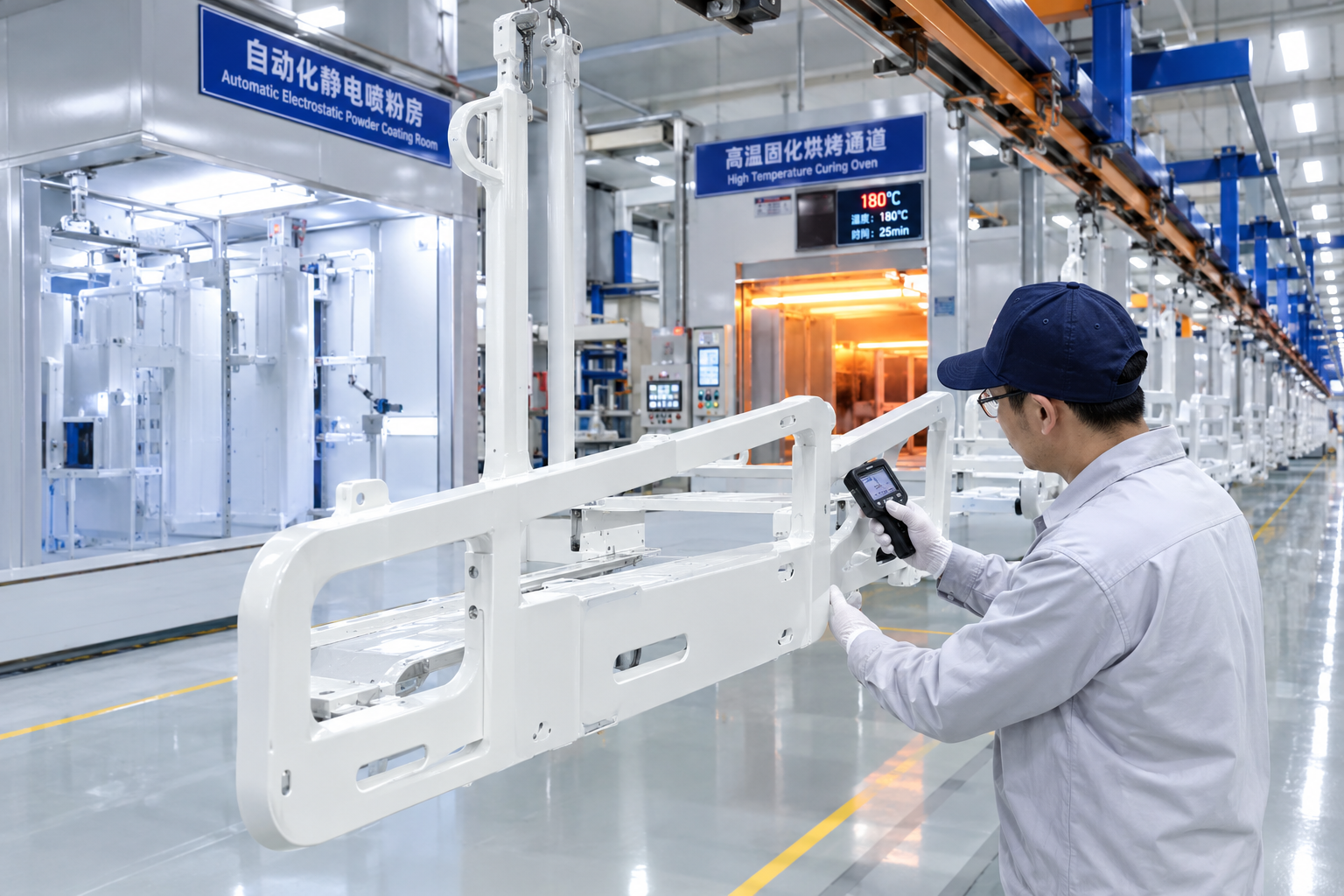

Automated 12-Stage Pretreatment: Raw steel parts pass through shot-blasting, alkaline degreasing, ultrasonic water rinses, and an advanced 200°C silane ceramic conversion coating that chemically bonds to the metal lattice.

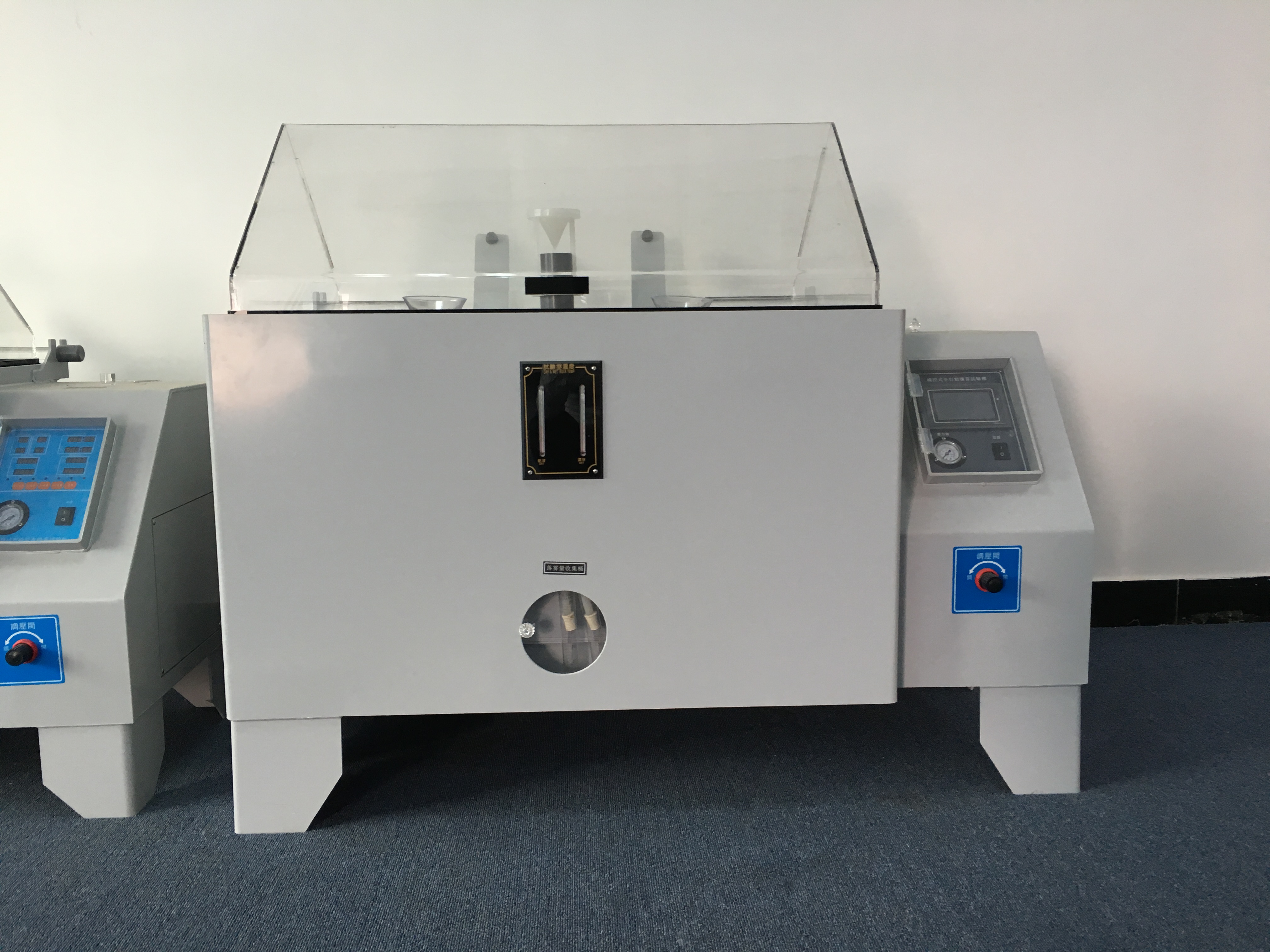

1,000-Hour Accelerated Salt Spray Testing: Samples of our electrostatic powder-coated steel panels are placed inside enclosed neutral salt spray testing chambers for over 1,000 continuous hours. Our anti-corrosion barrier resists rust creep, ensuring beds withstand daily hospital wiping with chlorine bleach, alcohol, and hydrogen peroxide without blistering or chipping.
Quality control extends through packing and final container loading:
Barcode Traceability: Every finished bed chassis carries a unique serial number and barcode linked to its raw material heat lot, robotic welding operator, powder coating log, and electrical testing report.
Knockdown (KD) Drop & Burst Testing: Export corrugated master cartons undergo 1-meter edge-and-corner drop testing and Mullen burst strength checks to ensure inner products survive multi-modal ocean transit.
Container Loading Oversight: Every ocean container is loaded under strict palletized locking plans to maximize container density while preventing carton crushing during ocean swell transit.
Testing Protocol | Industry Baseline Standard | QZ Medical Factory Benchmark |
Chassis Static Load | 1.5× rated capacity for 1 hour | 340 kg (750 lbs) Overload for 24 Continuous Hours |
Weld Defect Target | Visual check (< 1% defect rate) | Multi-Axis Robotic Welds (< 1 in 100,000 defect rate) |
Actuator Cycle Life | 5,000 – 8,000 cycles | 20,000+ Continuous Cycles Under Full Load |
Operational Noise | < 55dB (General hospital) | Whisper-Quiet Performance Strictly Below 45dB |
Corrosion Resistance | 200 – 400 hours salt spray | 1,000+ Hours Accelerated Salt Spray Chamber Testing |
Compliance System | General ISO 9001 factory | Audited ISO 13485, CE (MDR), and FDA Registrations |
At QZ Medical, rigorous testing is more than an internal checklist—it is our legal and commercial commitment to our global partners. By upholding strict static overload verification, robotic weld precision, quiet actuator endurance, and audited ISO 13485 compliance, we ensure every medical bed, patient transfer chair, and mobility aid arrives ready to safeguard patient health and protect your brand reputation.
Are you preparing for an upcoming public hospital procurement tender, establishing an OEM private-label medical furniture line, or auditing manufacturing partners for your healthcare distribution network?
We welcome third-party technical inspection agencies (SGS, TÜV, Intertek) and offer complete transparency into our factory testing documentation. Contact our engineering and export team to request full quality audit reports, video factory tours, and project pricing.
