For long-term bedridden residents, stroke paralysis patients, and individuals recovering from severe neurological trauma, decubitus ulcers (bedsores) represent a serious clinical risk. Continuous capillary occlusion over bony prominences rapidly leads to skin tissue breakdown, painful infections, and extended hospital stays.
Traditionally, healthcare facilities rely on nursing staff to manually reposition bedridden patients every two hours. However, in high-occupancy senior care homes and homecare settings, manual turning requires significant physical exertion, increases night-shift staffing overheads, and frequently interrupts patient rest.
To solve this clinical bottleneck, healthcare procurement officers and medical equipment distributors are increasingly specifying automated turning electric nursing beds. This sourcing guide breaks down the essential clinical and technical features to prioritize when evaluating auto-turning beds for institutional and residential care.
Not all lateral tilt mechanisms provide effective clinical pressure relief. Improper turning angles or jarring mechanical movements can cause secondary postural displacement or patient discomfort.

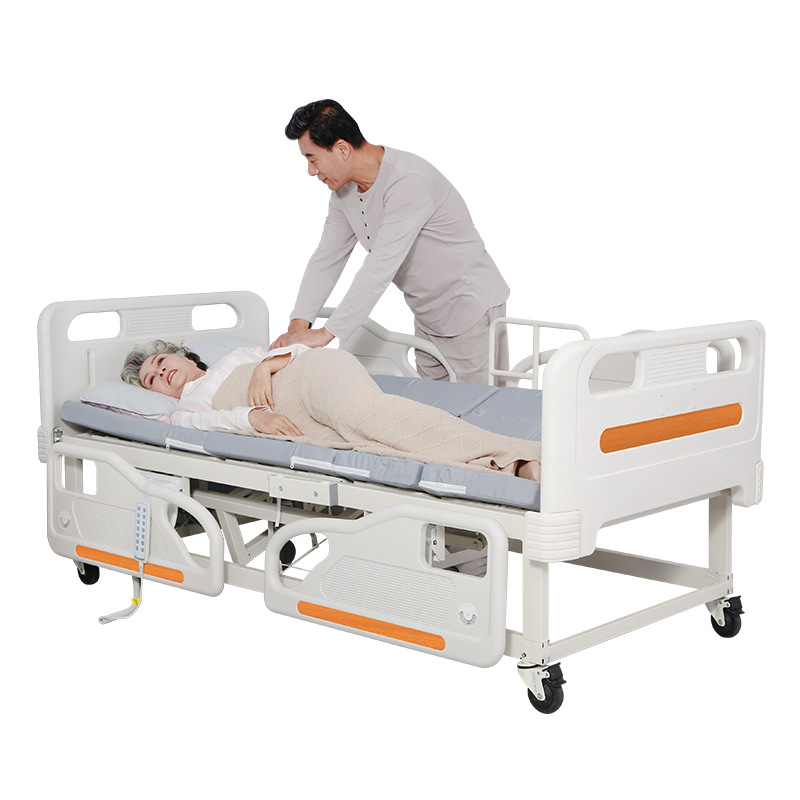

30-Minute Timed Rotation Cycle: Look for automated turning beds engineered with a scientific 30-minute auto-turning rotation cycle. The bed smoothly tilts the mattress deck laterally (0–20° tilt angle), holding the position for a 5-minute dwell pause before returning flat or tilting to the opposite side.
Non-Invasive Pressure Relief: Automated rotation continuously redistributes body weight across sacral, hip, and shoulder pressure points. This delivers non-invasive 24/7 pressure ulcer prevention without requiring nurses to enter rooms and physically turn patients overnight.
A high-spec bedridden care bed must support complete daily living routines—including dining, foot washing, and personal toileting—without requiring physical patient transfers.
Multi-Axis Motorized Positioning: Ensure the motor system supports independent controls for backrest elevation (0–75°) for comfortable sitting and pulmonary lung relief, along with leg elevation and lowering (-60° to 30°) for lower-limb venous circulation and chair-like foot washing.

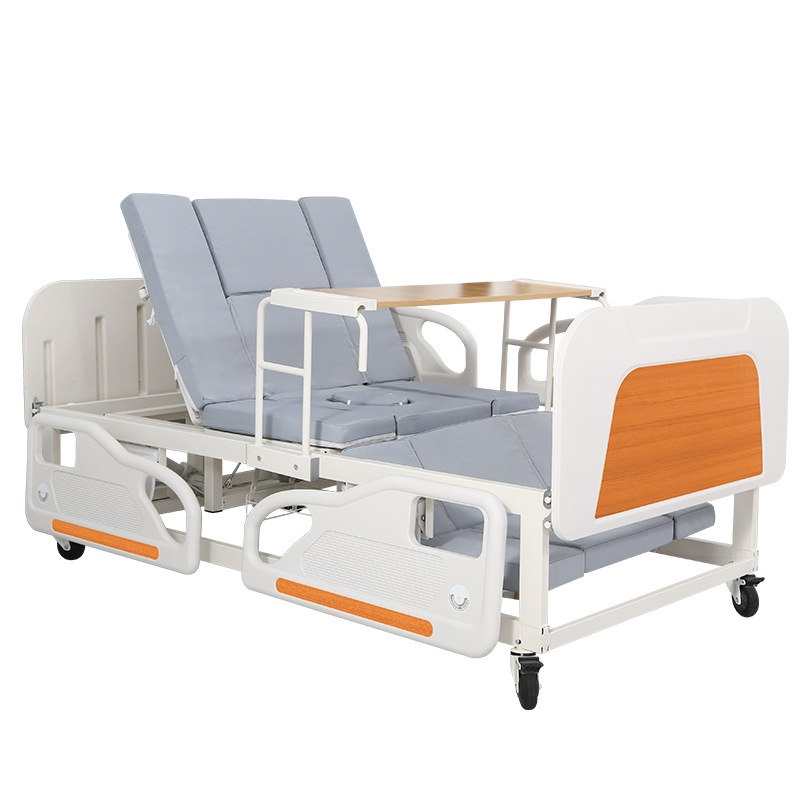

Integrated Electric Commode Aperture: For paralyzed or incontinent patients, an integrated quick-opening electric toilet aperture lowers the seat cushion section and elevates the bedpan directly into position. This enables dignified, bed-side toileting and simplifies sanitation for caregivers.
Alt Text 标签: Multi function electric bedridden care bed with integrated commode aperture and leg lowering
Because automated turning beds operate continuously throughout the day and night, motor quality and noise levels directly affect patient sleep quality and bed service life.

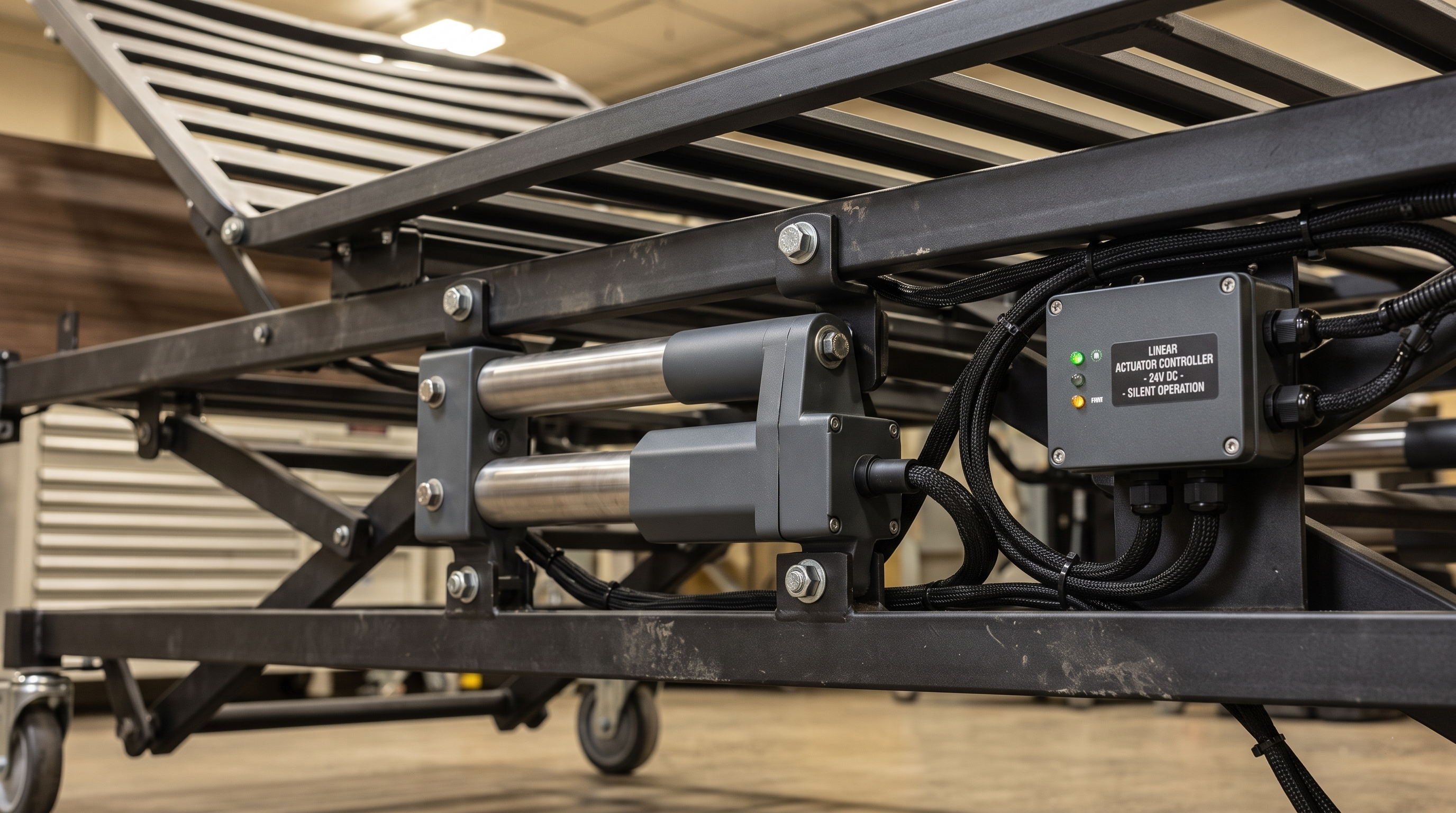

High-Torque Actuators (Jiecang Motors): Select beds powered by heavy-duty linear actuators (such as Jiecang electric motors) delivering up to 6000N thrust power. High-torque motors ensure smooth, jolt-free posture elevation even under heavy patient loads.
Whisper-Quiet Sound Threshold (<45dB): Motor sound levels must operate below 45dB—quieter than a quiet library or soft background conversation—preventing nighttime sleep disruption during automatic turning cycles. Look for motors validated through 20,000+ continuous endurance cycles.
Institutional nursing home beds endure heavy daily use, frequent relocation, and aggressive chemical wiping.

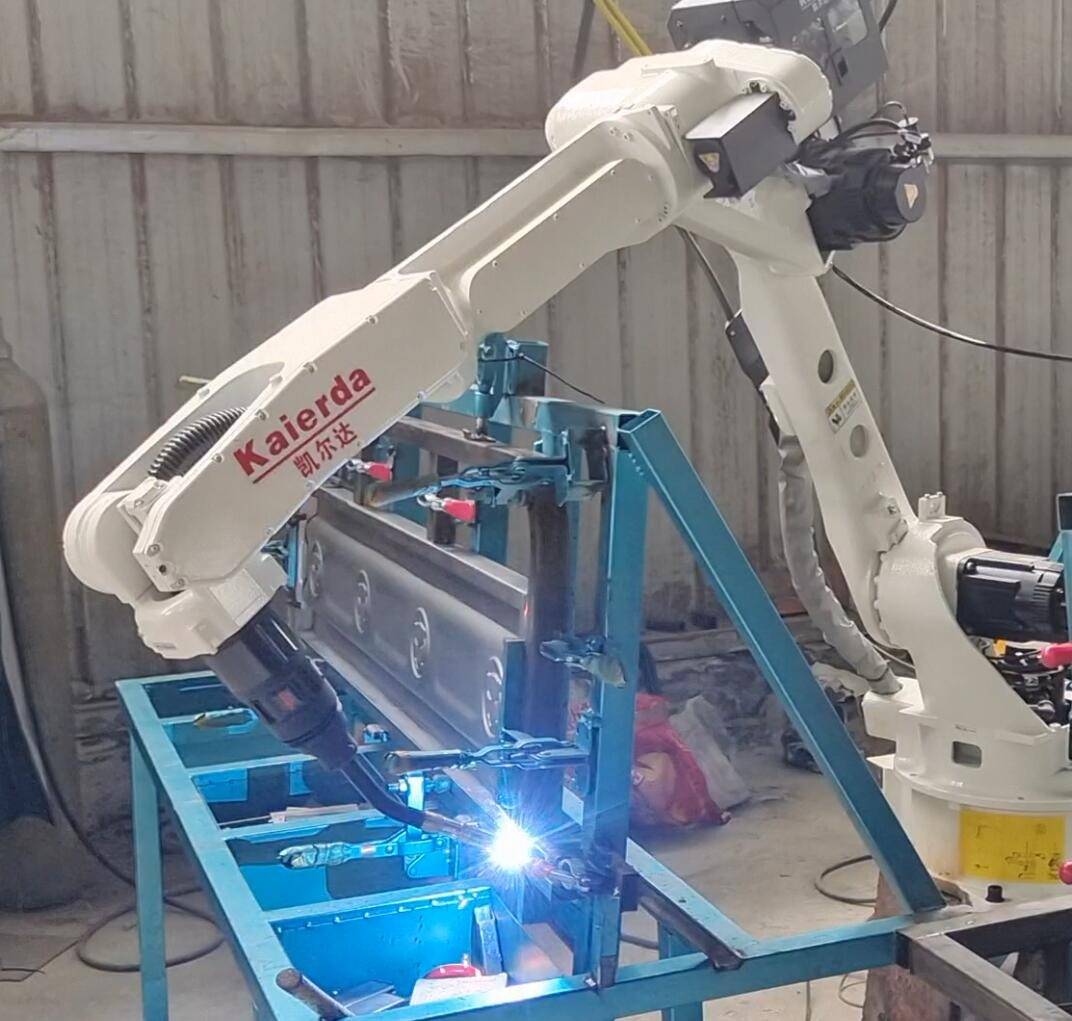

Robotic Welded Steel Chassis: Ensure the bed frame is fabricated from thickened steel tubing (1.0mm wall thickness) with high-precision robotic welding, achieving a structural weld failure rate of less than 1 in 100,000 and a safe load capacity of 250 kg (500 lbs).
12-Stage Surface Treatment: The frame should undergo specialized anti-corrosion processing—including 200°C silane ceramic conversion and 200°C thermal powder curing—guaranteeing high resistance against oxidation, acid/alkali exposure, and clinical disinfectants.
Sourcing Criteria | Clinical & Technical Benchmark | Operational Care Benefit |
Auto-Turning Mechanism | 30-Min Timed Cycle (5-Min Dwell, 0–20° Tilt) | Continuous 24/7 bedsore prevention without night shift strain |
Motor System | Jiecang Actuators (6000N Thrust, <45dB) | Whisper-quiet operation & 20,000+ cycle durability |
Hygiene Features | Integrated Electric Commode & Latex Mattress | Bed-side toileting & breathable skin pressure relief |
Structural Integrity | Robotic-Welded 1.0mm Steel (250 kg Capacity) | High static load resistance for heavy-duty institutional use |
Global Compliance | ISO 13485, CE (MDR), FDA Certified | Smooth customs clearance and international tender compliance |
For senior care homes, stroke rehabilitation units, and medical device importers, sourcing automatic turning electric nursing beds delivers a win-win solution: providing bedridden patients with continuous, dignified pressure ulcer protection while dramatically lowering night-shift nurse workload and labor costs.
Are you outfitting a new geriatric care facility, quoting on regional hospital rehabilitation tenders, or expanding your medical equipment wholesale catalog?
As a direct medical device factory, we provide complete OEM/ODM manufacturing services across our entire automatic turning electric care bed series—including custom frame powder coat colors, private-label branding, customized remote control button languages, specialized latex mattress options, and container-optimized flat-pack knockdown packaging.
