In long-term homecare, stroke rehabilitation, and spinal trauma management, the single most exhausting task for family caregivers is patient egress (getting the patient in and out of bed). Manually lifting, pulling, and rotating a paralyzed or semi-conscious adult from a flat lying position to the edge of the bed frequently causes severe caregiver lumbar back strain and increases patient slip-and-fall injuries.
Furthermore, long-term bed rest without regular repositioning leads to dangerous decubitus ulcers (bedsores) and joint stiffness.
To address these challenges, specialized senior living facilities and medical equipment distributors are adopting Electric Rotating & Lateral Turnover Homecare Beds. This sourcing guide breaks down how advanced rotational mechanisms, settling turnover technology, and warm residential furniture aesthetics transform home nursing care.
Traditional care beds only elevate the backrest, forcing caregivers to manually pivot the patient’s torso and drag their legs off the side of the mattress.

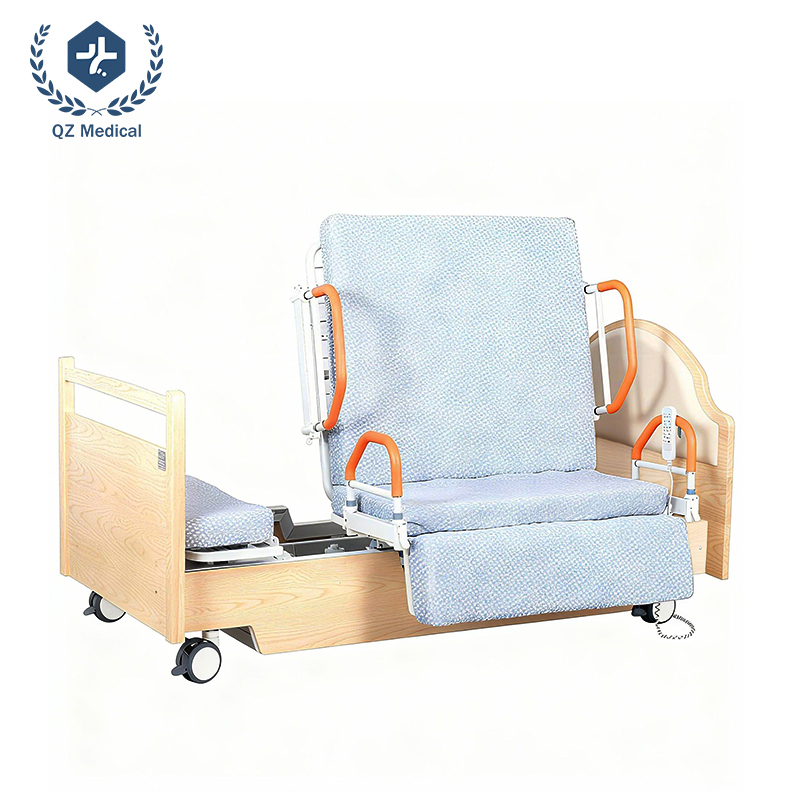

Automated 90° Rotational Egress: With a single press on the remote control, the mattress platform rotates smoothly 90 degrees to the left or right, transitioning the patient from a supine lying posture into a full chair-like seating position perpendicular to the bed frame.
Synchronized Posture Articulation: During rotation, the backrest automatically elevates to a comfortable 40-degree support angle. Once fully rotated to 90 degrees, the backrest elevates to 75 degrees while the leg section lowers by 75 degrees. The user can hold onto the side guardrails to stand up with natural balance, completely eliminating strenuous caregiver pulling.
Space Requirement: Requires just 50 cm clearance on either side of the bed frame for unobstructed rotation.
Improper turning mechanisms that tilt abruptly can cause patients to slide across the mattress, causing friction burns and anxiety.

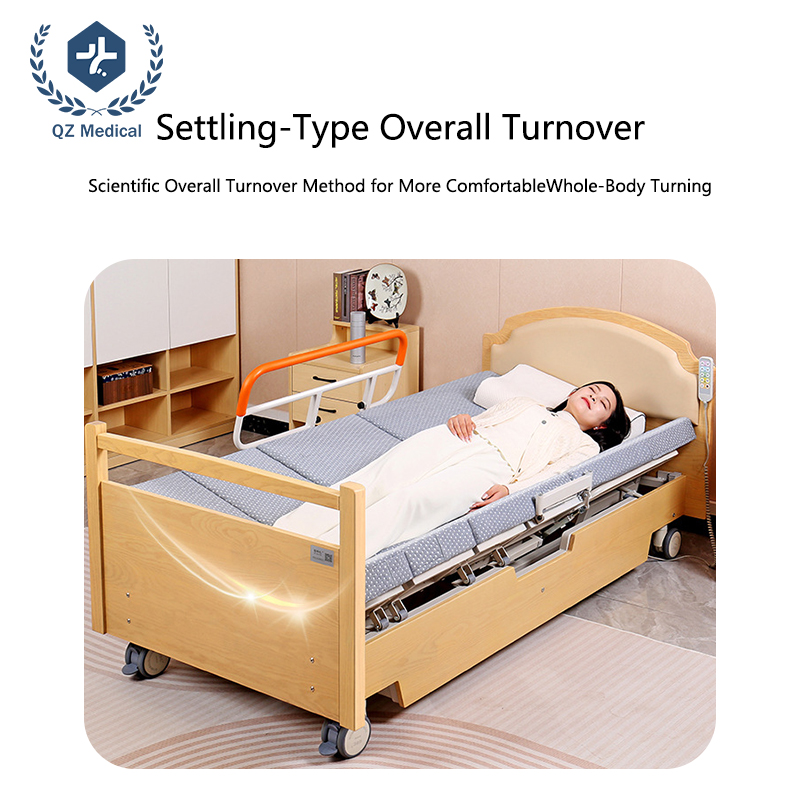

Central-Axis Settling Turnover: Features a scientific settling turnover mechanism that rotates gently around the bed's central axis (0–20° lateral tilt angle). The mattress lowers and cradles the patient inward, preventing displacement or roll-out falls.
Continuous Pressure Redistribution: Regular automated lateral turnover redistributes body weight continuously across sacral and shoulder pressure points, preventing decubitus ulcers without waking resting patients.
Sitting up in bed often causes patients to slide downward toward the footboard, putting shearing stress on the tailbone.
Anti-Side-Slip Contoured Backrest (0–75°): The backrest features wrap-around side wings that hold the patient securely centered during elevation (0–75°), preventing sideways slumping during dining, reading, or television viewing.

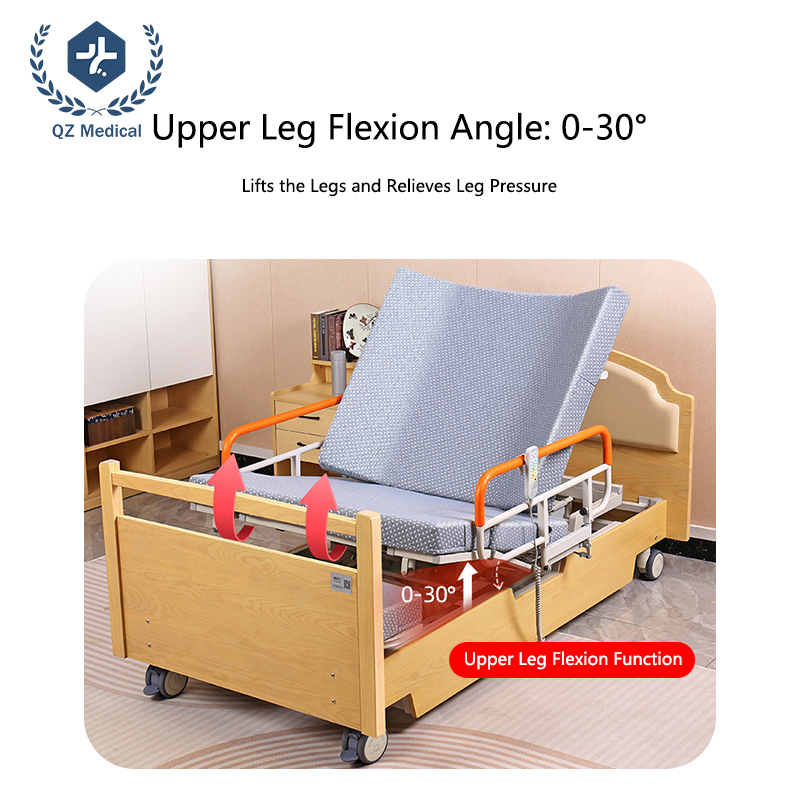

Upper Leg Flexion (0–30°): Elevates the knee section up to 30 degrees, lifting the thighs to prevent bottom-sliding and stimulate venous return in lower limbs.
One-Touch Reset & Master Emergency Stop: Includes a one-touch reset button that returns all articulating sections flat, along with a master red Emergency Stop button that locks the control handset during safety interventions.
Reliability during power outages and warm visual integration are essential for homecare settings.
Integrated Auto-Charging Backup Battery: The onboard control system includes an automatic battery backup pack. In the event of a household electrical blackout, the bed switches instantly to internal battery power, ensuring patients are never trapped in a rotated or elevated position. The battery charges automatically when plugged in, with overcharge protection circuitry.
Solid Oak Wood Boards with Soft Padding: Crafted from 100% solid oak wood with soft-padded upholstery accents and rounded corners. The footboard features a heavy solid wood crossbar designed as a sturdy handhold to assist seniors when standing up and walking.
Heavy-Duty 240 kg (530 lbs) Frame & 5-Inch Silent TPR Casters: Built from 1.2mm thick 30×60mm square steel tubing with an electrostatic anti-bacterial coating and welded iron mesh platform, supporting up to 240 kg (530 lbs). Supported by 5-inch noiseless swivel casters with TPR treads and individual brakes. Includes an 8 cm high-elasticity breathable foam mattress with a zip-off washable cover.
Clinical Sourcing Factor | Standard Electric Homecare Bed | Electric Rotating & Turnover Bed |
Bed Egress (Getting Out) | Manual pulling / transfer required | Motorized 90° rotation to standing posture |
Turnover Mechanism | Basic side tilt or manual roll | Settling-type central axis turnover (0–20°) |
Power Outage Protection | None or optional external kit | Integrated automatic backup battery system |
Backrest Stability | Flat elevating deck | Contoured anti-side-slip wrap-around back |
Furniture Aesthetic | Metal/ABS hospital look | Solid oak wood with soft-padded upholstery |
For specialized home healthcare providers, palliative care programs, and medical equipment distributors, electric rotating and turnover beds represent the pinnacle of home nursing technology. By automating 90-degree rotational standing transfers and 24/7 lateral pressure relief, these beds protect caregivers from physical injury while empowering bedridden patients with unprecedented comfort, dignity, and independence.
Are you looking to add high-end rotating care beds to your DME retail catalog, supply premium assisted living projects, or source private-label homecare furniture?
As a direct medical device manufacturer, we offer full OEM/ODM services across our entire rotating bed, ICU bed, and homecare furniture lineup—including custom wood stain finishes (natural oak, walnut, teak), private-label branding, customized remote control button profiles, and container-optimized export packaging.
