The international market for personal mobility devices has shifted decisively away from traditional, bulky electric wheelchairs. End-users and retail customers increasingly demand portable, travel-ready powerchairs that fold in seconds and fit into a compact car trunk without requiring specialized vehicle lifts.
For medical equipment distributors, pharmacy chain buyers, and e-commerce brand owners, adding a reliable lightweight folding electric wheelchair to your catalog requires balancing structural stability, transport compliance, and after-sales service overhead.
Here is what B2B buyers must evaluate when auditing manufacturers for commercial distribution and private-label partnerships.
Net frame weight directly determines whether a family member, caregiver, or user can lift the folded wheelchair into an automobile or luggage compartment.
Magnesium Alloy Benefits: High-tensile magnesium alloy delivers an exceptional strength-to-weight ratio, allowing net frame weights in the 14 kg to 18 kg range while comfortably supporting adult safe working loads up to 120 kg or 150 kg. Magnesium also offers superior natural vibration damping compared to carbon steel, providing a smoother ride over tactile paving and outdoor asphalt.
Structural Triangle Geometry: While reducing frame tube thickness saves weight, the chassis design must maintain rigid triangular load-bearing points. Substandard folding joints can develop wobble or creaking after months of heavy outdoor use.
Corrosion Resistance: Anodized and electrostatic powder-coated surfaces resist salt air and moisture, preserving the cosmetic finish across diverse international climates.
Traditional brushed motors rely on mechanical carbon brushes that wear down over time, generate electrical noise, and produce carbon dust inside the motor housing.
For international dealers, minimizing warranty claims requires sourcing brushless drive technology:

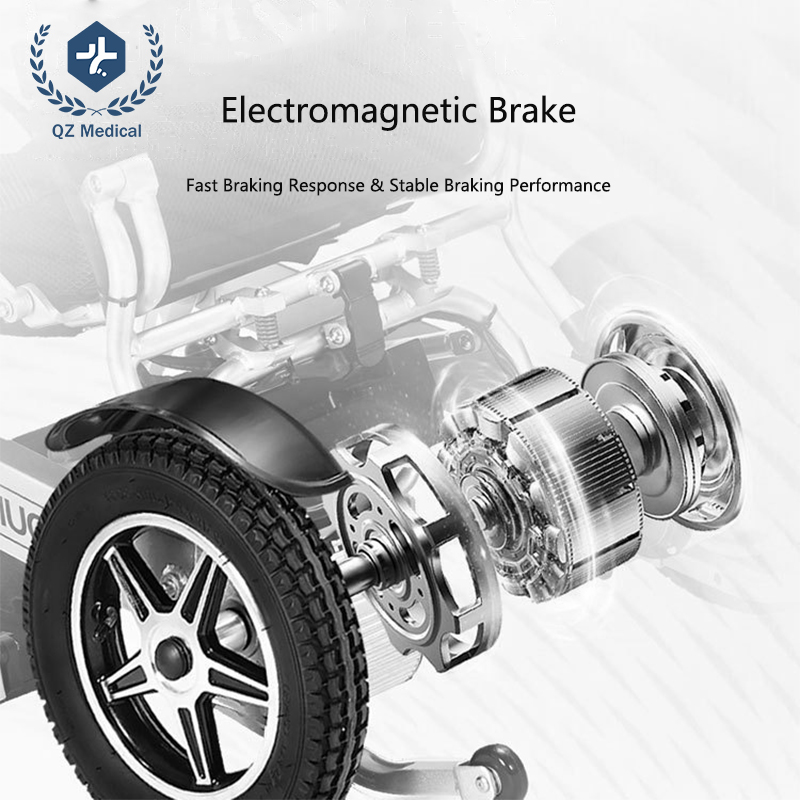

Dual Brushless Hub Motors: Integrated high-efficiency brushless hub motors deliver instant climbing torque for 8-degree to 12-degree ramps while operating quietly below 60 decibels. Because there are no internal carbon brushes or external belts to replace, operational lifespan is significantly extended.
Intelligent Electromagnetic Brakes: Safety is paramount on inclines. Electromagnetic regenerative braking automatically engages the exact millisecond the user releases the joystick controller, locking the drive wheels firmly in place even when stopped mid-slope.
Manual Freewheel Levers: Red disengagement levers on each drive wheel allow caregivers to push the wheelchair manually without battery resistance whenever necessary.
One of the strongest consumer selling points is the freedom to travel by air. However, strict international aviation security protocols govern lithium-ion batteries aboard passenger aircraft.
UN 38.3 Transport Certification: Commercial airlines require verified UN 38.3 test reports, Material Safety Data Sheets (MSDS), and drop-test documentation proving the battery pack will not combust under rapid cabin pressure changes.
Airline Capacity Thresholds: Detachable 24V lithium battery configurations rated under 300 watt-hours (such as a 24V 10Ah or 24V 12Ah pack) are standard for carry-on passenger travel across IATA member airlines.
Quick-Release Mechanism: The battery housing must unlatch smoothly with a key or safety slide, allowing users to pull the pack out in under five seconds at airport security screening.
Engineering Parameter | Commercial Specification Standard |
|---|---|
Product Category | Lightweight Folding Electric Wheelchair (QZ-EW Series) |
Chassis Metallurgy | High-tensile magnesium alloy or aerospace aluminum |
Net Weight Profile | Approx. 14.5 kg to 19.5 kg (Depending on battery and alloy build) |
Safe Working Load (SWL) | 120 kg to 150 kg |
Motor Drive System | Dual high-efficiency brushless hub motors |
Braking Technology | Automatic electromagnetic regenerative braking |
Battery Configuration | Quick-release detachable lithium-ion pack (24V) |
Flight Compliance | UN 38.3 certified, under 300 Wh for standard airline carry-on |
Control Interface | 360-degree universal joystick with multi-speed adjustment |
Wheel Configuration | Solid puncture-proof front casters + Rear rubber drive wheels |
Safety Features | Rear anti-tipper wheels, seatbelt, and electromagnetic hill-hold |
Container Loading Density | Approx. 400+ units per 40'HQ container (SKD carton packing) |
Shanghai Quzhi Industrial is an ISO 13485 and CE certified manufacturer specializing in motorized mobility equipment, hospital furniture, and patient handling devices. We actively partner with medical supply distributors, rehabilitation retailers, and online healthcare brands worldwide.
Our OEM/ODM manufacturing support includes:
Custom silk-screen and laser-etched frame branding
Tailored upholstery fabrics, memory foam cushions, and colorways
Flexible trial sample orders with expedited air freight dispatch
Complete technical compliance packages (CE MDR Class I self-declaration, ISO 13485, UN 38.3 test reports)
