In neurological rehabilitation, orthopedic recovery, and intensive care mobilization, early vertical weight-bearing is recognized as one of the most effective clinical interventions. Prolonged horizontal bed rest for stroke, spinal cord injury (SCI), and comatose patients rapidly leads to joint contractures, muscle atrophy, orthostatic hypotension, and severe bone demineralization.
Traditionally, physical therapists must manually transfer fragile, immobile patients from standard ward beds onto standalone tilt tables—a labor-intensive process that carries high fall risks and causes physical strain for clinical staff.

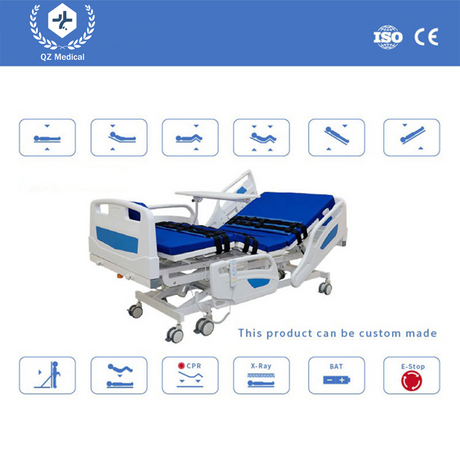

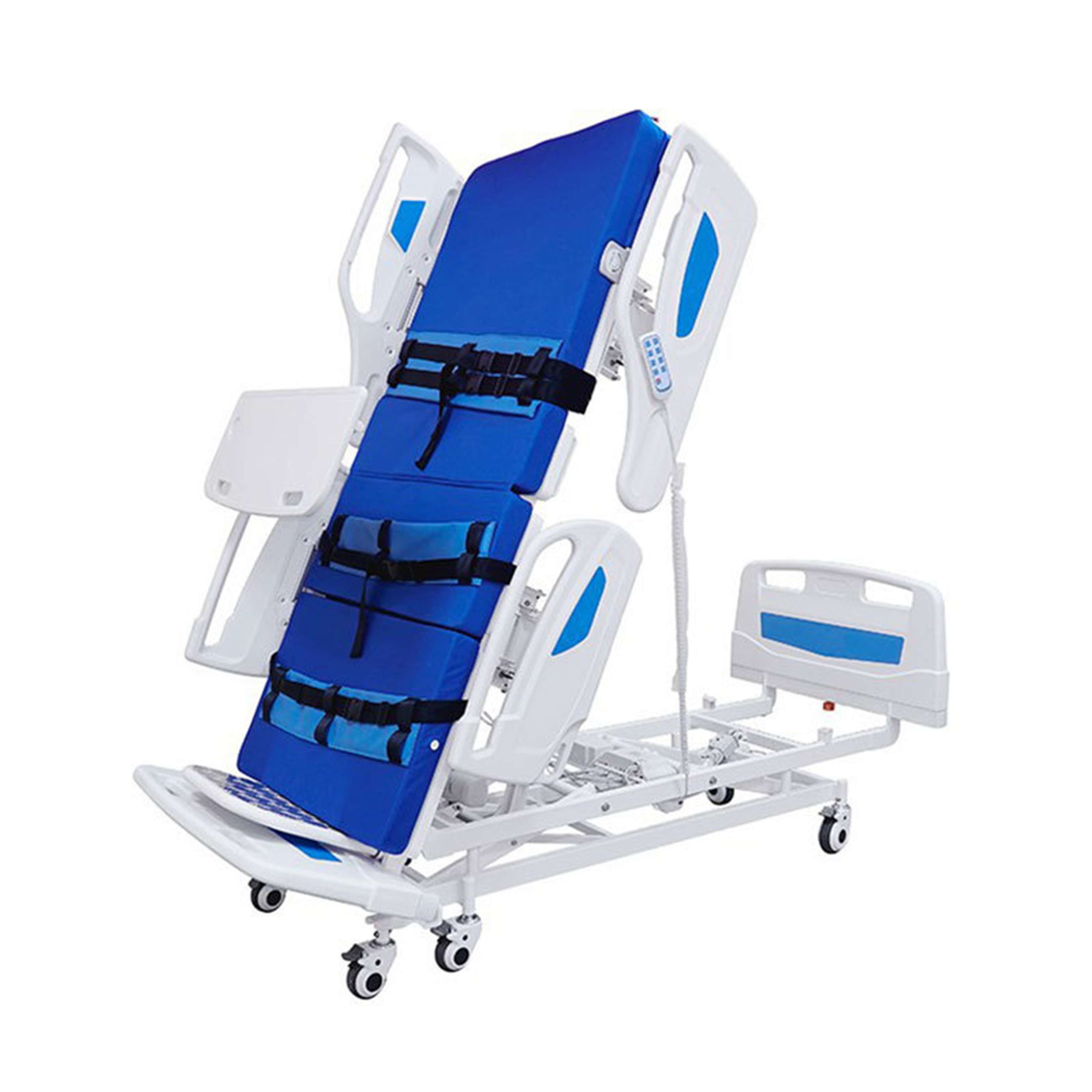

To streamline neurological recovery, specialized rehabilitation centers and trauma hospitals are adopting multi-motor electric standing hospital beds (Tilt-Table Beds) that transition patients from supine rest to a full upright standing posture directly on the same bed platform.
This B2B sourcing guide outlines the essential clinical, safety, and diagnostic features to prioritize when evaluating electric standing rehabilitation beds.
Vertical standing therapy must be progressive and jolt-free to allow the patient’s cardiovascular and vestibular systems to adapt without triggering orthostatic dizziness.

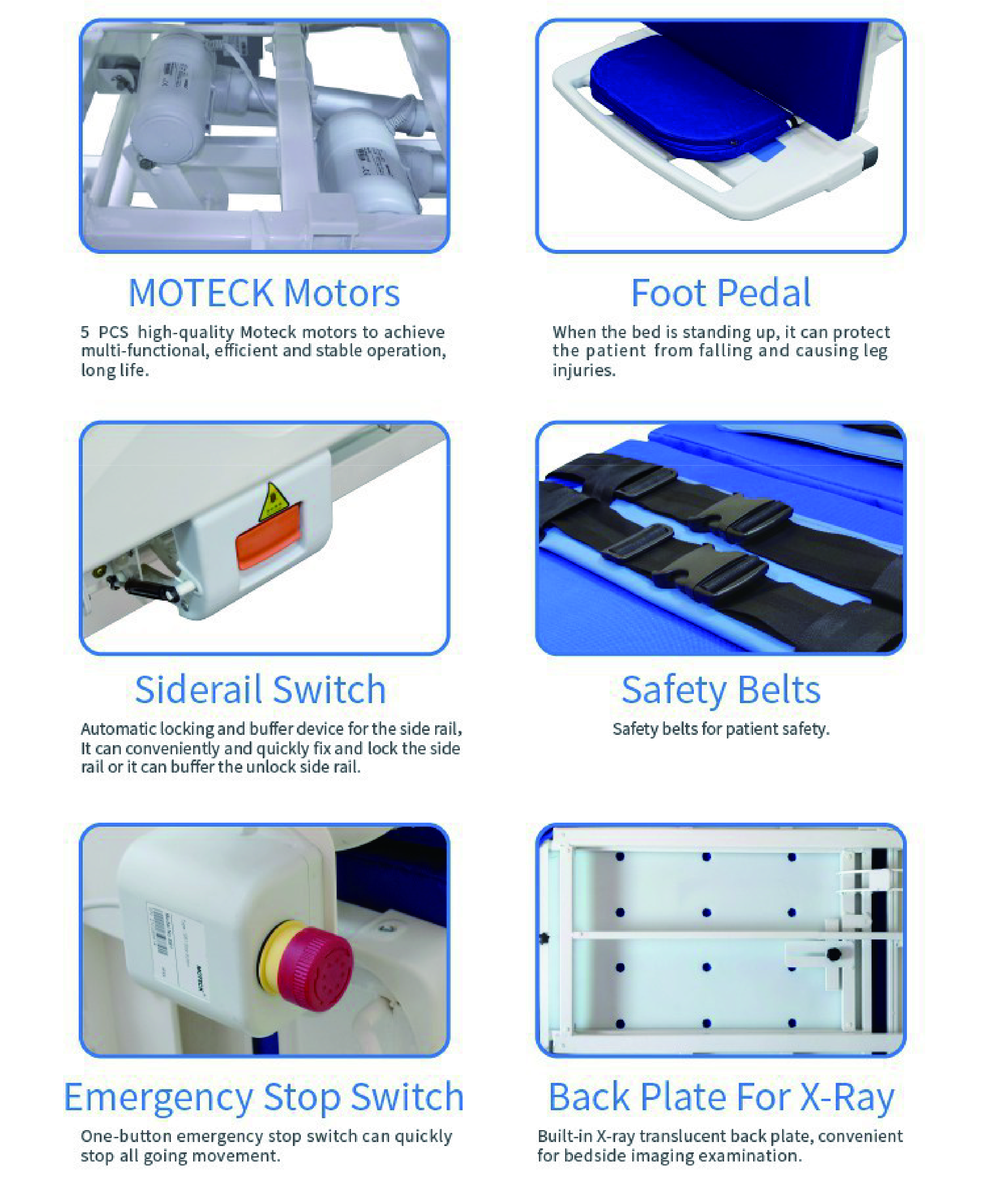

Smooth 0–90° Vertical Elevation: Look for standing beds equipped with heavy-duty electric actuators (such as world-class Moteck linear motors) that synchronize height lift, backrest adjustments, kneerest flexion, Trendelenburg tilt, and full vertical standing up to 90 degrees.
Cardiopulmonary & Bone Density Restoration: Gradually standing the patient upright stimulates proprioception, promotes lower-limb venous circulation, aids renal drainage, and restores physiological bone loading to prevent secondary osteoporosis.
Critically ill neurological and trauma patients frequently require chest and abdominal radiograph examinations to monitor pulmonary condition and internal alignment.
Radio-Translucent Backplate: Sourcing beds equipped with a built-in X-ray translucent backplate. This structural design allows clinical radiographers to insert X-ray cassette film directly underneath the patient, performing high-clarity radiograph imaging at the bedside without physically lifting or transferring tube-connected patients.
Master Emergency Stop Switch: An easily accessible, push-to-lock red Emergency Stop button halts all motorized actuators instantly in high-risk clinical events.
Patient safety during upright tilt positioning requires multi-point structural restraints to prevent knee buckling or sliding.
Heavy-Duty Adjustable Restraint Belts: Equipped with wide, reinforced chest, waist, and knee safety belts with quick-release buckles that hold the patient securely against the bed platform during vertical elevation.
Rigid Anti-Drop Foot Pedal: A heavy-duty lower foot support plate prevents foot drop and lower-limb joint distortion during upright weight-bearing.

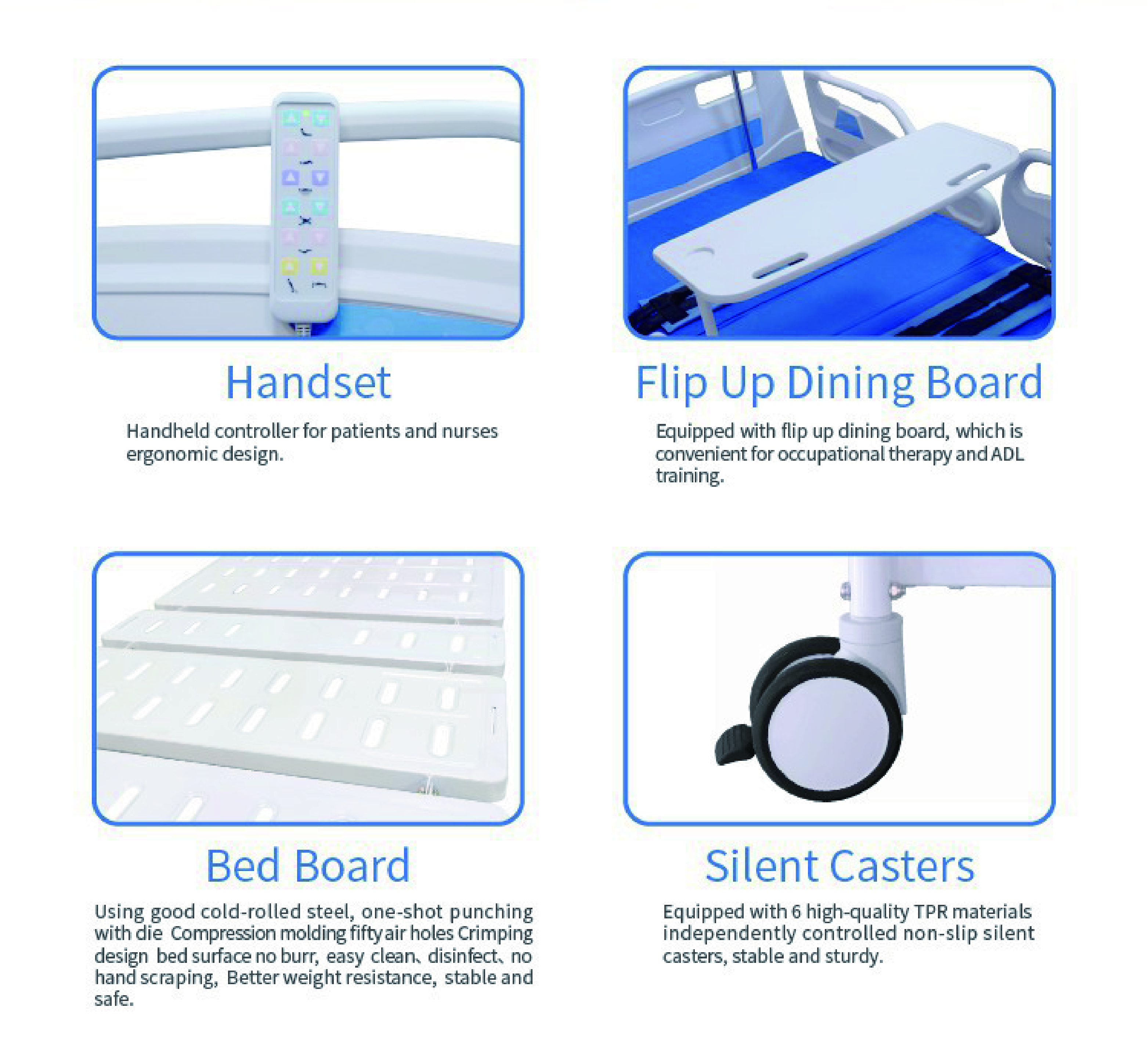

Integrated Flip-Up Occupational Therapy Board: Includes a detachable, height-adjustable flip-up dining and therapy table, allowing therapists to conduct upper-limb coordination exercises, eating re-education, and Activities of Daily Living (ADL) training while the patient is upright.
Rehabilitation standing beds must support dynamic weight shifts without structural deformation.
One-Shot Die Compression Stamped Deck: The mattress platform is fabricated from premium cold-rolled steel, stamped in a single-shot die compression process with 50 airflow ventilation perforations. The crimped edges are 100% burr-free to protect skin and mattresses, ensuring effortless clinical disinfection.
6 Non-Slip TPR Silent Casters: The mobile chassis is supported by six independently controlled TPR (Thermo-Plastic-Rubber) silent swivel casters that provide superior weight distribution, noise-free ward relocation, and rock-solid stationary braking stability.
Clinical Sourcing Factor | Standard Ward Bed + Tilt Table | Integrated Electric Standing Bed |
Patient Transfer Workload | Requires 2–3 nurses to transfer | Zero transfers; tilts directly from bed |
Standing Angle Range | Standalone tilt table (0–80°) | Synchronized multi-motor tilt (0–90°) |
Bedside X-Ray Imaging | Requires patient lifting | Built-in radio-translucent X-ray backplate |
Therapy Versatility | Bed rest only | Integrated flip-up table for OT / ADL training |
Motor Drive Reliability | Basic domestic actuators | Heavy-duty synchronized Moteck motors |
For neuro-rehabilitation clinics, orthopedic trauma centers, and medical device importers, investing in integrated electric standing hospital beds bridges the gap between acute ward rest and intensive physical therapy. By eliminating transfer injuries, providing bedside X-ray capability, and supporting progressive 0–90° vertical standing, these beds deliver higher therapy throughput and superior clinical outcomes.
