In hospital Emergency Departments (ED), Trauma Units, and Operating Theaters, patient transport is not just a matter of moving a bed—it is a critical phase of emergency care. Transferring critically ill, trauma, or post-operative patients between ambulances, resuscitation bays, diagnostic CT scanners, and surgical tables must happen quickly, smoothly, and without physical jolts.
Manual lifting of immobile patients frequently leads to acute nurse lumbar back injuries, while poorly engineered stretchers with height mismatches or rigid casters create dangerous bottlenecks in busy hospital corridors.
For hospital procurement directors, emergency room nursing supervisors, and medical equipment distributors, this B2B sourcing guide breaks down the essential mechanical, safety, and resuscitation features required when evaluating hydraulic patient transfer stretcher trolleys.
The most common cause of patient transfer accidents and caregiver back strain is a height discrepancy between the transport trolley and the receiving hospital bed or imaging couch.

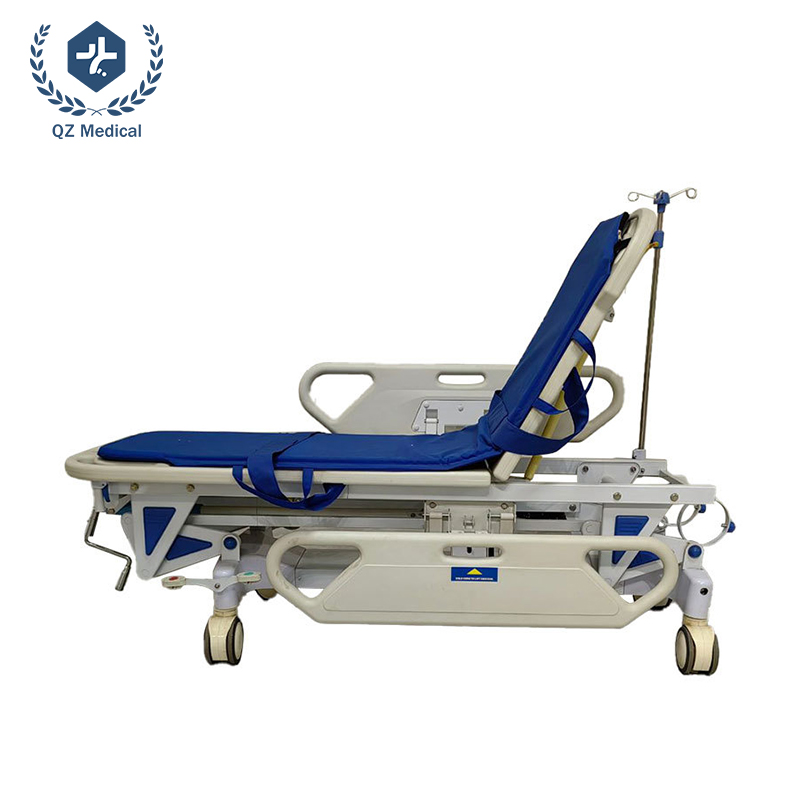

Smooth Foot-Pedal Hydraulic Lift (550–900 mm): Sourcing stretchers equipped with heavy-duty hydraulic pedal pumps that adjust the platform height smoothly from 550 mm to 900 mm. Clinical staff can match the stretcher deck flush with surgical tables or ICU beds with a few foot pumps, enabling effortless lateral sliding transfers without lifting.
Stable Dual-Pedestal Frame: Look for reinforced dual-pedestal hydraulic columns fabricated from powder-coated steel tubing. The rigid column design maintains steady horizontal balance across the entire vertical travel range, preventing tilting under heavy patient weight.
During emergency resuscitation, cardiac events, or respiratory distress, medical staff must adjust the patient's upper torso instantly to open airways or facilitate endotracheal intubation.

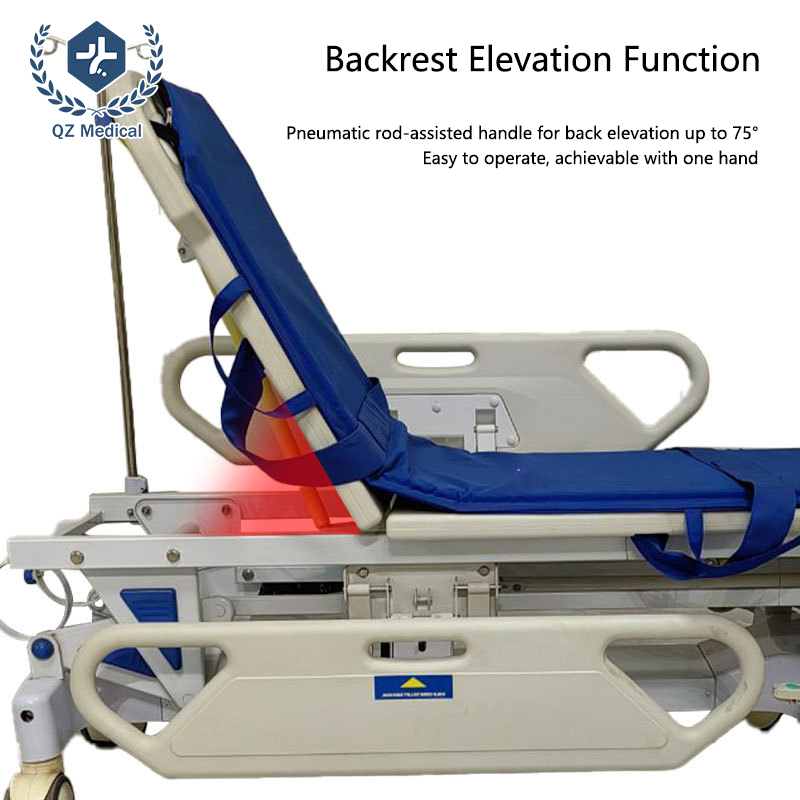

Pneumatic Gas-Spring Control: Look for stretchers equipped with a gas-spring assist handle at the head end. Nurses can depress the release lever and elevate the backrest smoothly from 0 to 75 degrees using just one hand, while keeping the other hand free to manage infusion lines or respiratory masks.
Stepless Locking: The pneumatic cylinder locks securely at any angle between 0° and 75°, providing rigid back support for medical examinations and clinical feeding.
Navigating heavy patients through crowded emergency corridors, tight elevator doors, and around ward corners requires responsive steering and instant stationary locking.

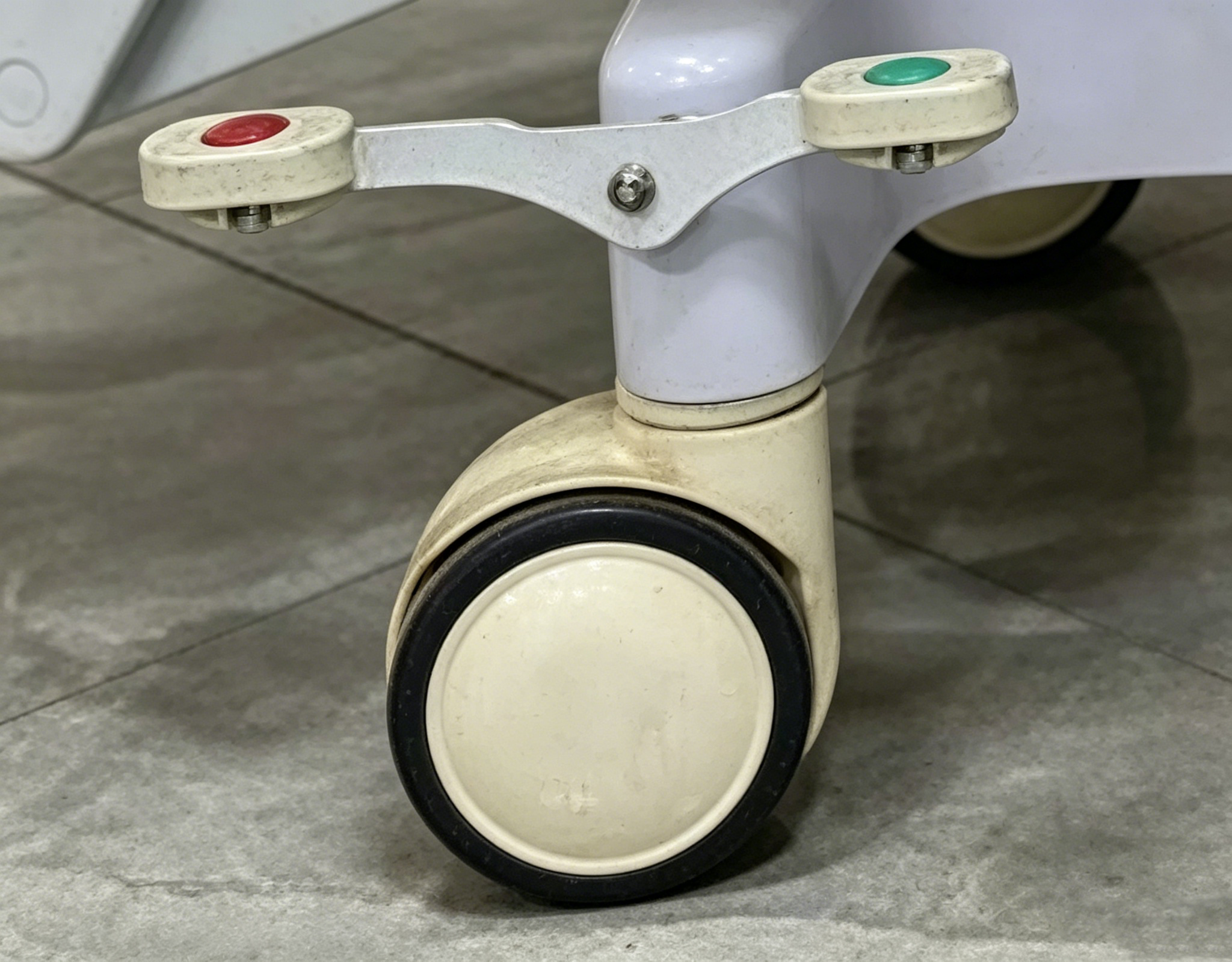

Dual-Pedal Color-Coded Central Braking: Positioned conveniently at the base. Stepping on the red pedal locks all four casters simultaneously, anchoring the stretcher solidly in place during emergency intubation or defibrillation.
Directional Guide Gear (Green Pedal): Stepping on the green pedal unlocks the brakes and engages a centralized directional fifth-wheel steering gear. This guides the front and rear wheels to track in a straight line, allowing a single nurse to steer the stretcher effortlessly down long hallways without lateral fishtailing.
In transit between the emergency bay and operating room, patients require continuous life-support equipment access.

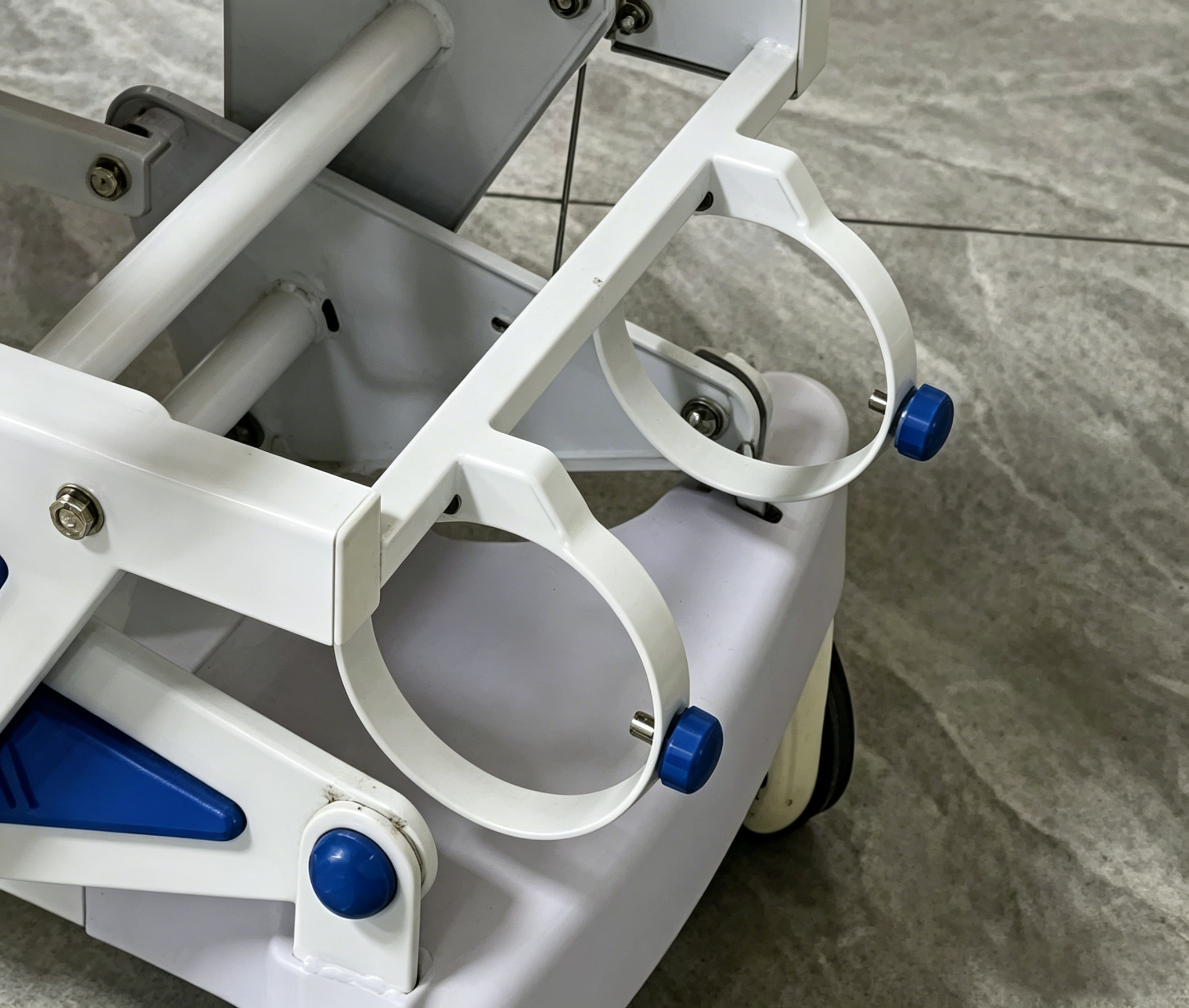

Front-Mounted 5L Oxygen Cylinder Bracket: The lower chassis features a heavy-duty steel bracket specifically sized to hold a standard 5L medical oxygen cylinder, ensuring patients receive uninterrupted oxygen flow without loose cylinders rolling on the mattress.
Hydraulic Soft-Drop Side Guardrails: Two full-length hydraulic side rails lower smoothly with gentle damping at the press of a button, clearing the side edge for patient slide transfers while eliminating finger-pinch risks.
Washable Oxford Mattress & Restraint Straps: The platform (1930 × 640 mm) is molded from flame-retardant, high-toughness native ABS plastic that wipes clean instantly. Includes a detachable, water-resistant Oxford cloth mattress and 2 heavy-duty quick-release safety restraint straps across the chest and thighs to prevent accidental falls during rapid transit.
Sourcing Criterion | Basic Manual Patient Stretcher | High-Spec Hydraulic Transfer Trolley |
Height Elevation | Fixed height (Causes transfer strain) | Hydraulic Pedal Lift (550–900 mm) |
Backrest Operation | Manual ratchet (Requires two hands) | Gas-Spring Assisted (0–75° Single-Hand) |
Corridor Steering | 4 free swivels (Difficult to track straight) | Central Braking + 5th-Wheel Directional Guide |
Emergency Readiness | Loose accessories | Integrated 5L Oxygen Holder + Telescopic IV Pole |
Patient Restraint | None | 2 Heavy-Duty Quick-Release Safety Belts |
Quality Standard | Basic industrial assembly | ISO 13485, CE (MDR), FDA Certified |
For emergency trauma centers, hospital operating theaters, and medical equipment distributors, investing in hydraulic patient transfer stretcher trolleys with central braking and gas-spring backrests protects nursing staff from occupational back injuries while ensuring rapid, stable transit during critical resuscitation windows.
