Manual 3-Crank Nursing Beds: Technical Standards and Sourcing Guide for Healthcare Facilities

Manual 3-crank nursing beds are essential assets across general hospital wards, outpatient recovery centers, and long-term assisted living facilities. For healthcare providers operating with strict capital budgets or in regions where electrical grid stability is a challenge, a well-engineered mechanical bed delivers critical patient positioning without the continuous maintenance overhead of motorized systems.

When medical equipment distributors, regional dealers, and hospital tender contractors evaluate manual care beds, build quality comes down to three measurable factors: platform structural rigidity, smooth mechanical articulation under patient load, and clinical safety accessories.

1. Three-Crank Articulation: Smooth Adjustment and Corridor Safety

Nursing staff adjust patient postures multiple times every shift. A stiff or poorly balanced transmission rod causes staff fatigue and leads to premature mechanical binding.

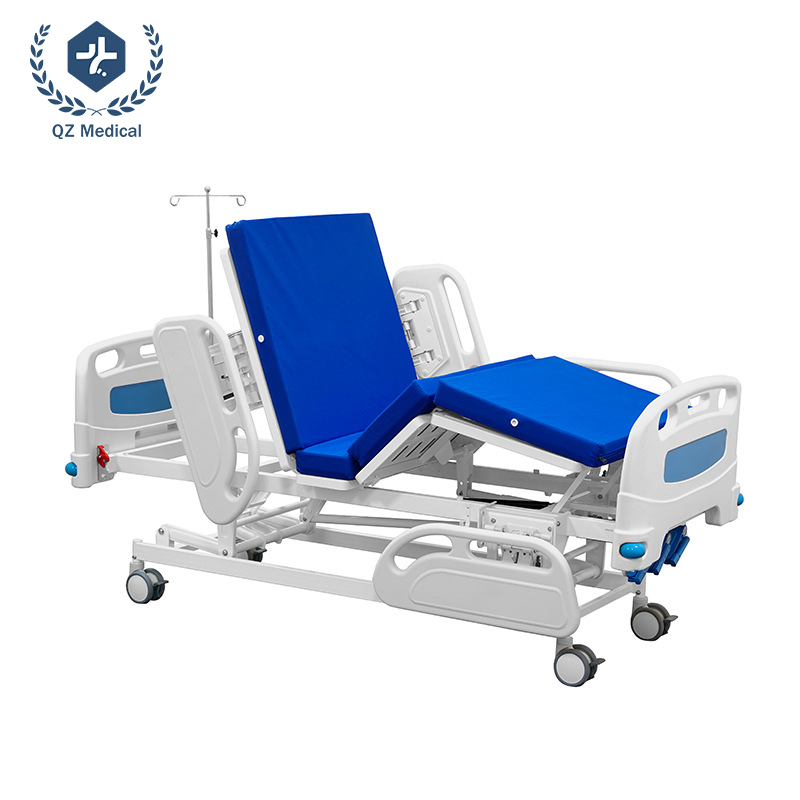

This 3-crank care platform incorporates independent, smooth-turning crank rods that provide balanced, low-effort control over three primary movements:

• Backrest Elevation (0° to 70° ± 5°): Supports upright patient sitting for meals, medication, reading, and respiratory comfort.

• Leg Section Flexion (0° to 45° ± 5°): Bends the knees comfortably to promote lower-limb blood circulation and prevent the patient from sliding downward.

• Vertical Bed Elevation (400 mm to 720 mm): The broad 320 mm vertical travel range allows nursing staff to administer treatment at a comfortable standing posture, while lowering down to 400 mm for safe patient ingress and egress.

• Foldable Crank Storage: All three crank handles fold completely flush beneath the footboard when not actively adjusted. This keeps busy hospital corridors free of tripping hazards and shields the mechanisms from collisions with passing stretchers.



2. Steel Frame Durability and 4-Section Ventilated Deck

A stable, wobble-free sleeping surface directly affects patient recovery and extends equipment operating life in high-turnover wards.

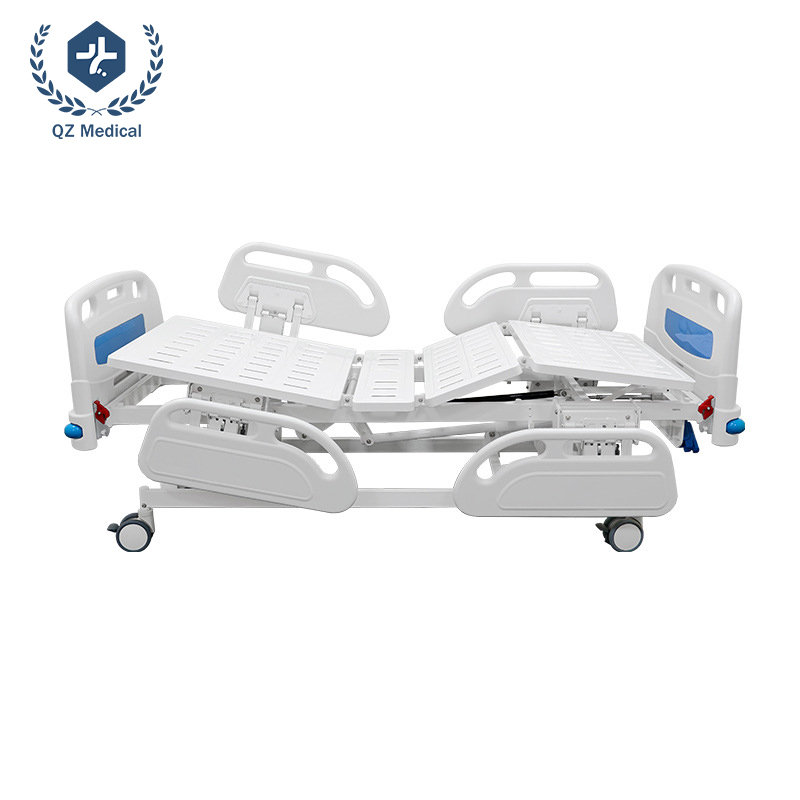

• 4-Section Stamped Deck: The mattress support surface is pressed from heavy cold-rolled steel plates into four functional articulating segments. Built-in stamped ventilation holes maintain continuous air circulation underneath the medical mattress, dissipating body heat and perspiration to assist with bedsore prevention.

• Corrosion-Resistant Powder Coating: The chassis undergoes industrial pickling and phosphating pre-treatment before electrostatic powder spray application. This protective barrier stands up to regular wipe-downs with hospital-grade chemical disinfectants.

• Heavy-Duty Construction: Weighing 110 kg net and engineered with a certified safe working load of 200 kg, the overall 2160 × 975 mm profile provides rigid, stable support even during rapid patient repositioning.

3. Comprehensive Clinical Protection and Ward Maneuverability

Everyday nursing workflow requires intuitive safety features that protect both the patient and the care facility:

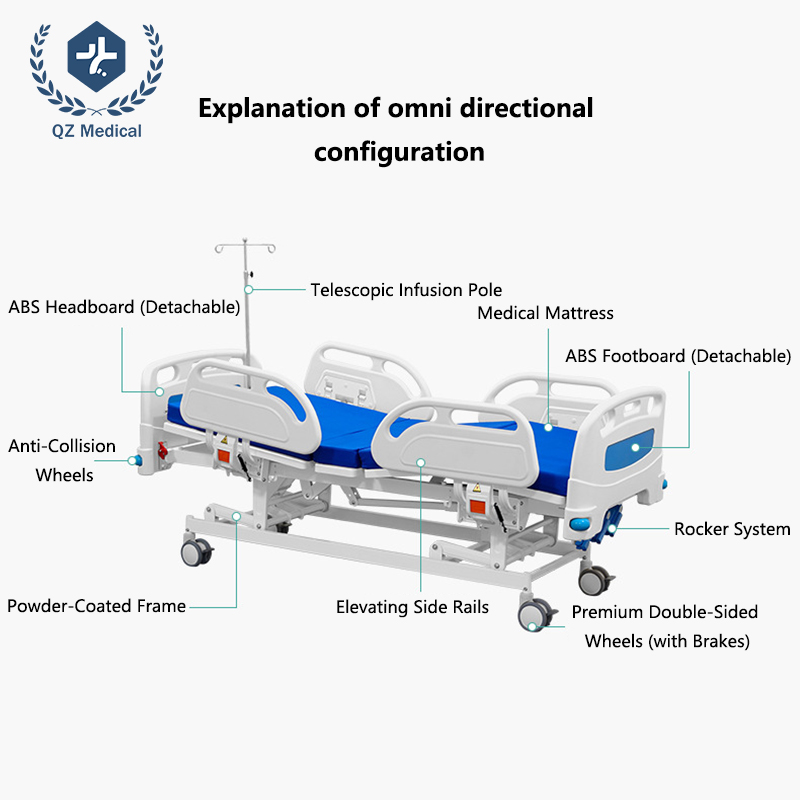

• Drop-Down PP Safety Guardrails: High-impact polypropylene (PP) side rails provide reliable lateral fall prevention. A smooth latch allows caregivers to lower the rails with one hand to facilitate side transfers into wheelchairs or commodes.

• Removable ABS Head & Footboards: Blow-molded medical ABS resin provides high impact resilience and stain resistance. The boards unlatch instantly without tools, giving clinical staff clear head-end clearance during emergency medical interventions.

• Deluxe Double-Sided Enclosed Casters with Brakes: The 125 mm enclosed casters prevent thread, hair, and dust accumulation inside the wheel hubs. Integrated foot brake pedals securely lock both the rolling motion and swivel steering during bed transfers.

• Chassis Bumper Wheels: Rotary protective rollers mounted at all four chassis corners cushion accidental contact against doorways, walls, and elevator edges during patient transit.

• Standard Accessories: The bed comes equipped with an adjustable telescopic stainless steel IV infusion pole and a matching high-density waterproof medical mattress.

Technical Specifications Summary

Bulk Sourcing and Healthcare Distribution Partnerships

Shanghai Quzhi Industrial is an ISO 13485 and CE certified manufacturer of hospital furniture, patient mobility aids, and institutional rehabilitation equipment. We support healthcare distributors, government tender bidders, and private clinic networks across Latin America, Southeast Asia, and international markets.

To request our detailed Technical Data Sheet (TDS), high-resolution gallery, or a formal FOB/CIF container quotation, contact our export team:
