Steel Wire Mesh vs Slat Mattress Decks for Long Term Care Beds

In geriatric assisted living facilities, skilled nursing centers, and residential memory care homes, medical beds operate under continuous 24/7 occupancy. When sourcing long-term care (LTC) beds, procurement teams scrutinize linear motor noise levels, headboard wood finishes, and safety rail certifications.

Yet, clinical audits reveal that one of the most critical structural components is often overlooked during initial tender evaluations: the mattress platform deck.

The platform deck is the physical interface supporting the mattress. Choosing the wrong deck architecture can lead to trapped moisture, premature mattress mold, accelerated skin breakdown (decubitus ulcers/bedsores), or difficult sanitization routines for nursing staff.

Modern high-acuity long-term care beds—such as the QME-LTC5/002 Series—are engineered with two selectable platform deck options: Heavy-Duty Welded Steel Wire Mesh Grid Decks and Reinforced Flat Steel Slat Decks.

This B2B technical sourcing guide evaluates the engineering, clinical biomechanics, and sanitation tradeoffs between both deck options to help healthcare buyers specify the optimal platform for their facility.

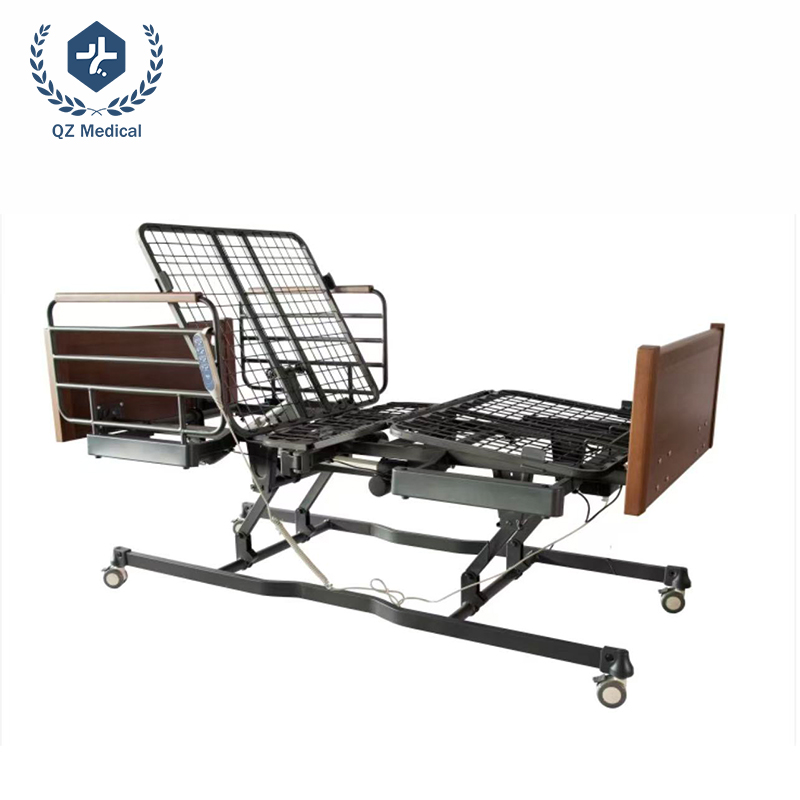

1. Architecture A: Heavy-Duty Welded Steel Wire Mesh Grid Decks

Wire mesh platforms are constructed from high-tensile, cold-drawn steel wire welded into an open matrix grid (standard sleeping dimensions: 1880 × 880 mm ±5 mm), supported by perimeter tension springs or welded steel tubular sub-frames.

• Clinical Advantage: 360-Degree Airflow & Skin Microclimate Control:

  Bedridden elderly residents generate continuous body heat and perspiration. Solid or tightly enclosed platforms trap heat and moisture beneath the mattress, causing sweating and skin maceration—the primary pre-condition for Stage 1 and Stage 2 pressure ulcers. The open grid design allows natural, unrestricted 360-degree air circulation beneath the mattress, rapidly dissipating heat and humidity.

• Elastic Support & Mattress Articulation:

  Welded wire grids provide dynamic micro-flexibility that conforms smoothly to multi-section articulating beds (backrest elevation 0°–70° and knee elevation 0°–8°). This reduces friction wear on mattress base fabrics and accommodates alternating pressure air mattresses or layered coconut-foam hybrid pads up to 300 kg (660 lbs / 600 lbs certified) safe working loads.

• Best-Fit Setting: Long-term bedridden resident rooms, palliative hospice care, and nursing facilities located in warm or humid climates where skin moisture control is a daily nursing challenge.

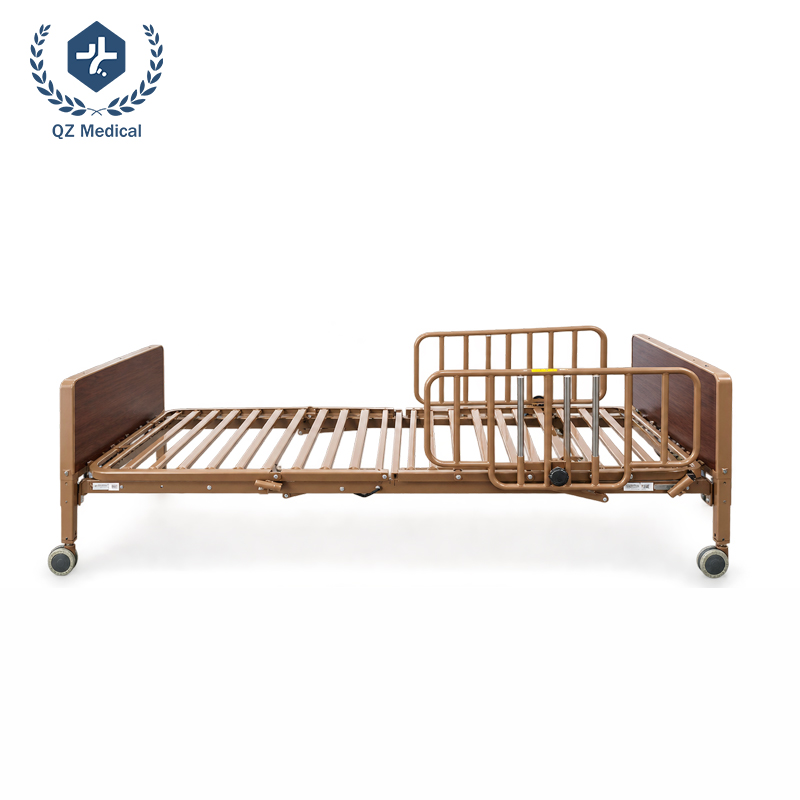

2. Architecture B: Reinforced Flat Cold-Rolled Steel Slat Decks

Flat slat platforms are fabricated from thickened cold-rolled steel flat bars or channel slats spaced evenly across the articulated chassis sections.

• Clinical Advantage: Rigid Anatomical Alignment:

  Steel slats provide an unyielding, completely flat support plane. For elderly residents suffering from chronic degenerative disc disease, spinal osteoporosis, or post-orthopedic hip surgery, a rigid slat base prevents spinal sagging, making it easier for residents to turn over independently or transition to a seated edge position.

• Infection Control & Rapid Wipe-Down Sanitation:

  In acute observation wings or sub-acute wards with high resident turnover, fluid spills and bodily discharges require immediate chemical disinfection. Flat steel slats feature wide, smooth surfaces with fewer micro-recesses than woven wire grids. Housekeeping staff can sanitize the entire steel surface in seconds using hospital disinfectants (70% isopropyl alcohol, chlorine bleach, or hydrogen peroxide sprays) without dirt becoming trapped in wire intersections.

• Mattress Compatibility: Ideal for standard high-density foam mattresses and firm orthopedic innerspring medical mattresses, delivering robust mechanical stability that resists sagging over decades of institutional use.

• Best-Fit Setting: Sub-acute rehabilitation centers, memory care units requiring frequent deep cleaning, and short-stay geriatric transitional care wings.



3. B2B Technical Sourcing Comparison Matrix

4. The Dual-Deck Sourcing Strategy: One Chassis, Two Configurations

For healthcare equipment distributors, tenders, and nursing home groups, inventory standardization is crucial. Buying completely different bed models for different clinical wings complicates technician training and inflates spare parts stocking.

• Unified Chassis Engineering: Sourcing models like the QME-LTC5/002 Series allows buyers to order both deck options built onto the exact same structural chassis. Both versions share identical 5-function linear actuator drives, corded AC electrical systems (110V–240V NEMA plug), removable wood-grain laminate end boards, and 3-inch (75 mm) heavy-duty swivel casters with step-on brakes.

• Container Shipping Efficiency: Both platform options pack into identical knockdown (KD) export cartons lined with custom EPS protective foam. A single 40ft High Cube (40HQ) container loads 88 complete bed sets (or 76 complete units per 40HQ for standard hospital ward bed chassis), allowing facilities to mix wire mesh and flat slat units in the same container shipment without freight penalties.

Conclusion & Sourcing Recommendation

There is no universal "best" mattress deck—only the deck that best aligns with your facility's clinical protocols:

• Specify Welded Steel Wire Mesh Grid Decks for long-term assisted living and memory care units where residents spend extended hours in bed and continuous airflow is vital to prevent costly pressure injuries.

• Specify Reinforced Flat Steel Slat Decks for post-acute rehabilitation and transitional care wards where rapid chemical disinfection, high patient turnover, and rigid orthopedic spinal support are the top operational priorities.

Partner with an ISO 13485 Certified Long-Term Care Bed Factory

Are you outfitting a new senior living residence, upgrading hospital care beds, or sourcing customizable medical furniture for your distribution network?

As a direct medical device manufacturer, QZ Medical provides complete OEM/ODM manufacturing services across our entire electric care bed, manual hospital bed, and clinic furniture range—fully customizable with your choice of welded wire mesh or flat steel slat decks, custom wood finishes, private-label branding, and container-optimized export packaging.
