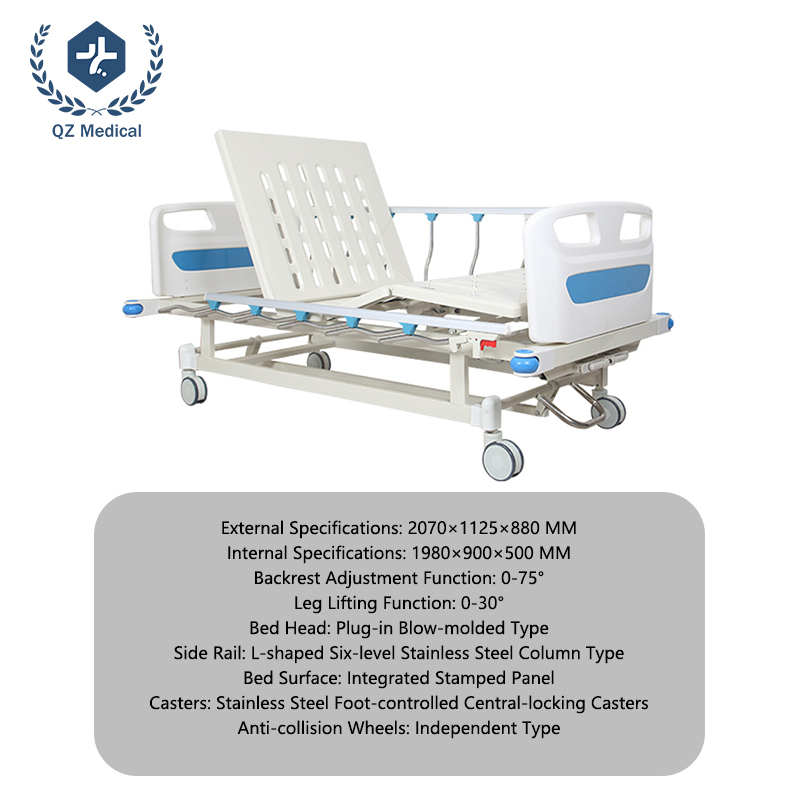

Technical Parameters

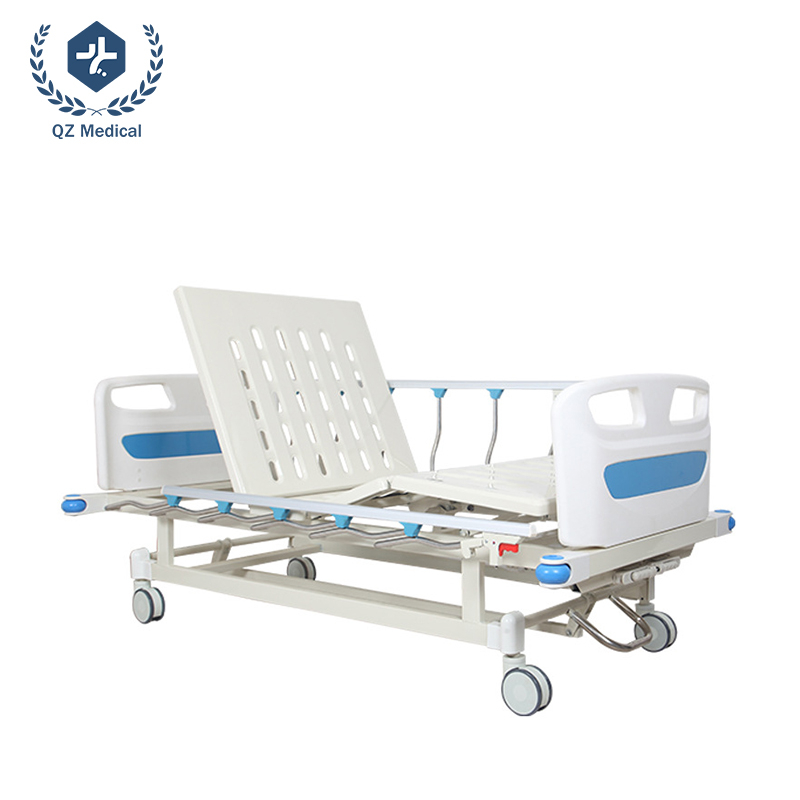

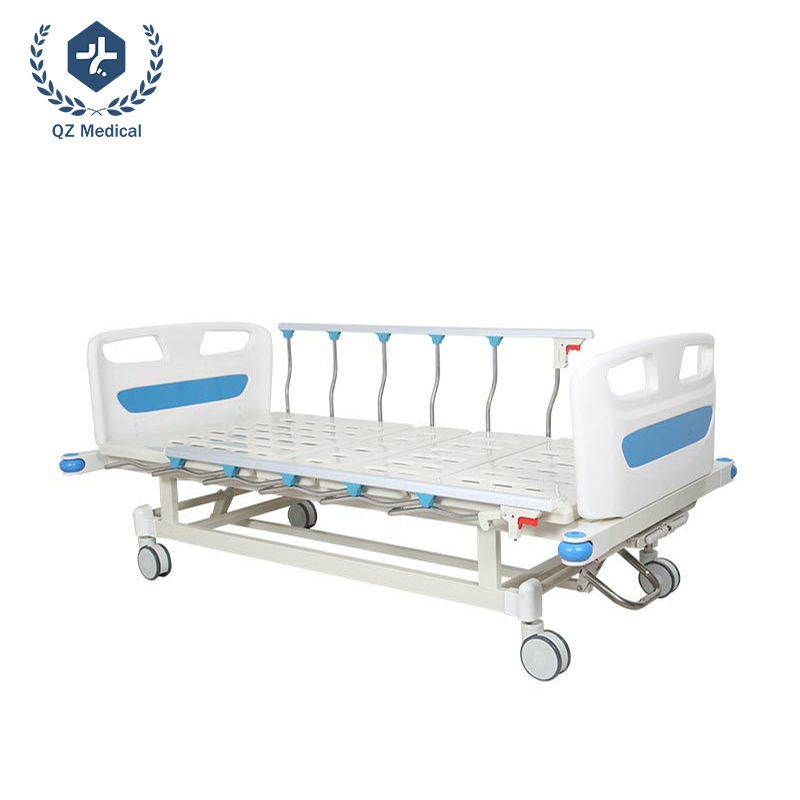

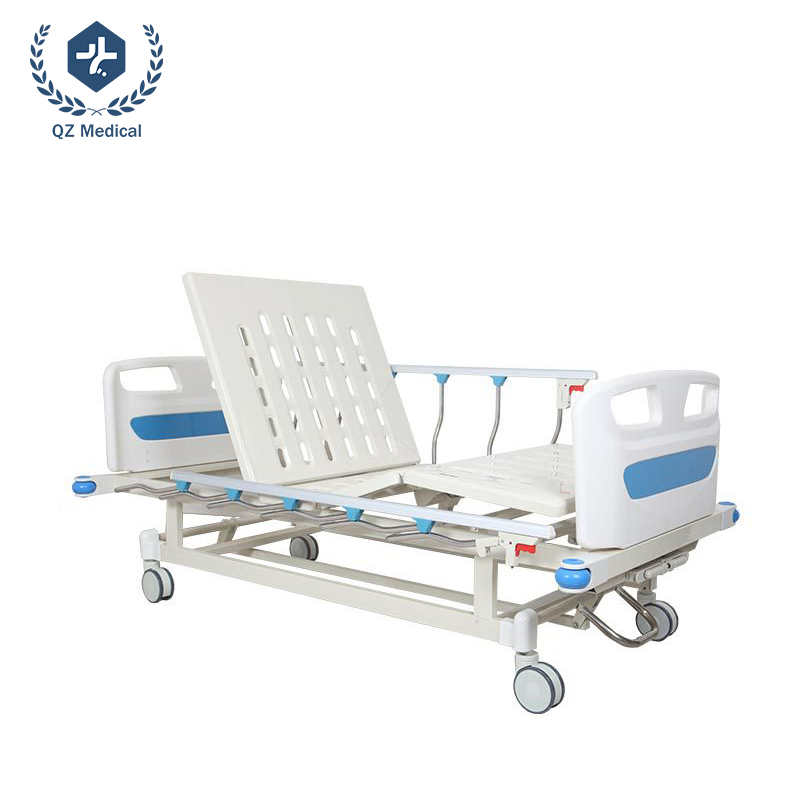

Product Type: Manual Two Function Nursing Bed
Overall Dimensions: 2070 × 1125 × 880 mm
Inner Bed Size: 1980 × 900 × 500 mm
Backrest Adjustment: 0–75°
Leg Elevation: 0–30°
Bed Frame Material: Cold-rolled steel
Bed Surface: Integrated stamped steel panel
Headboard / Footboard: Plug-in injection molded design
Side Rails: L-shaped six-position stainless steel folding rails
Castors: Stainless steel central locking castors
Anti-Collision Wheels: Independent design
IV Pole: Optional
Over-Bed Table: Optional
Storage Rack: Optional
Target Users: Elderly patients, paralyzed patients
Application Areas: Nursing homes, hospitals, home care, long-term care facilities
Technical Specifications
Weight Capacity: 240kg (529lbs)
Frame Material: Stainless steel (30×60×1.5mm tubing)
Bed Dimensions (Expanded): 2070×1125×880mm (outer) / 1980×900×500mm (inner)
Backrest Angle: 0°-75°
Leg Elevation Angle: 0°-30°
Wheel Type: Central-control braking wheels (125mm diameter)
Weight: 78kg
Material & Safety Features
Guardrails: L-Type six-position stainless steel (740×70×360mm, 1.2mm thickness)
Bed Surface: Cold-rolled steel (1.2mm, perforated for breathability)
Frame Coating: Anti-corrosion powder coat (acid/alkali resistant)
Safety: Central-control braking, 240kg load test, rounded edges
Compliance: ISO 10022:2020, CE, EN 12531:2016, FDA 21 CFR 880.6000
Product Advantage
Manual Two-Function Adjustment
The bed supports manual backrest adjustment from 0 to 75 degrees and leg elevation from 0 to 30 degrees. These functions help relieve pressure on the back and legs, improving comfort for long-term bedridden patients and elderly users.
Reinforced Cold-Rolled Steel Structure
The bed frame is manufactured from thickened cold-rolled steel plates and tubing, providing excellent load-bearing capacity and long-term stability. High-quality welding ensures strong structural integrity suitable for continuous institutional use.
Stainless Steel Folding Side Rails
Equipped with L-shaped six-position stainless steel side rails, the bed provides effective fall protection while reducing the risk of impact injuries. The foldable design allows caregivers and family members to assist patients easily when getting on or off the bed.
Central Locking Castor System
The bed is fitted with stainless steel central locking castors. With a single foot pedal operation, all wheels can be locked or released simultaneously, ensuring stable positioning during nursing care and smooth movement when relocation is required.
User-Oriented Safety Details
Independent anti-collision wheels reduce accidental impacts during movement. Thickened injection-molded headboard and footboard offer rounded edges and enhanced durability, improving overall safety in daily use.
Space-Saving and Easy Operation
The foldable manual crank handle is designed to save space and reduce effort during adjustment. Simple mechanical operation makes this bed suitable for environments where electric beds are not required or power supply is limited.
Product Uses
Nursing Homes and Elderly Care Facilities
Provides reliable daily care support for elderly residents, ensuring safety, comfort, and easy operation for caregivers.
Hospitals and General Wards
Suitable for standard wards where manual adjustment meets daily nursing needs and cost control is required.
Long-Term Care Institutions
Supports long-term bedridden patients with stable structure and essential adjustment functions.
Home Care for Paralyzed Patients
Offers a practical solution for families caring for paralyzed or mobility-impaired patients at home.
Medical Equipment Distribution Projects
Ideal for bulk procurement, tenders, and distributor supply requiring durable and cost-effective nursing beds.
FAQ
Q1：Is this nursing bed electric or manual?
A: This is a manual nursing bed. Backrest and leg positions are adjusted using hand cranks.
Q2：What functions does the bed support?
A: It supports two functions: backrest adjustment (0–75°) and leg elevation (0–30°).
Q3：Is the bed suitable for elderly or paralyzed patients?
A: Yes. The bed is designed specifically for elderly users and paralyzed patients requiring long-term care.
Q4：What material is used for the bed frame?
A: The bed frame is made of reinforced cold-rolled steel for durability and stability.
Q5：Are the side rails safe and easy to use?
A: Yes. The stainless steel folding side rails provide effective fall protection and can be folded down easily.
Q6：Does the bed have a braking system?
A: Yes. It features a central locking castor system that allows all wheels to be locked simultaneously.
Q7：Can accessories such as IV pole or over-bed table be added?
A: Yes. Accessories such as IV poles, over-bed tables, and storage racks are available as optional items.
Q8：Do you support OEM or bulk orders for distributors?
A: Yes. We support OEM services and bulk supply for international distributors and institutional projects.
