In high-acuity healthcare environments—including Intensive Care Units (ICUs), Emergency Resuscitation Suites, and Cardiac Care Units (CCUs)—every second dictates clinical survival. When an inpatient experiences sudden cardiac arrest (SCA), resuscitation protocols established by the American Heart Association (AHA) and European Resuscitation Council (ERC) mandate starting immediate closed-chest compressions on a completely flat, rigid surface.
However, hospitalized patients spend much of their day in semi-Fowler or high-Fowler positions, with backrests elevated between 30 degrees and 75 degrees for pulmonary comfort and meal times.
If a patient suddenly collapses, waiting for conventional electric linear actuators to lower the backrest electrically is a dangerous clinical bottleneck. Standard electric motors retract at approximately 1.5 to 2.5 degrees per second, taking 15 to 25 seconds to bring a fully elevated backrest to the horizontal plane. In cardiac arrest, where brain damage begins within 4 minutes of circulatory collapse, a 20-second delay is intolerable.
To eliminate this delay, international hospital equipment standards mandate that acute care beds incorporate an Emergency CPR Quick-Release Mechanism.
This technical guide examines the mechanical engineering, deceleration damping, and clinical compliance requirements behind medical bed CPR mechanisms for hospital procurement teams and equipment distributors.
Modern motorized ICU beds often feature both electronic and mechanical emergency reset mechanisms. However, international regulatory audits emphasize that mechanical mechanisms remain the ultimate failsafe.

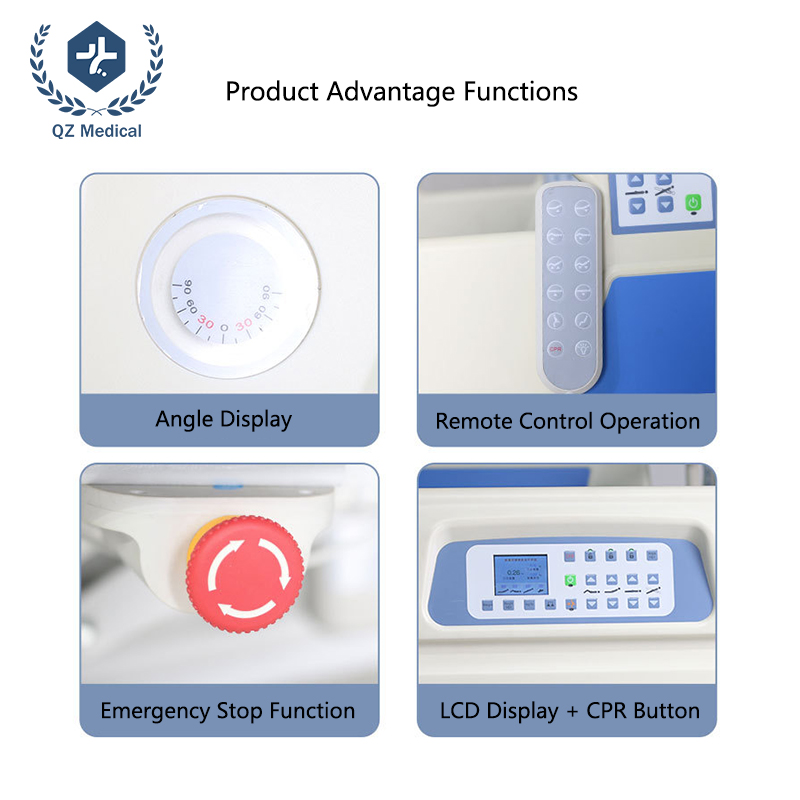

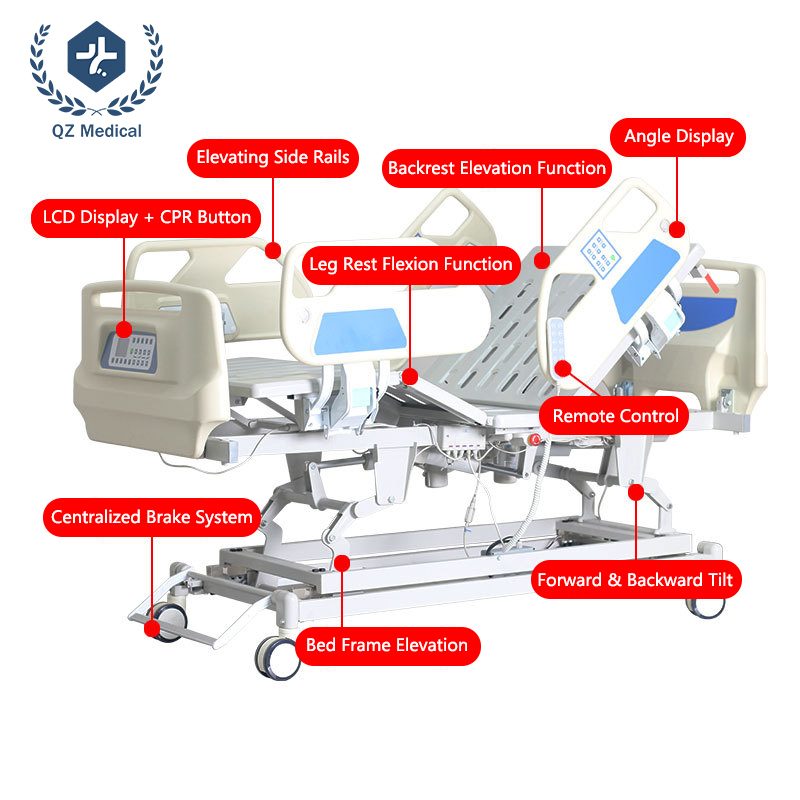

Electric One-Touch CPR Button: Positioned on nurse attendant control panels and LCD footboards. Pressing this button triggers simultaneous multi-motor retraction, leveling the backrest, leg rest, and lowering the bed to CPR working height. However, electric CPR relies entirely on electrical circuitry, live mains power, or battery backups. If an actuator motor burns out, a cable snags, or power trips during a cardiac crisis, electronic systems can stall.
Bilateral Mechanical CPR Release Levers: Mounted directly beneath both sides of the backrest frame. Pulling the bright red mechanical handle disengages the linear actuator's internal lead-screw clutch mechanically via steel tension cables. This allows the backrest to drop flat instantly (in under 2 seconds) completely independent of electrical power or motor function.
While speed is vital during an emergency, an uncontrolled, instant gravitational drop creates severe secondary clinical trauma.
The Whiplash Hazard of Un-Damped Drops: If an un-damped mechanical clutch releases the backrest while a patient's head is elevated at 70 degrees, gravity causes the heavy steel frame and mattress to slam down instantly onto the base chassis in less than 0.3 seconds. This sudden shock load causes severe cervical spine whiplash, risks head concussions against the deck, and damages the mechanical gearing inside the actuator.
Controlled Gas-Spring Deceleration Damping: Engineered medical beds integrate hydraulic or pressurized gas-spring dampers aligned parallel to the lifting linkage. When the CPR handle is pulled, the damper cushions the downward descent, achieving a controlled, smooth descent that flattens the backrest in under 2 seconds (typically 1.0 to 1.5 seconds). This protects the patient's cervical vertebrae while delivering the rapid flattening required for defibrillation.
Effective CPR requires clinical rescuers to compress the adult sternum to a depth of 50 mm to 60 mm (5 to 6 cm) at a rate of 100 to 120 compressions per minute.
The Problem of Soft or Flexible Decks: If the bed platform flexes, sags, or bounces under vertical chest compression forces, up to 40% of the nurse's compression energy is absorbed by the flexible bed frame rather than circulating blood through the patient's heart.

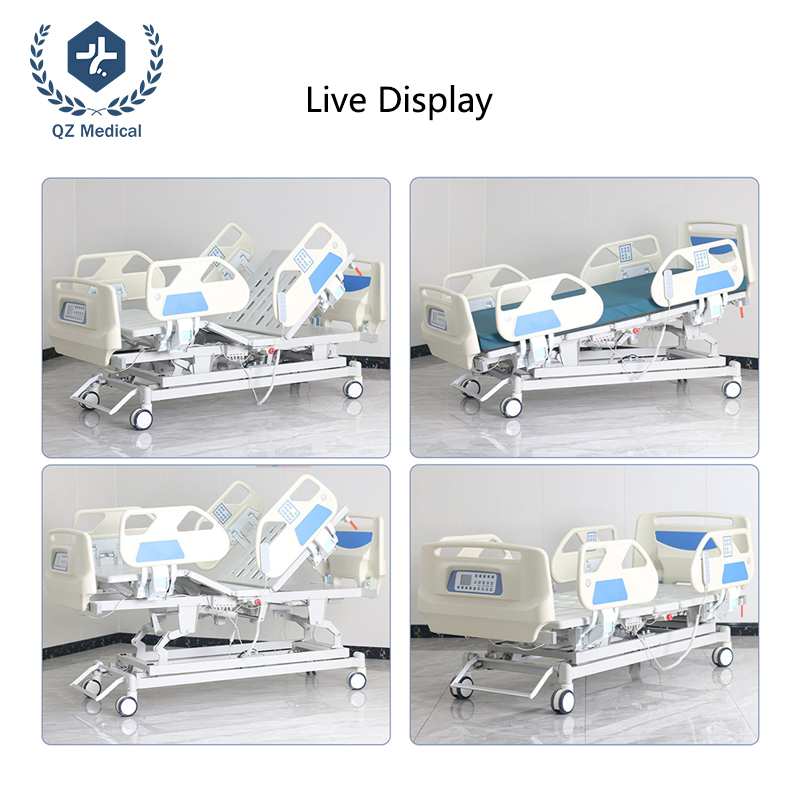

Thickened Cold-Rolled Steel Construction: High-acuity beds are fabricated using 1.2 mm cold-rolled steel square tubing and one-piece die-stamped steel decks. Supported by reinforced crossbeams, the platform provides unyielding rigid counter-pressure beneath the thoracic spine, supporting working loads from 200 kg to 250 kg (440 to 550 lbs) without structural deflection.
Radio-Translucent Options & Deflatable Mattresses: In specialized cardiac catheterization wards, backrests incorporate radio-translucent phenolic laminate backplates that allow immediate bedside X-ray fluoroscopy without moving the patient off the bed. Specialized ICU dynamic air mattresses include a mechanical twist valve that dumps internal air in under 5 seconds to bring the patient directly against the rigid deck.
Emergency CPR functionality is a core inspection criteria during hospital accreditation audits by the Joint Commission International (JCI) and national healthcare safety boards.
IEC 60601-2-52 Clause 201.12.4.101 (Emergency Release): International electro-medical safety standards dictate that:
The CPR release mechanism must be accessible from both lateral sides of the bed without tools or reaching across the patient;
The control handles must be clearly identified with high-contrast red coloring and clear directional emergency graphics;
Single-operator activation must be achievable with one hand while keeping the other hand free to support the patient's airway.
Factory Proof-Load & Cycle Testing: Under our ISO 13485 medical manufacturing protocols, every production lot of CPR release mechanisms undergoes dynamic cycle drop tests to verify that clutches disengage cleanly without binding or cable slippage.
Standard Export Logistics: In accordance with international shipping standards for clinical ward beds, 76 complete units load into a standard 40ft High Cube (40HQ) container (approximately 32 to 36 units per 20GP container), packed in knockdown flat-pack cartons that preserve mechanical linkages and alignment during ocean transit.
Performance Parameter | Standard Ward Electric Bed | Emergency CPR-Equipped Clinical Bed |
Backrest Lowering Speed | 15 – 25 seconds (Actuator only) | Under 2 seconds (Instant mechanical release) |
Emergency Power Dependency | Fails if power or battery cuts out | 100% Mechanical zero-power operation |
Descent Control | Motorized gradual step | Hydraulic / Gas-spring cushioned drop |
Handle Accessibility | Remote handset keypad only | Dual bilateral high-contrast red side handles |
Thoracic Rigidity Under Load | Standard sheet metal | Reinforced 1.2 mm cold-rolled steel deck |
Hospital Audit Compliance | General ward standard | JCI & IEC 60601-2-52 Acute Care Certified |
For emergency departments, surgical recovery wings, and intensive care units, selecting hospital beds equipped with damped mechanical CPR quick-release handles is an indispensable patient safety requirement. By investing in beds that feature bilateral red release levers, under 2-second gas-spring controlled descent, and rigid cold-rolled steel decks, hospital administrators eliminate resuscitation delays, ensure JCI audit readiness, and protect patient survival during critical cardiac emergencies.
