Technical Parameters

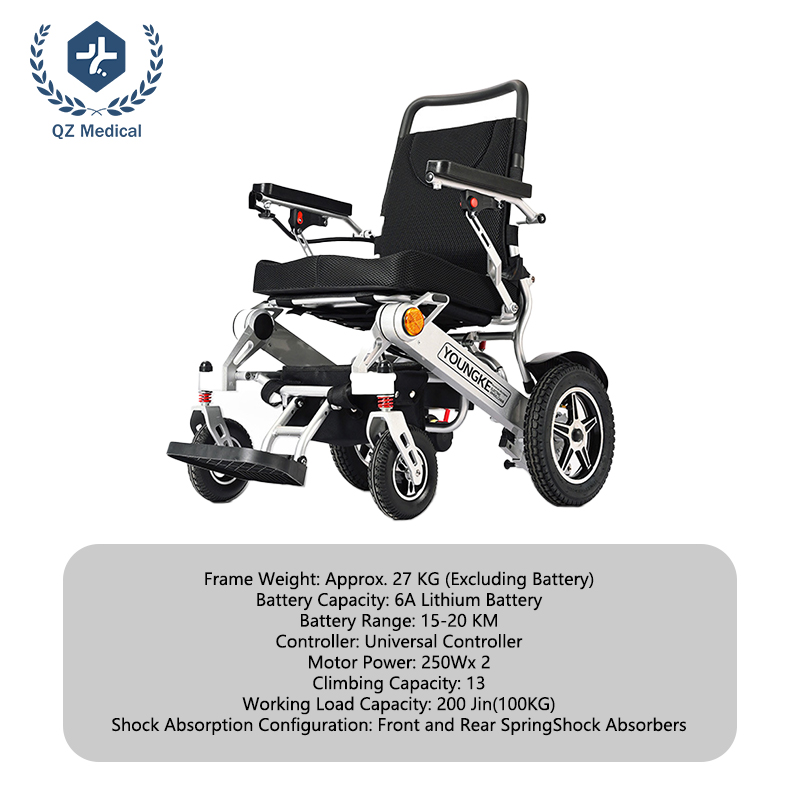

Product Type: Electric Wheelchair
Frame Material: Full aluminum alloy
Motor Power: 250W × 2
Battery Type: 24V lithium battery (airline compliant)
Battery Capacity: 6Ah
Driving Range: 15–20 km
Maximum Speed: 6.0 km/h (5 adjustable speed levels)
Climbing Ability: ≤13°
Maximum Load Capacity: 200 kg
Braking System: Electromagnetic automatic braking
Control System: Joystick controller, remote control, smartphone APP
Suspension: Front and rear spring shock absorption
Frame Weight: Approx. 27 kg (without battery)

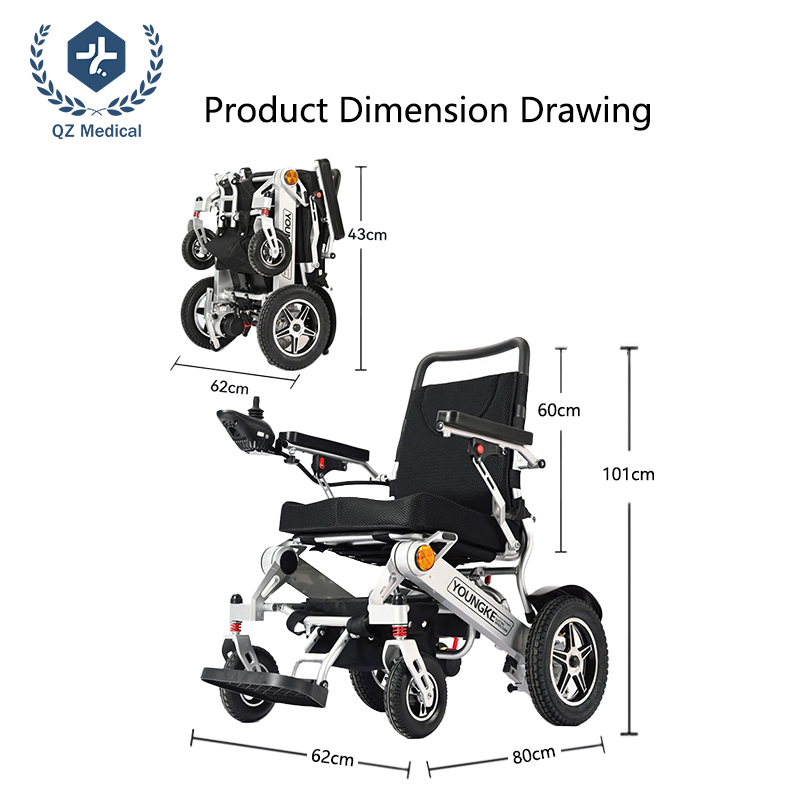

Expanded Dimensions: 80 × 62 × 101 cm
Folded Dimensions: 63 × 42 cm
Waterproof Level: IPX5
Technical Specifications
Weight Capacity: 200lbs (90kg)
Frame Material: Aerospace-grade aluminum alloy (lightweight, corrosion-resistant)
Weight: 27kg (without battery)
Folded Dimensions: 63×42cm
Expanded Dimensions: 80×62×101cm
Battery: 6Ah lithium (UN38.3 certified)
Range: 15-20km
Motor: Dual 250W (400W total)
Speed Settings: 5 levels (2-6km/h)
Braking System: Electromagnetic (instant stop on slopes)
Charging Time: 4-6 hours
Tires: 360° universal casters (6-inch front, 12-inch rear)
Waterproof Rating: IPX5
Safety Features: Rear anti-tilt wheel, adjustable seatbelt, double-bearing suspension
Material & Safety Features
Frame: Aerospace-grade aluminum alloy, 100% corrosion-resistant
Backrest: S-shaped ergonomic design (reduces spinal pressure)
Seat: Breathable mesh fabric with extra padding
Suspension: Front and rear spring suspension
Compliance: UN38.3, IPX5, CE, ISO 9001
Included Accessories
Ultra-Smart Electric Wheelchair (1 unit)
6Ah lithium battery (UN38.3 certified)
App remote controller (10-meter range)
Charging cable
User manual (multilingual)
Storage pocket (rear)
Carrying strap
Product Advantage

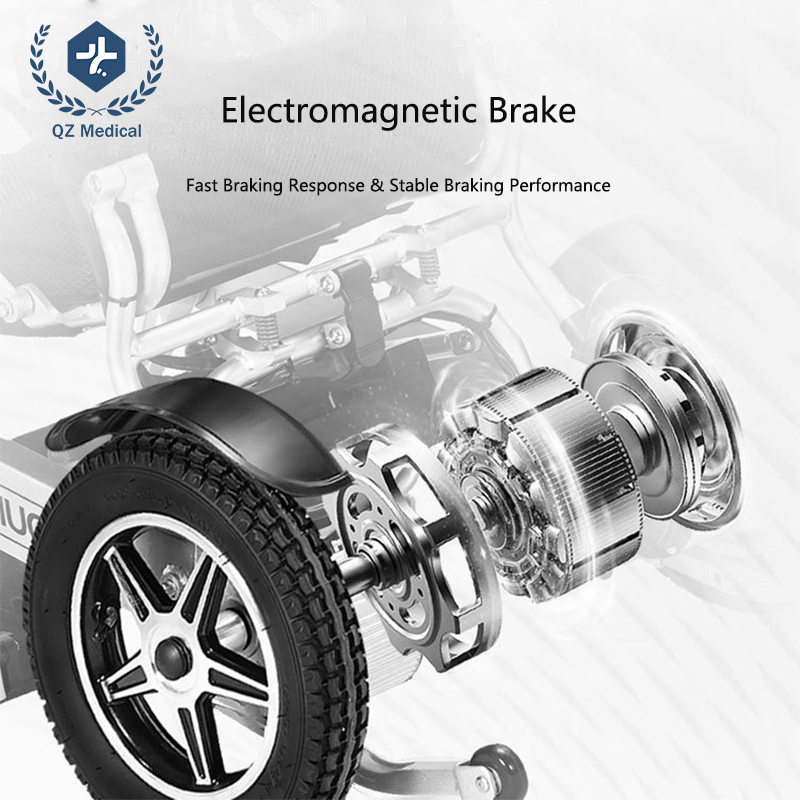

Advanced Electromagnetic Braking System
Equipped with a high-performance electromagnetic braking system, the wheelchair automatically brakes when the user releases the control, ensuring safety on slopes and uneven surfaces. The braking system responds instantly and remains effective even during power interruption, providing high safety assurance for elderly users.
Strong Power and Road Adaptability
Powered by dual high-torque motors, the wheelchair easily handles slopes up to 13 degrees and can cross obstacles up to 4 cm. It is suitable for multiple surfaces, including paved roads, speed bumps, park walkways, wooden decks, and uneven ground.
Adjustable Speed and Beginner Mode
The wheelchair offers five adjustable speed levels, ranging from 2.0 km/h to 6.0 km/h. The beginner mode ensures safe operation for first-time users, making it friendly for elderly individuals with limited experience.
Foldable Design for Easy Transportation
The compact folding design allows the wheelchair to be stored easily in car trunks or transported during travel. The lithium battery meets airline transportation standards, making it suitable for air travel and public transportation.
Dual Manual and Electric Mode
The wheelchair supports quick switching between electric and manual modes. Users or caregivers can easily change modes using a simple lever, ensuring flexibility in different usage scenarios.
Product Uses
Elderly Care and Nursing Homes
Provides reliable mobility support for elderly residents, improving independence while ensuring safety through stable braking and ergonomic design.
Hospitals and Rehabilitation Centers
Suitable for indoor patient transfer and rehabilitation assistance, offering smooth control and easy maneuverability in medical environments.
Home Care Use
Lightweight structure and simple controls allow family caregivers to assist users safely at home or outdoors.
Travel and Outdoor Mobility
Foldable structure and airline-compliant battery enable users to travel conveniently, supporting mobility during trips and daily outings.
Medical Equipment Distribution Projects
Ideal for distributors supplying mobility aids to healthcare institutions, elderly care facilities, and rehabilitation projects.
FAQ
Q1：Is this electric wheelchair suitable for elderly users?
A: Yes. It is designed specifically for elderly and mobility-impaired users, with ergonomic seating, simple controls, and advanced safety features.
Q2：What material is used for the wheelchair frame?
A: The frame is made of full aluminum alloy, providing high strength, corrosion resistance, and lightweight performance.
Q3：Does the wheelchair have an automatic braking system?
A: Yes. It features an electromagnetic braking system that automatically stops the wheelchair when the control is released or power is interrupted.
Q4：What is the maximum travel range per charge?
A: The wheelchair offers a driving range of approximately 15–20 km, depending on usage conditions.
Q5：Can the wheelchair be used on slopes or uneven surfaces?
A: Yes. With dual high-torque motors, it supports slopes up to 13 degrees and adapts well to various road conditions.
Q6：Is the battery suitable for air transportation?
A: Yes. The lithium battery complies with airline transportation standards and is certified under UN38.3 regulations.
Q7：Can caregivers control the wheelchair remotely?
A: Yes. The wheelchair supports remote control and smartphone APP operation within a 10-meter range.
Q8：Do you offer OEM or bulk supply for distributors?
A: Yes. We provide OEM and ODM services and support bulk orders for international distributors and project buyers.
