Technical Parameters
Technical Specifications

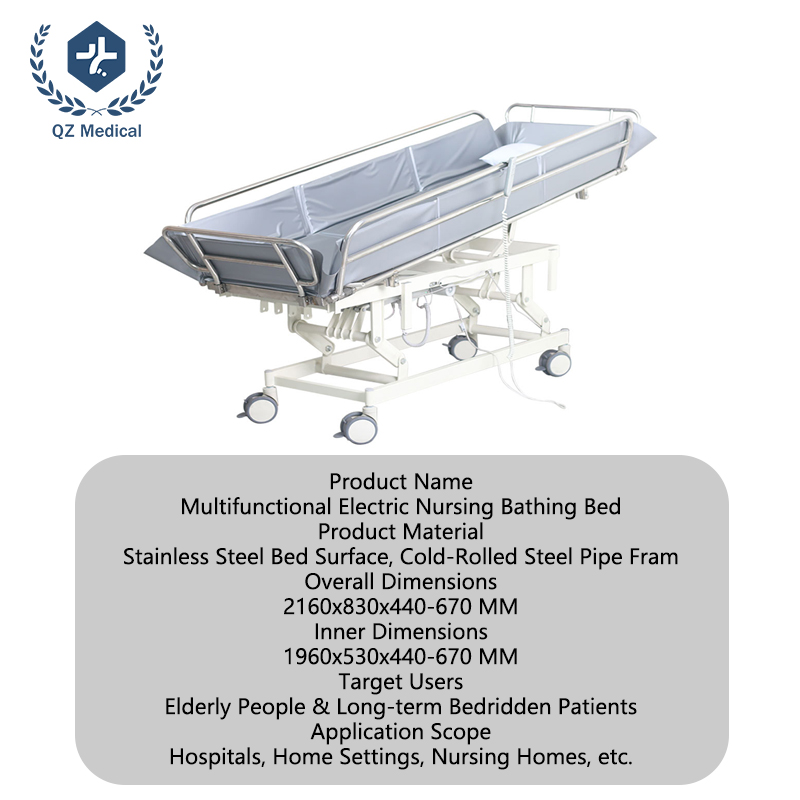

Model Number: MC-02
Weight Capacity: 150kg (330 lbs)
Frame Material: Cold-rolled steel with powder coating
Bed Surface Material: Stainless steel with non-rusting finish
Height Adjustment Range: 440-670mm
Back Tilt Angle: 0°-60°
Wheel Type: Quiet multi-directional casters with centralized braking
Weight: 35kg (77 lbs)
Outer Dimensions (Folded): 2160×830×440mm
Outer Dimensions (Extended): 2160×830×670mm
Inner Dimensions (Folded): 1960×530×440mm
Inner Dimensions (Extended): 1960×530×670mm
Material Specifications
Frame: Cold-rolled steel (2.0mm thickness), powder-coated finish
Bed Surface: Stainless steel (1.5mm thickness), non-rusting
Mattress: Removable PVC waterproof mattress, 2.5mm thickness
Wheels: Polyurethane with precision ball bearings
Hardware: Stainless steel fasteners, zinc-plated components
Performance Standards
Durability Testing: 50,000-cycle fatigue testing on all moving components
Load Testing: 120% load capacity verification (180kg)
Safety Compliance: CE marking, ISO 13485:2016 certified
Water Resistance: IPX4 water resistance, with integrated drainage system
Environmental Rating: Operating temperature -10°C to +50°C
Assembly Time: 5 minutes with one person, tool-free design

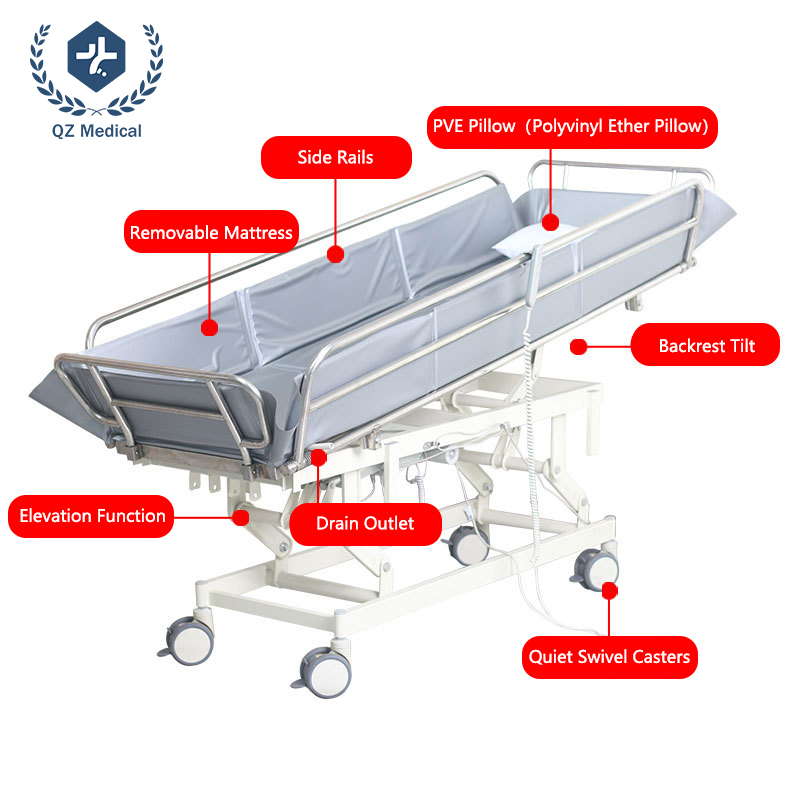

Included Accessories
Multi-functional nursing bathing bed frame
Stainless steel bed surface
Removable PVC waterproof mattress
PVE head pillow with drainage system
Foldable safety rails
Multi-directional casters with centralized braking
User manual (multilingual)
Drainage plug
Technical Specifications:
Weight Capacity: 180kg (397 lbs) static load
Frame Construction: 2.2mm thickness cold-rolled steel tubing with electrostatic powder coating
Overall Dimensions: 2050mm × 1020mm × 430-700mm (L×W×H, with mattress installed)
Mattress Platform: 1900mm × 900mm × 60mm (removable therapeutic mattress)
Backrest Adjustment: 0-75° electric operation with smooth motorized movement
Leg Elevation: 0-35° electric operation with synchronized movement
Height Adjustment: 430-700mm electric operation with central lifting mechanism
Guardrail System: Height-adjustable solid wood guardrails with sliding mechanism, 400mm effective height
Control System: Wireless remote control with backlit buttons, emergency stop function, programmable position memory
Motor System: Three 24V DC motors with thermal overload protection, <35dB noise level
Casters: Four 100mm diameter medical-grade polyurethane casters (two with central locking brake), 360° rotation capability
Headboard/Footboard: Removable solid rubberwood panels with non-toxic, low-VOC finishes
Material Specifications:
Primary Frame: Q235B cold-rolled steel, 2.2mm wall thickness, powder coated finish
Wooden Components: Solid rubberwood (Hevea brasiliensis) with FSC certification, kiln-dried to 8-10% moisture content
Mattress Construction: High-resilience foam core (30D density), removable cotton cover with zipper access, antimicrobial treatment
Hardware: Stainless steel grade 304 fasteners, zinc-plated moving components
Surface Finishes: Water-based, low-VOC sealants for wooden components, electrostatic powder coating for steel frame
Electrical Components: Medical-grade wiring with flame-retardant insulation, sealed connectors IPX4 rating
Performance Standards:
Durability Testing: 80,000 cycle fatigue testing on all motors and mechanisms
Load Testing: 200kg static load capacity verification with 1.5 safety factor
Safety Compliance: CE marking per MDD 93/42/EEC, ISO13485:2016 certified manufacturing, IEC60601-1:2012 electrical safety
Environmental Rating: Operating temperature 5°C to 40°C, humidity tolerance up to 80% RH
Noise Level: <35dB during operation at 1 meter distance
Emergency Functions: Emergency stop response time <0.2 seconds, manual lowering capability during power failure
Assembly Time: 25-30 minutes with two persons, includes pre-assembled major components
Included Accessories:
Wireless remote control with wrist strap and wall mount bracket
Height-adjustable solid wood guardrails (pair)
Removable solid rubberwood headboard and footboard panels
6cm therapeutic mattress with removable cotton cover
Four 100mm medical-grade casters with central locking mechanism
Tool kit with Allen wrenches and installation manual
User manual and maintenance guide (multilingual)
Packaging Information:
Main Frame Carton: 2100mm × 1080mm × 300mm, weight 40kg
Wooden Components Carton: 900mm × 600mm × 180mm, weight 18kg
Mattress Carton: 1950mm × 950mm × 200mm, weight 15kg
Motor System Carton: 550mm × 450mm × 350mm, weight 8kg
Accessories Carton: 500mm × 400mm × 300mm, weight 4kg
Gross Weight per Complete Set: 85kg
Container Loading: 70 sets per 40HQ container (96% space utilization)
Application Environments:
Home healthcare and residential care settings
Senior living communities and assisted living facilities
Nursing homes and long-term care institutions
Rehabilitation centers and physical therapy clinics
Memory care units and dementia care facilities
Hospice care and palliative medicine facilities
Rural healthcare clinics and community health centers
Product Advantage
Complete Bathing Solution for Caregivers and Patients
This multi-functional nursing bathing bed eliminates the need for multiple pieces of equipment, offering a comprehensive bathing solution in one unit. The height adjustment feature allows the bed to be raised or lowered to the optimal position for both caregivers and patients, reducing back strain during bathing. The waterproof PVC mattress is easily removable for cleaning and prevents bacterial growth, ensuring a hygienic bathing environment. The back tilt function provides comfortable positioning for patients during bathing, while the PVE head pillow with drainage system prevents water from entering the patient's head, making the bathing process smooth and worry-free.
Durable Stainless Steel Construction
The bed features a stainless steel bed surface with a non-rusting, corrosion-resistant finish, ensuring long-lasting durability even in high-moisture environments. The cold-rolled steel frame provides exceptional stability and strength, supporting up to 150kg weight capacity. The bed surface is designed with a gentle slope to facilitate water drainage, preventing water accumulation and maintaining a dry, hygienic environment. The integrated drainage system with built-in outlet ensures quick and easy water removal after bathing, reducing the risk of mold and bacteria growth.
Innovative Safety Features for Peace of Mind
Safety is paramount with this nursing bed, featuring foldable safety rails that can be rotated 180° for easy patient access while preventing falls. The rails are designed to be easily adjustable to accommodate different patient needs and positions. The quiet multi-directional casters with advanced braking technology provide stable movement and secure positioning, ensuring the bed remains in place during bathing. The PVE head pillow with drainage system ensures the patient's head stays dry during the bathing process, enhancing comfort and safety.
Product Uses
Home Care for Elderly and Disabled Individuals
For home caregivers, this multi-functional nursing bathing bed provides a cost-effective solution for daily bathing needs. The height adjustment feature allows caregivers to position the bed at the optimal height for comfortable bathing assistance, reducing back strain. The waterproof mattress and drainage system make post-bathing cleanup quick and hygienic, while the back tilt function ensures patients are comfortable during the bathing process. The foldable safety rails provide peace of mind, preventing falls during bathing, and the PVE head pillow ensures the patient's head stays dry, making the entire bathing experience comfortable for both caregiver and patient.
Hospital and Long-Term Care Facilities
In hospital environments, this nursing bathing bed offers reliable support for patients requiring regular bathing assistance. The stainless steel construction ensures durability in high-use settings, while the waterproof mattress and drainage system maintain a clean and hygienic environment, reducing the risk of infections. The back tilt function allows medical staff to position patients comfortably for bathing, and the height adjustment feature makes it easier for staff to assist patients without straining their backs. The foldable safety rails provide an added layer of security during bathing procedures, making this bed an essential piece of equipment in hospital and nursing home settings.
Rehabilitation Centers and Physical Therapy
For rehabilitation centers, this multi-functional nursing bathing bed provides a valuable tool for patient care. The back tilt function can be adjusted to specific angles for therapeutic positioning during bathing, aiding in the recovery process. The waterproof mattress and drainage system ensure that the bed remains clean and hygienic after each use, which is critical in rehabilitation settings. The foldable safety rails allow for easy patient access during bathing, and the height adjustment feature ensures that therapists can work at a comfortable level, reducing strain on their own bodies while providing quality care.
FAQ
Q1: What safety certifications does this multi-functional nursing bathing bed comply with for international markets?
A: The multi-functional nursing bathing bed complies with international safety standards including CE marking, ISO 13485:2016 for medical devices, and ASTM F2712-15 for mobility aids. It has undergone rigorous testing for stability, load capacity, and durability to ensure it meets the highest safety standards. We provide complete certification documentation for customs clearance in major markets including EU, USA, Canada, Australia, and the Middle East, making it easy for international buyers to import and sell this product as a compliant medical device.
Q2: What is the warranty period and what after-sales support services are provided for this bathing bed in the global market?
A: We offer a comprehensive 2-year warranty on the structural components and 1-year warranty on moving parts and accessories. Our global after-sales network includes authorized service centers in 30+ countries with 72-hour response time for technical support. We provide 24/7 multilingual customer support via email, phone, and WhatsApp, plus regular online training sessions for healthcare facility staff. For bulk orders above 50 units, we offer on-site installation training and preventive maintenance programs, ensuring your business can provide reliable care to patients while maintaining product quality.
Q3: How is the product packaged for international shipping to ensure safe delivery and what are the container loading specifications for this nursing bathing bed?
A: Each nursing bathing bed is professionally packaged in a reinforced export carton with multi-layer protection: the main frame in a 120×80×50cm carton with internal foam corner protection, and the accessories in a smaller 50×40×30cm carton. Total gross weight per unit: 35kg. We optimize packaging for container efficiency - a 40HQ container holds 150 units with 95% space utilization. All packaging meets ISTA 3A international shipping standards with moisture-proof treatment and clear handling instructions, ensuring your products arrive in perfect condition for the global market.
Q4: Can the bed be customized to meet specific market requirements for the nursing bathing bed?
A: Yes, we offer extensive customization options to meet diverse market needs. Technical customizations include color options (standard white, silver, or custom RAL colors), logo branding on the frame and controls, and additional safety features. For institutional customers, we can integrate facility-specific safety protocols or add custom features. Minimum order for customization is 50 units, with engineering consultation fees waived for orders above 200 units. Our customization services are designed to help you stand out in competitive markets and meet specific customer needs for nursing bathing beds.
Q5: What is the minimum order quantity (MOQ) and typical lead time for bulk shipments of the multi-functional nursing bathing bed?
A: Standard MOQ is 10 units for mixed configurations. For exclusive distributor agreements in new markets, we offer flexible MOQ starting from 5 units with progressive pricing tiers. Standard production lead time is 20-25 working days after order confirmation and deposit payment. For urgent orders, we maintain ready stock of 50 units with 5-7 day dispatch capability. Large volume orders (100+ units) receive priority production scheduling with guaranteed delivery timelines, making it easy to meet your business needs for high-demand nursing bathing beds.
Q6: How does the bed perform on uneven surfaces and what maintenance is required for the nursing bathing bed in high-moisture environments?
A: The bed's multi-directional casters with centralized braking system provide excellent stability on most indoor surfaces, including hardwood, tile, and carpet. The anti-collision wheels and sturdy frame ensure smooth operation on minor floor irregularities. Recommended maintenance includes regular cleaning of the bed surface and waterproof mattress to remove debris, checking the stability of the frame, and ensuring the wheels are free from obstructions. The stainless steel frame is resistant to corrosion, ensuring long-term durability even in high-moisture environments, making it ideal for the nursing bathing bed market.
Q7: What training and technical documentation is provided for healthcare facility staff using the nursing bathing bed?
A: We provide comprehensive training and documentation packages tailored for institutional use. Standard documentation includes multilingual user manuals (English, Spanish, French, German, Arabic), detailed assembly guides, and maintenance schedules. Training resources include step-by-step video tutorials covering all functions and safety procedures, interactive 3D assembly simulations accessible via QR codes, and downloadable PowerPoint presentations for staff training sessions. For orders above 20 units, we offer live virtual training sessions via Zoom/Teams with certified product specialists, ensuring your staff can maximize the benefits of this innovative nursing bathing bed.
Q8: What payment terms, shipping options, and customs clearance assistance are available for international orders of the multi-functional nursing bathing bed?
A: We offer flexible payment terms: 30% deposit with 70% balance before shipment (T/T), irrevocable letter of credit at sight (L/C), and for established partners with 2+ years cooperation, 60-day credit terms. Shipping options include FOB Shanghai ports, CIF to destination ports worldwide, and DDP door-to-door delivery with full customs clearance assistance. We partner with premium freight forwarders offering real-time shipment tracking, cargo insurance up to 110% of goods value, and dedicated customs brokers in major destination countries, making international trade with us seamless and hassle-free for the nursing bathing bed market.
